Wide Angle belt Product Features

The Yonghang superflex（wide angle）belt unique 60°angle and polyurethane construction of the wide-angle belt allow it to withstand greater loads and service life in small spaces and at high speeds than Wide Angle V Belt.

● High modulus, new formulated polyurethane compound, superior to conventional belt materials, offers high fatigue and wear resistance and a high friction coefficient. It also improves adhesion to the tensile cords.

●Polyurethane is extremely resistant to heat, chemicals and oil.

●Uniformity throughout wide angle beltis ensured because the polyurethane compound is not layered but cast without overlaps for smooth running and low vibration.

●Ribbed top provides lateral rigidity without increasing bending stresses.

●The 60° angle results in better support of the tensile section, and provides a more even load distribution.

Product Information

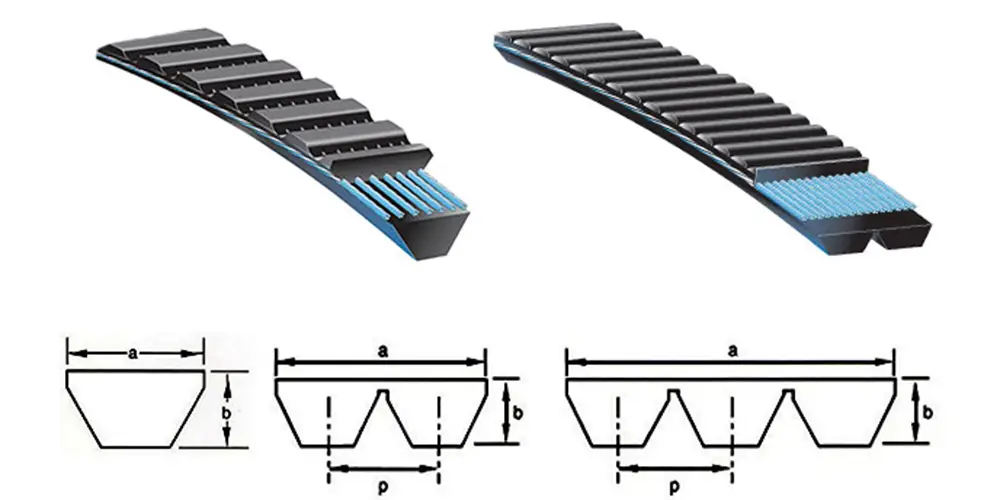

Sections and nominal dimensions
Section	a=Width(mm)a	b=Height (mm)	Length range
			(effective length - mm)
3M	0.12"(3.0mm)	0.08"(2.0mm)	180 - 750
5M	0.20"(5.0mm)	0.12"(3.0mm)	400 - 1450
7M	0.28"(7.0mm)	0.20"(5.0mm)	500 - 2180
11M	0.43"(11.0mm)	0.28"(7.0mm)	710 - 2300

Model		Width(a)		thikness(b)		Angle	toothpitch（P）
		inch	mm	inch	mm
R5M	2 links	0.39	9.8	0.13	3.3	60°	0.21" (5.3mm)
	3 links	0.59	15.1
R7M	2 links	0.61	15.6	0.21	5.3	60°	0.33" (8.5mm)
	3 links	0.95	24.1
R11M	2 links	0.96	24.4	0.28	7	60°	0.52"(13.2mm)

Ordering Code

5M710

5M - Section
710 - Effective length (mm)

3R7M1150

3-Group

7M - Section

1150 - Effective length (mm)

Commonly Used wide angle Belts Size Contents

5M	7M		11M
5M437	7M710	7M1400	11M800	11M1750
2/5M437	2/7M710	2/7M1400	2/11M800	2/11M1750
3/5M437	3/7M710	3/7M1400	3/11M800	3/11M1750
5M475	7M730	7M1500	11M1090	11M1850
5M515	2/7M730	2/7M1500	11M1120	2/11M1850
2/5M515	3/7M730	3/7M1500	11M150	3/11M1850
3/5M515	7M925	7M1550	2/11M1090	11M1900
5M670	2/7M925	2/7M1550	3/11M1090	2/11M1900
2/5M670	3/7M925	3/7M1550	11M1320	3/11M1900
3/5M670	7M950	7M1600	2/11M1320	11M1950
5M690	2/7M950	2/7M1600	3/11M1320	2/11M1950
2/5M690	3/7M950	3/7M1600	11M1400	3/11M1950
3/5M690	7M1030	7M1650	2/11M1400	11M2120
5M900	2/7M1030	2/7M1650	3/11M1400	2/11M2120
2/5M900	3/7M1030	3/7M1650	11M1450	3/11M2120
3/5M900	7M1120	7M1750	2/11M1450	11M2180
5M1060	2/7M1120	2/7M1750	3/11M1450	2/11M2180
2/5M1060	3/7M1120	3/7M1750	11M1500	3/11M2180
3/5M1060	7M1150	7M1800	2/11M1500	11M2240
5M1180	2/7M1150	2/7M1800	3/11M1500	2/11M2240
2/5M1180	3/7M1150	3/7M1800	11M1550	3/11M2240
3/5M1180	7M1180	7M1850	2/11M1550	11M2300
5M1450	2/7M1180	2/7M1850	3/11M1550	2/11M2300
2/5M1450	3/7M1180	3/7M1850	11M1600	3/11M2300
3/5M1450	7M1220	7M1900	2/11M1600
	2/7M1220	2/7M1900	3/11M1600
	3/7M1220	3/7M1900
	7M1320	7M2180
	2/7M1320	2/7M2180
	3/7M1320	3/7M2180
	7M1360
	2/7M1360
	3/7M1360
