coated V belt for bamboo chopstick making machine

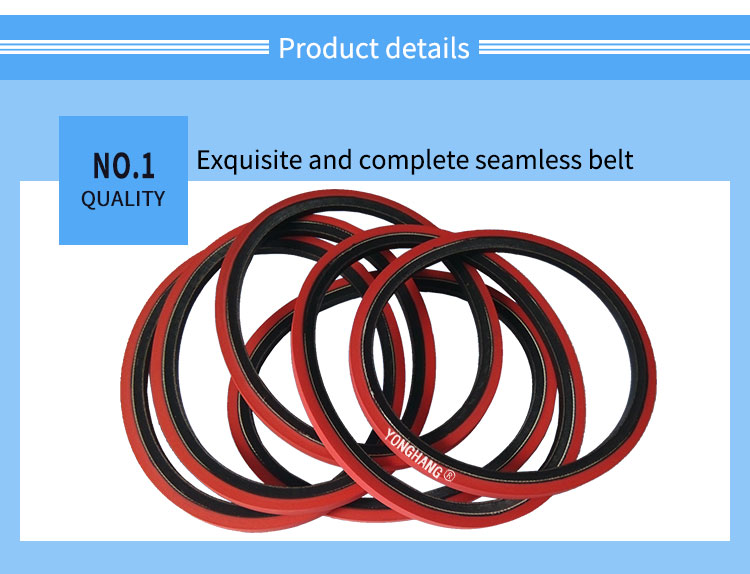

Top coated v-belts are fit for conveyer purposes. Top coatings are all welded (not glued)
to ensure a strong and long lasting connection with the belt. Both the v-belt and the coating are truly endless.

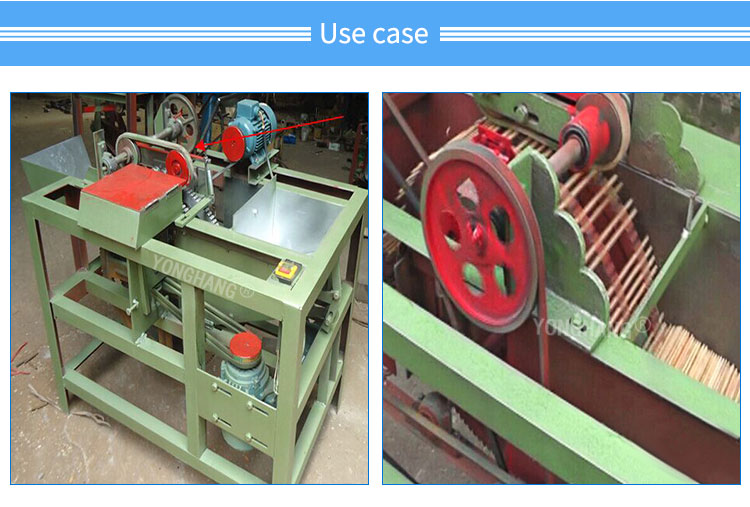

We can coat our full range of belts. use for chopstick making machine .
Characteristic:
1. Truly endless vulcanized rubber coatings
2. Rubber hardness 40ShA - 70 ShA
3. Smooth or profiled top side
4. Standard and special V-belt sizes
5. Brown/Red /White

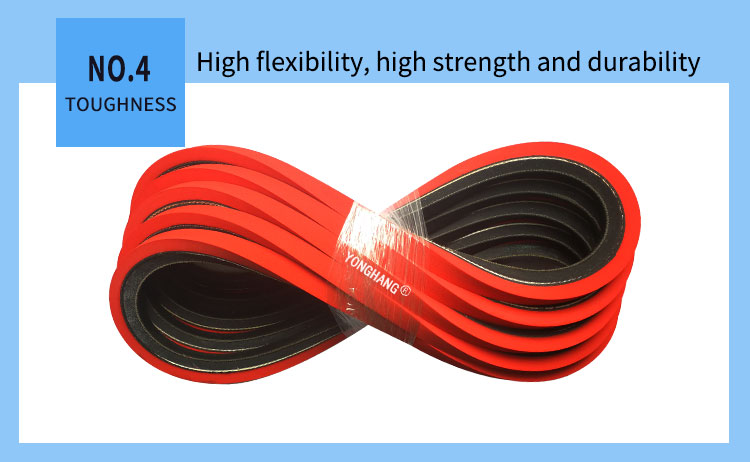

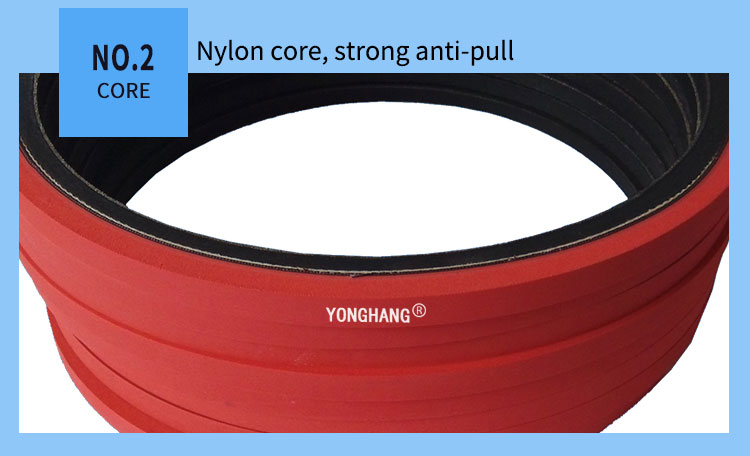

Yonghang Professional Custom-Made Disposable Bamboo and Wooden Chopstick Machine, Sharpening Machine, and Grinding Machine Dedicated Adhesive-Coated Triangular Belt, manufactured using a mature molded one-piece vulcanization process, seamless and joint-free, The skeleton material is high-strength nylon core rope, offering strong tensile strength. The belts are made from imported virgin rubber as the primary raw material, with the addition of special wear-resistant fibers, providing excellent flexibility, enhanced friction, minimal wear and tear, and greater durability. Compared to conventional belts with joined rings, these belts have a 1.5 times longer service life and superior quality compared to industry peers! Suitable for high-speed applications, commonly used in the woodworking industry for chopstick machines! Yonghang Company has over 8,000 production molds, supporting customization, including customizable length, width, and thickness. V-belts of various models such as O, A, B, C, D, SPZ, SPA, SPB, XPB, XPZ, XPA, etc., can be customized, and a 6-month warranty is provided.
| Products Presentation/Parameters | ||
| Company | Guangzhou Yonghang Transmission Belt Co., Ltd. | |
| Product | coated v-belts | |
| NO. | Project | Result |
| 1 | specifications | A B C D E SPA SPB SPZ XPA XPB XPZ |
| 2 | Working temperature | ﹣20°C to —85°C |
| 3 | Applications | Production and manufacturing of chopsticks and bamboo skewers |
| 5 | Length Scope（mm） | 500-5000mm |
| 6 | Width Scope（mm） | 13-450mm |
| 7 | Thickness Scope（mm） | 8-50mm |
| 8 | Base Material | rubber |
| 9 | Coating colour | Red, Yellow, Blue, White, Green |
| 10 | Coating | rubber |
| 11 | Coating Hardness | 45-65° A |
| 16 | Wire core | aramid fiber |

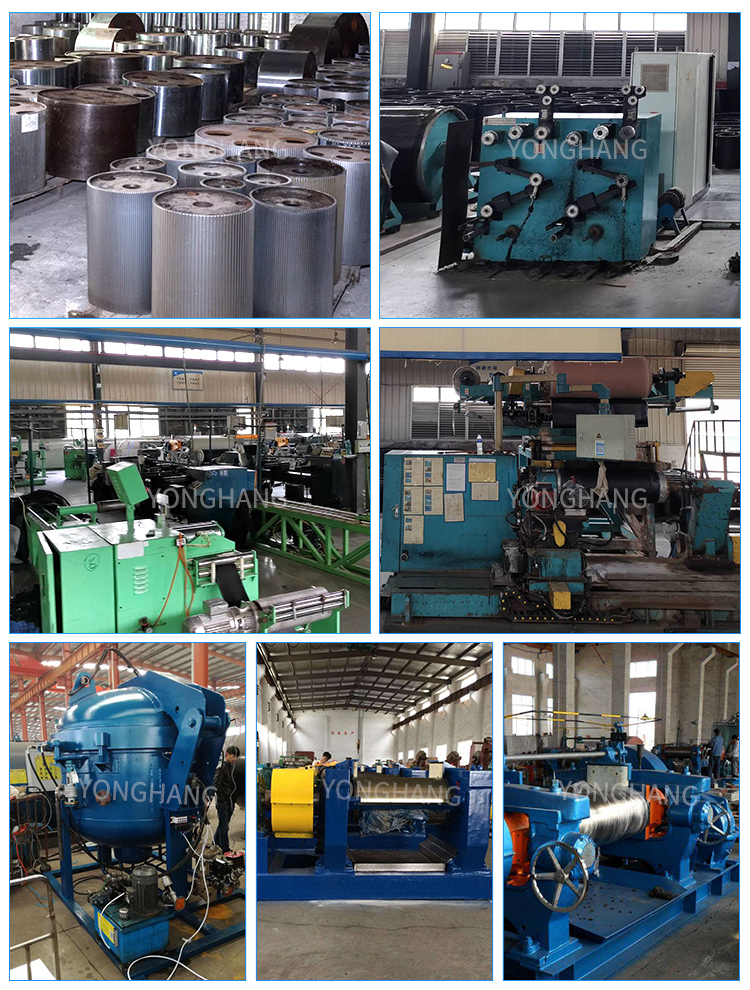

YONGHANG specializes in produce and custom coated transmission belts for 12 years.
