What are the main types of elevator belts?

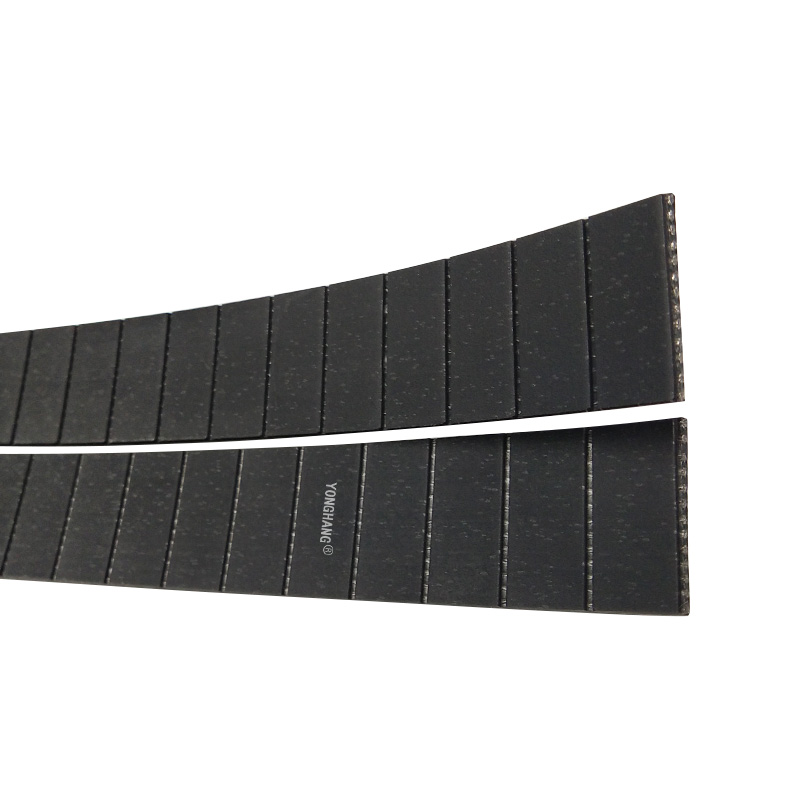

This type of belt will be used together with buckets to convey materials vertically or in the steep inclined angle. This kind of belt also use polyester fabric that can withstand high tension because it has to support a heavy load from the buckets. Elevator belt can be made with various kinds of cover rubber grade, e.g. P, N, M, OR1, OR2, HR100, HR120, HR150.

Thickness can be chosen from 5mm-30mm, with different levels of core layers and different tensions

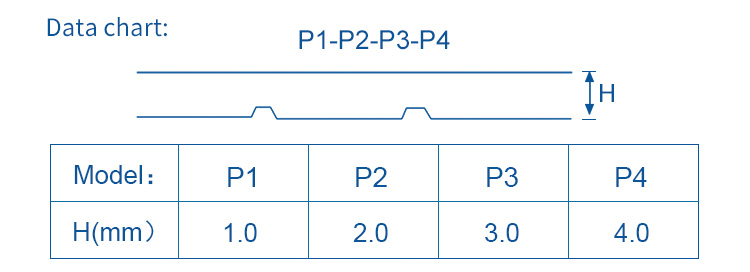

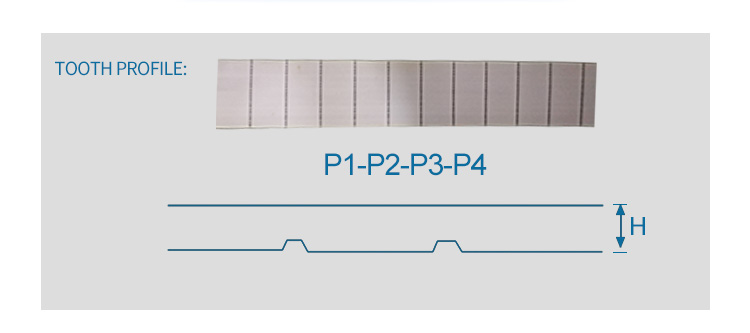

PU flat belts generally include P1, P2, P3 and P4 with standard thicknesses 1mm, 2mm, 3mm and 4mm, while custom thicknesses are available upon request.

PU flat belts provide length from 400 mm to 200 meters, belts are most commonly offered in widths of 10mm, 12mm, 15mm, 16mm, 20mm, 25mm, 30mm, 32mm, 40mm, 50mm, 60mm, 75mm, 100mm, and 120mm, but custom sizes are available upon request.

Polyurethane flat belts usually consist of polyurethane body and steel cord, while custom materials available upon request. Special cords include aramid (kevlar), stainless steel and carbon fiber.

Its main applications are stage curtain pull-out belts, and electric curtain pull-out machine belts

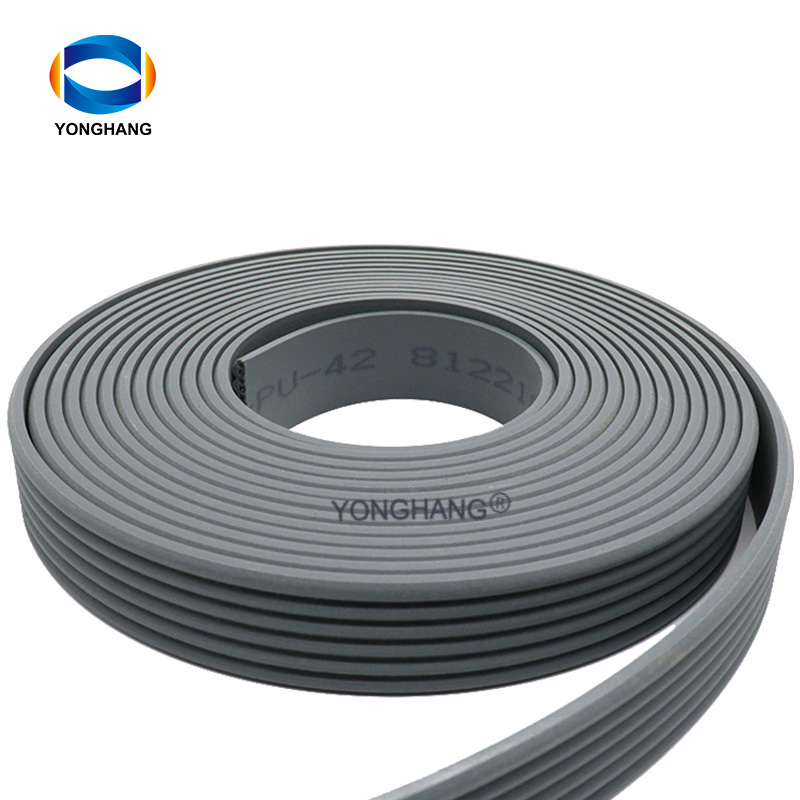

PV40 PV50 PV60 Traction Elevator Belts consist of two components, including polyurethane body and steel tensile cord. Polyurethane body is extremely wear and fatigue resistant and highly flexible. Steel tensile cords give high flexibility, accuracy and long service life.

PV40 PV50 PV60 Elevator Traction Steel Belts fit for elevators, lifts and hoists. PV40 Traction Elevator Belts are potential replacement belts for model Stm-Pv40-1.73S-Pu-56. Polyurethane-coated steel belts are stronger and more flexible than conventional steel cables. Belts provide superior ride comfort and quite operation. Belts do not need any extra lubrications, so it is environmental friendly. Belts take less space than traditional cables. This reduces operating costs.

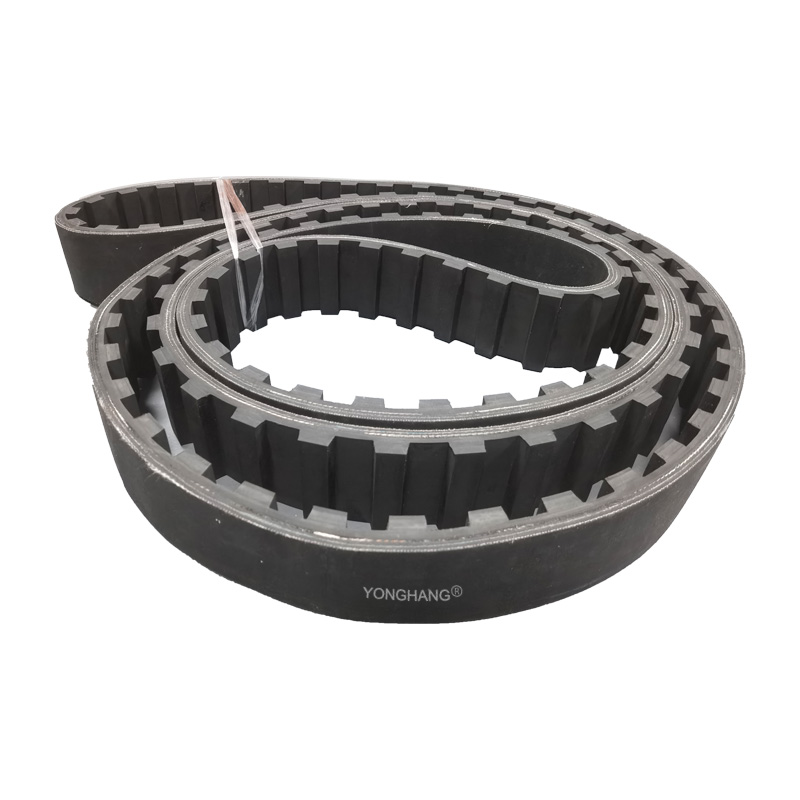

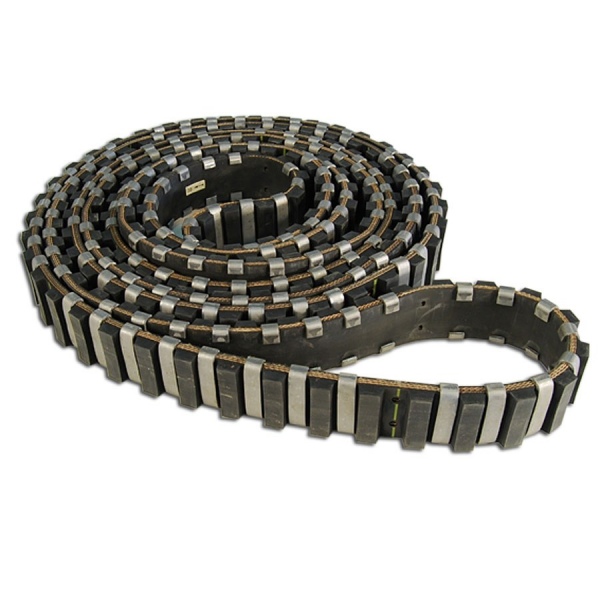

There is also this rubber belts with multi-layer fiber core, special slotted lifting belt.

You’re interested in Elevator BeltsYONGHANG® belts?

Our experienced application engineers will be glad to help you select the best Elevator Belts for your current or planned transport drive.
