How to measure the guide bar？
How to measure the guide bar？
2025-10-10
How to measure the guide bar？
This is all the information about our guide strips. If you can't find the specific guide strip you need here, you can contact our sales team for confirmation. Feel free to leave us a message at any time, and we will reply to you within 24 hours.
| Cross section schematic diagram | Material | Type | Sizes | Color | Work Temperature | Min.turning diameter | |
| B*H/mm | ℃ | surface(mm) | bottor(mm) | ||||
 | PVC | D6 | 6*4 | White / Green / Blue | -10~+70℃ | 40 | 30 |
| D8 | 8*5 | White / Green / Blue | 50 | 40 | |||
| D10 | 10*6 | White / Green / Blue | 70 | 60 | |||
| D13 | 13*8 | White / Green / Blue | 100 | 80 | |||
| D17 | 17*11 | White / Green / Blue | 110 | 90 | |||
| D22 | 22*14 | White / Green / Blue | 180 | 120 | |||
| D30 | 30*16 | White / Green / Blue | 230 | 180 | |||
| R5 | 5*5 | White / Green / Blue | 50 | 40 | |||
| R10 | 10*10 | White / Green / Blue | 150 | 70 | |||
| R15 | 15*15 | White / Green / Blue | 200 | 90 | |||
| R20 | 20*20 | White / Green / Blue | 250 | 130 | |||
| PU | D13 | 13*8 | White / Green / Blue | -20~+80℃ | 100 | 70 | |
| D17 | 17*11 | White / Green / Blue | 110 | 90 | |||
| D22 | 22*14 | White / Green / Blue | 180 | 150 | |||

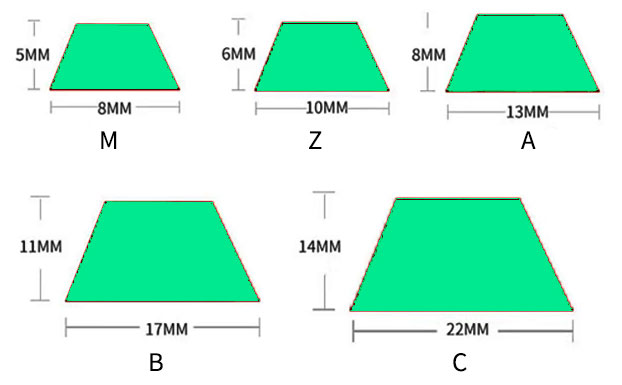

Guide bar Profile
r
| Type | M | Z | A | B | C |
| Width | 8mm | 10mm | 13mm | 17mm | 22mm |
| Height | 5mm | 6mm | 8mm | 11mm | 14mm |
| Roll/m | 50 | 50 | 30 | 30 | 30 |
In addition, we also have the Conveyor belt accessory(skirt and cleats/baffle). Please refer to the user manual.
