 12 Years Transmission Belts Coating Customized Factory.

How to extend the service life of gluing machine folder belts? |Yong Hang takes you through

(1)The gap between the main knife and the folder belt of the gluing machine is decided

Gluing machine adopts the friction way of paper feeding under the conveyor belt. In order to ensure that the paper box is transported out evenly, smoothly and in a single sheet, a single sheet control mechanism (generally called the main control mechanism) is installed at the paper transport. The height of the installation position of this mechanism directly affects the wear and tear of the conveyor belt. Generally the main control knife mechanism of the high and low adjustment, to be able to lightly transport out a paper box, and two can not pass as appropriate, too low main knife and belt direct contact to speed up the wear and tear of the belt, too high caused by multiple paper box transport will also speed up the wear and tear of the belt.


(2) The tension force of the folder belt is moderate

The inner and outer layer of the folder belt of the box gluer is made of high-strength elastic belt and the middle layer of nylon sheet material belt bonded together, which has the structural characteristics of a tight middle layer and a high elasticity of the inner and outer layers. Therefore, the gluing machine requires the belt tension to be moderate during the working process, too loose tension will cause slippage with the roller; too tight will cause the belt to be over extended and reduce the service life of the belt.

(3) The correct use of the folder belt running direction can significantly improve the service life

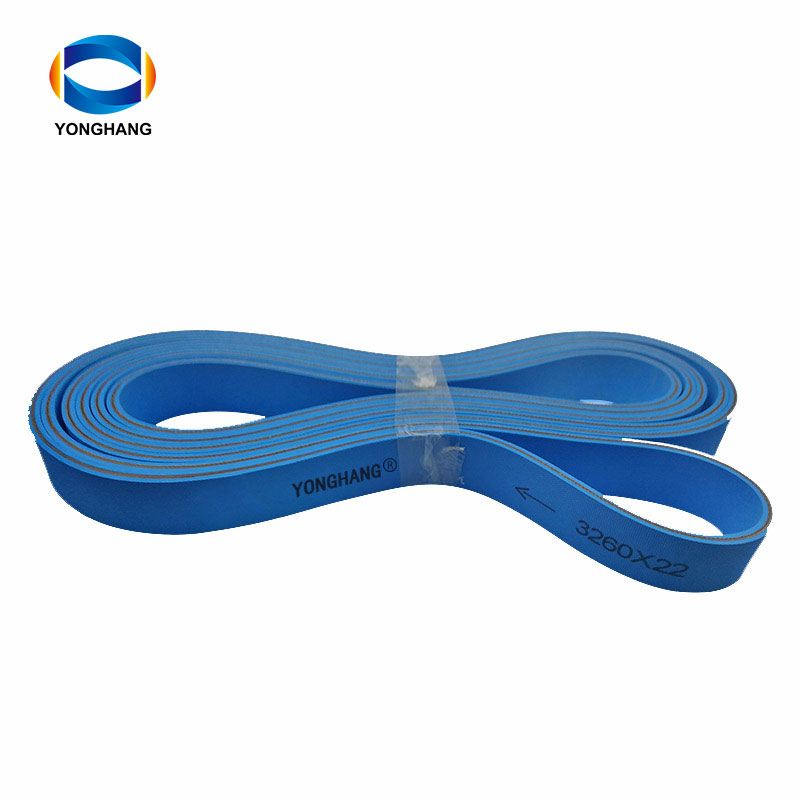

The whole belt is lapped, glued, heated, insulated and glued under pressure. The lap is often designed as a slope at both ends, so that the belt is firmly bonded. When the machine is running, the belt runs in the same direction as the slope, such as inconsistent, the belt will be very easy to cause interface fracture, the general belt are marked running direction, in the machine maintenance and maintenance before, first of all, the belt should be made in the direction of marking, to ensure that the running direction and belt marking direction when reloading.

(4) Also need to pay attention to the machine in operation before checking the belt around there should be no sharp objects in contact with it, and thus avoid direct wear and tear on the belt.
