Chain with rubber pads

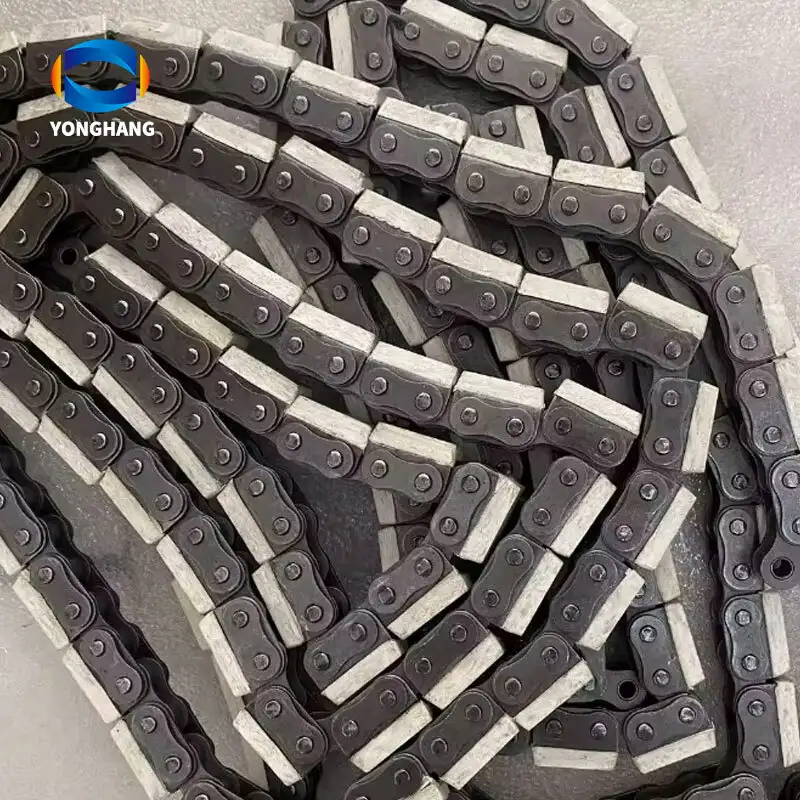

Carbon steel U-shaped cover plate pads chain with rubber blocks in single or double rows 08B10A12A 16Aetc for horizontal movement machine, tank chain, industrial conveyor chain，Please review specifications table. If you cannot find the size you need, feel free to contact our sales team at any time. We will respond to you within 24 hours.
Material：polyurethane, elastomer, coated
Configuration：roller
Other characteristics：with rubber pads
Chain pitch：Min.: 6.35 mm(0.25 in)Max.: 50.8mm(2 in)
Roller chains with elastomer profiles are ideal for applications where fragile goods such as coated or thin sheet metal, planed timber planks or pipes require gentle conveyor handling. The chain has a rubber profile that prevents scratches during conveyor transport. The vulcanised elastomer profiles are available in various standard forms, and special profiles are available on request for specific applications. A standard rubber profile made from nitrile butadiene rubber (NBR) with a hardness of 80 Shore A is used for elastomer profile chains. NBR combines the best characteristics of static friction, abrasion resistance and durability.
Chains with natural rubber or polyurethane profiles are available on request. Operating temperature range: -30°C to +100°C.
All Yonghang chain plates are tapered and shot-blasted, while production processes such as fine blanking and ball-drifting ensure a particularly high contact ratio. Roller chains with elastomer profiles feature seamless, cold-extruded, shot-blasted rollers with extremely regular wall thickness.
Yonghang Chain with rubber pads highlights
•All chain plates are tapered and shot-blasted; production processes such as fine blanking and ball-drifting ensure a particularly high contact ratio
• Seamless, cold-extruded, shot-blasted rollers with extremely regular wall thickness • - The standard rubber profile is nitrile butadiene rubber (NBR) with a hardness of 80 Shore A.
• NBR combines the best characteristics of cohesive friction, abrasion resistance and durability.
• Chains with natural rubber or polyurethane profiles are available on request.
• Operating temperature range: -30 °C to +100 °C (at changed hardness and friction values)
Specifications Table
| Chain NO. | Pitch | Roller Diameter | Inner Width | Pin Diamete | Plate height | Pin length | Rubber pads sise | Ultimate tensile load | Weght/meter | |||
| P | d1 | b1 | d2 | h2 | L1 | A | B | H | T | max | ||
| mm | mm | mm | mm | mm | mm | mm | kN/Ibf | kg/m | ||||

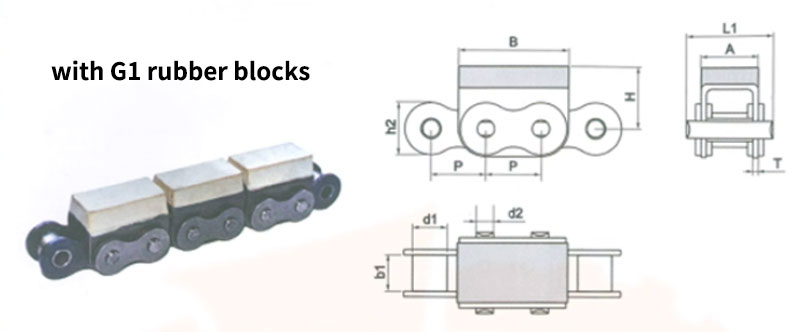

| 04C-G1 | 6.350 | 3.30 | 3.18 | 2.31 | 6 | 10.60 | 7.00 | 11.50 | 14.10 | 1.00 | 3.50/795 | 0.38 |
| 06B-G1 | 9.525 | 6.35 | 5.72 | 3.28 | 8.2 | 16.10 | 11.40 | 17.30 | 7.50 | 1.30 | 9/2045 | 0.80 |
| 08B-G1 | 12.700 | 8.51 | 7.75 | 4.45 | 11.8 | 19.40 | 14.60 | 24.20 | 12.30 | 1.50 | 18/4091 | 1.19 |
| 10A-G1 | 15.875 | 10.16 | 9.40 | 5.08 | 15 | 24.00 | 17.50 | 30.00 | 17.00 | 1.50 | 21.8/4953 | 1.70 |
| 10B-G1 | 15.875 | 10.16 | 9.65 | 5.08 | 14.7 | 23.00 | 16.80 | 30.00 | 17.00 | 1.50 | 19/4318 | 1.62 |
| 12A-G1 | 19.050 | 11.91 | 12.57 | 5.94 | 18 | 32.00 | 21.40 | 36.00 | 17.00 | 1.85 | 31.8/7153 | 2.55 |
| 12B-G1 | 19.050 | 12.07 | 11.68 | 5.72 | 16 | 26.00 | 19.60 | 36.00 | 17.00 | 1.85 | 56.70/13136 | 2.01 |
| 16A-G1 | 25.400 | 15.88 | 15.75 | 7.92 | 24 | 37.20 | 27.50 | 46.00 | 20.00 | 2.42 | 42/9545 | 3.97 |
| 16B-G1 | 25.400 | 15.88 | 17.20 | 8.28 | 21 | 41.00 | 29.05 | 49.00 | 20.00 | 1.50 | 58/13047 | 3.83 |
| 20A-G1 | 31.750 | 19.05 | 18.90 | 9.53 | 30 | 46.80 | 34.00 | 57.60 | 28.00 | 3.10 | 76.7/19503 | 6.15 |
| 20B-G1 | 31.750 | 19.05 | 19.56 | 10.19 | 26.4 | 48.00 | 36.00 | 57.00 | 27.00 | 3.50 | 85/19318 | 6.19 |
| 24A-G1 | 38.100 | 22.23 | 25.22 | 11.10 | 35.7 | 58.30 | 46.00 | 75.20 | 35.00 | 4.00 | 127.00/28864 | 10.70 |
| 24B-G1 | 38.100 | 25.40 | 25.40 | 14.63 | 33.2 | 61.60 | 47.00 | 72.60 | 34.00 | 4.50 | 160/36363 | 11.25 |
| 32A-G1 | 50.800 | 31.55 | 31.55 | 14.27 | 47.8 | 76.20 | 58.20 | 100.40 | 39.00 | 6.40 | 226.80/51545 | 15.00 |
| Chain NO. | pitch | Roller Diameter | Inner Width | Pin Diamete | Plate height | Pin length | rubber pads sise | ultimate tensile load | Weght/meter | |||
| P | d1 | b1 min | d2 | h2 | L1 | A | B | H | T | max | ||
| mm | mm | mm | mm | mm | mm | mm | kN/Ibf | kg/m | ||||

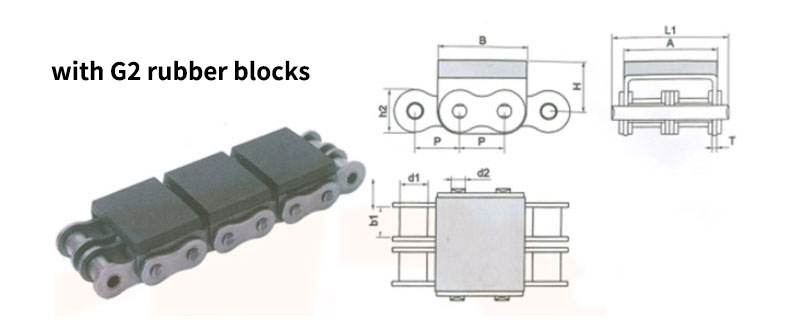

| 08B-G2 | 12.700 | 8.51 | 7.75 | 4.45 | 11.8 | 34.00 | 28.40 | 24.20 | 12.30 | 1.50 | 32/7273 | 2.07 |
| 10A-G2 | 15.875 | 10.16 | 9.40 | 5.08 | 15 | 41.80 | 36.00 | 30.00 | 17.00 | 2.00 | 72.3/9822 | 2.72 |
| 10B-G2 | 15.875 | 10.16 | 9.65 | 5.08 | 14.7 | 38.40 | 33.30 | 30.00 | 16.00 | 1.50 | 44.5/10114 | 2.56 |
| 12A-G2 | 19.050 | 11.91 | 12.57 | 5.94 | 18 | 51.00 | 44.50 | 36.00 | 17.00 | 1.85 | 57.8/13136 | 3.31 |
| 12B-G2 | 19.050 | 12.07 | 11.68 | 5.72 | 16 | 46.60 | 39.10 | 36.00 | 16.00 | 1.85 | 57.8/13136 | 3.21 |
| 16A-G2 | 25.400 | 15.88 | 15.75 | 7.92 | 24 | 66.70 | 57.20 | 46.00 | 20.00 | 2.42 | 115/30124 | 7.27 |
| 16B-G2 | 25.400 | 15.88 | 17.20 | 8.28 | 21 | 73.20 | 60.93 | 49.00 | 22.00 | 1.50 | 106/26094 | 7.27 |
| 20A-G2 | 31.750 | 19.05 | 18.90 | 9.53 | 30 | 85.00 | 71.80 | 58.00 | 28.00 | 3.80 | 170/38217 | 10.40 |
| 20B-G2 | 31.750 | 19.05 | 19.56 | 10.19 | 26.4 | 85.00 | 73.00 | 58.15 | 27.00 | 3.50 | 170/38217 | 10.40 |
