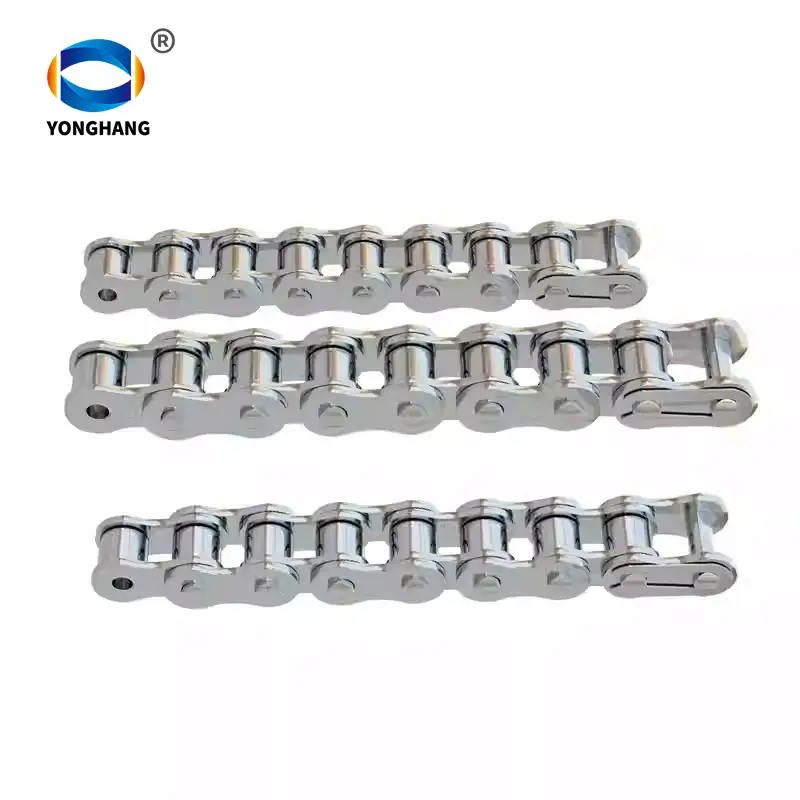

Stainless Steel Roller Chains
Does your application require a chain that resists corrosive substances or extreme temperature ranges? Yonghang Chain's full line of stainless steel roller chain is the answer to both problems. Our stainless chains are designed and manufactured with better components that improves the wear resistance over many of the competition. We have many series of chains, which make our chains full interchangeable with any other brand.
Product Introduction

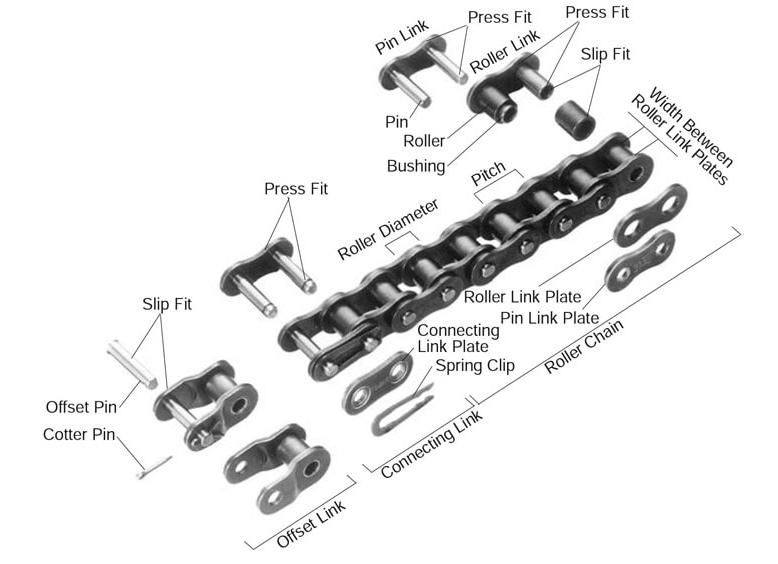

A picture to understand the components of the chain

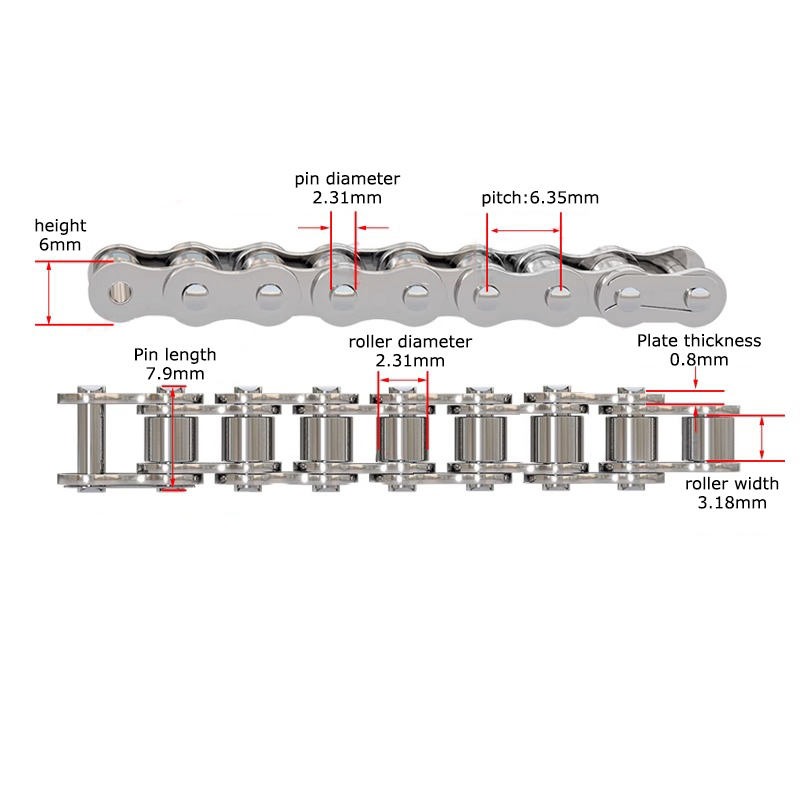

04C Stainless Steel Roller Chains Dimensions
Stainless Steel Roller Chains
Features
Solid Rollers
Solid Bushings - see advantage
Great Corrosion Resistance
Great Resistance To Extreme Temperatures
Pre-Stretched
Stainless Steel Roller Chain For Extreme Temperatures
Stainless has extraordinary temperature resistance making it a great option extreme cold or hot environments. We suggest staying within the recommend range for 304 stainless (listed below), if possible, to maximize the service life. Temperatures outside of this range are acceptable, but you will experience an increased rate of wear.
· Recommended Ambient Temperatures: -40°F Up To 752°F
· Maximum Ambient Temperatures: -200°F Up To 1,200°F
304 Stainless Steel Magnetism
The standard material to build yonghang stainless chains is #304, which is typically referred to as non-magnetic. Due to the cold forming process of the material, it can develop slight magnetic properties, which is common in 304 stainless parts.
Applications For Stainless Steel Roller Chain
· Industrial Ovens
· Medical Equipment
· Parts Washdown Units
· Brewery Equipment - For those refreshing adult beverages!
· Fertilizer Equipment
Grades Of Stainless Steel For Roller Chain
In the world of stainless roller chain, you'll come across many options for stainless grades with #304 being the most popular. In most situations, the 304 stainless chain offers enough protection from corrosive elements. However, there unique applications that requires superior protection than what 304 can provide. The solution would be 316 stainless steel roller chain, which can handle a broader range & higher concentration of substances. Yonghang Chain offers 316 stainless roller chain in the full selection of sizes by quotation.
YONGHANG specializes in produce and custom coated transmission belts for 12 years.
