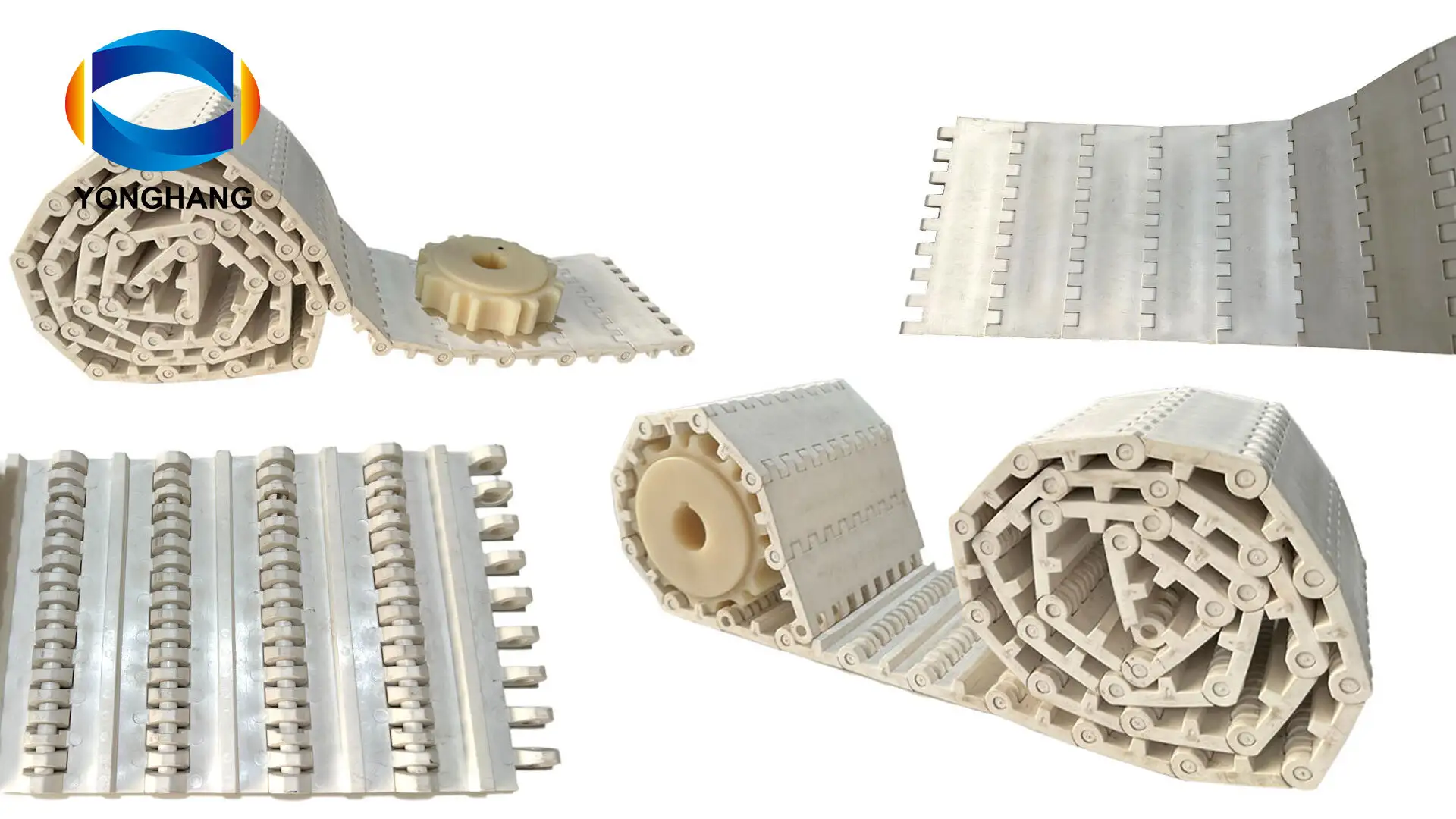

800 pitch: 50.8mm White falt top modular conveyor belt
800 White modular conveyor belt for Food baking conveying line
800 White modular conveyor belt
pitch：50.8
Pin Diameter（mm）： 8
colour：Blue and white

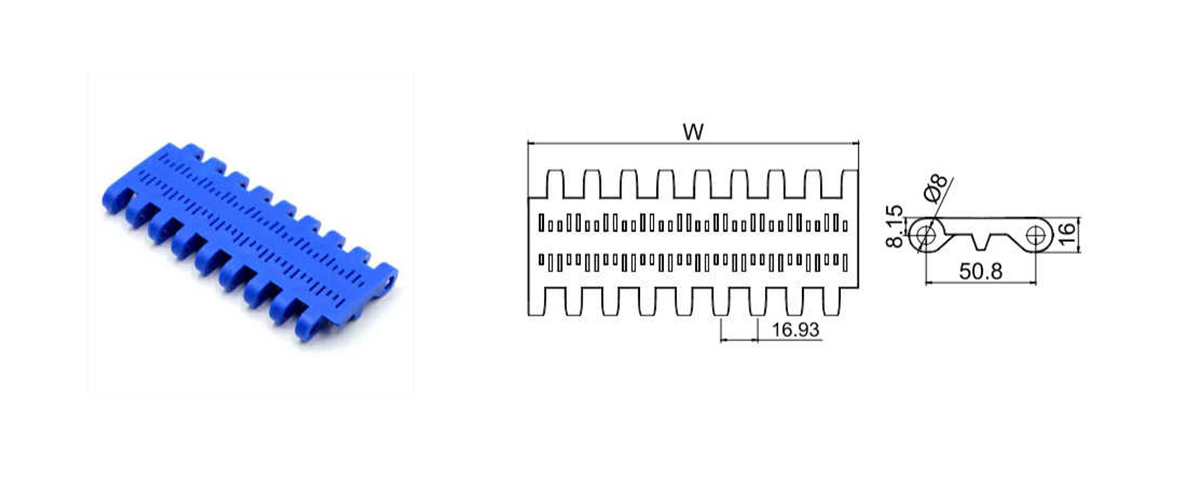

The 800 flat-top modular conveyor belt . The back of the chain plate has a rib,
pitch: 50.8mm,
thickness: 16mm,
Open Area: 0%,
material: pom/pp/PE, suitable
Temperature range：Dry4 - 80℃ / wet5 - 105℃,
maximum working load: 27000/16000N/M,
back bend radius: 65mm;
The 800 flat-top modular conveyor belt adopts an integrated injection molding sprocket , number of teeth: 8/12, top diameter of teeth: 127/157mm, selectable hole diameters: round hole 25/30/35/40mm, square hole 40*40/50*50mm.
| Belt type | Belt material | Pin Material | Working load(max) | Weight | Back flex radius(min) | Width | Width |
| N(21℃） | Kg/m2 | mm | Single piece | Assembly | |||
| 800 | POM | PP | 27000 | 13.43 | 65 | 152.4/406.4 | 152.4*N+16.93*N |
| PP | PP | 16000 | 8.86 | 65 | 152.4/406.4 | 152.4*N+16.93*N | |
| PE | PA | 8000 | 7.8 | 65 | 152.4/406.4 | 152.4*N+16.93*N | |
| Open Area：0% Width reduction：0.1%-0.3% | |||||||

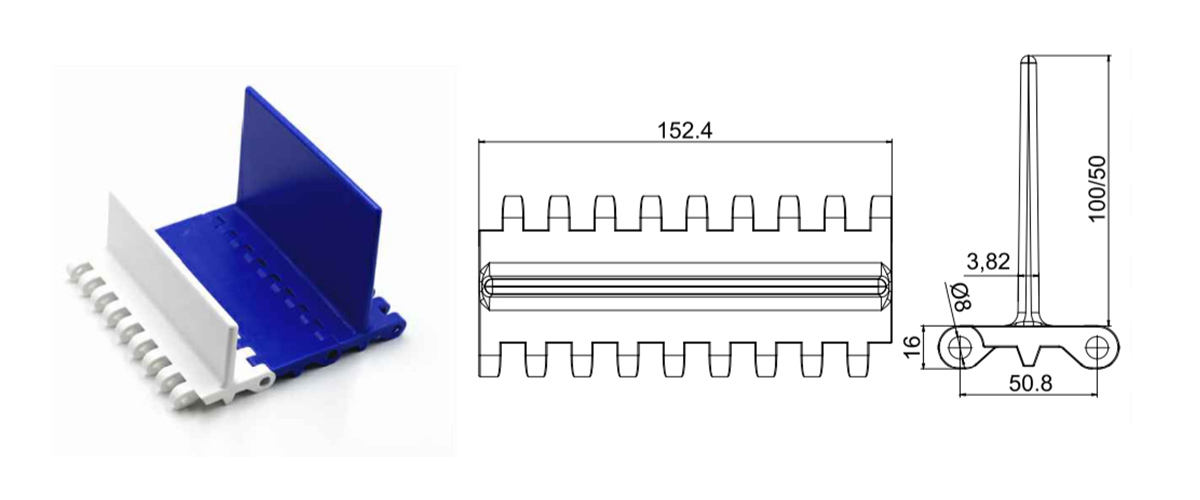

Note: This panel is designed for use with the 800 series. It can have a raised edge: The standard height of the panel is 50 or 100; There will be gaps between the assembled panels, which is normal.

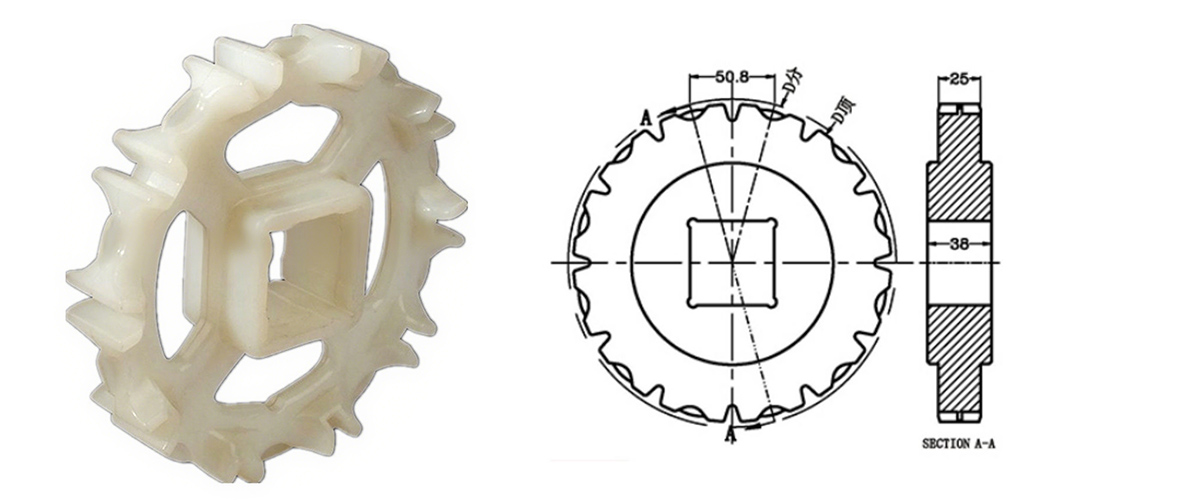

| Sprockets | Pitch | Teeth | Pitch Diametet D分 | Outside Diameter D顶 | Bore Size(Round hole and D hole) | forming way | ||
| mm | mm | Inch | mm | Inch | mm | |||
| 800-6T | 50.8 | 6 | 97 | 3.82 | 102 | 4.02 | 30-40 | By Machined |
| 800-8T | 50.8 | 8 | 127 | 5.00 | 132 | 5.20 | 30-40 | |
| 800-10T | 50.8 | 10 | 157 | 6.18 | 165 | 6.50 | 30-50 | |
| 800-12T | 50.8 | 12 | 191 | 7.52 | 196 | 7.72 | 30-50 | |
| 800-16T | 50.8 | 16 | 257 | 10.12 | 262 | 10.31 | 40-60 | |
YONGHANG specializes in produce and custom coated transmission belts for 12 years.
