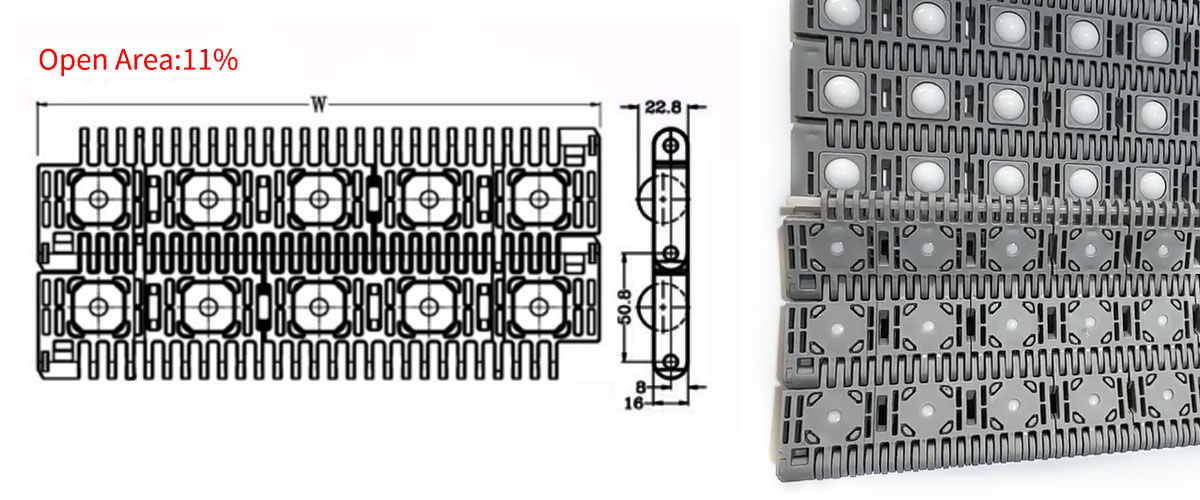

400 Ball plastic chain plate
400 Ball plastic chain plate
Pitch: 50.8
Temperature range：
Dry: +4℃～+104℃
wet:+4℃～+104℃
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Brand
Yonghang
Customized support
yes
Place of Origin
China
OEM
yes
Product Introduction
| 400 Ball plastic chain plate | ||||||||||
| Belt type | Pitch | Belt material | Pin Material | Pin Diameter | Working load(max) | Weight | thickness | Back flex radius (min) | Width (Single piece) | Width (Assembly) |
| mm | mm | N(21℃ | Kg/m2 | mm | mm | mm | mm | |||
| 400SBT | 50.8 | POM | PP | 6 | 47600 | 23 | 16 | 100 | 152.4/101.6/150 | 254+50.8*N |
| 50.8 | PA | 6 | 48000 | 23.1 | 16 | 100 | 152.4/101.6/150 | |||
| 50.8 | PP | PP | 6 | 36000 | 16.5 | 16 | 100 | 152.4/101.6/150 | ||
| 50.8 | PE | PE | 6 | 27000 | 17.2 | 16 | 100 | 152.4/101.6/150 | ||
| Open Area：11% Width reduction：0.1%-0.3% | ||||||||||

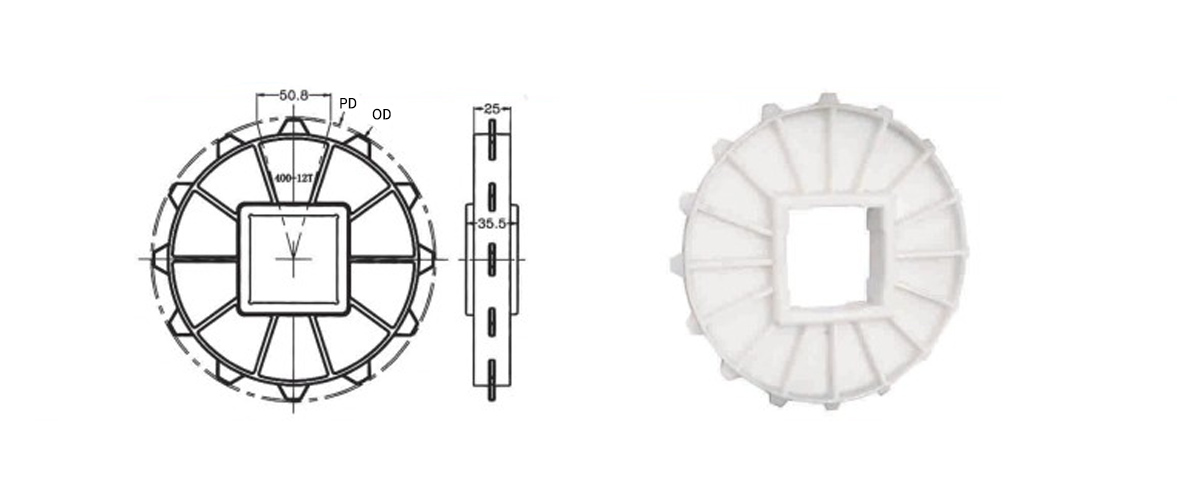

| Sprockets | Teeth | PD | OD | Bore Size | forming way | |||
| mm | Inch | mm | Inch | Round hole | Square shape hole | |||
| 400-6T | 6 | 91.6 | 3.61 | 101.6 | 4.00 | 40 | Injection molding | |
| 400-10T | 10 | 160.4 | 6.31 | 164.4 | 6.47 | 40/60 | 30/40 | Injection molding |
| 400-12T | 12 | 193.6 | 7.62 | 196.3 | 7.73 | 40/50/60 | Injection molding | |
| 400-16T | 16 | 259 | 10.20 | 260.4 | 10.25 | 80/90 | Injection molding | |
