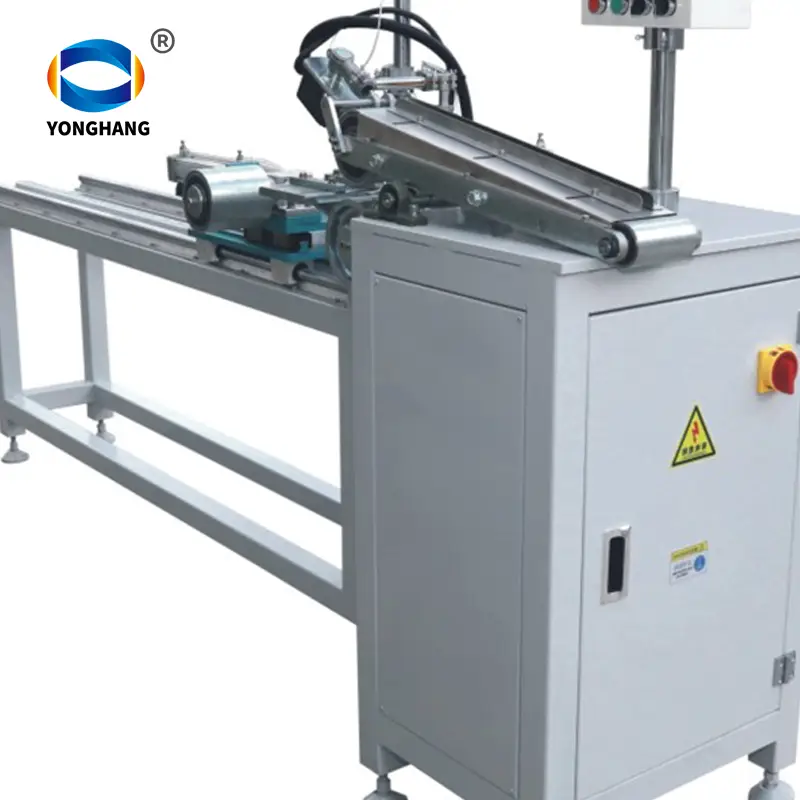

PU Timing Belt Coating Machine
A compact PU Timing Belt Coating Machine is an industrial machine for applying hot-melt PU or rubber coatings accurately onto substrates, using a timing-belt drive with motor and gearbox and PLC for precise control. Selling points: PLC automation for repeatable settings, timing-belt drive for high-precision and low-vibration coating, robust motor & gearbox for stable torque and long life, and hot-melt capability for fast, uniform films with easy speed/temperature adjustment. The result is higher throughput, consistent product quality, simple operation and maintenance, and suitability for footwear, automotive seals, textiles and other industrial coating jobs.
Precision Reliability Compact Packaging
The WC PU Timing-Belt Coater pairs PLC-controlled servo motors and a touch-screen interface with an adjustable hot-air gun and roller system for precise, repeatable hot-melt rubber coating across different belt widths. Its compact industrial layout, adjustable nozzles, robust gearbox and ISO9001-grade manufacturing deliver consistent high-quality PU films with secure standard packing and fast turnaround. Customers gain fast sample availability, low MOQs and responsive after-sales support for quick integration into printing, packaging and conveyor applications.
PLC-Controlled Precision PU Coating
This WC PU Timing-Belt Coater combines water cooling, a PLC-driven servo motor and gearbox with a hot-melt rubber applicator to accurately coat PU timing belts using an adjustable hot air gun and pressure roller system. PLC touch-screen control enables real-time data modification and monitoring for precise speed and temperature control, while interchangeable nozzles and adjustable gun positioning accommodate multiple belt widths for consistent, high-quality coating. Built with a compact, modular structure and robust manufacturing, the machine provides thermal stability and repeatable, efficient performance for packaging, printing and material-handling applications.
Motorized PLC PU Coater
The Water-Cooling PU Timing Belt Coating Machine is a hot-melt rubber coating applicator engineered for precise coating of PU timing belts. It employs a PLC-controlled servo motor with a touchscreen for parameter modification and monitoring, using an adjustable hot-air gun to heat the PU surface and a roller to press the film onto the belt. Interchangeable nozzles for different belt widths and water-cooling enhance process stability and ensure consistent, high-quality coated belts.
◎
◎
◎
Precision Automated Durable Coating
Built by WC on a heritage of precision coating technology, the PU timing-belt coater integrates a PLC control system with a rugged motor and gearbox to deliver consistent hot-melt rubber layers for demanding production lines. The unit’s synchronized timing-belt conveyance, closed-loop temperature management, and torque-stable gearbox provide repeatable, low-vibration coating at variable speeds while minimizing downtime. Features such as energy-efficient motors, sealed bearings, easy-to-use PLC recipes, and quick-change coating heads translate into higher throughput, improved coating uniformity, simplified maintenance, and lower material waste.
Material introduction
The machine’s structural frame and water‑cooling chassis are made from corrosion‑resistant stainless steel while copper piping and brass fittings form the cooling loop to protect components during continuous operation. Coating materials consist of reinforced PU timing belts and a hot‑melt rubber compound applied via an aluminum‑nozzle hot air gun and steel rollers with wear‑resistant rubber covers for even film transfer. Drive and control parts use a precision steel gearbox and servo motor interfaced to a PLC and industrial touch screen, with electrical enclosures and HMI components built from durable industrial plastics and tempered glass.
◎ WC PU Timing-Belt Coater (Standard)
◎ WC PU Timing-Belt Coater (Precision PLC & Servo)
◎ WC PU Timing-Belt Coater (Wide‑Width, Water‑Cooled)
FAQ
Features:
1.Control the servo motor through PLC, and modify and monitor the data through the touch screen.
2.Use a hot air gun to heat the PU surface, and then apply the film by pressing it onto the surface with a roller
3.The position of the heating gun can be adjusted. Different widths of belts require diferent heating gun nozzles.
Technical parameter：
| Item | Unit | YH-100 |
| Max sleeve width | mm | 100 |
| Min sleeve lenght | mm | 600 |
| Cutter bar speed | r/min | 10~60 |
| Power | KW | 3 |
| Power supply | AC | 220V 50/60HZ |
| Overalldimensions(W*D*H) | mm | 2600*580*1700 |
Note :Special models can be designed according to customers reguirements.
YONGHANG specializes in produce and custom coated transmission belts for 12 years.
