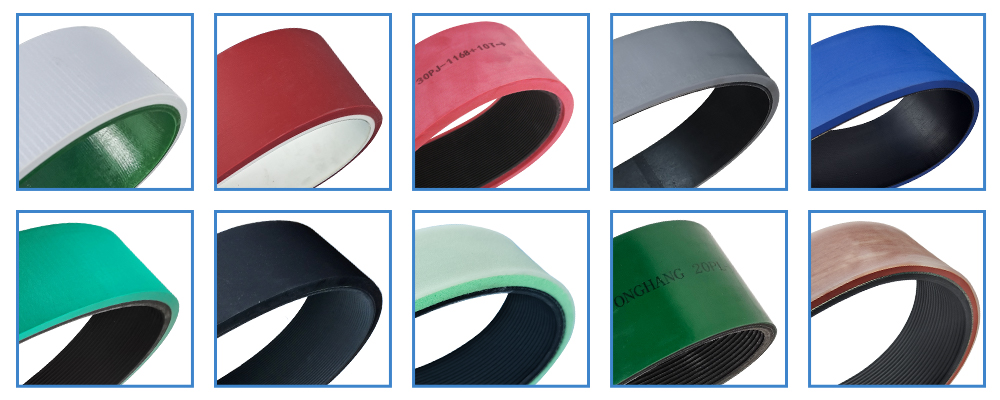

YONGHANG supplies Haul off belts for all types of extruders

Our range includes a specific combination of base belts, PJ PK PL PM Ribs Type, Flat belt. tensile strengths and fabrication details to meet technical requirements of a variety of extrusion applications, including specific resistance, hardness, temperature, friction needs.

Bottom Material：CR/TPU/EPDM

coating material：CR/TPU/EPDM/Foam / Sponge / PU / Silicone

Products Presentation：

Extrusion machine belt （rubber haul off belts ）commonly used PL pitch 4.7mm, suitable for all kinds of cable traction machine extrusion machine, PVC pipe shaped strip and other plastic products have high performance traction, seamless ring process, no delamination, no breakage, smooth surface, strong tensile strength, wear resistance, long life, etc., hardness range 40-75 degrees, working temperature -10 ° C - 80 ° C, the color can be made blue, red, green, white, black, or in the surface of the arc, V-groove, etc. Red, green, white, black, or in the surface of the arc, V groove, etc.）Please contact us directly for more information regarding your specific requirements.

Yonghang caterpillar belts for haul-off units of cable, wire, pipes and plastic profiles. The wide range of rubber qualities, tensile inserts and surface execution allows to fullfil at best any application requirement.

The Yonghang series, Thanks to our own manufacturing technique, we are able to produce any lenght you need, as we are not tied up to standard Poly-V sizes. Our poly-V belts are not fabricated but produced in a single piece: no glue, no joint, no failure!  Poly-V and flat series haul off belts are mostly manufactured with fabric wrapped edges to prevent fraying and cord extraction. In case of high vertical pressure, we can add special Reinforcement Fabrics in order to avoid the longitudinal splitting of the belt.

process type

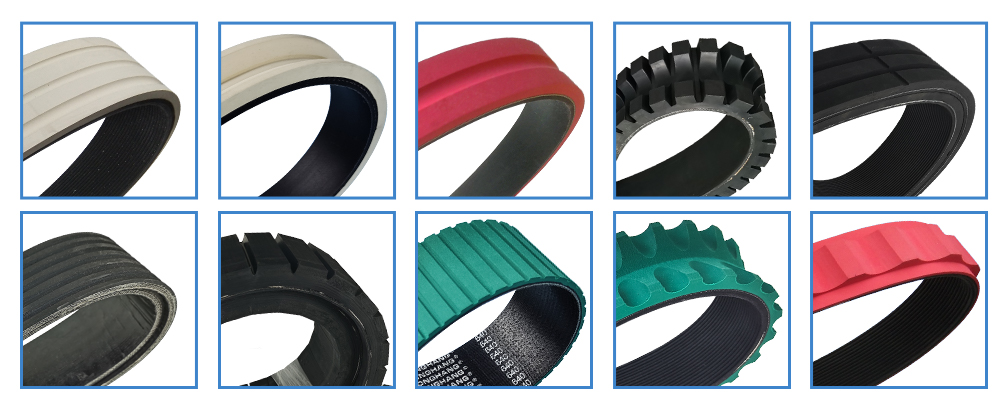

various V /U groove

Grinding the teeth to add the guide strips

type

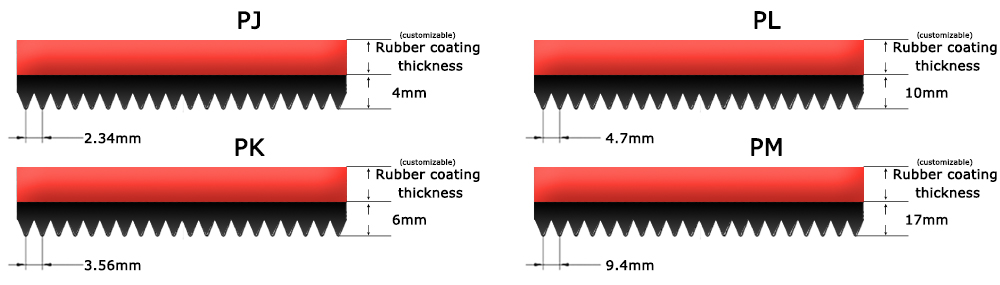

PJ PK PL PM flat and timing belts All type

Application

Industrial Sector

Electric cables production

Plastic profiles Production

Wire cable production

haul off unit capstan

plastic extrusion cable pulling

Haul-Off units for cable, metal wire, pipe and plastic profile
