PVC PU conveyor belt with accessories boards
Conveyor belt with accessories boards，user's manual，Including boards materials, colors, shape outlines, dimensions, work temperatures, etc.
shore hardness：70 A
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Brand
Yonghang
Customized support
yes
Place of Origin
China
OEM
yes
product description

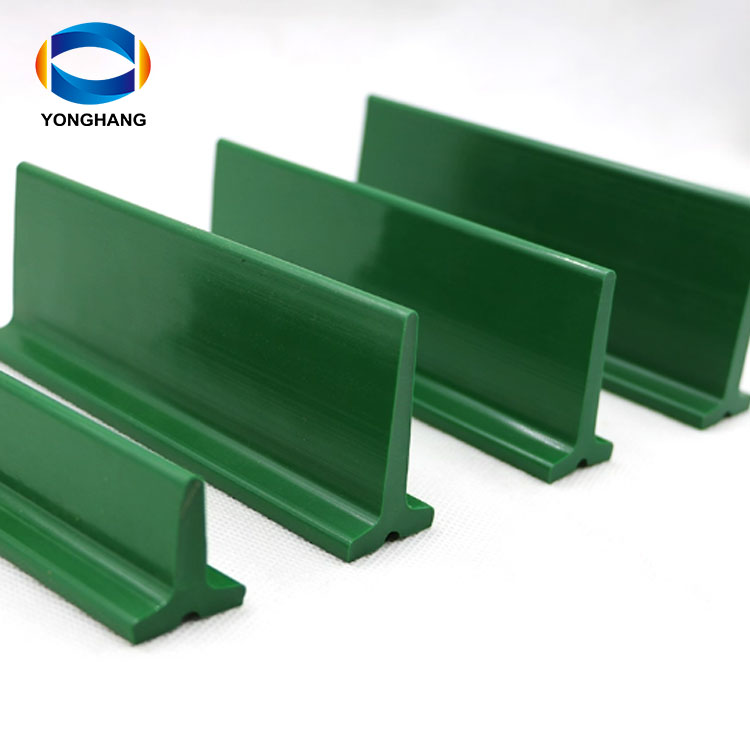

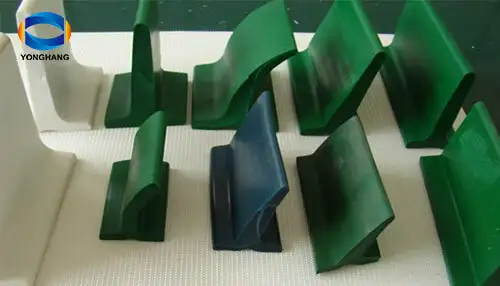

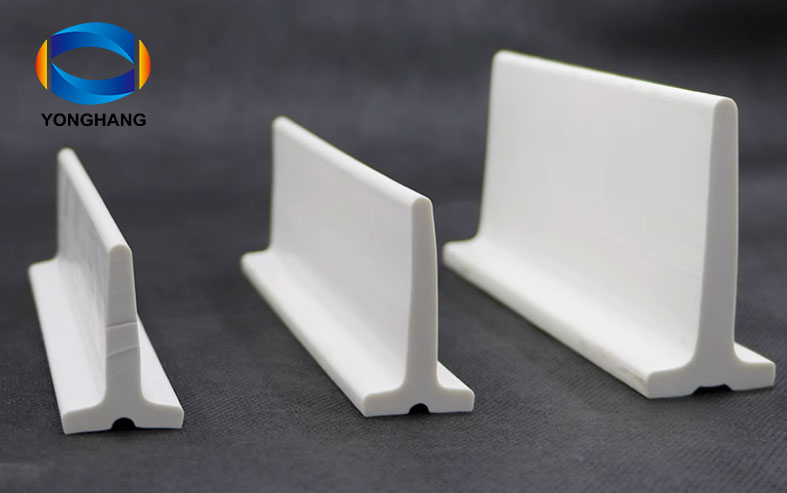

The main functions of the baffle are to prevent items from falling, to separate and to fix the positions of the items.They can be applied at any position on the pvc/pu conveyor belt, in a symmetrical manner, irregularly, in a combined form, and so on.
Baffle materials, colors, shape outlines, dimensions, working temperatures, There are other sizes available. If you need, please place an order with us.
| Type | Material | Color | u*t | Min.turning diameter（mm） | Cross-Section |
| TS-20 | PVC | Green/white | 90 | 20*20 |  |
| TS-30 | 100 | 30*30 | |||
| TS-40 | 100 | 30*40 | |||
| TS-50 | 120 | 35*50 | |||
| TS-70 | 150 | 40*70 | |||
| T20 | PVC | Green/white | 90 | 12*20 |  |
| T30 | 100 | 12*30 | |||
| T40 | 100 | 14*40 | |||
| T50 | 120 | 16*50 | |||
| T70 | 150 | 16*70 | |||
| T80 | Green/white | 180 | 35*80 | ||
| T90 | Green/white | 200 | 35*90 | ||
| T100 | Green/white | 220 | 35*100 | ||
| T120 | Green/white | 250 | 35*120 | ||
| T150 | 300 | 35*150 | |||
| UT-20 | TPU | Green/white | 60 | 10*20 | |
| UT-30 | 60 | 10*30 | |||
| UT-40 | 60 | 10*40 | |||
| UT-60 | 80 | 10*60 |

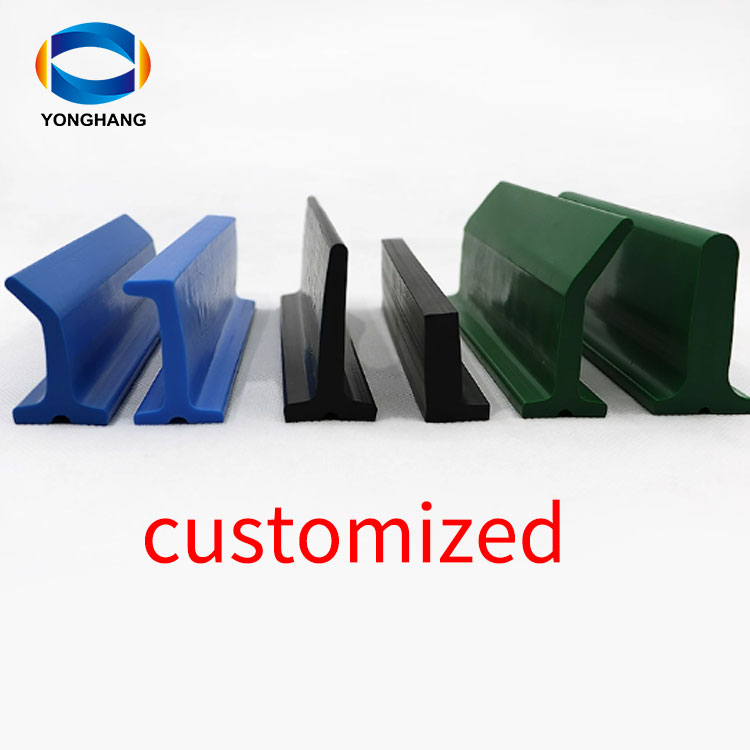

Partial product display
