How many types of PU Timing Belt Joints？

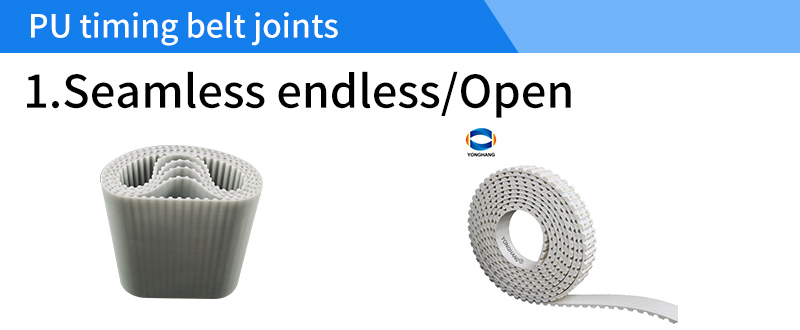

For drives and heavy transport a truly endless timing belt is often used.

These belts are available in the most standard lengths and are stock items.

Endless with a splice

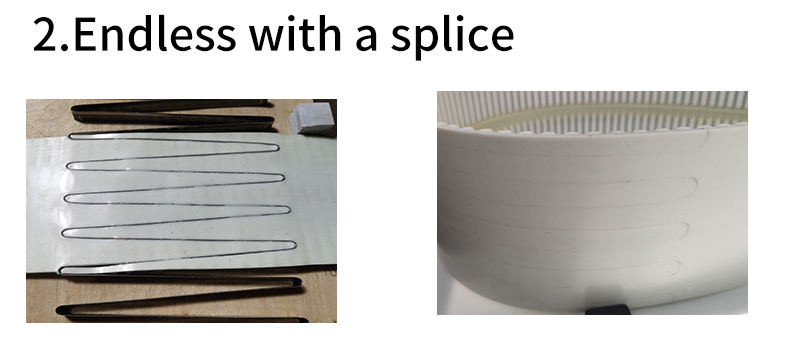

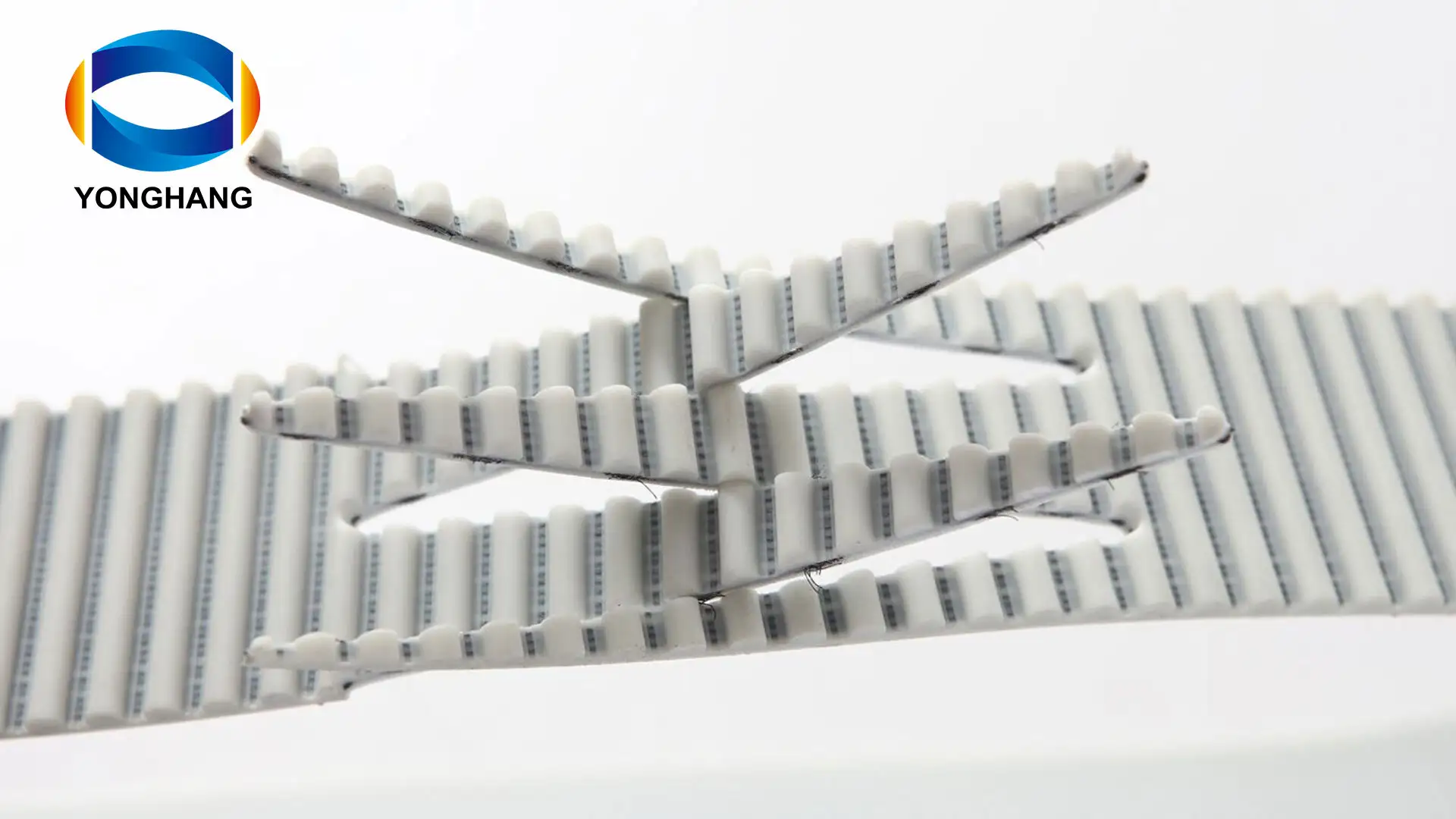

The standard PU timing belts are made endless by using a finger joint..

This joint has about 50% of the strength compared to a truly endless (flex/moulded) timing belt but is used for almost all transport solutions.

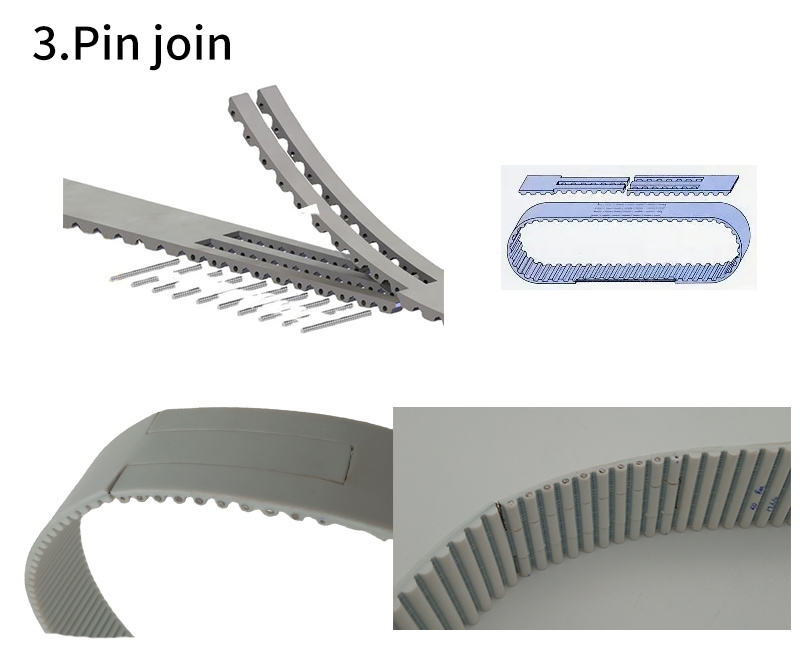

The timing belt joint PIN-JOIN is designed for a singular connection of timing belts directly into the application on site.

The Pin Join timing belt advantage can be fitted as a quick assembly when required, with this system a toothed belt can be changed within 15 minutes.

This connection is also possible for all common types of belt including double sided toothed belts.

The Pin Join timing belt can also be used to Join belts with coatings and cleats.

The maximum load is 50% of the maximum load of an endless welded belt. However, it is also possible to produce an extended Pin Join connector, should the belt be subjected to heavier loads.

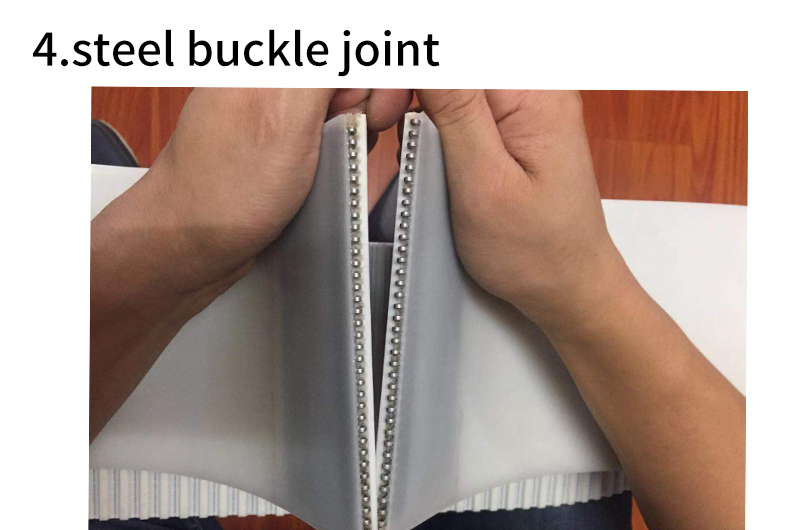

Hinge joint/steel buckle joint timing belts will be more flexible,Easier to install than  joint PIN-JOIN

Common Profile are in large tooth shapes, such as AT10 AT20H XH XXH S14M S20M 14M 20M

The maximum load is 50% of the maximum load of an endless belt.

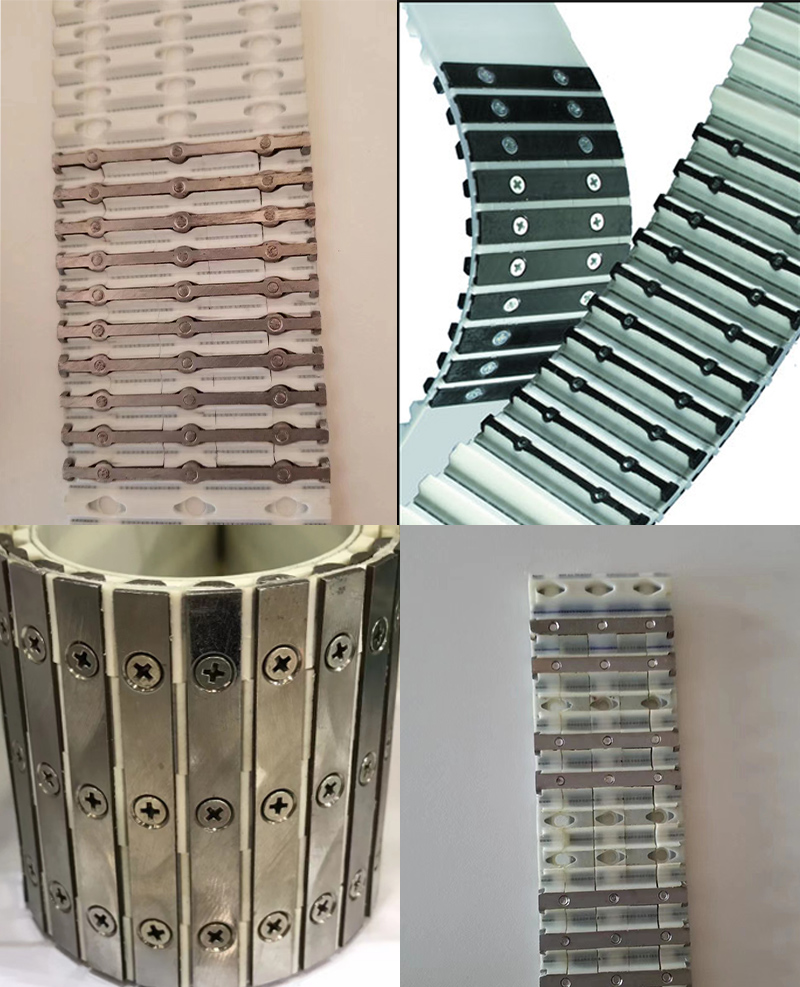

5.Mechanical connection (PinJoin, Breco DC）

These connectors are like the Pin Join connector a mechanical connector, but only in combination with  ATN timing belts.

In difference to the Pin Join connector this connector can be disassembled.
