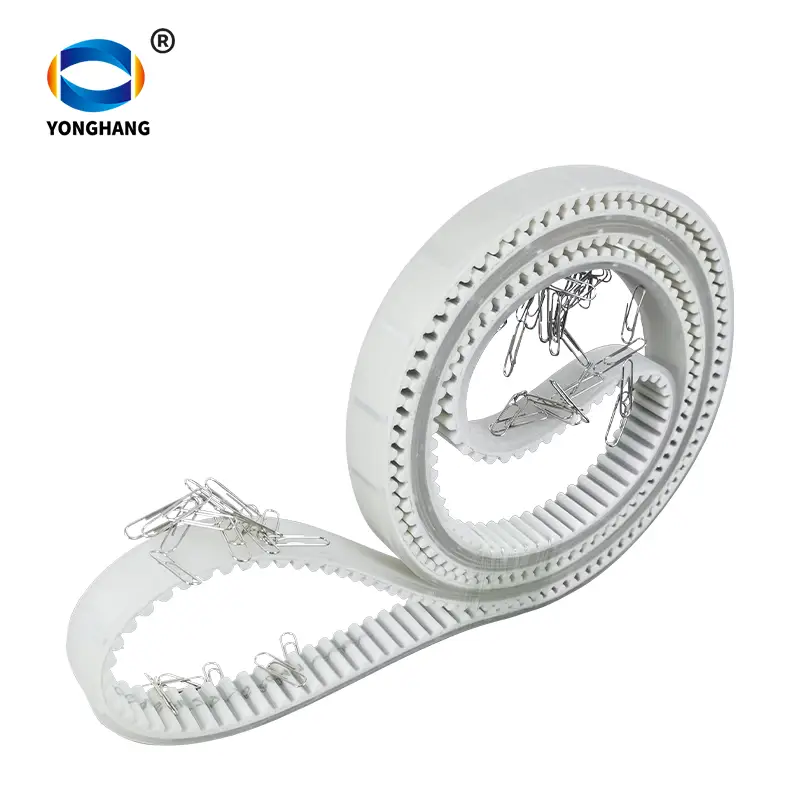

Embedded Magnet PU Timing Belt

The Embedded Magnet PU Timing Belt represents a breakthrough in synchronous transmission technology, combining the mechanical precision of a timing belt with the functional power of permanent magnetism. Unlike external magnetic attachments that can fall off or cause interference, our belts feature internally embedded Neodymium (NdFeB) magnets securely housed within each tooth or at specific intervals along the belt’s pitch.

This "Hidden Strength" design is primarily utilized in Wall-Climbing Robots, magnetic elevators, and metal part sorting systems. By embedding the magnets directly into the high-grade Polyurethane (PU) during the molding process, we ensure a smooth, unobstructed belt surface that maintains its timing accuracy while providing a consistent, powerful magnetic hold on ferrous surfaces.

 Key Technical Advantages

Seamless Integration & Stability

The magnets are fully encased within the PU material, protected from oil, moisture, and impact. This integrated construction prevents the magnets from detaching even during high-speed rotations or sudden reversals, which is a critical safety factor for robotic climbers.

High-Strength Pulling Force

Utilizing premium Rare Earth Neodymium magnets, these belts provide a high weight-to-magnetic-force ratio. This allows climbing robots to carry significant payloads on vertical or inverted metal surfaces without slipping or losing contact.

Precision Timing (T10 / AT10 / 8M Profiles)

Available in standard and heavy-duty profiles, the embedded magnet belt ensures zero-slip synchronization. The magnets can be aligned perfectly with the belt’s teeth to coincide with specific indexing points on the automation line.

Non-Marking & Durable

The high-quality white or black PU surface acts as a protective buffer between the magnets and the metal substrate, ensuring the belt provides a secure grip without scratching or damaging the contact surface.

Primary Applications

• Wall-Climbing Robots: For inspecting steel tanks, hulls of ships, and large metal infrastructure.

• Vertical Metal Conveying: Securely moving ferrous parts up or down without mechanical clamps.

• Magnetic Sorting: Precise indexing and separation of small steel components in automated assembly.

• Inverted Logistics: Enabling conveyor systems to run on the ceiling or steep inclines to save floor space.
