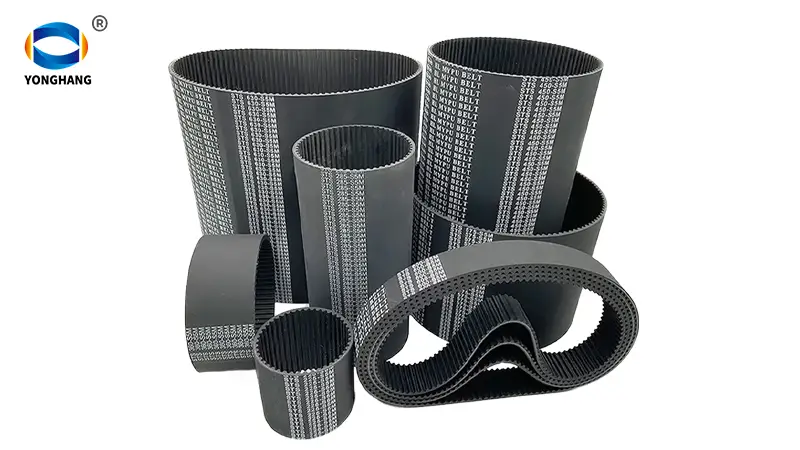

HTD3M5M8M14M rubber timing belts

What are HTD3M5M8M14M rubber timing belts?

timing belt is made of rubber with hard teeth capable of interlocking with camshafts and crankshafts cogwheels. The trapezoidal shape timing belt was superseded by a curvilinear tooth profile. Because of their superior load carrying capabilities, the curvilinear belts are marketed under the name of YONGHANG HTD timing belts. This is an abbreviation of High Torque Drives.

Advantages of this type of HTD rubber timing belts are as follows:

· Proportionally deeper tooth; hence tooth jumping or loss of relative position is less probable.

· Lighter construction, with correspondingly smaller centrifugal loss.

· Smaller unit pressure on the tooth since area of contact is larger.

· Greater shear strength due to larger tooth cross section.

· Lower cost since a narrower belt will handle larger load.

· Energy efficient, particularly if replacing a “V” belt drive which incurs energy losses due to slippage.

· Installation tension is small, therefore, light bearing loads.

If you operate in the transmission components business, I am pleased to provide one-stop sourcing with a commitment to the lowest prices. We look forward to your inquiry.

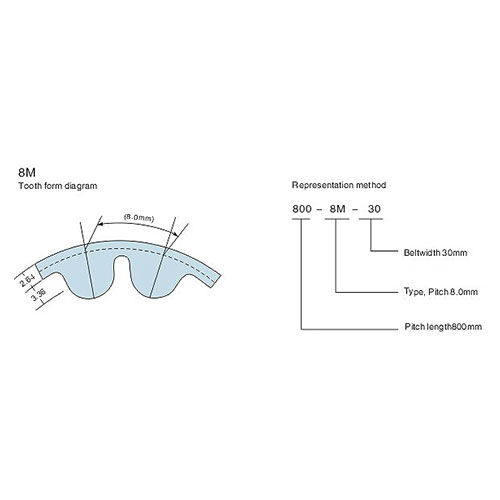

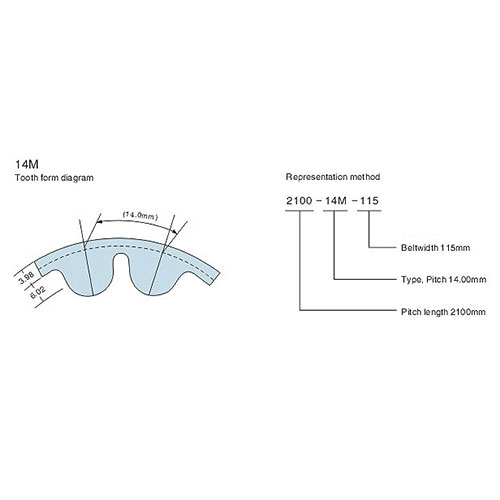

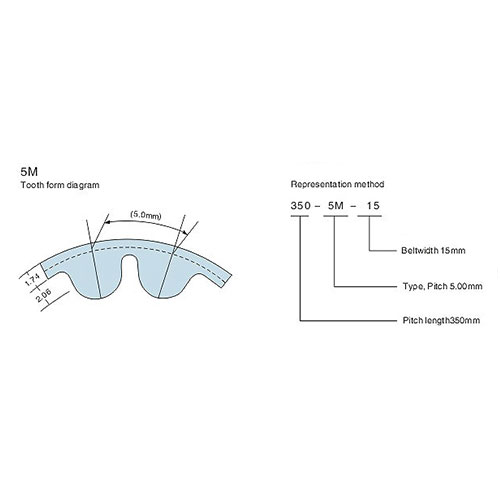

Mold Dimension Table
