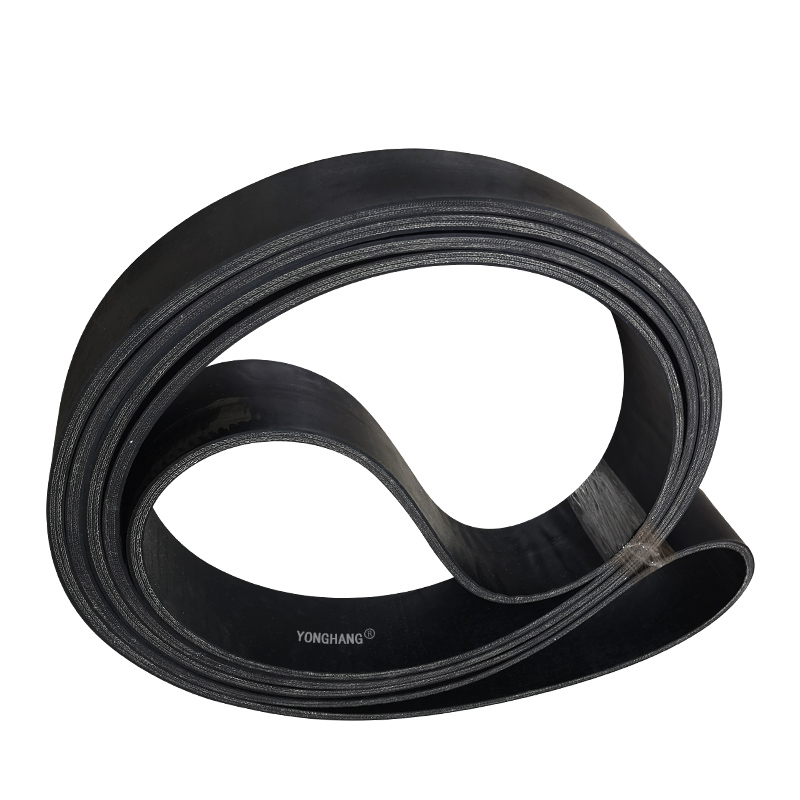

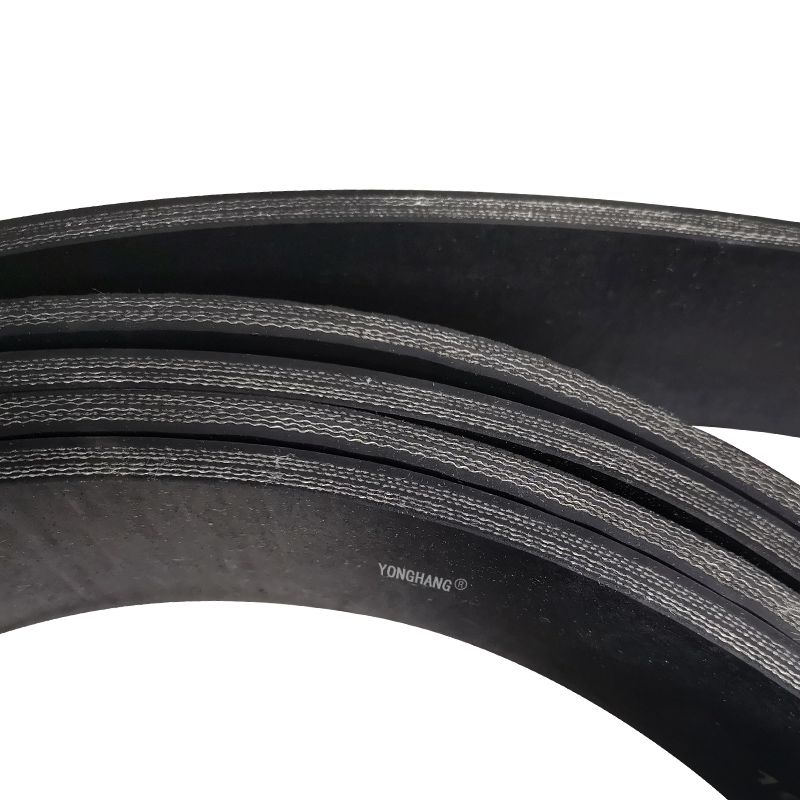

How To Correctly Install The TQD Traction Belt To Prevent Subsequent Problems? |Yonghang Belt Secretly Tell You

TQD traction belt for wire and cable, pvc hose, etc. has a high performance traction role! But TQD traction belt in the installation also need to master certain skills, if not installed well, the later operation will appear runaway, wear and tear and even broken belt and other phenomena, directly affecting the service life! Correct installation of tractor belt not only high efficiency, service life will also increase!

When installing the TQD traction belt, first set it in the pulley groove of the small pulley, then set it on the large pulley, while turning the large pulley, while using the driver to pluck the belt into the pulley groove. The position of the belt in the groove of the wheel should be slightly higher than the groove of the wheel and should not fall into the bottom of the groove or protrude too high from the groove of the wheel. When installing the belt, the tension of the belt must be appropriate. Generally speaking, when installing a new belt, the initial tension should be greater than the normal tension so that the belt can maintain a certain tension after working for a period of time. Generally speaking, the best tensioning force is required to be down about 15mm by hand!
