Elastic Multi-Groove Ribbed Belt EPJ Poly V Belt for Logistics Conveyor Roller Drive
YONGHANG Elastic Multi-Groove Ribbed Belt profiles EPH and EPJ consist of a superstructure, an elastic tension cord and a base compound. The superstructure is made from a fibre-reinforced rubber mixture. The fibres are laid perpendicular to the direction of belt travel and stabilise the belt during dynamic operation. The tension cord is a high modulus polyamide material embedded in a rubber compound and covers the entire width of the ribbed belt. The rib compound is characterised by high wear resistance and damping properties.
Material：CR Modified rubber

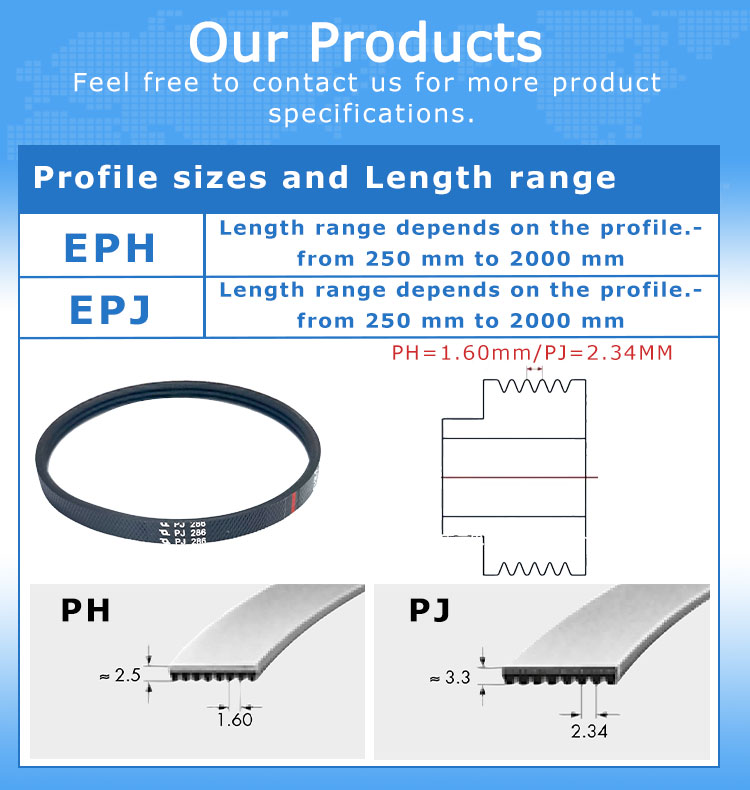

Pitch：PJ 2.34
PH：1.6
EPJ Elastic Multi-Groove Ribbed Belt Advantages:
Large tranmission power.Under the conditions of same space,its transmission power is 30% higher than that of ordinary v belt.
2.Fine flexibility,suits driving small diameter pulley and high speed transmission.Belt speed reaches as high as 40m/s.
3.With short fiber reinforcement,it can bear high horizontal pressure,increase wedge pressure of the belt and reduce deformation after it encounters the force .4.It also features as compact structure,little vibration and the more smooth operation.

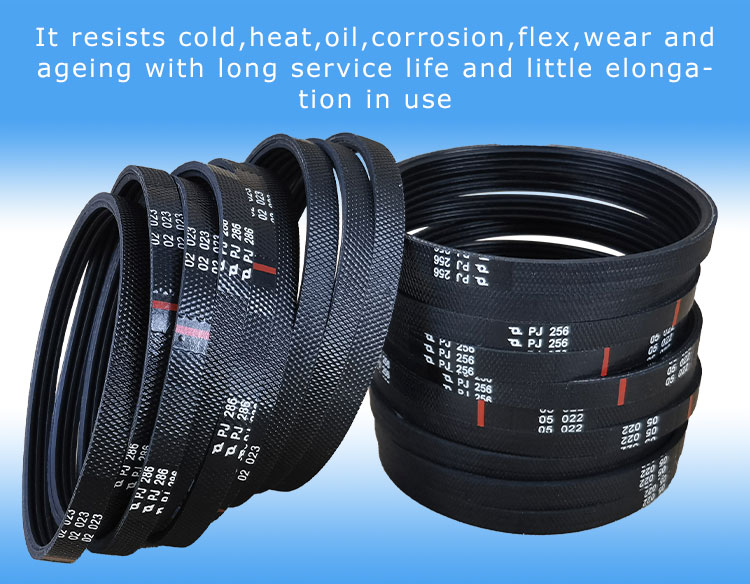

5.It resists cold,heat,oil,corrosion,flex,wear and ageing with long service life and little elongation in use.

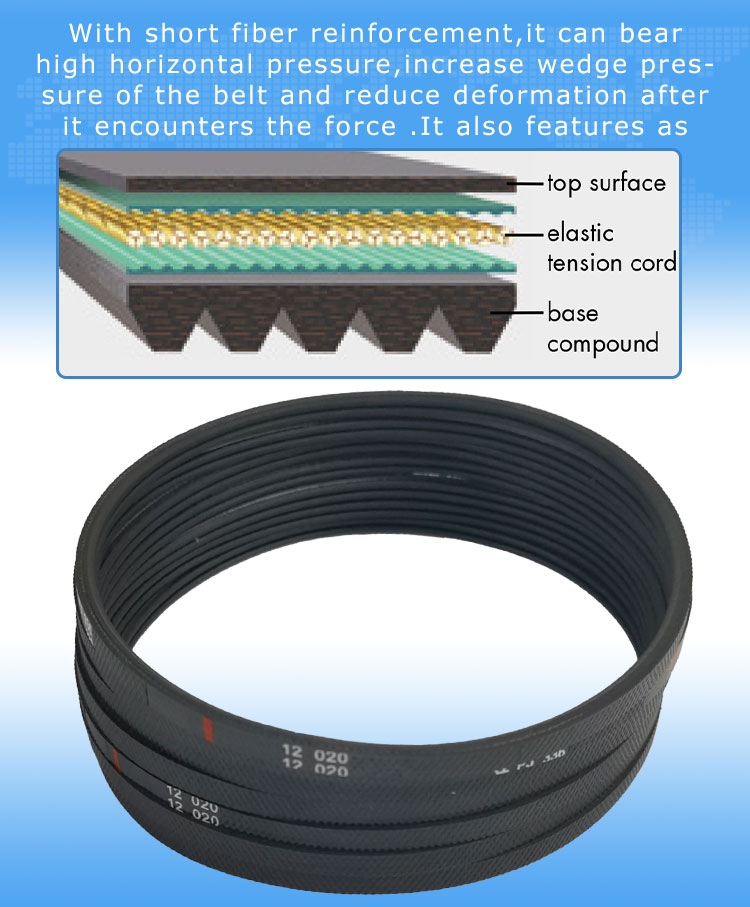

Yonghang EPJ Elastic Multi-Groove Ribbed Belt consists of the following components:
Top layer: Wear-resistant chloroprene rubber compound
Tension line: Low-elongation polyester tension line embedded in the adhesive rubber compound
Base layer: Wear-resistant rubber compound wedges arranged in a staggered pattern
Application
Applied to the roller drive of the conveying line
• Assembly is possible on fixed centres with no need for adjustment for belt tensioning
• easy assembly on the production line
• Only one belt length may be usable for different drive configurations.
• good shock load resistance due to high elasticity of belt
• maintenance-free
• easy assembly in service areas
YONGHANG specializes in produce and custom coated transmission belts for 12 years.
