Product Introduction

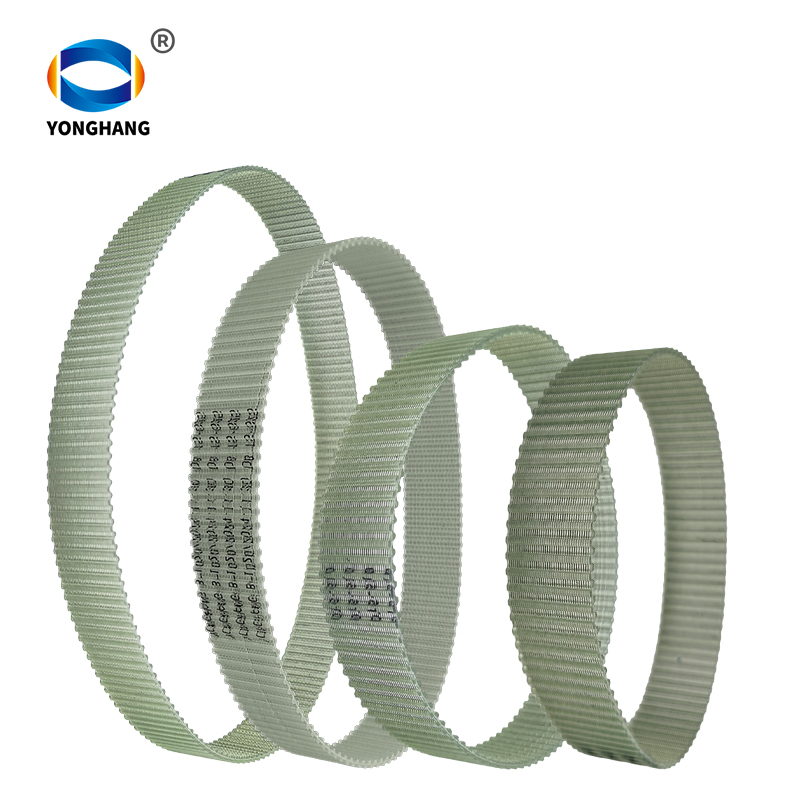

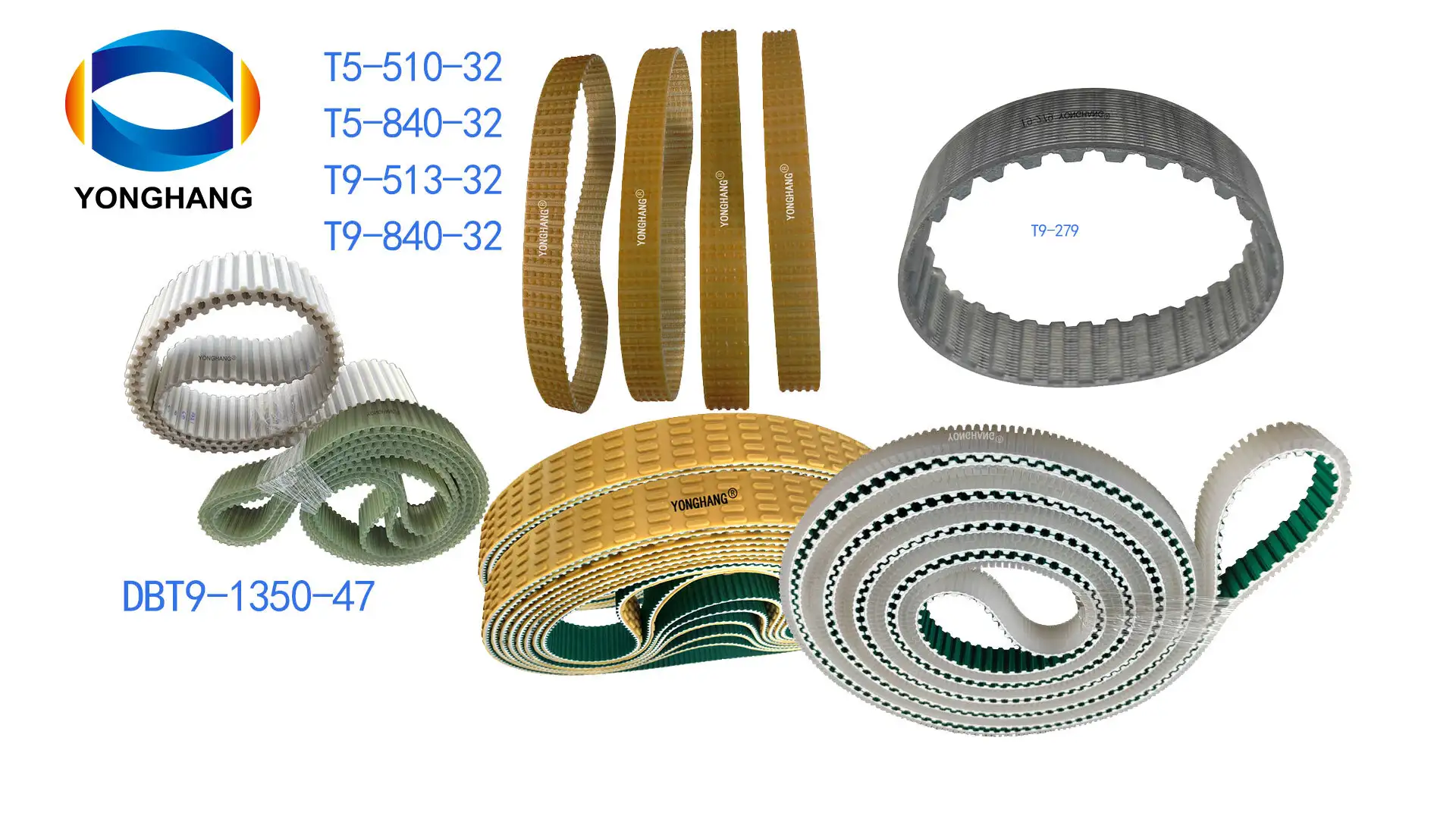

Yonghangbelt is factory in China with 15 years of professional experience in the production of sausage timing belts, Yonghangbelt produces sausage belts are mainly used in commercial sausage machines, there are a lot of models and specifications, usually use the tooth specifications for T5/T10/L, special tooth T9.

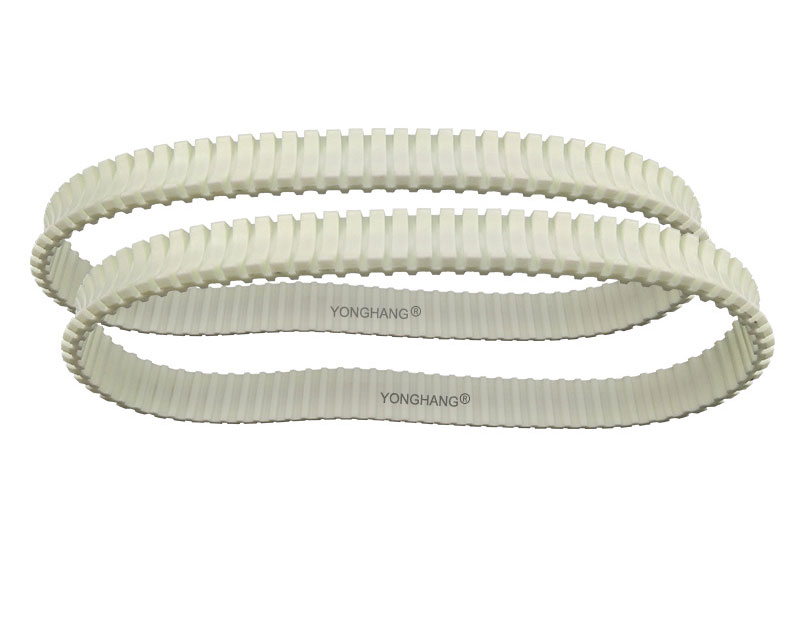

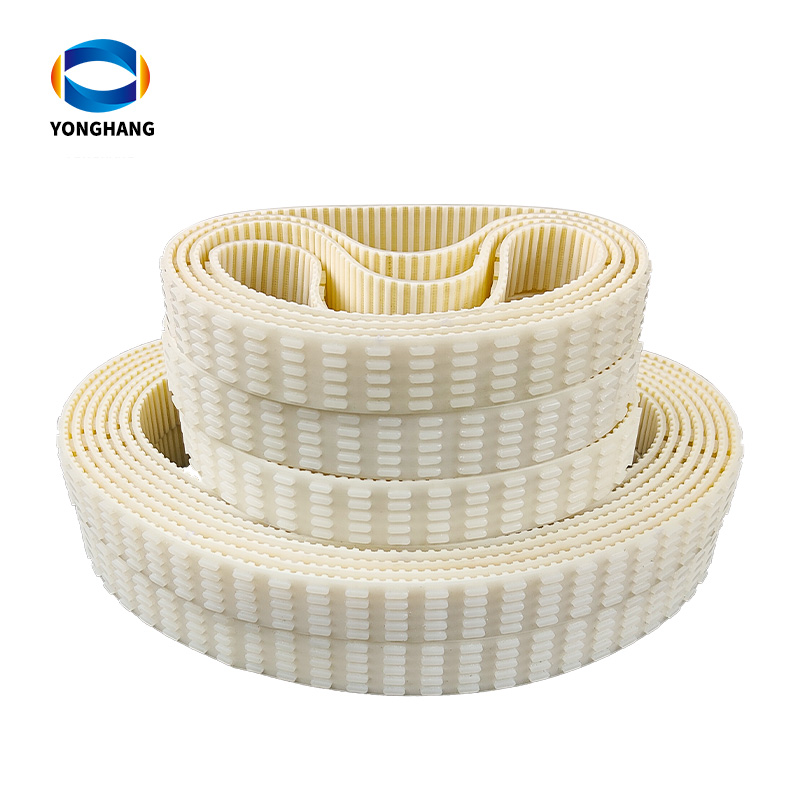

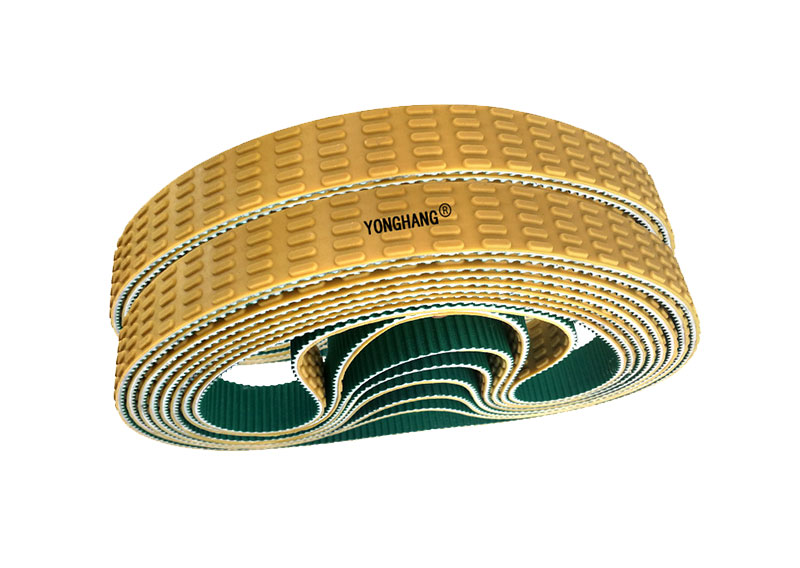

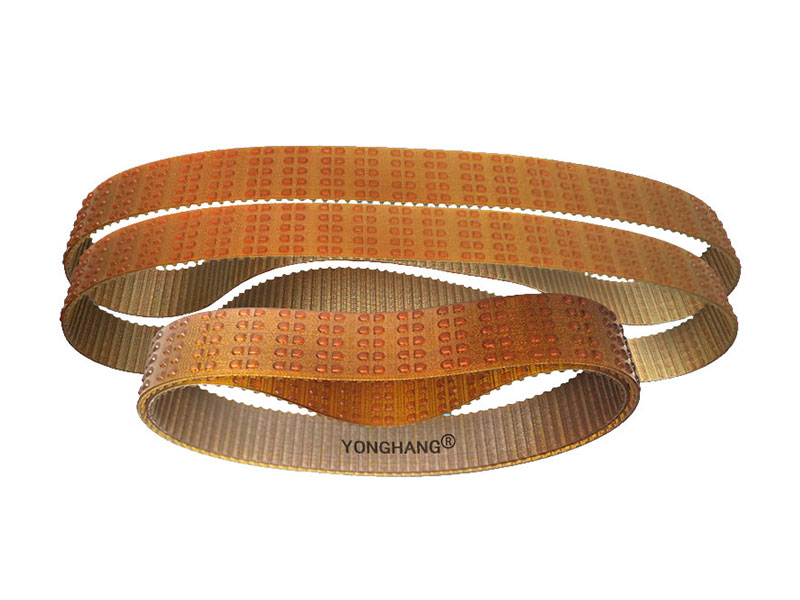

The sausage cutting machine uses the belt made of polyurethane with dimpled surface, and  also use the DB double-sided tooth type.

The sausage filling machines are L tooth type with U-shaped vertical and horizontal grooves in PU coating.

Commercial Sausage stuffer machine uses the T5 model with a PU coating and U / V grooves.

The Sausage Hanging Machine is model T10 with PU coating and horizontal grooves.

Product Information



Advantages

– Meat Industry, belts for transporting sausages

Unique Characteristics

– Made of environmentally friendly materials
– Aramid kevlar or steel cord reinforcement
– Hardness: 80 Shore A
– Heat resistance on operating temperature 80 C (on short run up to 100 C Degrees)
– Good behavior at low temperature
– Very good resistance to hydrolysis
– Good resistance to abrasion
– Good resistance to oil, solvents, hydrocarbons
– Loadability is equal with normal PU timing belts

– Compliant with FDA food-grade certification

Some samples belt for sausage machines size chart：

Application：

Mainly applied to commercial sausage making Production line：

sausage binding machine

sausage binding wire machine

sausage stuffer machine

sausage binder machine

sausage casing machine

sausage dryer machine

sausage drying machine

sausage egg mcmuffin machine

sausage emulsifier machine

sausage cutter machine

sausage filler machine

sausage filling machine

sausage link machine

sausage linking machine

sausage machine parts

sausage tie machine

sausage twister machine

automatic sausage clipper machine

automatic sausage linking machine

sausage stuffer machine

electric sausage machine

sausage maker machine

sausage stuffing machine

sausage grinder machine

sausage machine

automatic sausage making machine

automatic sausage tying machine

sausage link cutter machine

Commercial Sausage Machine Belt Size  Chart  Catalogue：

Part Number	Pitch [mm]	Length [mm]	[mm]	No of Teeth	Picture
T5-510-30	5	510	30	102
T5-840-30	5	840	30	168
T5-625-30	5	625	30	125
T9-513-32	9	513	32	57
T9-837-32	9	837	32	93
T5-510-32	5	510	32	102
T5-840-32	5	840	32	168
T9-513-32	9	513	32	57
T9-837-32	9	837	32	93
T5-510-32	5	510	32	102
T5-840-32	5	840	32	168
T5-625-30	5	625	30	125
T5-910-32	5	910	32	182
T5-840-32	5	840	32	168
T5-625-32	5	625	32	125
T5-350-32	5	350	32	70
T5-510-32	5	510	32	102
T9-837-32	9	837	32	93
T9-513-32	9	513	32	57
T5-840-32	5	840	32	168
T5-625-32	5	625	32	125
T5-510-32	5	510	32	102
T5-310-32	5	310	32	62
T5-1100-32	5	1100	32	220
T5-580-32	5	580	32	116
T5-1105-30	5	1105	30	221
T5-350-30	5	350	30	70
T5-330-30	5	330	30	66

Part Number	Color	Pitch [mm]	Length [mm]	Width [mm]	No of Teeth	Picture
47-DBT9-1350	White	DBT9	1350	47	150
50-DBT10-1320	Transparent	DBT10	1320	50	132
47-DBT9-1350	Transparent	DBT9	1350	47	150
30-DBT5-850	Transparent	DBT5	850	30	170
30-DBT5-460	Transparent	DBT5	460	30	92
32-DBT5-625	Transparent	DBT5	625	32	125
32-DBT5-510	Transparent	DBT5	510	32	102
32-DBT5-840	Transparent	DBT5	840	32	168
22-T9-279	Transparent	T9	279	22	31
23-T9-279	Transparent	T9	279	23	31
32-T9-279	Transparent	T9	279	32	31

Part No1	Part No2	Length [mm]	Pitch [mm]	Width [mm]	No. of Teeth	Picture
258L126	32-L-657.23	657.23	9.525"	32	69
270L126	32-L-685.8	685.8	9.525"	32	72
315L126	32-L-800.1	800.1	9.525"	32	84
371L126	32-L-942.9	942.9	9.525"	32	99
394L126	32-L-1000.1	1000.1	9.525"	32	105
