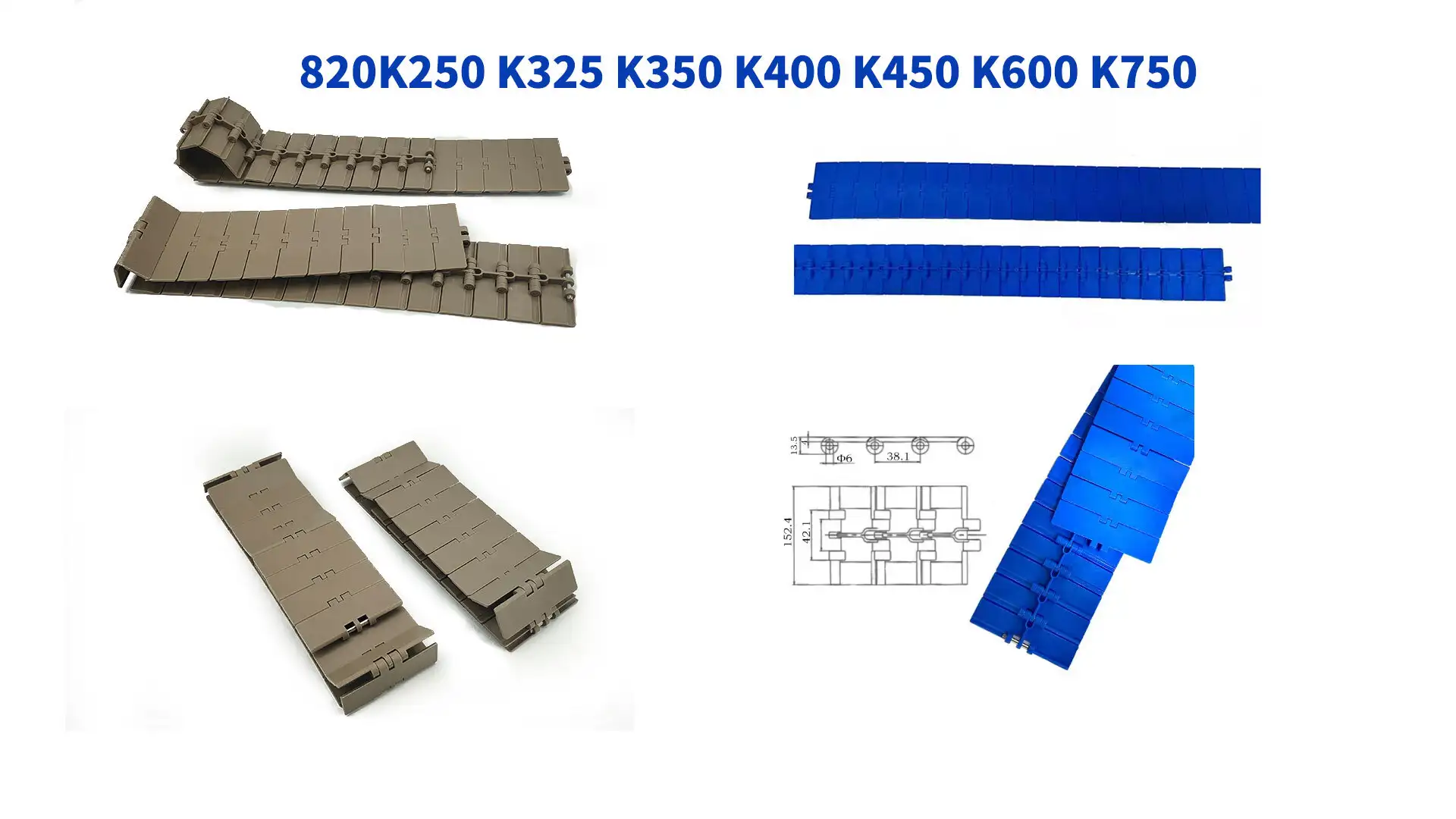

820K250 820K325 820K450 820K600 820K750 POM Plastic chain plate pitch 38.1
820 series plastic chain plate single hinge straight conveying flat top chain conveyor beverage line transmission POM chain pitch 38.1
Product ： 820 plastic flat top chain plates
One meter ： ≈26 Block
Elongation ： 0.1%-0.3%
Color ： Blue/coffee color/ white
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Brand
Yonghang
Customized support
yes
Place of Origin
China
OEM
yes

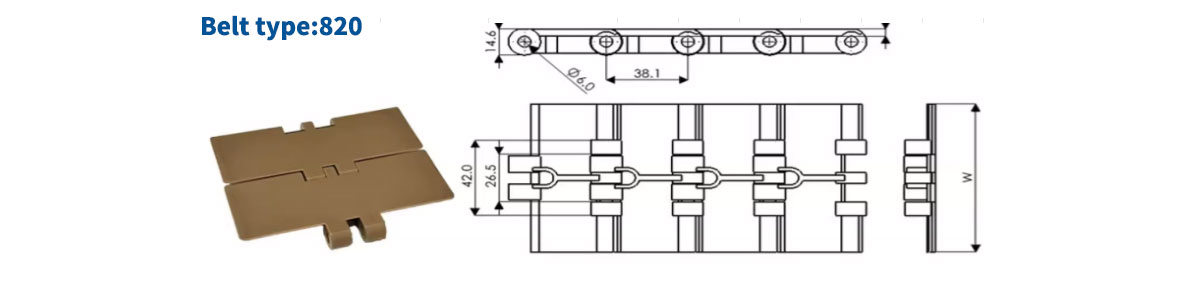

820 series plastic chain plate single hinge straight conveying flat top chain conveyor beverage line transmission POM chain pitch 38.1
Material Optional ：POM
Pitch ：38.1
Pin Diameter ： 6mm
Advantages：Sturdy and durable, with smooth operation
Color ：coffee
Application：Transportation machinery for various foods, beverages, and various containers
The longest distance:12M
Max Speed:Lubricant 90M/min
Max Speed:Dryness 60M/min
Working load:2250N
Pitch:38.1MM
Pin material:stainless steel（201/303/304）
Plate material:POM(Temperature:-40-90°C)
Packing:10 feet =3.048M/box 26pcs/M
| Belt type | Belt material | Weight（Kg/m） | Width（mm） | Bending radius（Minimum value）mm | Pin Diameter（mm） | Pin Material |
| 820-K250 | POM | 0.74 | 63.5 | 75 | 6 | 201/303/304 |
| 820-K325 | POM | 0.85 | 82.6 | 75 | 6 | 201/303/304 |
| 820-K350 | POM | 0.89 | 88.9 | 75 | 6 | 201/303/304 |
| 820-K400 | POM | 0.95 | 101.6 | 75 | 6 | 201/303/304 |
| 820-K450 | POM | 1.03 | 114.3 | 75 | 6 | 201/303/304 |
| 820-K600 | POM | 1.25 | 152.4 | 80 | 6 | 201/303/304 |
| 820-K750 | POM | 1.47 | 190.5 | 81 | 6 | 201/303/304 |

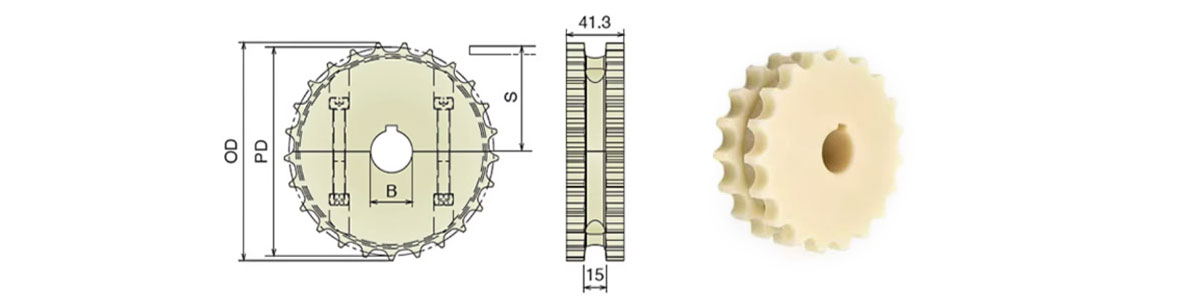

| Machined Sprockets | Teeth | Pitch Diametet(mm) PD | Outside Diameter （OD） | Bore Size （Round hole and D hole） | S | |||
| mm | Inch | mm | Inch | mm | mm | Inch | ||
| 820-17T | 17 | 103.9 | 4.09 | 105.5 | 4.15 | 25-40 | 55.9 | 2.20 |
| 820-19T | 19 | 117 | 4.61 | 117.3 | 4.62 | 25-40 | 61.9 | 2.44 |
| 820-21T | 21 | 129 | 5.08 | 129.3 | 5.09 | 25-40 | 67.8 | 2.67 |
| 820-23T | 23 | 141.2 | 5.56 | 142 | 5.59 | 25-40 | 73.8 | 2.91 |
| 820-25T | 25 | 153.2 | 6.03 | 154 | 6.06 | 25-40 | 79.8 | 3.14 |
| 820-27T | 27 | 165.2 | 6.50 | 166.8 | 6.57 | 25-40 | 85.8 | 3.38 |
| 820-29T | 29 | 177.2 | 6.98 | 178.5 | 7.03 | 25-40 | 91.8 | 3.61 |

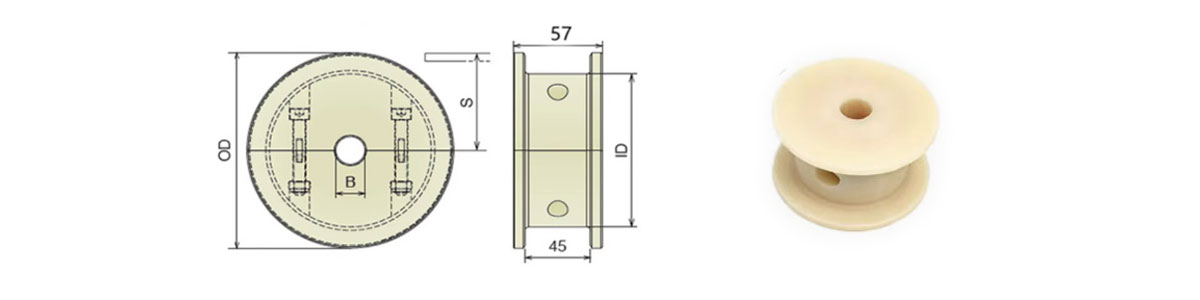

| Machined Idler gear | Outside Diameter （OD） | Diametet(mm) ID | S | |||
| mm | Inch | mm | Inch | mm | Inch | |
| 820-17T | 104 | 4.09 | 75.2 | 2.96 | 56.2 | 2.21 |
| 820-19T | 117 | 4.61 | 92.2 | 3.63 | 62.6 | 2.46 |
| 820-21T | 129.8 | 5.11 | 105 | 4.13 | 68.6 | 2.70 |
| 820-23T | 142.2 | 5.60 | 111.3 | 4.38 | 74.6 | 2.94 |
| 820-25T | 154.7 | 6.09 | 124.7 | 4.91 | 80.5 | 3.17 |
| 820-27T | 167.2 | 6.58 | 135 | 5.31 | 88.5 | 3.48 |
| 820-29T | 179.3 | 7.06 | 140 | 5.51 | 92.8 | 3.65 |

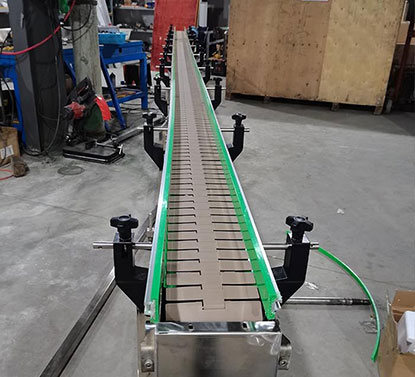

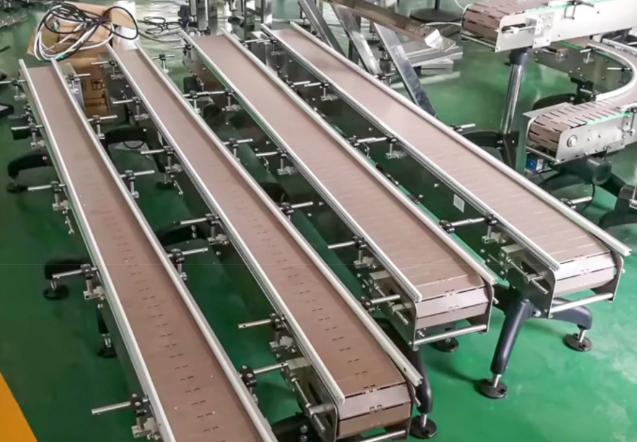

Product Application
Applied to beverage conveying lines, with low noise and high strength
Applied to the packaging machine conveying line, with low noise and high strength
820K600

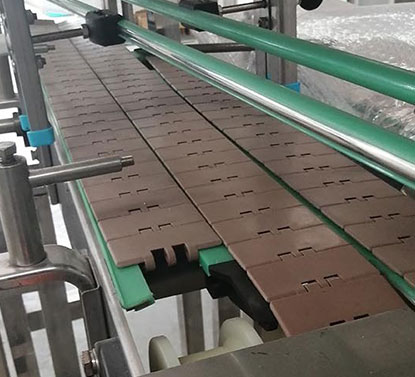

Beverage conveying line
820K450
Coke conveying line
820 Assembly workshop

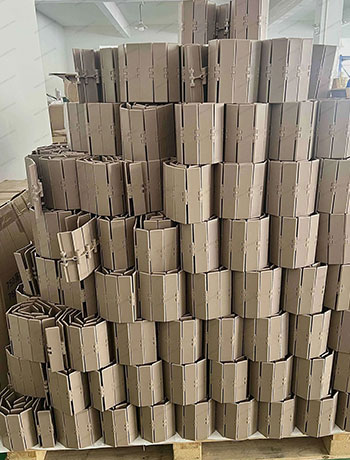

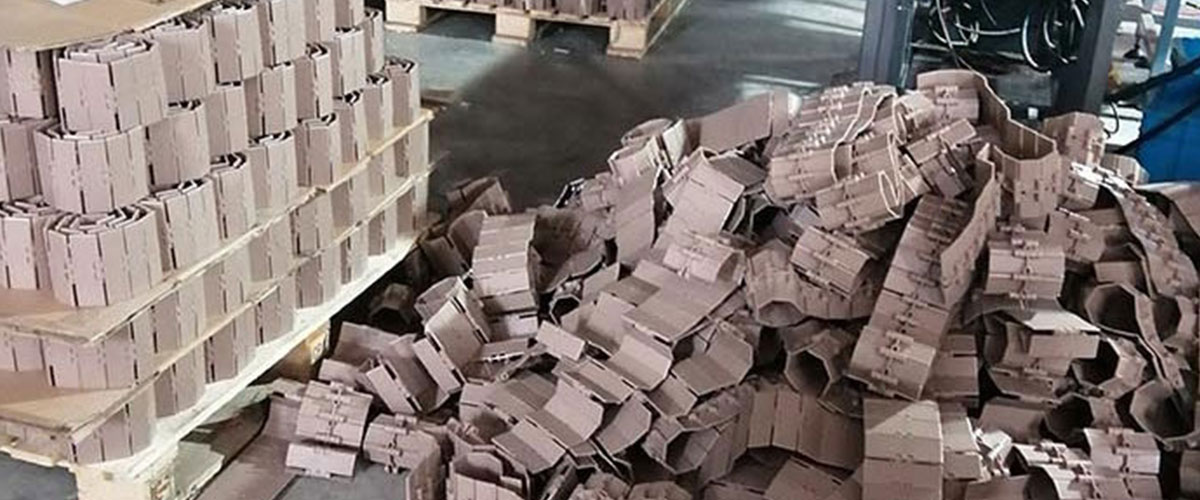

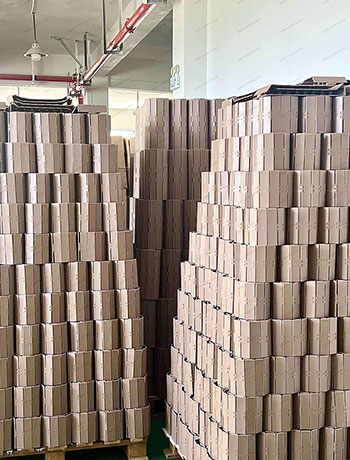

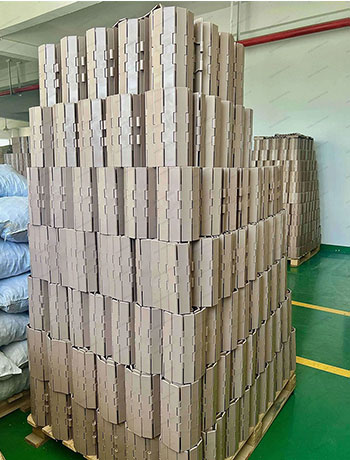

Our Factory!
We produce a wide variety of plastic chain plates. If you are a designer, we can also make molds according to your drawings for customization. If you are interested, please leave your email address with us. We will reply to you within 24 hours
