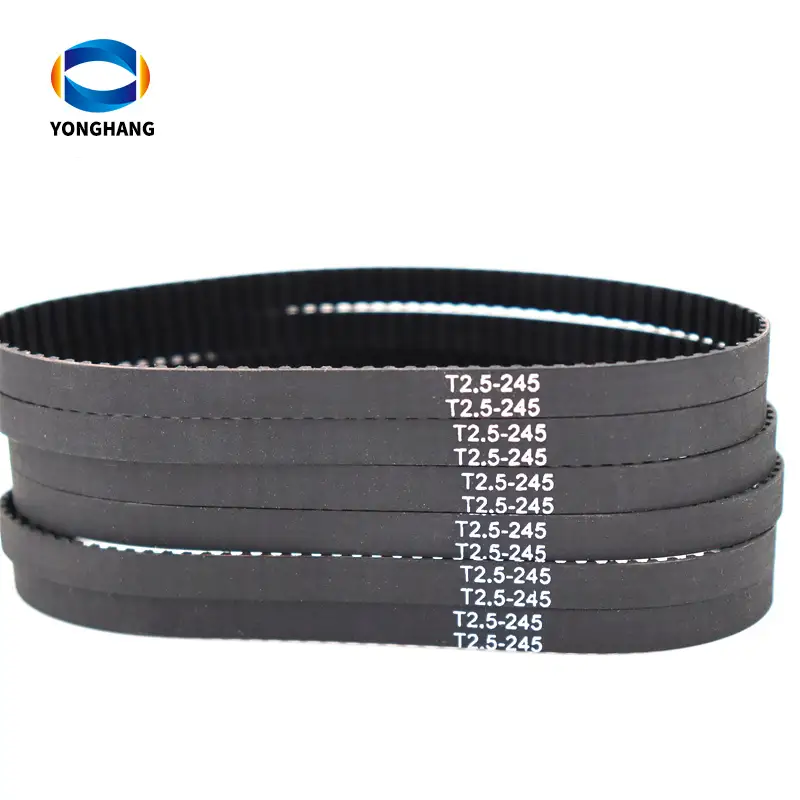

T2.5 rubber timing belt
T2.5 rubber timing belt，trapezoidal teeth
T2.5 rubber timing belt

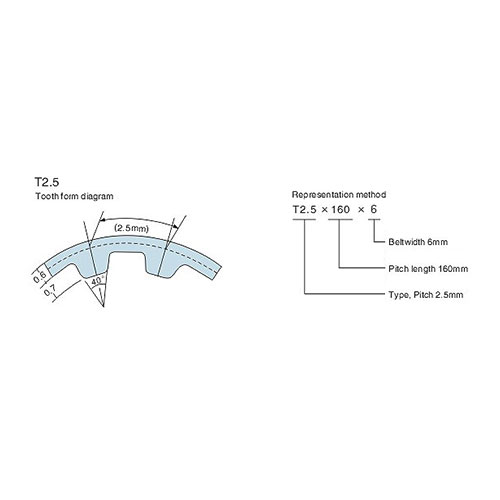

pitch：2.5mm
thickness：1.3mm
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Brand
Yonghang
Customized support
yes
Place of Origin
China
OEM
yes
T2.5 rubber timing belt
For transmitting forces, trapezoidal teeth are extremely effective. However, when the levels of torque and speed are high, teeth of this blunt shape tend to wear down fast. Trapezoidal teeth remain common despite their faults, and for precision conveying and linear positioning belts, they are typically the primary choice.
Specifications Table
| T2.5 | |||
| length | teeth | length | teeth |
| T2.5x105 | 42 | T2.5x355 | 142 |
| T2.5x120 | 48 | T2.5x380 | 152 |
| T2.5X130 | 52 | T2.5x400 | 160 |
| T2.5x145 | 58 | T2.5X420 | 168 |
| T2.5x157.5 | 63 | T2.5X450 | 180 |
| T2.5x160 | 64 | T2.5x480 | 192 |
| T2.5x165 | 66 | T2.5x512.5 | 205 |
| T2.5X172.5 | 69 | T2.5x540 | 216 |
| T2.5x177.5 | 71 | T2.5x580 | 232 |
| T2.5x187.5 | 75 | T2.5X620 | 248 |
| T2.5x200 | 80 | T2.5x625 | 250 |
| T2.5x225 | 90 | T2.5x635 | 254 |
| T2.5x230 | 92 | T2.5x650 | 260 |
| T2.5x245 | 98 | T2.5x690 | 276 |
| T2.5X265 | 106 | T2.5x780 | 312 |
| T2.5X272.5 | 109 | T2.5X860 | 344 |
| T2.5x275 | 110 | T2.5X920 | 368 |
| T2.5x285 | 114 | T2.5x1097.5 | 439 |
| T2.5x305 | 122 | T2.5x1295 | 518 |
| T2.5X335 | 134 | T2.5x3650 | 1460 |
| T2.5X345 | 138 | ||
