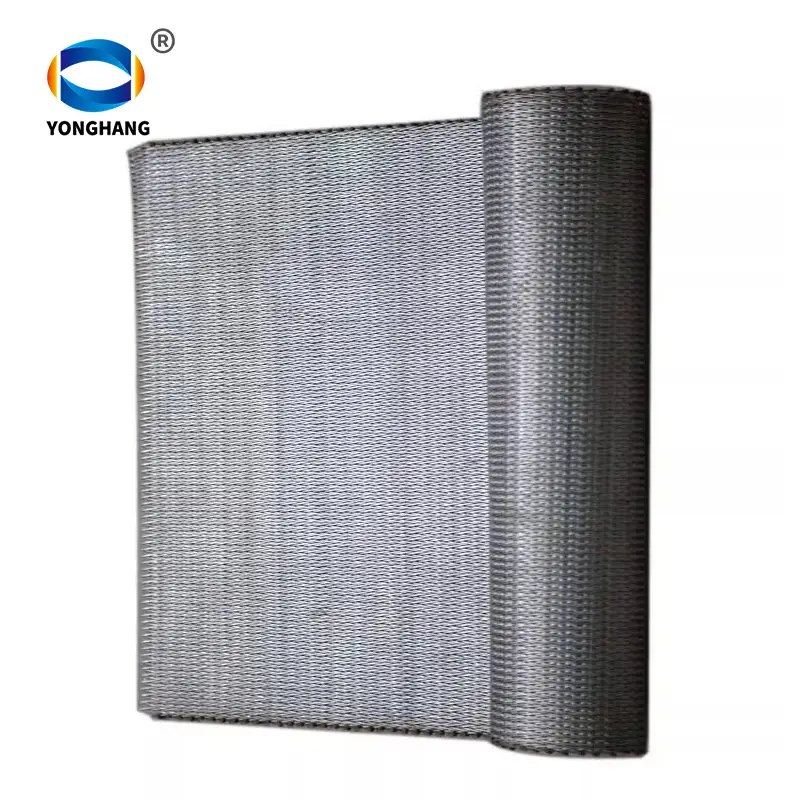

Metal Stainless Steel Herringbone Encryption Mesh Belt
Herringbone Encryption stainless steel mesh belt is a common industrial conveyor belt, named for the alternating arrangement of its mesh strips that form a pattern resembling the Chinese character "人" (person).Yonghang20 years of operation has given you the lowest price.Ship out more than 1,000 square meters every day
Products Name ： 304 316 stainless steel herringbone balance weave wire mesh conveyor belt
Material ： Stainless steel 201, 304, 316, 316L etc.
Product Description
Herringbone balance weave wire mesh conveyor belt endows it with high density, fine mesh openings, and flexible operation, demanding exceptionally high standards for both materials and weaving techniques. Its precision mesh effectively prevents leakage of fine materials. Additionally, it exhibits outstanding temperature resistance (ranging from approximately -50°C to 1150°C) and corrosion resistance, while transport stability can be enhanced by adding baffles or flanges.
| Products Name | 304 316 stainless steel herringbone balance weave wire mesh conveyor belt | |||
| Material | Stainless steel 201, 304, 316, 316L etc. | |||
| Features | 1. Smooth surface, suitable for transporting small objects and unstable handling parts. 2. Large allowable tension, can carryheavy objects. 3. The mesh belt has strong pressure resistance and is suitable for stamping work. 4. The mesh belt is suitable for high temperature operation. 5. Can be used for washing and cleaning of fiber products, etc. | |||
| Application | It is very suitable for conveying small products, such as screws, nails, Bolts and other products with small volume but relatively heavy weight.Food processing, heat treatment of glass products, electronic component manufacturing, powder metallurgy, heat treatment of mechanical parts and other industries | |||

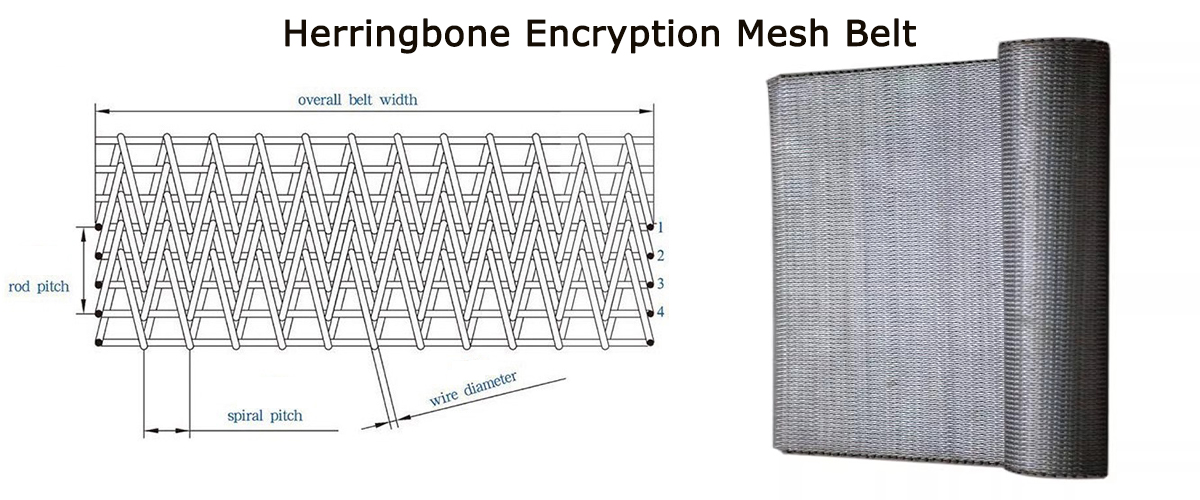

| Types | Spiral Pitch(mm) | Rod Pitch(mm) | Rod diameter(mm) | Spiral diameter(mm) | Chain Pitch(mm) | Overall Width(mm) |
| GW-1 | 17.5 | 6.5 | 3.0 | 2.6 | 19.05mm 25.4mm 31.75mm 38.1mm 50.8mm 76.2mm or customized | 300-4200mm or Customized |
| GW-2 | 10.5 | 5.7 | 2.6 | 2.3 | ||
| GW-3 | 9.0 | 5.0 | 2.3 | 2.0 | ||
| GW-4 | 7.2 | 4.0 | 1.8 | 1.6 | ||
| GW-5 | 6.5 | 3.8 | 1.8 | 1.4 | ||
| GW-6 | 5.5 | 2.8 | 1.4 | 1.2 | ||
| GW-7 | 4.5 | 2.3 | 1.2 | 1.0 | ||
| GW-8 | 3.7 | 2.1 | 1.2 | 0.8 |
YONGHANG specializes in produce and custom coated transmission belts for 12 years.
