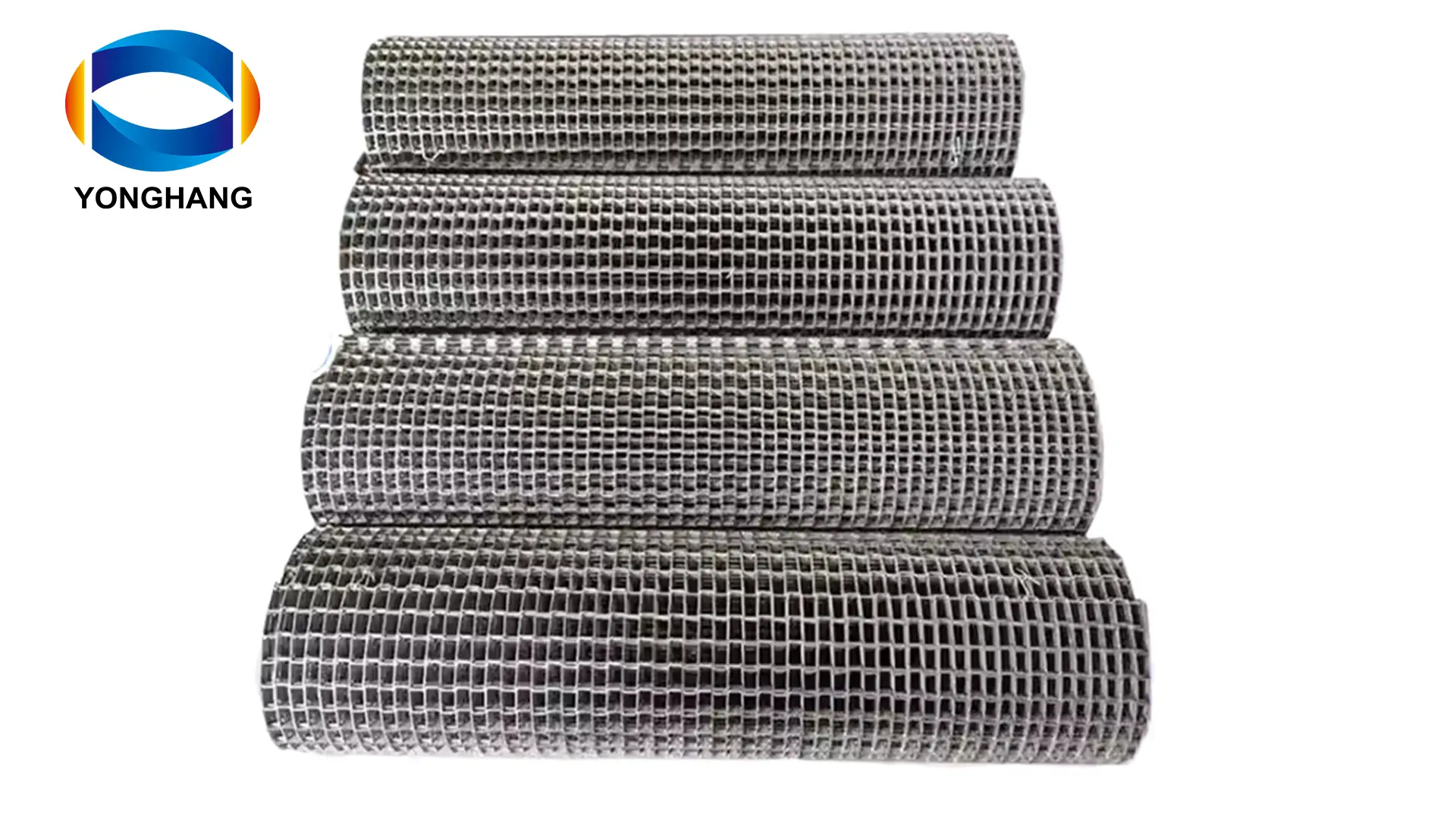

Flat wire belt(honeycomb belt)
Flat wire belt(honeycomb belt) is composed of flat metal sheets (formed by stamping) and round metal wires (string rods/axles), forming a honeycomb-like or square-hole mesh structure.
Flat wire belt(honeycomb belt)customized data
Material: stainless steel 304, 314, 316, 316L, carbon steel, copper steel, brass steel and other types are available.
Surface treatment: galvanized, 3% chromium plate, manganese plated.

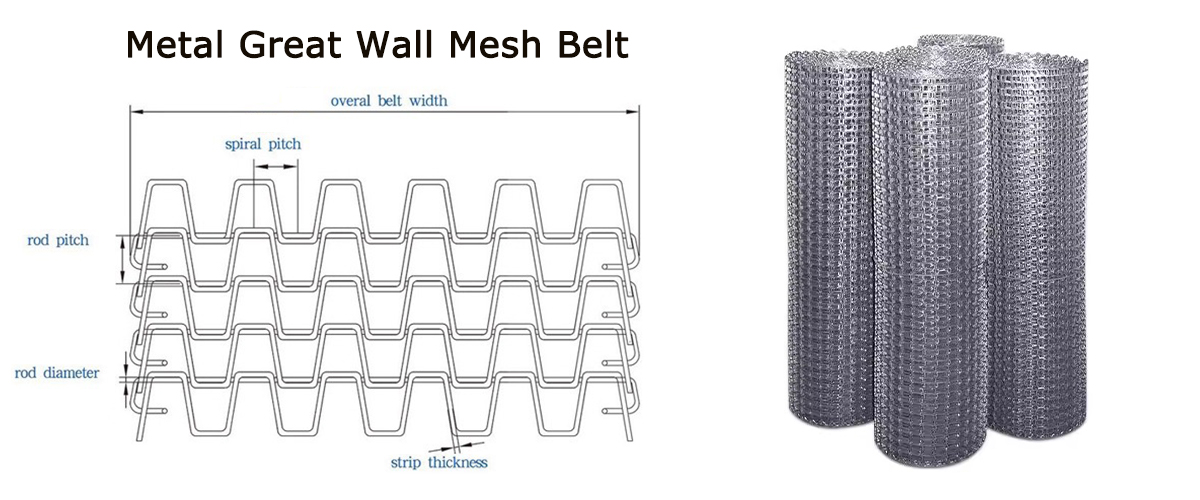

Spiral pitch: 12.7 mm to 40 mm.
rod pitch: 12.7 mm, 25.4 mm, 38.1 mm, 50.8 mm.
Rod diameter: 3 mm, 4 mm, 5 mm, 6 mm, 8 mm.
strip thickness：1-2.5mm
running speed： 2.5m/s.
Belt width: up to 5 meters or more upon your request.
Edge type: welded edge,Fold edge
Flat wire belt(honeycomb belt)customized dat
| Product name | Flat Wire Belt/Horseshoe chain conveyor belt |
| material | stainless steel, aluminum alloy, copper and other materials |
| Accessories | light clips, lane dividers, edge guards or pin up attachments, etc. |
| Temperature range | -30 °C to 400 °C. |
| Spiral pitch | 12.7 mm to 40 mm. |
| Rod pitch | 12.7 mm, 25.4 mm, 38.1 mm, 50.8 mm. |
| Rod diameter | 3 mm, 4 mm, 5 mm, 6 mm, 8 mm. |
| Open size | 1" × 1", 1/2" × 1", 1/2" × 1/2". |
| edge | Pitch | size ( mm ) | Thickness ( mm ) | Width ( mm ) | material ( mm ) |
Fold edge welded edge | 25.4 | 25.4X12.7 | 1.0-1.5 | 10 | carbon steel galvanizing 201 stainless steel 304 stainless steel 316 stainless steel |
| 25.4 | 25.4X25.4 | 1.0-1.5 | 10 | ||
| 27.2 | 27.2X18 | 1.0-1.5 | 12 | ||
| 27.2 | 27.2X27.2 | 1.0-1.5 | 12 | ||
| 38.1 | 38.1X19 | 1.5-2.0 | 12 | ||
| 38.1 | 38.1X38.1 | 1.5-2.0 | 12 | ||
| 50.8 | 50.8X25.4 | 1.0-2.5 | 15 | ||
| 50.8 | 50.8X50.8 | 1.0-2.5 | 15 |
Primary Applications
General Processing: Ideal for conveyor lines in washing, drying, cooling, and heat treatment processes.
Food Processing Industry: Commonly used in bakery lines, spiral tower conveyors in freezing machinery, as well as spraying and cleaning equipment.
Glass and Heat Treatment Industry: Widely applied in annealing furnaces for glass bottles and jars, and in heat treatment processes like quenching and tempering of components.
Automation and Packaging: Suitable for automated packaging lines, quick-freezing production lines, and coating production lines.
Selection and Comparison
Key Selection Points: Pay attention to the total belt width, shaft diameter (bar thickness), pitch and pitch distance (affecting mesh size and strength), and material. Material selection primarily depends on your operating environment. For example, the food industry or humid environments typically require 304 stainless steel; high-temperature scenarios (such as heat treatment furnaces) require heat-resistant steel.
Belt Type Comparison: To aid your decision-making, here's a comparison between Great Wall belts and several other common belt types:
| Belt Type | Key Features | Applications |
| Flat wire belt(honeycomb Mesh Belt） | Flat surface, stable operation, anti-skewing, excellent air permeability | Drying,cooling, heat treatment, cleaning, food processing, etc. |
| Type B Mesh Belt | Typically driven by gears, trapezoidal mesh openings, excellent air permeability | Electronic reflow soldering, frying equipment, etc. |
| Herringbone Mesh Belt | Formed by alternating left and right mesh bars connected by straight crossbars, high weave density | Conveying small, relatively heavy items |
Choose Our Flat wire belt(honeycomb belt)
Choosing our honeycomb mesh belt means investing in a high-efficiency, durable, and stable conveyor solution that can improve your production efficiency and product quality. We are committed to providing customized mesh belt products tailored to your specific needs at different stages of production. Whether you have a small-scale operation or large-scale production, our honeycomb mesh belt will be the perfect match for your requirements.
