DPL-1765 Double-sided Poly V Roller Mill Belt
Double-sided Poly V Roller Mill Belt
Flour Roller Mill Belts usually consist of neoprene body, fiberglass cord and nylon tooth facing, while custom materials available upon request. Special cords include aramid (kevlar), steel and carbon fiber. DPLand DPK v-ribbed on the opposite side.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Brand
yonghang
Applicable Industries
Flour mills, crushers, automobile engines, multi-pulley transmission units
Color
black
OEM
yes
MOQ
1
Type
DPL/DPK
Material
rubber
Double-sided Poly V Roller Mill Belt:28DPL1765
28 = Number of Ribs
1765 = Pitch Length [mm]
D = Dual Sided
PL = L Rib Profile
DPK/DPL: Double-sided Multi-ribbed Belt Model (corresponding to single-sided PK/PL), "D" = Double-sided.
On the opposite side: Both sides have ribs/gears, and both sides can mesh with the pulley to achieve reverse transmission or dual-wheel drive.
On the opposite side: Both sides have ribs/gears, and both sides can mesh with the pulley to achieve reverse transmission or dual-wheel drive.
V-ribbed on opposite sides - Products and Structures
Core features:
High transmission efficiency, low noise, long lifespan.
Suitable for compact layouts and reverse tension wheels, commonly used in automotive, textile, food processing and other fields.
The material is mostly EPDM synthetic rubber, which is resistant to high and low temperatures, oil and static electricity.
3. Application Scenarios of Belts in Flour Mills
3.1 DPK Double-Sided V-Ribbed Belt Application

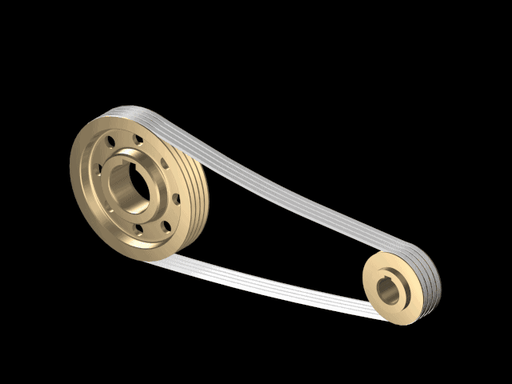

Typical structure: Motor pulley → DPK belt → Roller pulley → Tension pulley
Advantages: Compact structure, stable transmission, low noise, long service life and less maintenance, suitable for large and medium-sized flour mill production lines.
3.2 Double-Sided Composite Drive Belt (Synchronous + V-Ribbed)
Structure: Synchronous teeth on one side, DPK/PK v-ribs on the other.
Features: No slipping, accurate positioning, double-sided drive, overload protection.
Application: Main transmission and roller transmission of flour mills/grinders.
3.3 Traditional V-Belt (Triangle Belt) for Flour Mills
Common types: A/B/C type triangle belt, linked V-belt.
Disadvantages: Large space occupation, many roots, easy slipping and short service life.
Replacement: Gradually replaced by PK/DPK v-ribbed belts and double-sided composite belts.
4. Selection & Maintenance FAQ
4.1 What size of DPK belt is suitable for my flour mill?
Please provide the brand, model and motor power of your flour mill, our customer service will help you accurately match the corresponding DPK belt model (wedge number + length) for free, no need to measure by yourself.
4.2 How long can the flour mill belt be used?
Under normal continuous operation, the high-quality EPDM rubber DPK/PK belt can be used for 6-12 months. It is made of wear-resistant and anti-stretching material, not easy to break or stretch.
4.3 What should I do if the belt slips or overheats during operation?
Slipping is mostly caused by loose or worn belts; adjust the tension pulley appropriately. Overheating is usually due to excessive load or too small belt model; it is recommended to replace it with a reinforced belt of corresponding specification, and we can provide selection suggestions.
4.4 Can we customize special size belts for modified flour mills?
Yes, we support non-standard customization. Please provide parameters such as circumference, width and model, and we can customize flat belts, linked v-ribbed belts and DPK double-sided belts to meet the needs of modified machines and special models.
4.5 Do you provide wholesale and after-sales service for bulk orders?
We support wholesale, agency and OEM customization, with more preferential prices for large quantities. All bulk orders provide quality assurance; for cracks, delamination and belt breakage caused by non-human installation problems, we will handle them uniformly. Please contact customer service for details.
