Yonghangbelt New blue silicone coating sausages belts
Yonghangbelt blue silicone coating sausages belts
We produce it using a seamless process. The silicone material is fully compliant with FDA and food-grade standards. There are various specifications to choose from. We are factory and will offer you the lowest price.
About our product
We produce it using a seamless process. The silicone material is fully compliant with FDA and food-grade standards. There are various specifications to choose from. We are a factory and will offer you the lowest price.

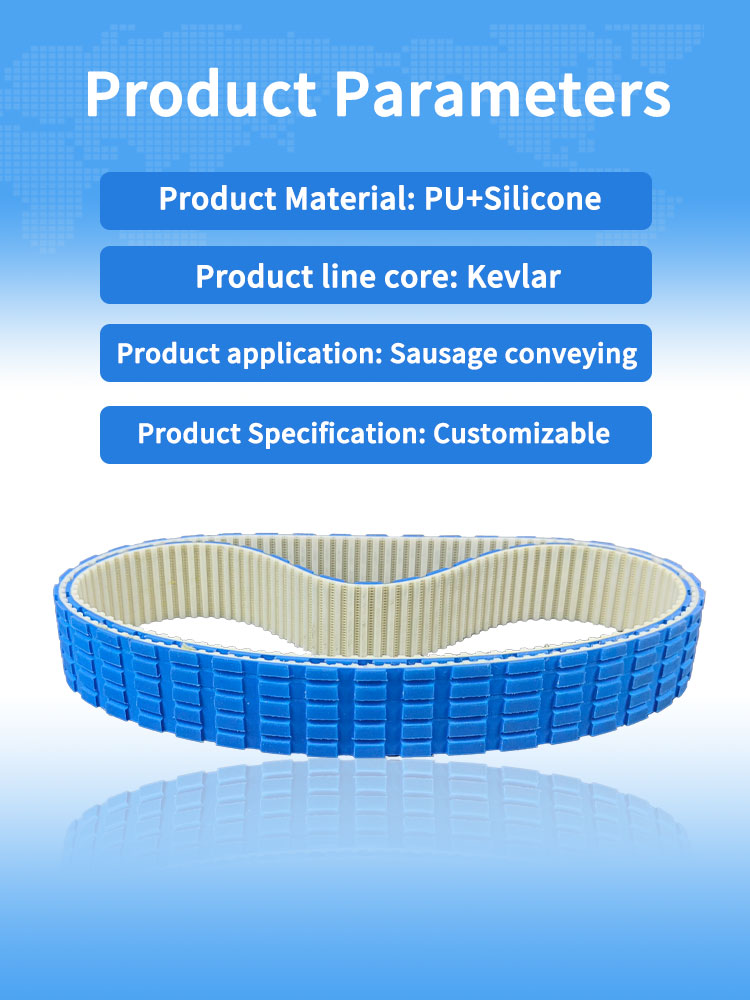

Product parameters
Color :blue
Size:T5-510/T5-840/T5-625/T5-910
Length:350/370/460/510/625/840/910
Width:30/32mm
Material:PU
Type:T5
Coated:silicone
Coated Shore hardness(A)：45° Shore A
Working temperature：-20-+80°C
Joint:Endless with joint/Seamless (moulded)
Cords：steel/ kevlar

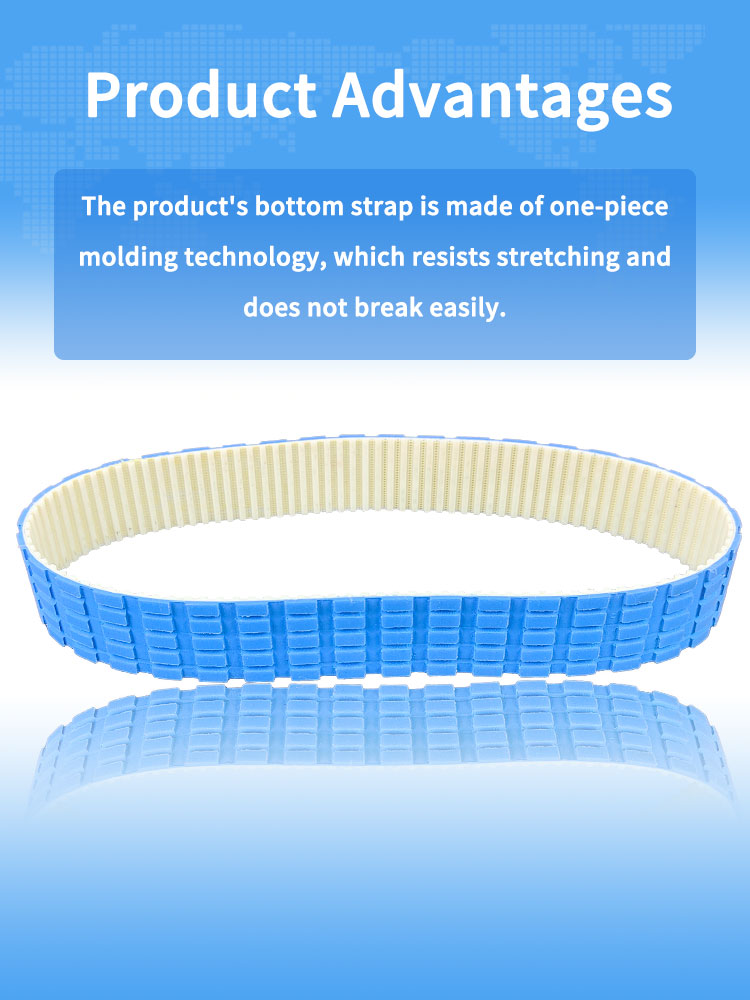

Unique Characteristics/Advantage

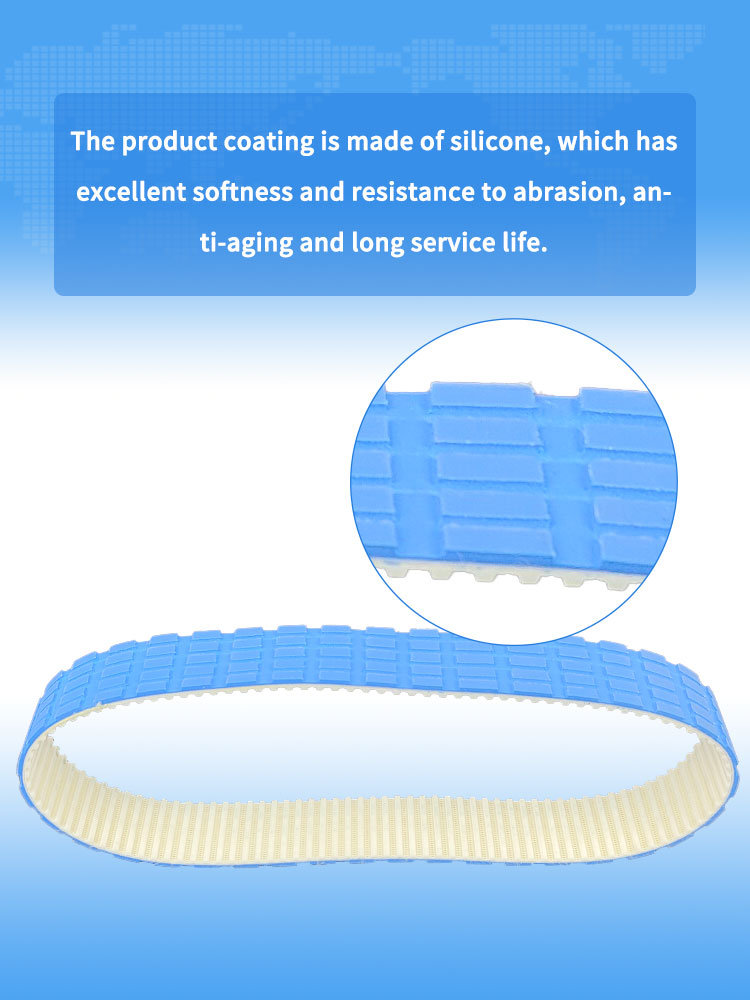

– Made of environmentally friendly materials silicone

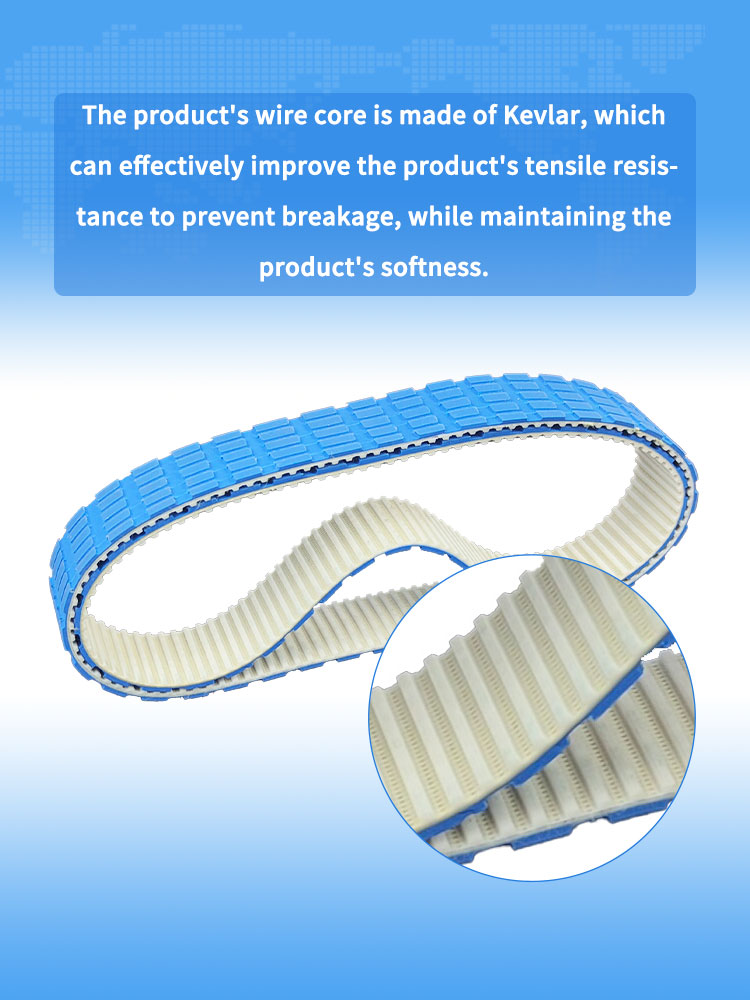

– kevlar or steel cord reinforcement
– Hardness: 45 Shore A
– Heat resistance on operating temperature 80 C (on short run up to 100 C Degrees)
– Good behavior at low temperature
– Very good resistance to hydrolysis
– Good resistance to abrasion
– Good resistance to oil, solvents, hydrocarbons
– Loadability is equal with normal PU timing belts
– Compliant with FDA food-grade certification

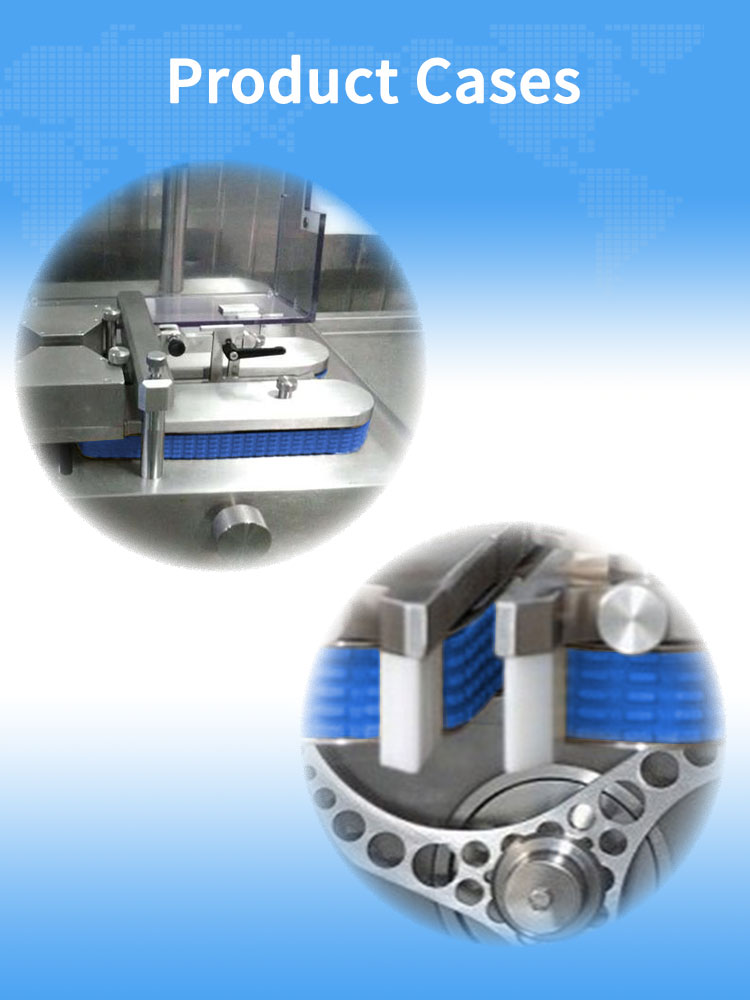

Applications
– Meat Industry, belts for transporting sausages
Size Chart Catalogue
| Part Number | Pitch [mm] | Length [mm] | [mm] | No of Teeth |
| T5-510-30 | 5 | 510 | 30 | 102 |
| T5-840-30 | 5 | 840 | 30 | 168 |
| T5-625-30 | 5 | 625 | 30 | 125 |
| T9-513-32 | 9 | 513 | 32 | 57 |
| T9-837-32 | 9 | 837 | 32 | 93 |
| T5-510-32 | 5 | 510 | 32 | 102 |
| T5-840-32 | 5 | 840 | 32 | 168 |
| T9-513-32 | 9 | 513 | 32 | 57 |
| T9-837-32 | 9 | 837 | 32 | 93 |
| T5-510-32 | 5 | 510 | 32 | 102 |
| T5-840-32 | 5 | 840 | 32 | 168 |
| T5-625-30 | 5 | 625 | 30 | 125 |
| T5-910-32 | 5 | 910 | 32 | 182 |
| T5-840-32 | 5 | 840 | 32 | 168 |
| T5-625-32 | 5 | 625 | 32 | 125 |
| T5-350-32 | 5 | 350 | 32 | 70 |
| T5-510-32 | 5 | 510 | 32 | 102 |
| T9-837-32 | 9 | 837 | 32 | 93 |
| T9-513-32 | 9 | 513 | 32 | 57 |
| T5-840-32 | 5 | 840 | 32 | 168 |
| T5-625-32 | 5 | 625 | 32 | 125 |
| T5-510-32 | 5 | 510 | 32 | 102 |
| T5-310-32 | 5 | 310 | 32 | 62 |
| T5-1100-32 | 5 | 1100 | 32 | 220 |
| T5-580-32 | 5 | 580 | 32 | 116 |
| T5-1105-30 | 5 | 1105 | 30 | 221 |
| T5-350-30 | 5 | 350 | 30 | 70 |
| T5-330-30 | 5 | 330 | 30 | 66 |
YONGHANG specializes in produce and custom coated transmission belts for 12 years.
