Seamless mold vulcanization truly endless blue color paper feed flat rubber belt box pasting belts Folder gluer belts
YONGHANG folder-gluer belts offer excellent folding precision and high machine performance. With a choice of polyamide or polyester composite for the traction layer, plus proven CR rubber covers, comprehensive range is suitable for applications extending from box folding to tube winding.
YONGHANG folder-gluer belts provide excellent reversed bending properties, high abrasion resistance, and outstanding dimensional stability. Their constant and safe grip provides precise folding and the belts leave no marking on the transported goods.
Hongyang folder-gluer belts offer excellent folding precision and high machine performance. With a choice of polyamide or polyester composite for the traction layer, plus proven NBR rubber covers, Hongyang’s comprehensive range is suitable for applications extending from box folding to tube winding.
The blue folder-gluer belts provide excellent reversed bending properties, high abrasion resistance, and outstanding dimensional stability. Their constant and safe grip provides precise folding and the belts leave no marking on the transported goods.
This blue folder-gluer belts is permitted to be perforated.folder-gluer belts with blind holes are perforated conveyor belts designed to create suction, or "vacuum," which holds and transports products firmly on their surface. The blind holes allow for air to be drawn through them, creating the vacuum effect without the need for a filter, making them ideal for conveying lightweight, flexible, or difficult-to-grip items like paper or lightweight products in packaging and printing machines

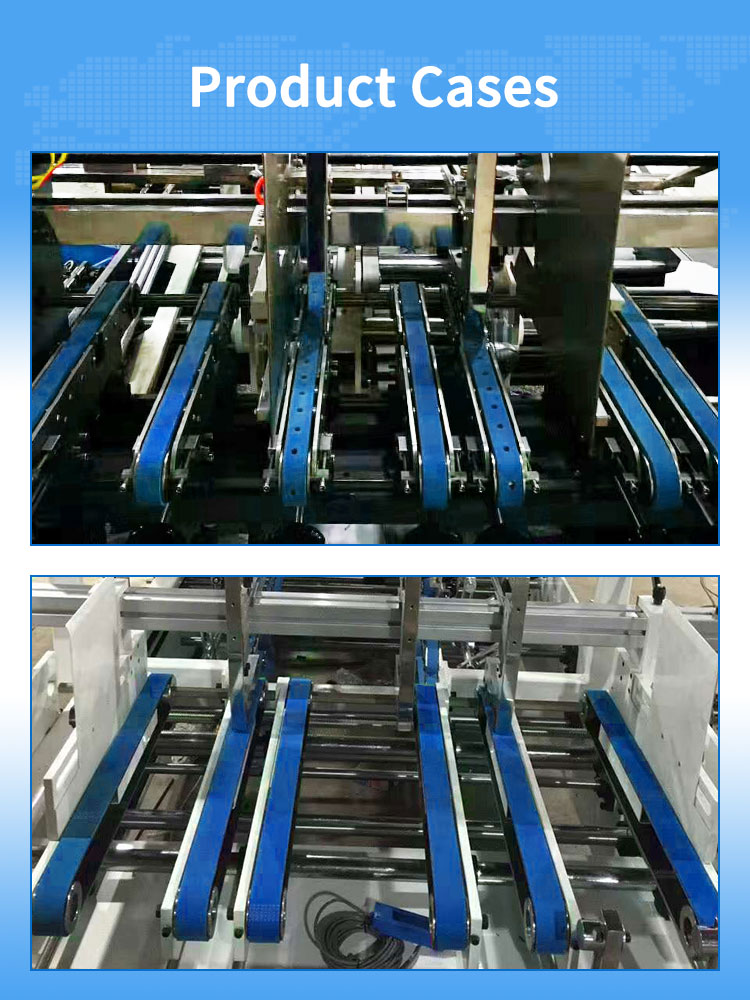

These blue folder-gluer belts are mainly used in a feeder of carton folding machine, it helps in friction feeding of mono cartons made up of a duplex board and corrugated boxes. Rubber coating shorehardness has been of 35 A to 65 A. thickness in 4 mm to 15 mm. with flat belt and timing belt two type.
Specifications Table
| Specification | Inside length(mm) | Width(mm) | Thickness(mm) |
| 980*25*8 | 980 | 25 | 8 |
| 1000*25*8 | 1000 | 25 | 8 |
| 1032*30*8 | 1032 | 30 | 8 |
| 1032*30*6.5 | 1032 | 30 | 6.5 |
| 1050*25*8 | 1050 | 25 | 8 |
| 1100*25*8 | 1100 | 25 | 8 |
| 1115*25*8 | 1115 | 25 | 8 |
| 1120*25*8 | 1120 | 25 | 8 |
| 1150*25*8 | 1150 | 25 | 8 |
| 1150*30*8 | 1150 | 30 | 8 |
| 1200*25*8 | 1200 | 25 | 8 |
| 1250*25*8 | 1250 | 25 | 8 |
| 1280*25*8 | 1280 | 25 | 8 |
| 1280*40*8 | 1280 | 40 | 8 |
| 1350*25*8 | 1350 | 25 | 8 |
| 1350*40*8 | 1350 | 40 | 8 |
| 1535*25*8 | 1535 | 25 | 8 |
| 1535*30*8 | 1535 | 30 | 8 |
| 1535*35*8 | 1535 | 35 | 8 |
| 1535*40*8 | 1535 | 40 | 8 |
| 1535*50*8 | 1535 | 50 | 8 |
| 1535*60*8 | 1535 | 60 | 8 |
| 1535*50*8 2-1 Holes | 1535 | 50 | 8 |
| 1535*60*8 3-2 Holes | 1535 | 60 | 8 |
| 432XL-25+6 | 1097.28mm | 25 | 8.3 |
| 532XL-40+6 | 1351.28mm | 40 | 8.3 |
YONGHANG specializes in produce and custom coated transmission belts for 12 years.
