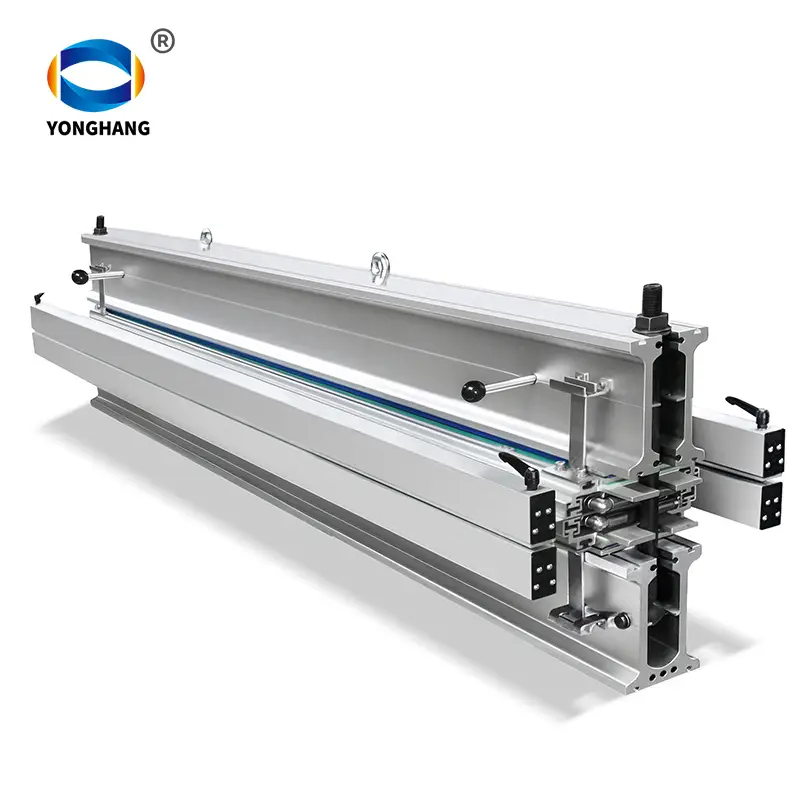

Water Cooling Belt Fusion Press Machine Conveyor Belt Jointing And Heat Processing 1

Water Cooling Belt Fusion Press Machine Conveyor Belt Jointing And Heat Processing 2

Water Cooling Belt Fusion Press Machine Conveyor Belt Jointing And Heat Processing 3

Water Cooling Belt Fusion Press Machine Conveyor Belt Jointing And Heat Processing 4

Water Cooling Belt Fusion Press Machine Conveyor Belt Jointing And Heat Processing 5

Water Cooling Belt Fusion Press Machine Conveyor Belt Jointing And Heat Processing

Name: Water Cooling Belt Fusion Press Machine Conveyor Belt Jointing And Heat Processing
Brand: Yonghang

In the bright hum of the workshop, the Water Cooling Belt Fusion Press stands ready like a reliable craftsman, steam and light dancing as operators guide PVC, PU or PE belts into its embrace. With precise heat, steady pressure and a cooling water bath, it welds two edges into a seamless, tough splice that looks and feels factory-new. The result is quiet confidence on the line — faster turnarounds, fewer stops and belts that run smoother and longer.

Shipping:

Support Sea freight

Place of Origin:

China

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-1(sets):25(days),2-10(sets):35(days),>10(sets):To be negotiated(days)

brand name:

YONGHANG

Inquiry

Write a Review

Name

Water Cooling Belt Fusion Press Machine

Brand

YONGHANG

Weight (KG)

117

key selling points

Easy To Operate, Competitive Price, Accurate Temperature Control, Remote Monitoring, Flexible Manufacturing, Famous Brand Motor, Eco-Friendly, Low Maintenance Cost, High-Accuracy, Digital, IOT, Automatic

Operating System Language

English

power (kw)

2.2

dimension(l*w*h)

1100*500*550mm

voltage

380 V, 220V Electrical Equipment

Condition

New

Warranty of core components

1 Year

Marketing Type

Ordinary Product

warranty

1 Year

core components

Gear, Pressure Vessel, Motor, Gearbox, Bearing, Engine, Pump

machinery test report

Provided

video outgoing-inspection

Provided

place of origin

Guangdong, China

Applicable Industries

Machinery Repair Shops

Color

silver

OEM

Yes

Feature

High Quality

MOQ

1pc

Specification

Custom

Type

machine

Features:

2.6 Metres Water-Cooled Conveyor Belt Heating Press Machine Employing hot-melt and water-cooled curing technology, this system achieves belt joint connections approaching the strength of the original material. It effectively prevents tearing and delamination during operation, ensuring the stability and safety of continuous production lines.

The rapid water-cooling system drastically reduces the hours-long wait required for traditional joint cooling and curing, enabling swift splicing and repairs. This significantly minimises economic losses from production downtime.

The 2.6 Metres Water-Cooled Conveyor Belt Heating Press Machine is specifically designed for on-site splicing. It completes the entire process—from cutting and grinding to hot-melt splicing and cooling/curing—without requiring the conveyor belt to be removed and returned to the factory. This saves time and labour while offering strong emergency response capabilities.

Process optimisation for diverse materials—including PVC, PU, and PE—ensures high-quality, highly compatible seamless splicing for all common industrial conveyor belts.

The 2.6 Metres Water-Cooled Conveyor Belt Heating Press Machine hot-melt splicing process requires no chemical adhesives and produces no toxic volatiles. Concurrently, the joint surface remains smooth and flush without bulky overlaps, minimising material residue and misalignment while reducing equipment wear and maintenance costs.

Product parameters:

Model	YH-S2000	YH-S2200	YH-S2400	YH-S2600	YH-S3000	YH-S3200	YH-S3400	YH-S3600	YH-S4000
Effective length	2000 mm	2200mm	2400mm	2600mm	3000mm	3200mm	3400mm	3600mm	4000mm
Effective heating width	180 mm	180 mm	180 mm	180mm	180 mm	180 mm	180 mm	180 mm	180 mm
Mini joints length	930mm	930mm	930mm	930mm	930mm	930mm	930mm	930mm	930mm
Lower beam	150kg	165kg	180kg	195kg	225kg	240kg	255kg	270kg	300kg
Upper beam	148kg	163kg	178kg	193kg	222kg	237kg	252kg	266kg	296kg
Bare machine weight	298kg	328kg	358kg	388kg	447kg	477kg	507kg	536kg	596kg
Machine length	2260 mm	2460 mm	2660 mm	2860 mm	3260 mm	3460 mm	3660 mm	3860 mm	4260 mm
Machine height	700mm	700mm	700mm	700mm	700mm	700mm	700mm	700mm	700mm
Machine width	450mm	450mm	450mm	450mm	450mm	450mm	450mm	450mm	450mm
Maximum pressure	7 Bar	7 Bar	7 Bar	7Bar	7 Bar	7 Bar	7 Bar	7 Bar	7 Bar
Maximum temperature	210 ˚C	210 ˚C	210 ˚C	210 ˚C	210 ˚C	210 ˚C	210 ˚C	210 ˚C	210 ˚C
Working voltage	380V	380V	380V	380V	380V	380V	380V	380V	380V
Wooden box size	2700500750mm	2900500750mm	3100500750mm	3300500750mm	3700500750mm	3900500750mm	4100500750mm	4300500750mm	4700500750mm
Packing weight (including accessories)	428kg	464kg	502kg	542kg	613kg	650kg	687kg	723kg	798kg
Power	6.0KW	6.6KW	7.2KW	7.8KW	9.0KW	9.6KW	10.0KW	10.4KW	15.8kW

Precision Durable Leakproof Seams

Achieve durable, leak-free splices and fast turnaround with a water-cooled fusion press that delivers precise heat processing for PVC, PU and PE conveyor belts. Compact, ergonomic shape and rugged stainless-steel construction ensure consistent pressure and temperature control, while secure industrial packaging protects the unit during transit and on-site installation. Easy controls, rapid cycle times and integrated safety features reduce downtime and labor costs, delivering professional-grade splices that extend belt life and improve conveyor performance.

Precision Water Cooling Splice

A water-cooled belt fusion press engineered for PVC, PU and PE conveyor belts combines precise temperature and pressure control with a digital interface, adjustable cycle parameters, and modular pressing molds for onsite versatility. Its fusion heating and controlled cooling system produces uniform, high-strength splices that shorten cycle times, minimize downtime, and lower labor and rework costs. Constructed on a heavy-duty welded frame with corrosion-resistant heating plates, integrated cooling channels, safety interlocks and easy-access maintenance points, the machine delivers durable performance and reliable repeatability.

Water Cooled Belt Fusion

The water cooling belt fusion press machine performs precision heat processing and jointing for PVC, PU, and PE conveyor belts, delivering strong, uniform splices. Equipped with a controlled heating system and water-cooled platen, it minimizes thermal distortion and accelerates cooling to ensure consistent bonding and reduced cycle time. Robust construction and adjustable pressure settings provide reliable, repeatable splicing for industrial conveyor repair and fabrication, improving belt service life and production uptime.

◎ product nicety 1

◎

Fast Precise Strong Joints

Built by a decade-old industrial machinery brand, the water-cooling belt fusion press machine is engineered with precision metallurgy and automated temperature and pressure control to deliver consistent heat processing for splicing PVC, PU, and PE conveyor belts. Its integrated water-cooling circuit, rapid heating elements, and programmable dwell-time ensure fast, uniform joints with minimal thermal distortion, reducing belt replacement frequency and production downtime. Key features such as adjustable platen sizes, digital PID controls, safety interlocks, and portable modular construction translate into high-strength homogeneous bonds, energy-efficient operation, repeatable cycle performance, and easy on-site use for maintenance teams.

Material introduction

The water-cooling belt fusion press is built from corrosion-resistant stainless steel frames and precision aluminum heating plates with PTFE non-stick coating to provide even heat distribution. Copper heating elements and integrated water-cooled channels made from stainless tubing and thermally conductive alloys control welding temperatures for PVC, PU, and PE conveyor belts. High-temperature silicone rubber seals, durable polymer bearings, and IP-rated enclosures for the electronic controls ensure reliable, long-term operation.

◎ Stainless-steel frame

◎ Alloy heating plates with PTFE and water channels

◎ Seals, bearings, fasteners & housings

FAQ

What is a Water Cooling Belt Fusion Press Machine and what does it do?

A Water Cooling Belt Fusion Press Machine is a specialized heating and pressing unit designed to join thermoplastic conveyor belts (such as PVC, PU, and PE) by applying controlled heat and pressure to the belt ends and then rapidly cooling the joint with water. The process creates a continuous, high-strength fused splice that restores belt integrity without metal fasteners or glued seams.

Which types and sizes of conveyor belts are compatible with this machine?

The machine is intended for thermoplastic belts—PVC (polyvinyl chloride), PU (polyurethane), and PE (polyethylene). It works best on homogeneous and multi-ply thermoplastic belts that can be heat-fused. Compatibility in terms of thickness and width depends on the specific model, but generally covers common belt thicknesses (light- to medium-duty ranges) and standard conveyor widths used in manufacturing, packaging, logistics, and light industrial applications. Always check the machine’s rated belt thickness and width before use.

How is the splicing operation typically performed with this equipment?

A typical workflow includes: 1) prepare and align belt ends by cleaning and trimming to square or specified profile; 2) clamp belt ends into the press to maintain alignment; 3) apply the preset heat and pressure for the required dwell time to melt the belt surfaces; 4) after the heating cycle, apply the water cooling system to rapidly solidify the molten joint while maintaining pressure; 5) release clamps and perform final trimming or testing. Operators should follow manufacturer-recommended temperature, pressure, and timing settings for each belt material and thickness.

In what application scenarios is this fusion press machine most useful?

Common application scenarios include: manufacturing and assembly lines where quick belt repairs reduce downtime; packaging and food-processing plants that use hygienic, metal-free joints; airports and logistics hubs where continuous high-speed conveyors require reliable splices; light- to medium-duty mining, aggregate, and material handling where thermoplastic belts are used; and service/maintenance teams that perform on-site belt repairs in factories, warehouses, and ports.

What are the safety considerations and best practices when using this machine?

Key safety and best-practice points: 1) wear heat-resistant gloves and eye protection during heating and handling; 2) ensure proper ventilation to avoid fumes when heating some thermoplastics; 3) secure belts and clamps to prevent slipping; 4) avoid contact with hot platens and molten material; 5) confirm water cooling lines are connected and functional before starting the cooling phase; 6) follow lockout/tagout for maintenance and ensure operators are trained on temperature/pressure settings for each belt type.

How should the machine be maintained, and what common troubleshooting steps are recommended?

Routine maintenance: clean platens and clamping surfaces after each use, check and replace seals or heating elements per manufacturer schedule, inspect water-cooling lines for leaks or blockages, and verify temperature and pressure sensors/calibration. Troubleshooting tips: if joints are weak or delaminating, verify correct temperature/time/pressure settings and belt cleanliness; if the joint is brittle, reduce temperature or dwell time or adjust cooling rate; if alignment issues occur, inspect clamps and guides for wear and recalibrate. For persistent problems, consult the machine manual or supplier support.
