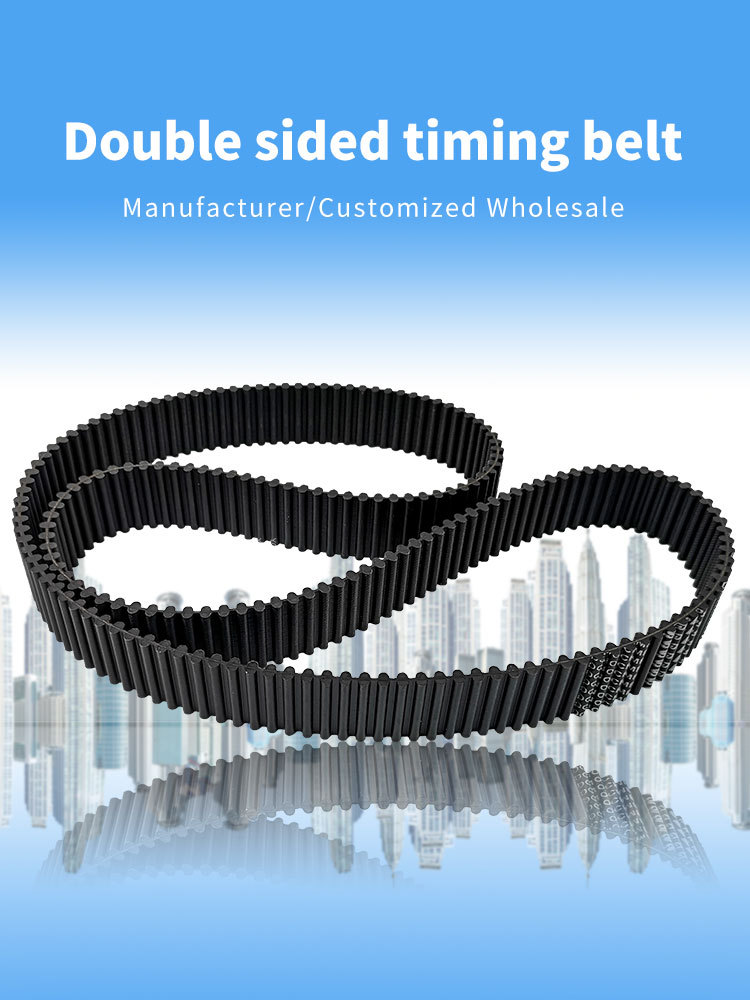

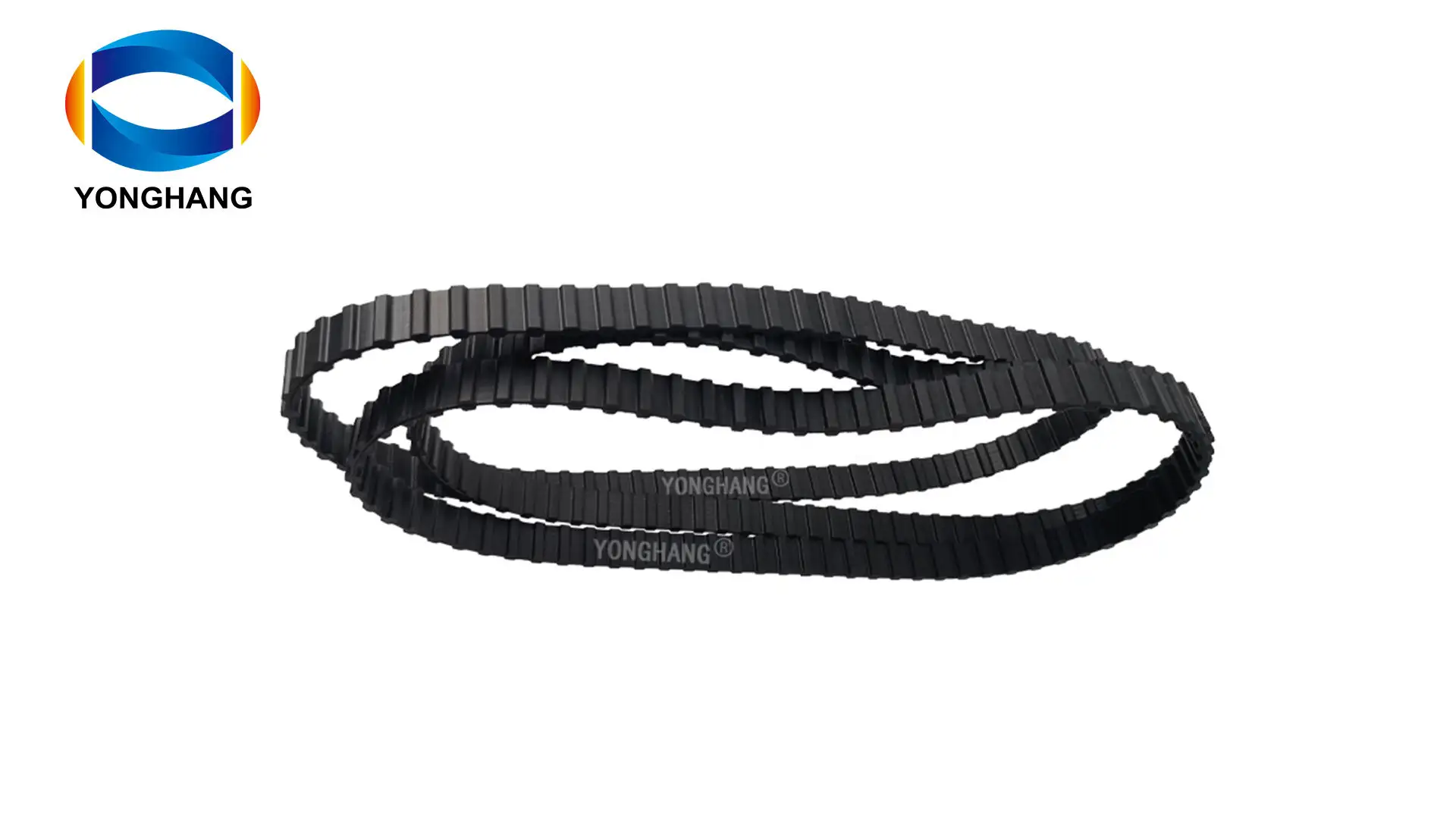

Yonghangbelt Trapezoidal teeth Rubber DA DB double sided toothed timing belts

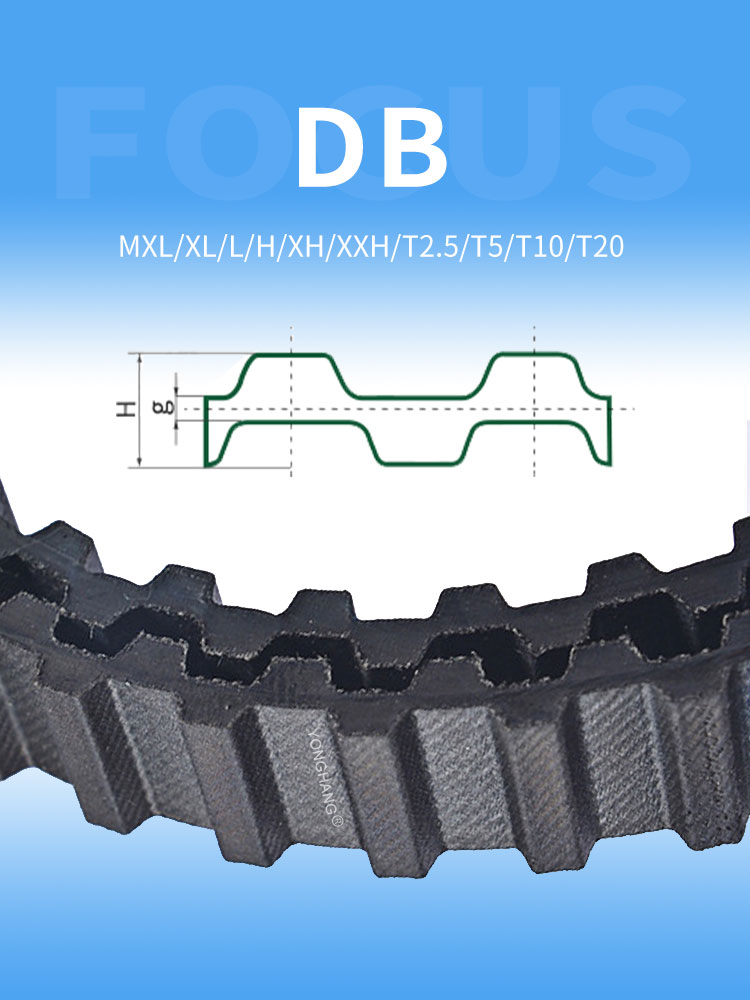

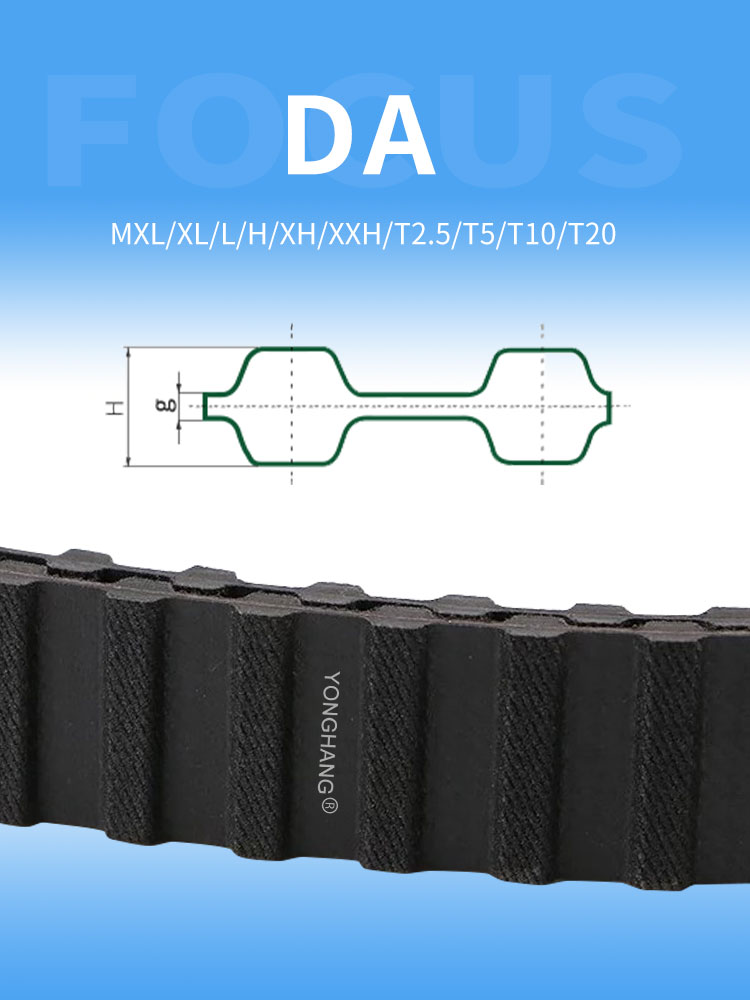

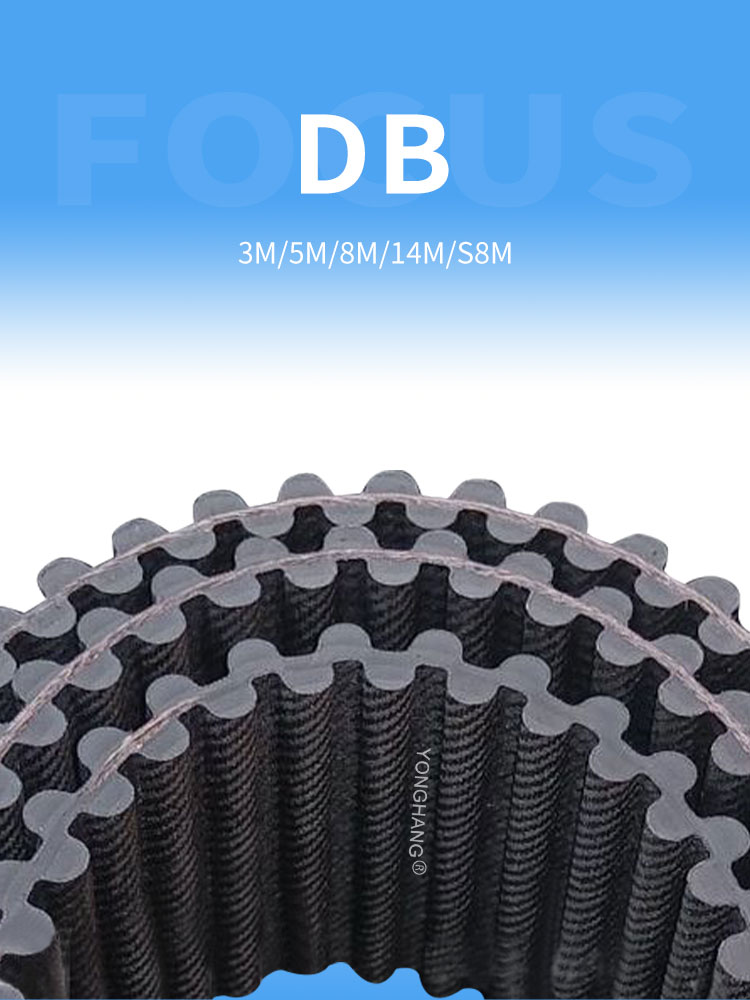

Double toothed belts are used for drives with axles that rotate in opposite directions. The most common types are available in the double-toothed version, both in Rubber.Model DA Symmetrical arrangement of the two-side teeth;Model DB Staggered arrangement of the two-side teeth.The double-sided teeth can be divided into trapezoidal double-sided timing belts and circular double-sided timing belts according to the characteristics of their tooth shape.The main types of double-sided timing belts are: D-XL, D-L, D-, HD-XH, D-XXH, D-T2.5, D-T5, D-T10, D-T20, D-AT10, HTD.DA-3M, HTD.DA-5M, HTD.DA-8MHTD, DA-14MHTD, DA-S8M.Ask our sales team for the possibilities.
Color :black
Size:Customized
Length:Customized
Width:10-550mm

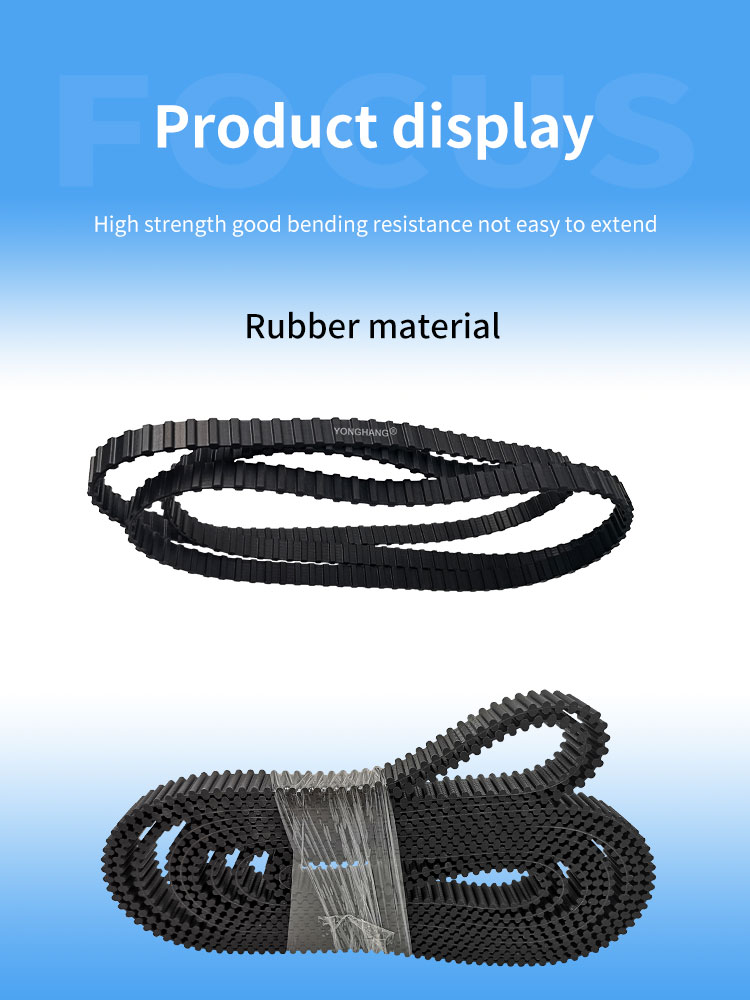

Material:rubber
Type:circle-arc tooth/ Trapezoidal teeth
Shore hardness (A)：75° Shore A
Working temperature：-20-+80°C
Joint：Seamless (moulded)

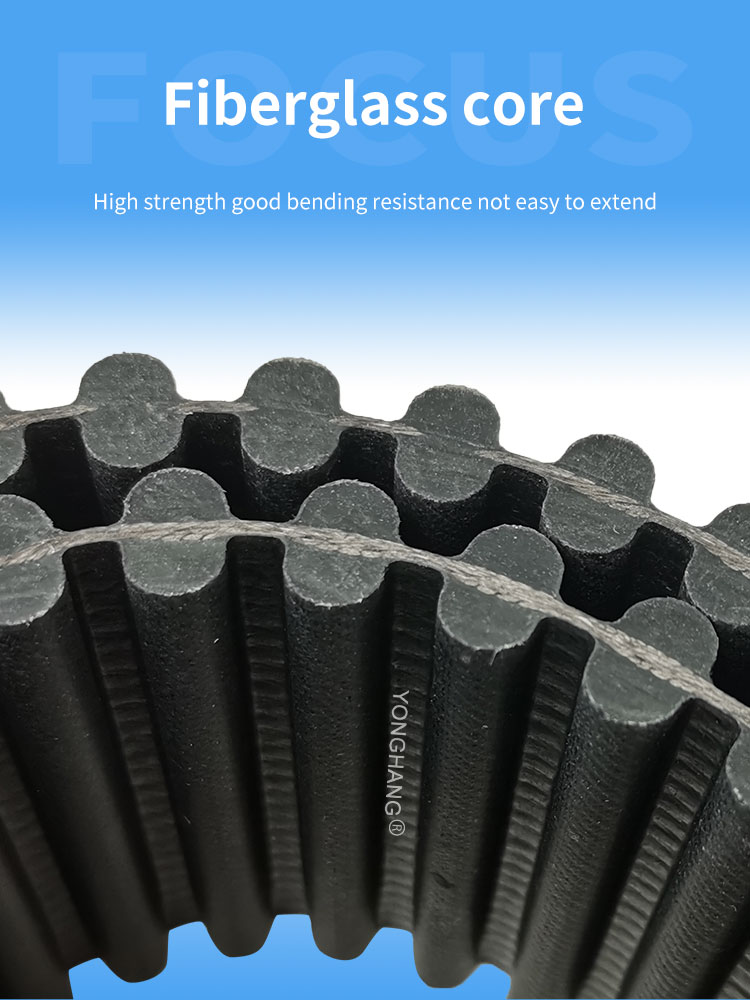

Cords：fiberglass
| type | g（mm） | H（mm） | pitch length（mm） | teeth |
| D-XL | 0.508 | 3.05 | 355.6-5405.12 | 70~1064 |
| D-L | 0.762 | 4.58 | 514.35-80000.00 | 54~ |
| D-H | 1.372 | 5.95 | 520.70-80000.00 | 41~ |
| D-XH | 2.794 | 15.49 | 1778.00-80000.00 | 80~ |
| D-XXH | 3.048 | 22.11 | 1778.00-6667.5 | 56~210 |
| D-T2.5 | 0.5 | 1.9 | 500.00-5000.00 | 200~2000 |
| D-T5 | 0.84 | 3.25 | 500.00-7000.00 | 100~1400 |
| D-T10 | 1.86 | 6.8 | 500.00-80000.00 | 50~ |
| D-T20 | 2.85 | 12.85 | 1700.00-80000.00 | 85~ |
| D-AT10 | 1.82 | 7 | 500.00-7000.00 | 50~700 |
| HTD.DA-3M | 0.76 | 3.2 | 501.00-6804.00 | 167~2268 |
| D-3M | 1.143 | 5.3 | 500.00-7000.00 | 50~1400 |
| D-8M | 1.372 | 8.1 | 512-80000.00 | 64~ |
| D-14M | 2.8 | 14.8 | 1750-8120 | 125~580 |
| D-S8M | 1.372 | 7.48 | 512-80000.00 | 64~465 |
| D-S14M | 2.8 | 13.4 | 1750~5012 | 125~358 |
| D-RP5M | 1.143 | 5.44 | 500.00-3100.00 | 50~620 |
| D-RP8M | 1.372 | 7.8 | 512.00-3720.00 | 64~465 |
| D-RP14M | 2.8 | 14.5 | 1764.00-4326.00 | 126~309 |
YONGHANG specializes in produce and custom coated transmission belts for 12 years.
