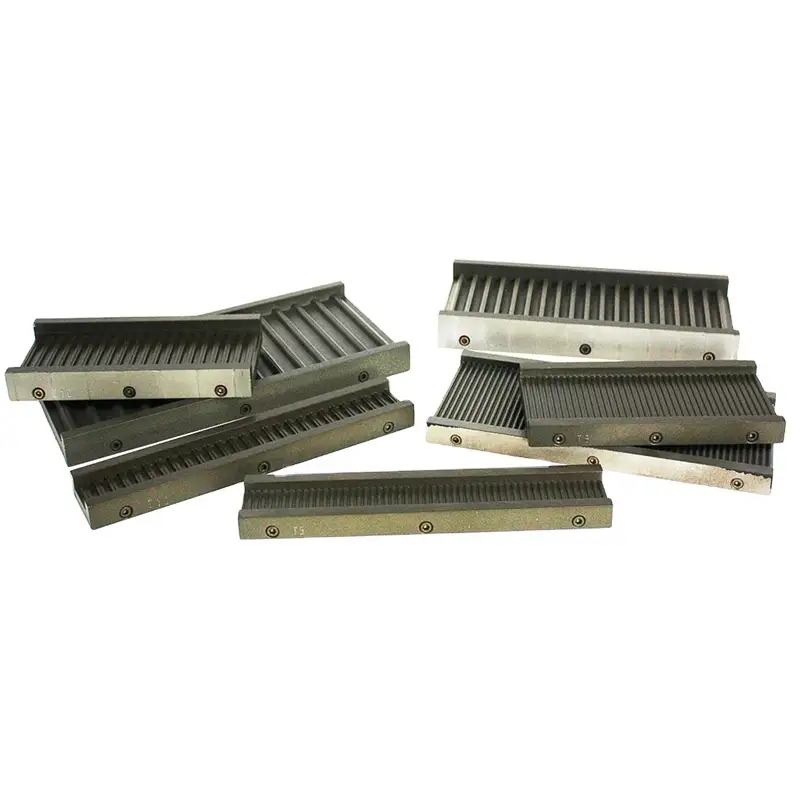

PU Timing Belt Joint Mold T5/10/20 AT5/10/20 5m/8m/14m Steel
Yonghangbelt offers moulding / joining plates for heat press joining machine
Our standard range includes plates 16mm, 25mm, 32mm, 50mm, 75mm, 100mm and 150mm wide.
Other options are available on request. Please contact us direct for more information regarding your specific requirements.
Precision Fit, Durable Steel
Jointing Plate Mold Profile:
T5 TT5 T10 T20 AT3 AT5 AT10 AT15 AT20
XL L XXH XH H
HTD 3M 5M 8M 14M 20M
STD 2M 3M S4.5M 5M 8M 14M 20M
RPP5M RPP8M RPP14M
TK10 ATK10 ATN10 ATN12.7 ATN20 ATP10 ST20
Our standard range includes plates 16mm, 25mm, 32mm, 50mm, 75mm, 100mm and 150mm wide.
Other options are available on request. Please contact us direct for more information regarding your specific requirements.
Steel PU Belt Splicer
The PU timing belt joint mold is engineered for heat-welding jointing machines and accommodates multiple tooth profiles (T5/T10/T20 and AT5/AT10/AT20) and standard belt lengths (5 m, 8 m, 14 m) with interchangeable steel molding plates in various widths. High-quality steel construction and precision-machined finger-forming plates produce consistent, durable finger joints that enhance tensile strength, ensure uniform coiling and minimize downtime. Compact and easy to integrate, the tooling is manufactured under ISO9001 controls for versatile use across printing, packaging, food and cable traction equipment, and is available for quick samples and low-MOQ orders to accelerate production.
Steel PU Belt Joint
This steel PU timing belt joint mold fits T5/T10/T20 and AT5/AT10/AT20 profiles and is suitable for 5m, 8m, and 14m belts used with heat welding jointing machines. It is designed for finger joining of open-end belting into endless belts, with standard plate widths of 16, 25, 32, 50, 75, 100 and 150 mm and custom sizes available on request. Manufactured by Guangzhou Yonghang under ISO9001 processes, the durable molds support efficient forming and coiling, offer sample orders with low MOQ, and come with flexible shipping options.
◎ product nicety 1
◎ product nicety 2
◎ product nicety 3
Durable Precise Reliable Easy-Fit
Crafted by a specialist in industrial power transmission, the PU Timing Belt Joint Mold is made from hardened steel with precision CNC machining and polished cavities to deliver consistent, repeatable joints for T5/10/20 and AT5/10/20 profiles in 5m, 8m and 14m lengths. The tool forms secure, low-profile PU belt splices that preserve tooth geometry, minimize distortion, and enable fast in-field repairs or custom-length assemblies for conveyors and timing systems. Features include hardened-steel construction, exact pitch alignment, easy setup and repeatability, and corrosion resistance; advantages are reduced material waste, faster maintenance, superior torque transfer, and improved production uptime.
Material introduction
The joint mold is precision-machined from hardened steel to provide exceptional dimensional accuracy and long service life during repeated heat-welding cycles. It is engineered specifically for PU (polyurethane) timing belts — compatible with T5/T10/T20 and AT5/AT10/AT20 profiles and common belt lengths (5m, 8m, 14m) — ensuring secure, abrasion-resistant finger joints. A wear-resistant surface treatment and smooth polishing enhance heat tolerance and corrosion resistance, delivering consistent forming performance for endless belt production.
◎ Hardened Precision Steel
◎ Polished Low-Friction Steel
◎ Heat-Resistant Precision Alignment
