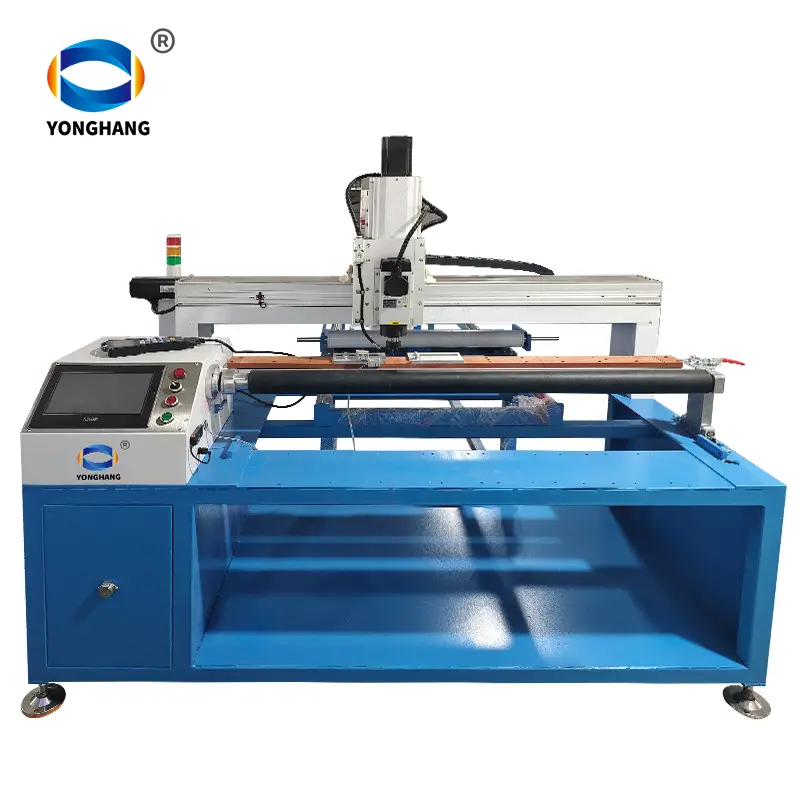

PU Rubber Timing Belt Slotting & Drilling Machine
The PU Rubber Timing Belt Slotting & Drilling Machine is a compact power tool made to cut precise T-shaped slots and drill clean holes in polyurethane timing and conveyor belts. Its motor-driven pump and gearbox give steady torque and controlled feed, so cuts are smooth and repeatable. The unit is simple to set up, has adjustable depth and speed, and keeps waste low while protecting the belt material. It suits small-batch work and continuous shop use, offering reliable, safe operation for technicians and production lines.
Usage scenarios:
- Belt manufacturers use it to add slots and drill mounting holes during production of PU timing and conveyor belts.
- Maintenance and repair shops employ it to modify or fix belts in machinery without sending parts back to the factory.
- Prototyping labs and small automation shops use it to create custom belt parts and quick-fit solutions for new machines.
Features:
- High-Precision Machining:
Utilizes a precision guidance system and a stable power head to ensure highly consistent groove depth, pitch, and shape, meeting stringent transmission requirements.
- Robust and Rigid Structure:
The sturdy frame design effectively absorbs cutting vibration, ensuring stable operation and extending the service life of both the machine and the cutting tools.
- Versatile Adaptability:
Capable of flexibly machining various groove types such as V-shaped and tooth profiles by changing different cutter molds, suitable for diverse operational needs.
Wide Material Compatibility:
Specifically designed for efficient and clean cutting on conveyor belts made of rubber, polyurethane, leather, composite materials, and more.
- Safe and User-Friendly Operation:
Features an ergonomic design, often equipped with safety guards and an intuitive control system, enhancing operational efficiency and workplace safety.
Parameter：
| Model： | Belt slotting machine |
| Spindle power： | 2.2KW |
| Voltage: | 380V or Customized |
| Spindle speed： | 18000revs |
| Max sleeve width | 1100mm |
| Max sleeve length | Closed length 16meters, open length: infinite length |
| Min holes length! | 500mm |
| Repetitive positioning accuracy： | 0.05 |
| cutting tool： | optional |
| Instruction format: | tailstock |
| Max aerodynamic speed： | 18000 revs |
| working speed: | 18000 revs |
| Weight: | 400KG |
| Size: | L1900mm*W1200mm*H1600mn |
Machine configuration：
| Lathe bed: | Steel structure |
| Lead screw: | High precision 2510 Taiwan ball screw |
| Speed reducer: | Worm reducer |
| Sheet metal: | Fully enclosed |
| Control system: | Four axis joystick control system |
| Spindle cooling: | Air cooling |
| Gantry: | 8mm square tube |
| Y guide rail: | Taiwan straight-line square track |
| Dustproof: | Installing an organ cover on the X-axis |
| Motor: | 86 stepper motor |
| Mapping software: | CAD/MASCAM/UG etc |
| Wire: | Aviation high flexibility shielded wire |
Note:Special models can be designed according to customers reguirements.
