PU Double V-belt with polyester reinforcement
PU Double V-belt with polyester reinforcement
PU Double V-belt with polyester reinforcement

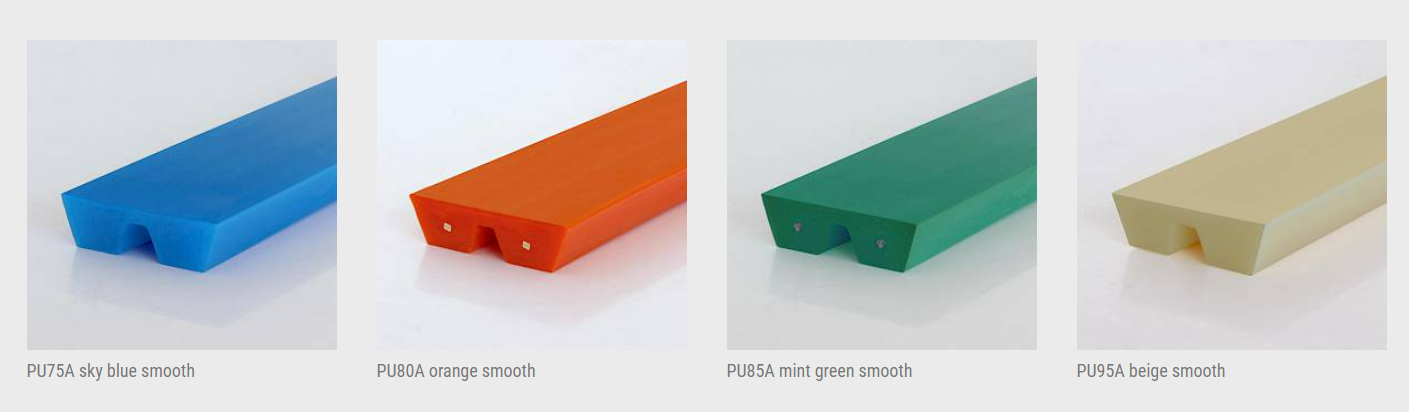

Color: Dark green, orange, green, white, red or custom colors as per requirements.
Reinforcement：Polyester or steel wire
Hardness：65 75 80 85 90 95 A
PU Double V-belt with polyester reinforcement

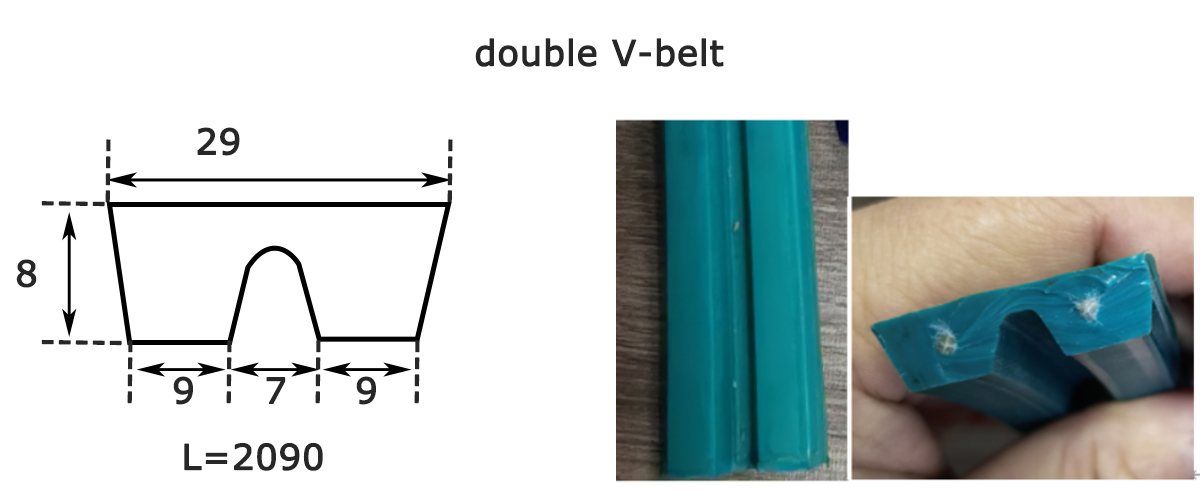

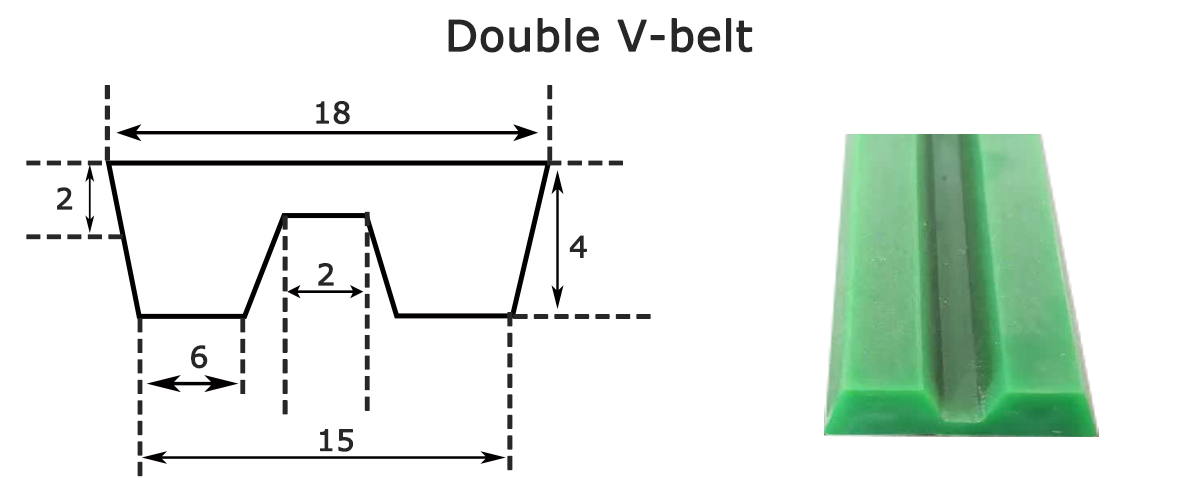

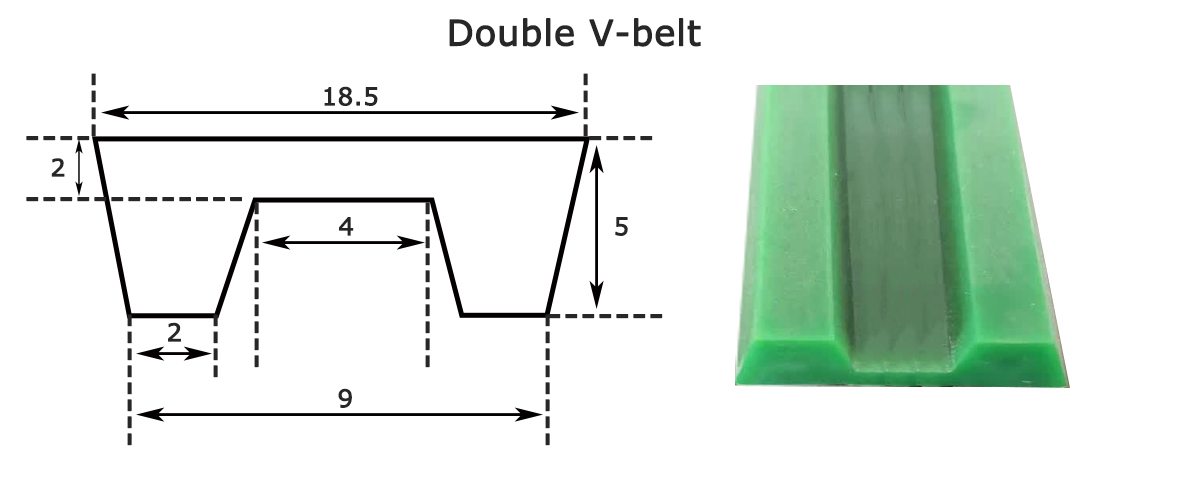

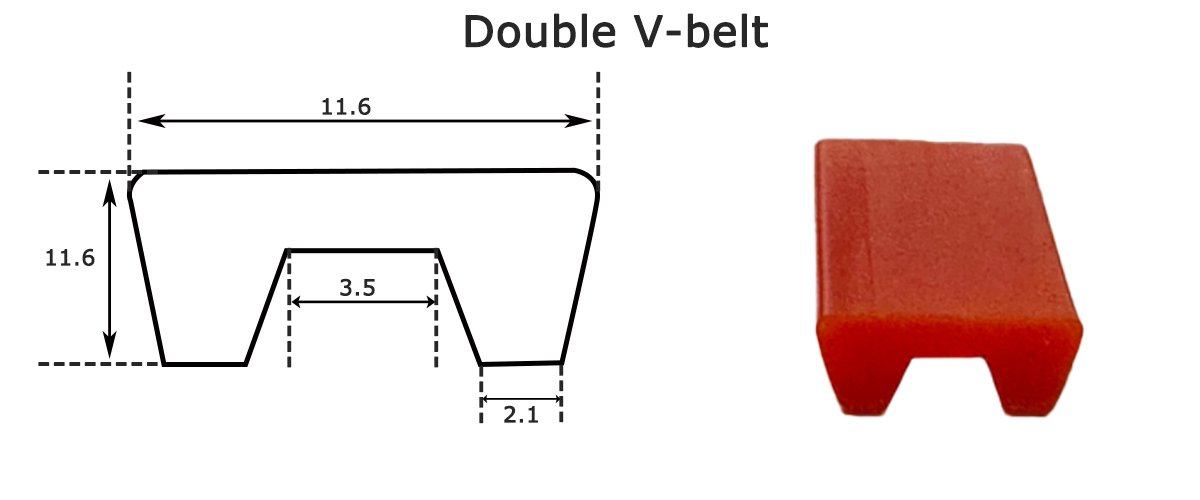

profile : Profile :

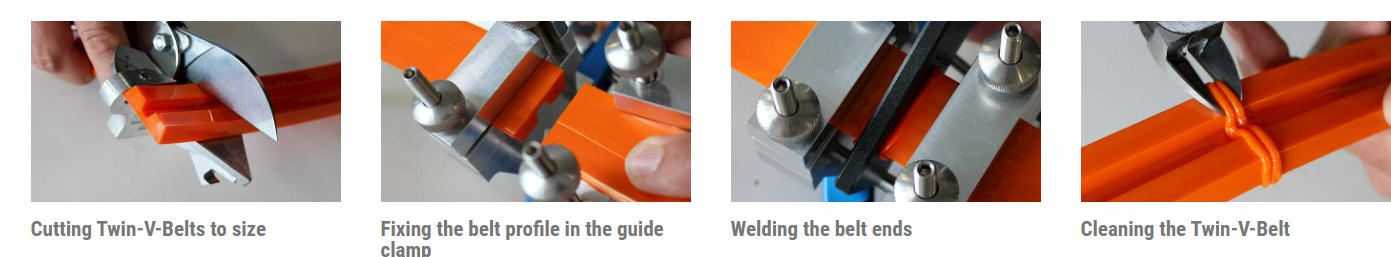

How is PU Double V-belt welded?
PU double-sided V-belts are constructed from polyurethane (PU) material reinforced with polyester fiber layers, combining high tensile strength with flexibility. Their seamless design ensures smooth power transmission, while the double-sided tooth structure enables bidirectional power transfer, making them suitable for high-precision, high-load applications.
Core Advantages
Abrasion and Tear Resistance: Polyurethane material resists oil and wear, offering a service life over 8 times longer than standard rubber belts, significantly reducing maintenance costs.
Precise Power Transmission: Polyester fiber reinforcement ensures high dimensional stability, prevents slippage, and guarantees power transmission efficiency exceeding 95%.
Environmental Adaptability: Resistant to acids and alkalis, anti-aging properties, and an operating temperature range of -20°C to +80°C, suitable for complex environments including humidity.
Safety and Environmental Protection: Non-toxic and odorless, compliant with FDA food-grade standards, suitable for clean production environments.
YONGHANG specializes in produce and custom coated transmission belts for 12 years.
