Rubber Flour Power belts Roller mill drive belts for flour Milling Machines
Roller mill machines are widely used in food-processing to separate the parts of grain, then grind them into flour.
The rollers rotate at different speeds and in the opposite direction, shearing the material as it passes through a gap.
A specialized double-sided roller mill drive belt is required to support this unique application.
Flour Milling belts are typically dual sided. Most common, are belts with high torque synchronous teeth on one side and
v-ribbed grooves on the other. Some are dual sided synchronous or dual sided v-ribbed belts.
Flour Power belts are engineered for optimum performance and drive life while reducing maintenance and downtime.
About our Flour Milling belts
Roller mill machines are widely used in food-processing to separate the parts of grain, then grind them into flour.
The rollers rotate at different speeds and in the opposite direction, shearing the material as it passes through a gap.
A specialized double-sided roller mill drive belt is required to support this unique application.
Flour Milling belts are typically dual sided. Most common, are belts with high torque timing teeth on one side and
poly-v belts on the other. Some are dual sided synchronous or dual sided v-ribbed belts.
Flour Power belts are engineered for optimum performance and drive life while reducing maintenance and downtime.
Flour Roller Mill Belts offer different number of ribs such as 12pk, 16pk, 17pk, 18pk, 20pk, 22pk, 24pk, 26pk, 28pk, 30pk, 32pk, 35pk, 36pk and 38pk, while custom sizes (lengths, widths, ribs and pitches) are available upon request. .
Flour Roller Mill Belts usually consist of neoprene body, fiberglass cord and nylon tooth facing, while custom materials available upon request. Special cords include aramid (kevlar), steel and carbon fiber.
Part Number Explanation:

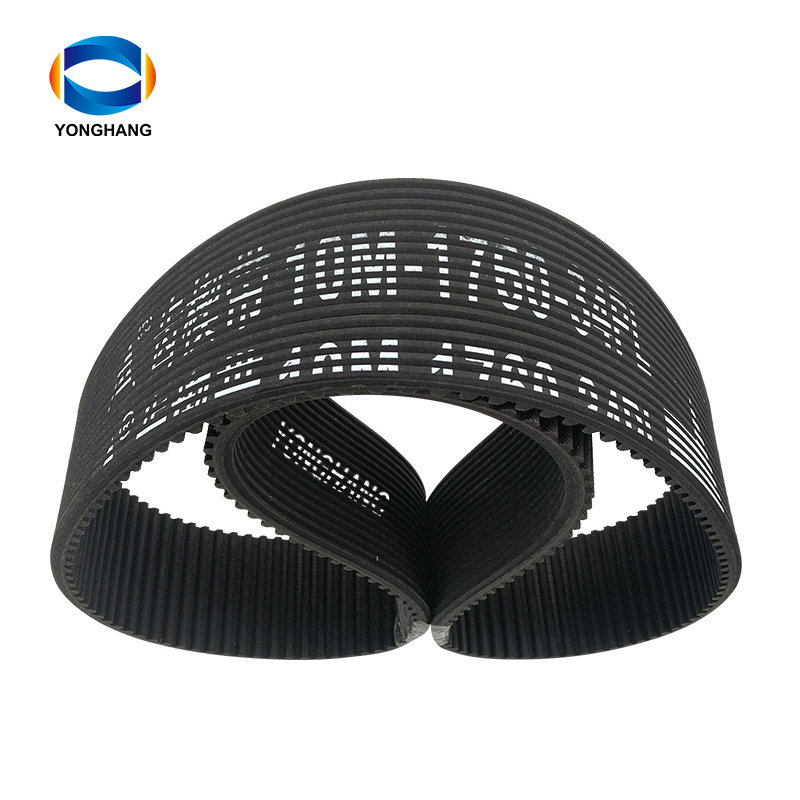

For example：RPP10M-1760-34PL-2
RPP：Tooth type
10M：Tooth Pitch
1760：Pitch Length（mm）
34：Number Of Ribs
PL：V-Ribbed Or Profile
-2：Number Of Matched Belts
Dual Sided timing Roller Mill Belt:
D-1552-RPP8M-75
D = Dual Sided
1552 = Pitch Length [mm]
RPP8M = Tooth Profile
75 = Width [mm]
Dual Sided Poly V Roller Mill Belt:
22DPL1765
22 = Number of Ribs
1760 = Pitch Length [mm]
D = Dual Sided
PL = L Rib Profile
Flour Milling Belt Features/Advantages
High performance advanced polymer compound for long belt life
Optimized tensile cord for strength and high torque loading
Graphite impregnated fabric facing for improved wear resistance
Jump and shear resistant belt teeth
Efficient and consistent power transfer
Heat, abrasion and wear resistant
Vibration-free performance
Durable and dependable
Available in matched sets
Manufactured in ISO 9001:2017 facilities
Applications
Roller milling is a process used to separate the parts of grain and then grind into flour
The rollers rotate at different speeds and the material is sheared as it passes through the gap
Some flour mill machines use a belt with timing on one side and v-ribbed on the other
Other machines require a belt that is v-ribbed or timing on both sides
Flour roller mill machines
Roller milling involves the separation of grain components followed by grinding them into flour.
Certain flour mill machines utilize a belt featuring timing on one side and v-ribbed on the opposite side.
Other roller mill machines necessitate a belt that is v-ribbed or timing on both surfaces.
Roller Mill Belts regular size
DA.S14M1400-120mm
DA.HTD8M2400-85mm
DA.HTD8M2000-100mm
DA.HTD8M2000-85mm
DA.HTD8M1600-100mm
DA.HTD8M1400-100mm
DA.HTD8M1200-100mm
RPP(HTD)14M1778-29PL(137mm)
RPP12M1740-34PL(160mm)
RPP12M1884-34PL(160mm)
RPP12M1848-34PL(160mm)
RPP10M1760-34PL(160mm)
RPP10M1760-25PL(118mm)
RPP8M2000-28PK(100mm)
RPP8M1760-36PK（128mm）
RPP8M1760-28PK(100mm)
RPP8M1760-24PK(85mm)
RPP8M1760-21PK(75mm)
RPP8M1600-24PK(85mm)
RPP8M1520-28PK(100mm)
RPP8M1440-28PK(100mm)
RPP8M1440-24PK(85mm)
HTD8M1440-24PK(85mm)
RPP8M1400-28PK(100mm)
RPP8M1368-24PK(85mm)
RPP8M1280-24PK(85mm)
RPP8M1250-24PK(85mm)
RPP8M1200-28PK(100mm)
RPP8M1200-24PK(85mm)
22DPL1765，
S8M-1760-36PK
12M-1764－14PL
8M-12PK-2400
1778 RPP14-12PK
10M-1760-14PL
RPP8M-1760-25PL

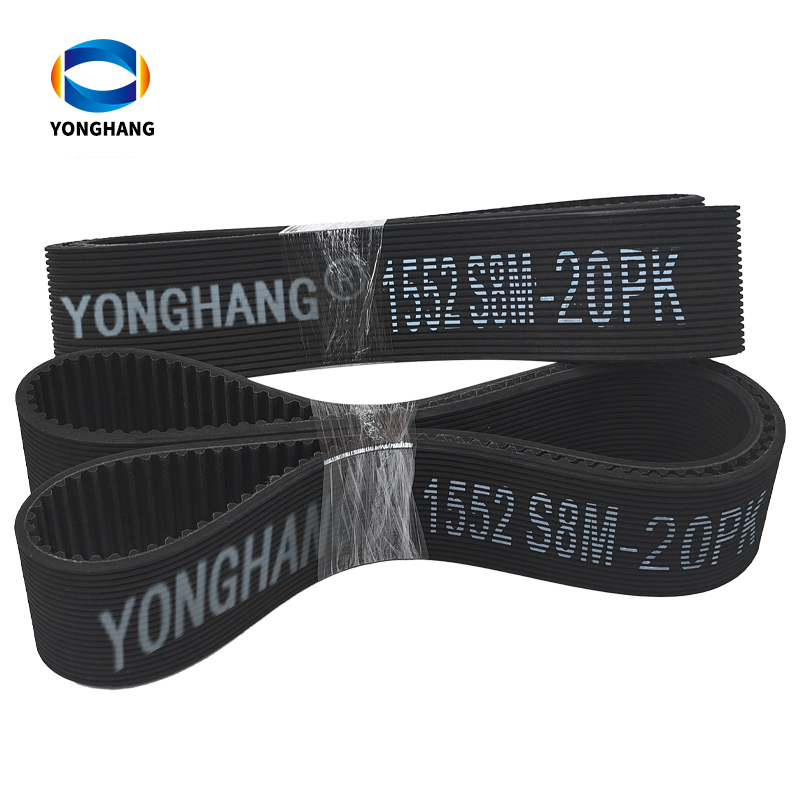

S8M-1552-20PK
8M-2248-16PK
S10M-1630-30PK
S8M-1760-30PK
8M-1760-24PK
RPP10M-1760-17PL
8M-1760-36PK
8M-1360-36PK
8M-1600-36PK
8M-2800-16PK
8M-2400-14PK
10M1760-34PL(160mm)
12M1740-34PL(160mm)
RPP10M-1630-30PK
10M-1760-25PL(118mm)
12M-1848-34PL
S8M-1552-30PK
S8M-1552-16PK
8M-1200-25PK
8M-1200-35PK
8M-1552-16PK
8M-1552-28PK
8M-1552-30PK
8M-1760-28PK
8M-1760-30PK
Other sizes available upon request
YONGHANG specializes in produce and custom coated transmission belts for 12 years.
