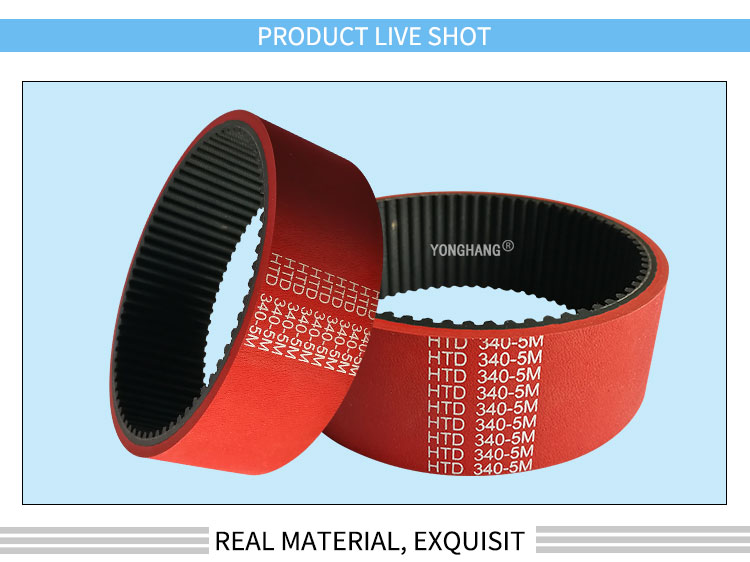

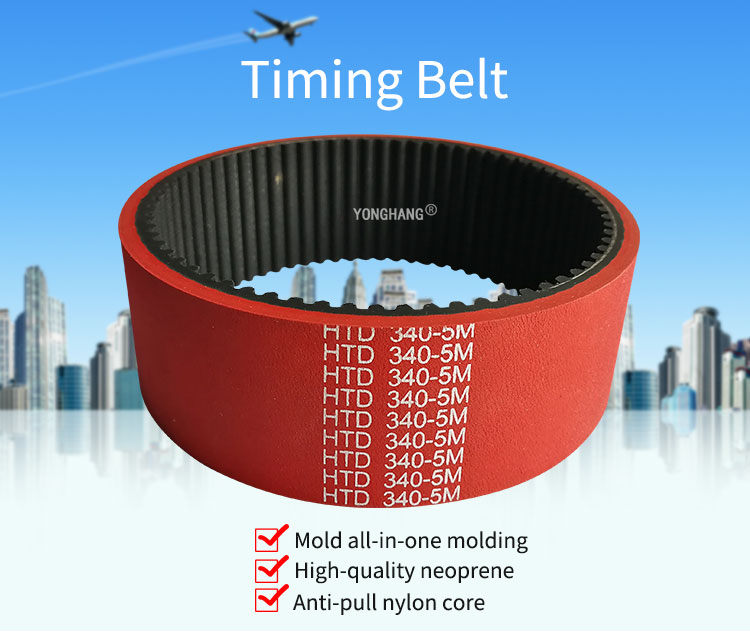

HTD5M linatex coated timing belt wire stripper feed belt
HTD5M linatex coated timing belt for square wire-stripping machine
The coatings used (often without welding seam) have a high frictional value and are very wear-resistant, any mechanical operation is possible.
The Yonghang feed belt are made of high-quality neoprene rubber - comparable to LINATEX.
This specially developed rubber quality guarantees constant high friction and excellent wear resistance.
Color :Red
Material:Vulcanized rubber
Brand: Yonghang
Hardness：45-55 A
Working temperature：-20℃~85℃
Performance: Excellent strong friction wear resistance, oil and corrosion resistance, no lamination, long service life
Processing: punch/ slot / pattern / block / guide bar / profile
HTD5M Brown rubber coated timing belt is mainly used in various automatic wire harness processing equipment such as wire cutting machine, wire stripper, stripping machine，peeling machine, etc.
Most common size：
Arc tooth series：HTD5M-255 HTD-275 HTD-290 HTD-295 HTD-330 HTD-340 HTD-420 HTD3M-318 HTD3M-501 HTD3M-240
Modified Curvilinear Belts series ：STD-250 STD-255 STD-275 STD-330 STD-340 STD-420
Trapezoidal Belts series：T5-250 T5-255 T5-375 T5-355 T5-455 T5-425 T5-475
Standard width：16mm/25mm/30mm/35mm/40mm
Coating thickness：2mm/3mm/4mm/6mm
Features of belt stripper
1. Large stripping area and fast speed, which can greatly reduce labor intensity and reduce the time required for joints;
2. Light weight, easy to carry and carry;
3. Stable operation.

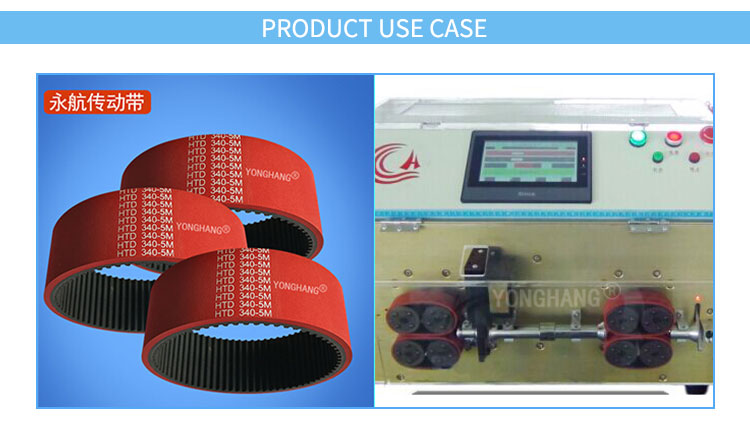

Here are some of the cases we have handled.If you have any needs, please feel free to contact us at any time.
FAQ
How to choose wire stripper feed belt?
Load requirement: Select the appropriate pitch and belt width based on load size.
Working environment: Consider the temperature, humidity and possible pollutants of the operation environment, select the appropriate material (such as high temperature, oil resistance etc.)
Speed requirements: Choose the right toothed belt to meet the speed and torque requirements.
What are differences between our wire stripper feed belt and other of timing belt?
Other wire stripper feed belt, a equipment equipped with four, the service life of about a month. The surface is easy to chip and crack.
Our our wire stripper feed belt produced by our company has good wear resistance and is not prone to hard slipping under cold conditions, which greatly improves the service life of the stripper belt. In addition, since it is developed and produced by our factory, the delivery time is guaranteed.
What are differences linatex coated timing belt and pu coated timing belt?
Polyurethanes are relatively durable, with four to one device. It's easy to get hard and slippery in winter.
Our linatex coated timing belt produced by our company has good wear resistance and is not prone to hard slipping under cold conditions, which greatly improves the service life of the stripper belt.
YONGHANG specializes in produce and custom coated transmission belts for 12 years.
