12 Years Transmission Belts Coating Customized Factory.

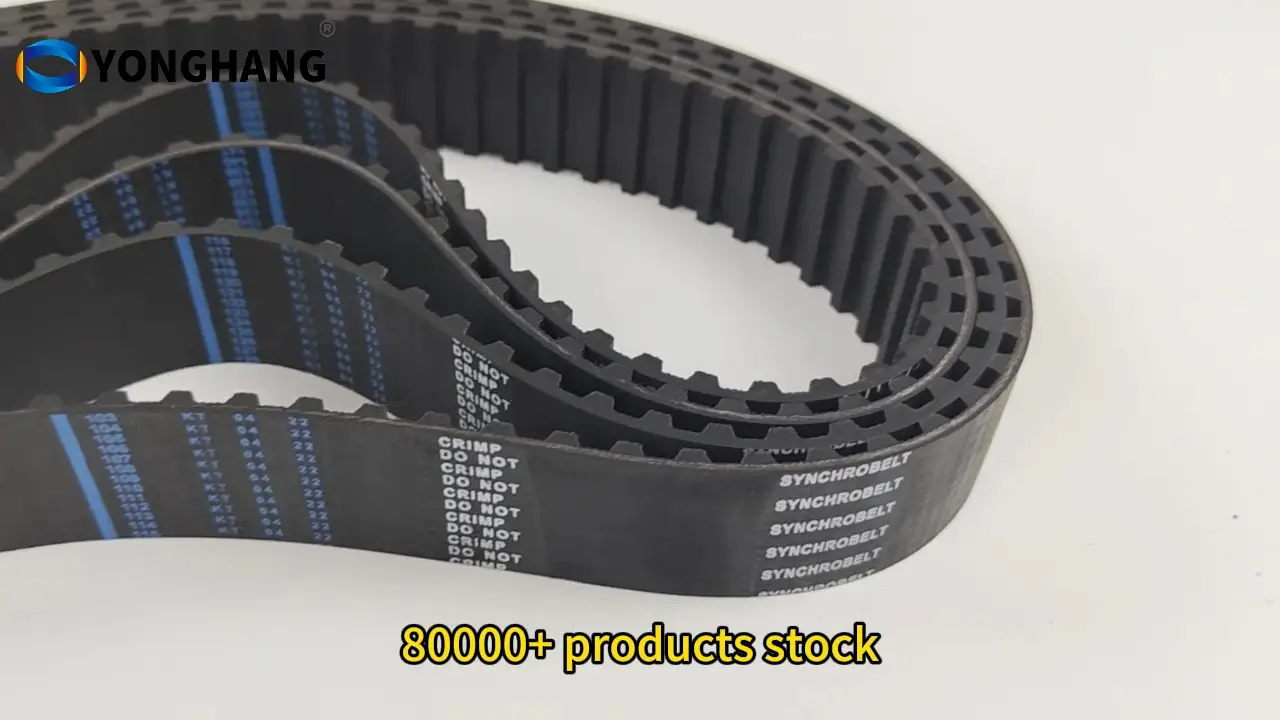

T5 T10 T20 rubber timing belts

T single-sided and double-sided timing belts are available in pitches 5mm 10 mm and 20mm. Made of neoprene rubber and reinforced with strong fiberglass tensile cords they are oil and ozone resistant. Fiberglass tensile cords provide many advantages including, high strength, low elongation, absence of creep and excellent dimensional stability. For a lightweight drive system pair these rubber timing belts with either aluminum pulleys or plastic pulleys.

Inquiry

Write a Review

Brand

Yonghang

Customized support

yes

Place of Origin

China

OEM

yes

T5 T10 T20 rubber timing belts

T Profile Timing Belt

T5 T10 T20 rubber timing belts 5

T5 Specifications Table
tytp	length	teeth	tytp	length	teeth	tytp	length	teeth	tytp	length	teeth	tytp	length	teeth
T5	165	33	T5	345	69	T5	520	104	T5	725	145	T5	1200	240
T5	175	35	T5	350	70	T5	525	105	T5	740	148	T5	1210	242
T5	185	37	T5	355	71	T5	530	106	T5	750	150	T5	1215	243
T5	190	38	T5	360	72	T5	540	108	T5	755	151	T5	1230	246
T5	200	40	T5	365	73	T5	545	109	T5	780	156	T5	1250	250
T5	210	42	T5	370	74	T5	550	110	T5	800	160	T5	1275	255
T5	215	43	T5	375	75	T5	555	111	T5	815	163	T5	1300	260
T5	220	44	T5	380	76	T5	560	112	T5	825	165	T5	1335	267
T5	225	45	T5	385	77	T5	565	113	T5	830	166	T5	1340	268
T5	240	48	T5	390	78	T5	575	115	T5	840	168	T5	1350	270
T5	245	49	T5	395	79	T5	585	117	T5	850	170	T5	1380	276
T5	250	50	T5	400	80	T5	590	118	T5	860	172	T5	1420	284
T5	255	51	T5	410	82	T5	600	120	T5	870	174	T5	1520	304
T5	260	52	T5	420	84	T5	610	122	T5	880	176	T5	1610	322
T5	265	53	T5	425	85	T5	625	125	T5	885	177	T5	1630	326
T5	270	54	T5	430	86	T5	630	126	T5	890	178	T5	1740	348
T5	275	55	T5	435	87	T5	635	127	T5	900	180	T5	1800	360
T5	280	56	T5	450	90	T5	640	128	T5	910	182	T5	1905	381
T5	295	59	T5	455	91	T5	650	130	T5	930	186	T5	1960	392
T5	300	60	T5	460	92	T5	660	132	T5	940	188	T5	2000	400
T5	305	61	T5	470	94	T5	665	133	T5	990	198	T5	2280	456
T5	310	62	T5	475	95	T5	670	134	T5	1000	200
T5	315	63	T5	480	96	T5	690	138	T5	1010	202
T5	320	64	T5	490	98	T5	695	139	T5	1035	207
T5	325	65	T5	495	99	T5	700	140	T5	1045	209
T5	330	66	T5	500	100	T5	705	141	T5	1075	215
T5	335	67	T5	510	102	T5	710	142	T5	1100	220
T5	340	68	T5	515	103	T5	720	144	T5	1150	230

T5 T10 T20 rubber timing belts 6

T10 Specifications Table
tytp	length	tytp	length	tytp	length	tytp	length	tytp	length
T10	340	T10	650	T10	940	T10	1340	T10	1800
T10	360	T10	660	T10	960	T10	1350	T10	1860
T10	370	T10	680	T10	970	T10	1360	T10	1880
T10	380	T10	690	T10	980	T10	1370	T10	1890
T10	400	T10	700	T10	1000	T10	1390	T10	1960
T10	410	T10	710	T10	1010	T10	1400	T10	2020
T10	440	T10	720	T10	1020	T10	1410	T10	2040
T10	450	T10	730	T10	1040	T10	1420	T10	2170
T10	460	T10	750	T10	1050	T10	1440	T10	2250
T10	470	T10	760	T10	1080	T10	1450	T10	2300
T10	480	T10	770	T10	1100	T10	1460	T10	2350
T10	490	T10	780	T10	1110	T10	1470	T10	2380
T10	500	T10	800	T10	1120	T10	1480	T10	2480
T10	510	T10	810	T10	1140	T10	1500	T10	2500
T10	520	T10	840	T10	1150	T10	1540	T10	2510
T10	530	T10	850	T10	1200	T10	1560	T10	2600
T10	540	T10	860	T10	1210	T10	1600	T10	2650
T10	550	T10	870	T10	1240	T10	1610	T10	2680
T10	560	T10	880	T10	1250	T10	1630
T10	570	T10	890	T10	1260	T10	1640
T10	580	T10	900	T10	1270	T10	1690
T10	600	T10	910	T10	1280	T10	1700
T10	610	T10	920	T10	1300	T10	1750
T10	630	T10	930	T10	1310	T10	1760
T10	640	T10	950	T10	1320	T10	1780

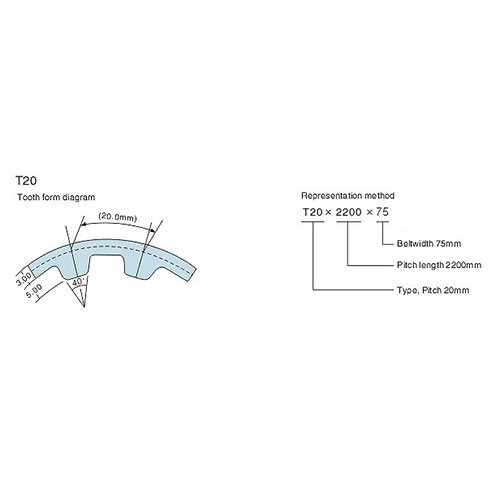

T5 T10 T20 rubber timing belts 7

T20-400
