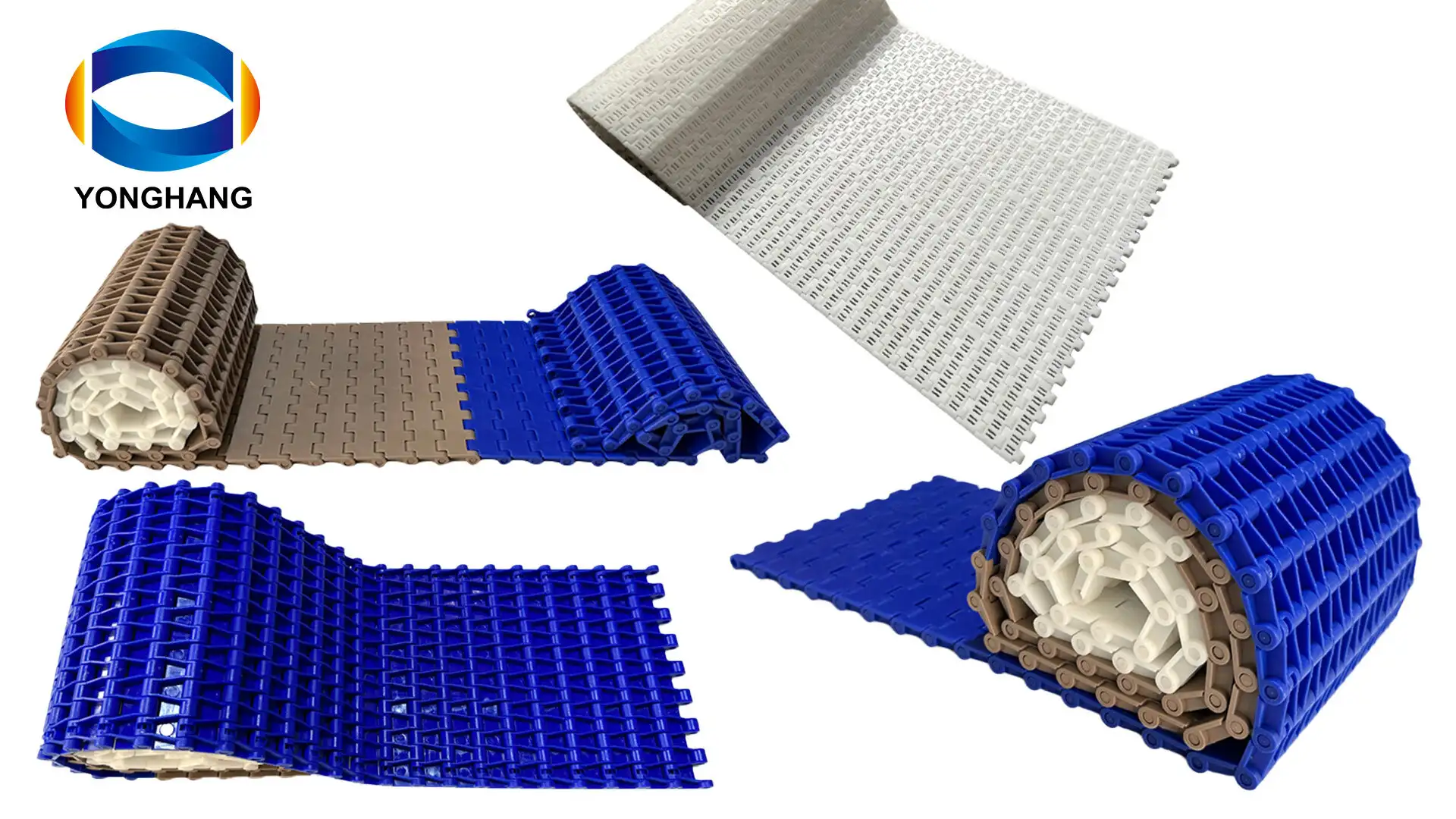

5935 series Module belts pitch 19.05mm
Here is a list of all the types of the 5935 series, to help you find the appropriate size, Different opening areas, different work Load, different work temperatures，If you have any questions, please contact our experienced experts.
5935 series Module belts pitch 19.05mm，It comes in three different types.
5935 Flat Top Modular Belt
5935 Flat Module Belt With Hole
5935 Modular conveyor belt with flightIt can achieve large-angle transportation and anti-slip function.
types：5935
brand：YONGHANG
Material:pom/pp/pe
colour：blue/yellow/white/brown
5935 flat top plastic modular conveyor belt has the characteristics of high strength, acid, alkali, salt water resistance, wide temperature range, good anti-viscosity, can add flight and Side Guard, lifting Angle is large, easy to clean, simple maintenance.

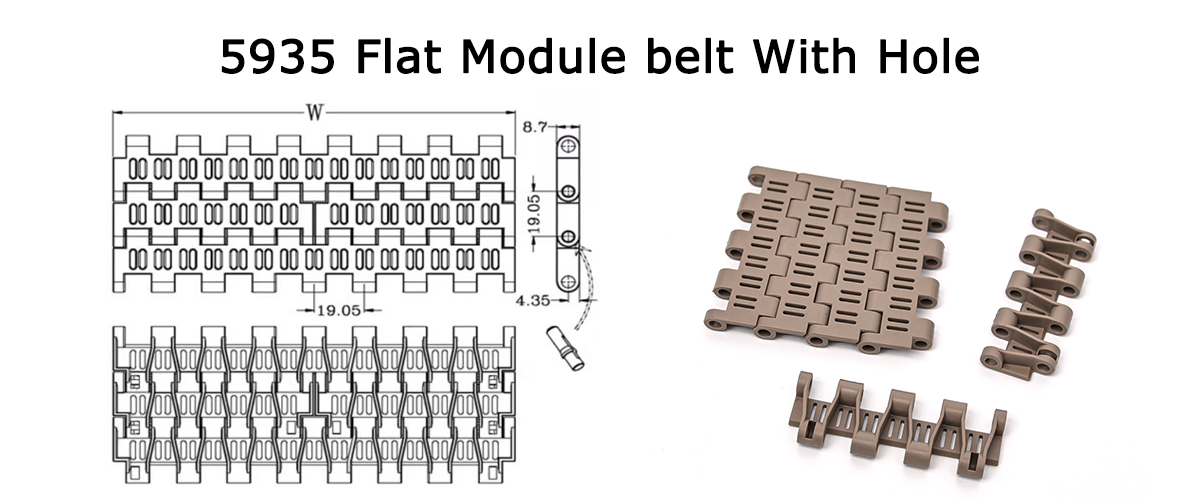

5935 Flat Module Belt With Hole Popular application for use with dishwashers

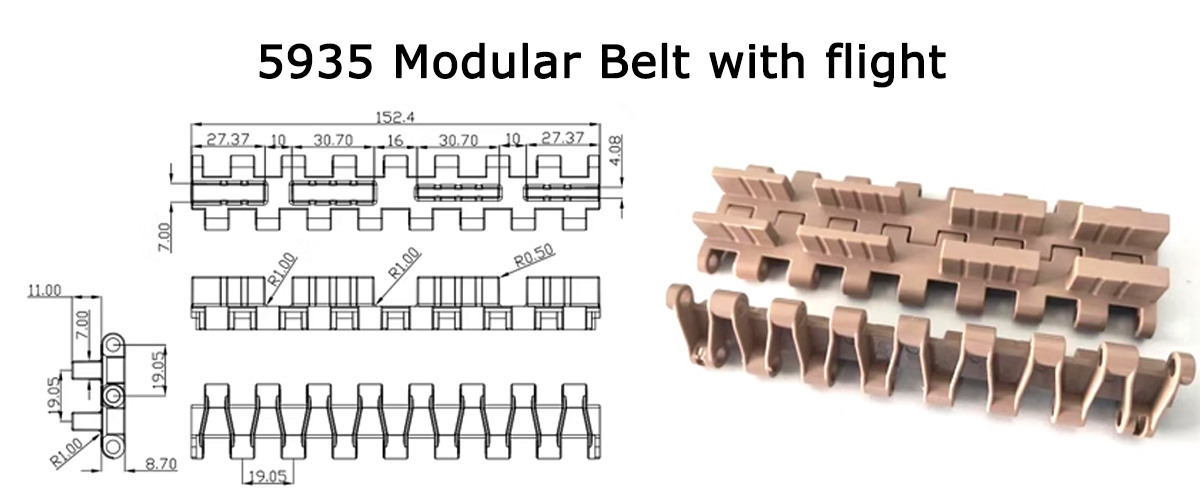

5935 Modular conveyor belt with flightIt can achieve large-angle transportation and anti-slip function.
| Modular Type | 5935 flat top plastic modular conveyor belt | |
| Standard Width(mm) | 76.2 152.4 228.6 304.8 381 457.2 533.4 609.6 685.8 762 76.2*N | (N,n will increase as integer multiplication; |
| due to different material shrinkage,Actual will be lower than standard width) | ||
| Non-standard Width(mm) | 76.2*N+19*n | |
| Pitch | 19.05 | |
| Belt Material | POM/PP | |
| Pin Material | POM/PP/PA6 | |
| Pin Diameter | 4.8mm | |
| Work Load | POM:13000 PP:7000 | |
| Temperature | POM:-40°~ 80° PP:+1°~100° | |
| Open Area | 0% | |
| Reverse Radius(mm) | 25 | |
| Belt Weight(kg/㎡) | POM：7.8 PP：6.45 | |
| 5935 flat top plastic modular conveyor belt with hole | |||||||||||
| Belt type | Pitch | Belt material | Pin Material | Pin Diameter | Working load(max) | Weight | thickness | Back flex radius | Work Temperature | Standard Width (Single piece) | Non-standard Width (Assembly) |
| mm | mm | N(21℃ | Kg/m2 | mm | mm | dry | mm | mm | |||
| 5935 | 19.05 | POM | PP | 4.8 | 10500 | 6.35 | 8.7 | 25 | -30℃~+80℃ | 76.2/152.4 | 76.2*N+19.05*n |
| 19.05 | PA | 4.8 | 10800 | 6.45 | 8.7 | 25 | -30℃~+90℃ | 76.2/152.4 | |||
| 19.05 | PP | PP | 4.8 | 8800 | 4.95 | 8.7 | 25 | +4℃~+104℃ | 76.2/152.4 | ||
| Open Area 6% (N,n will increase as integer multiplication; due to different material shrinkage,Actual will be lower than standard width 1%-3% | |||||||||||
| Standard Width(mm) | 76.2 152.4 228.6 304.8 381 457.2 833.4 609.6 685.8 762 76.2*N | Note:N，n will increase as integer multiplication:due to different material shrinkage,actual will be lower than standard width |
| Non Standard Width(mm) | 76.2*N+19*n | |
| Pitch(mm) | 19.05 | |

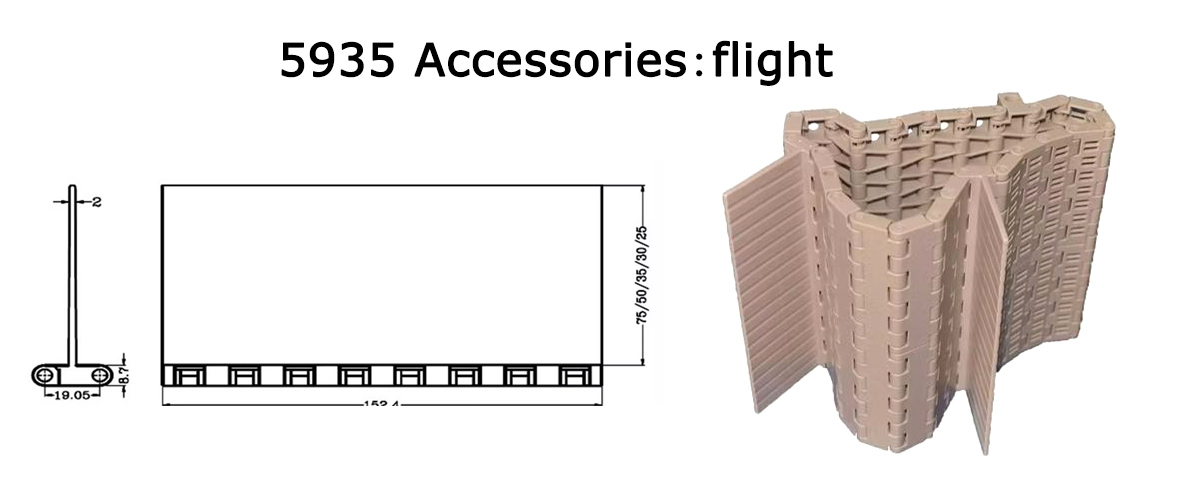

| Flight Material | POM/PP | |
| Flight Height | 20 25 30 35 40 50 75 | |
All the above-mentioned attachments can be custom-molded according to your requirements. If you need them, please feel free to contact us directly.

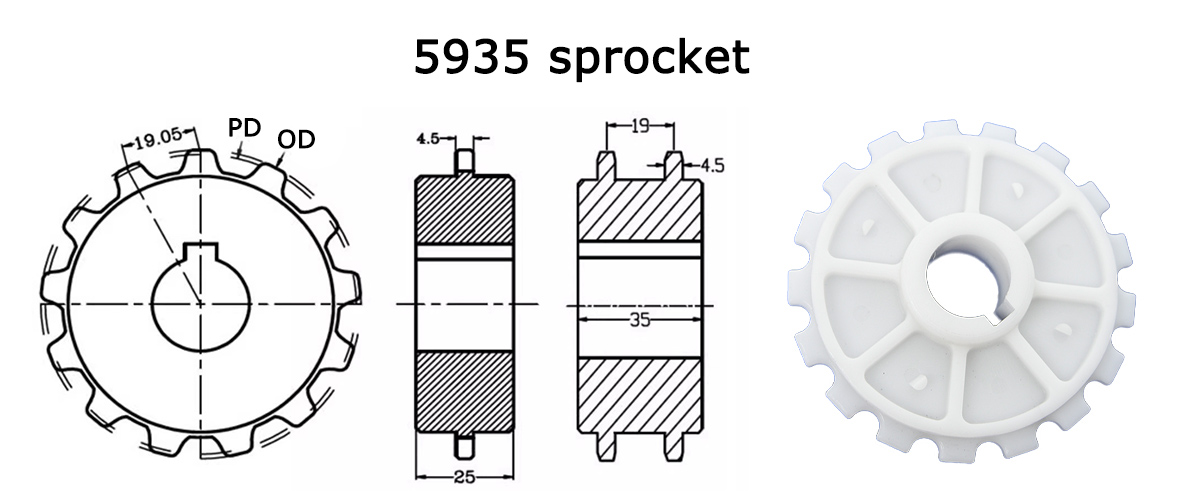

| Machined Sprockets | pitch | Teeth | Pitch Diametet(PD ) | Outside Diameter(OD) | Bore Size | Other | ||
| mm | mm | Inch | mm | Inch | mm | |||
| 1901B-12 | 19.05 | 12 | 73.6 | 2.87 | 75.7 | 2.98 | 20 30 35 40 | Available on request |
| 1901B-16 | 19.05 | 16 | 97.6 | 3.84 | 99.9 | 3.93 | 20 30 35 40 | |
| 1901B-18 | 19.05 | 18 | 109.7 | 4.31 | 112 | 4.4 | 20 30 35 40 | |
| Special tooth counts can be customized. The shaft diameter can be square or round. The injection molded Sprockets material can be POM, PP, or PA. The machined material can be PA/PP. | ||||||||
1.Widely usage
2.Small space occupy
3.Low maintaince cost ,Huge volume conveying
4.Easy operation
5.High efficient
6.Solve the problem that the common conveyor belt and the pattern conveyor belt cannot be dip angle conveying
7.Can be vertical plane, horizontal plane, slightly deflected and multi-angle direction conveying
8.Easy to clean
9.Customization is available
10.Plant direct sale
