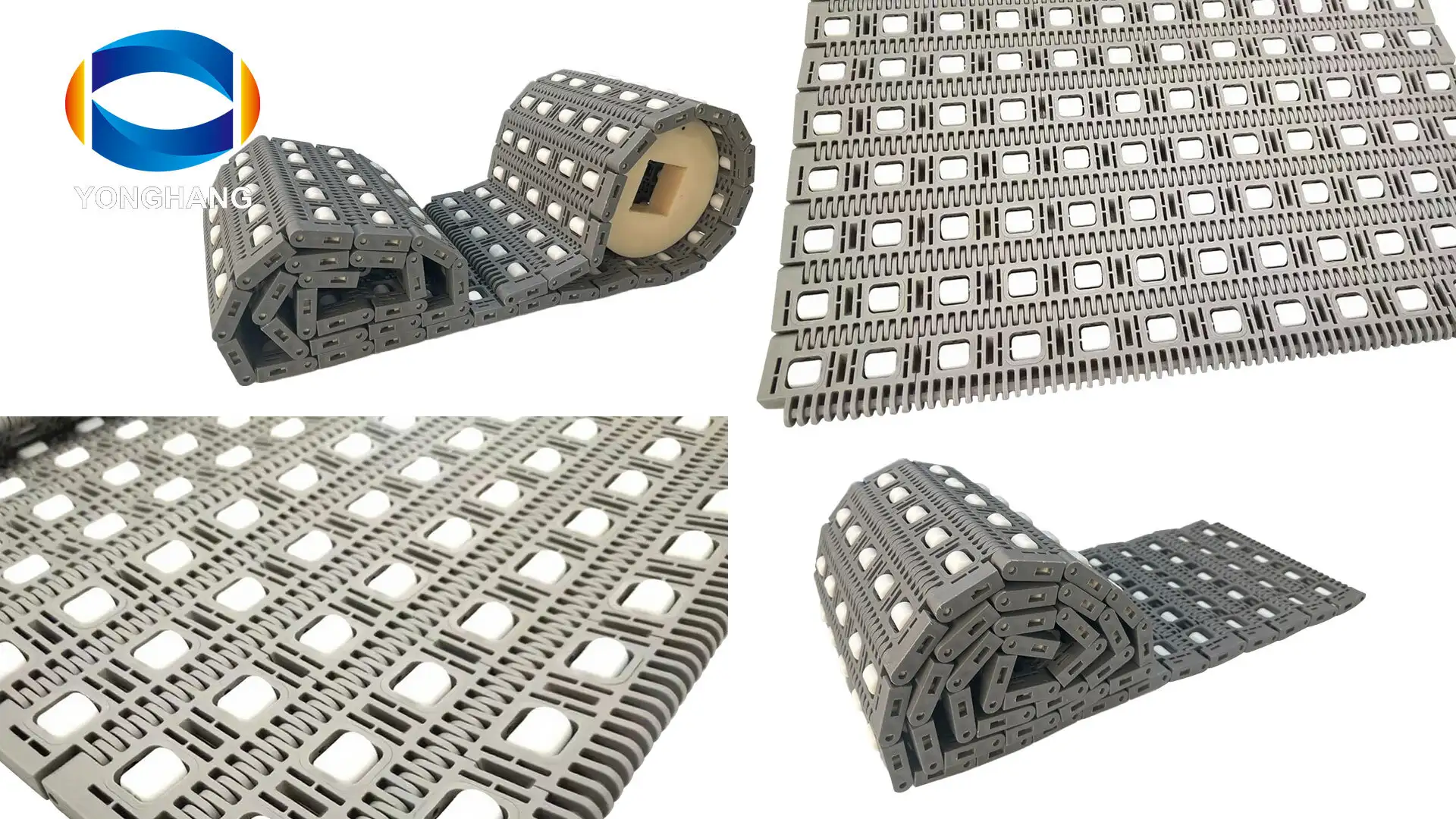

400 series ball bearing module conveyor belt
400 series ball bearing module conveyor belt
400 series ball bearing module conveyor belt
Pitch: 50.8
Working temperature:Dry: +4℃～+104℃ wet:+4℃～+104℃
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Brand
Yonghang
Customized support
yes
Place of Origin
China
OEM
yes

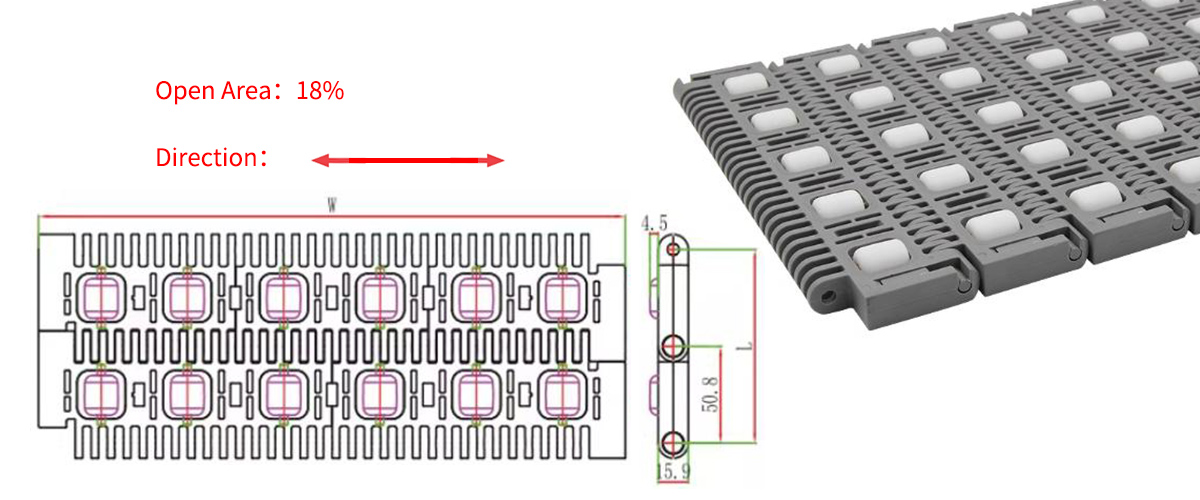

400 series Horizontal ball bearing module conveyor belt Dimension drawing

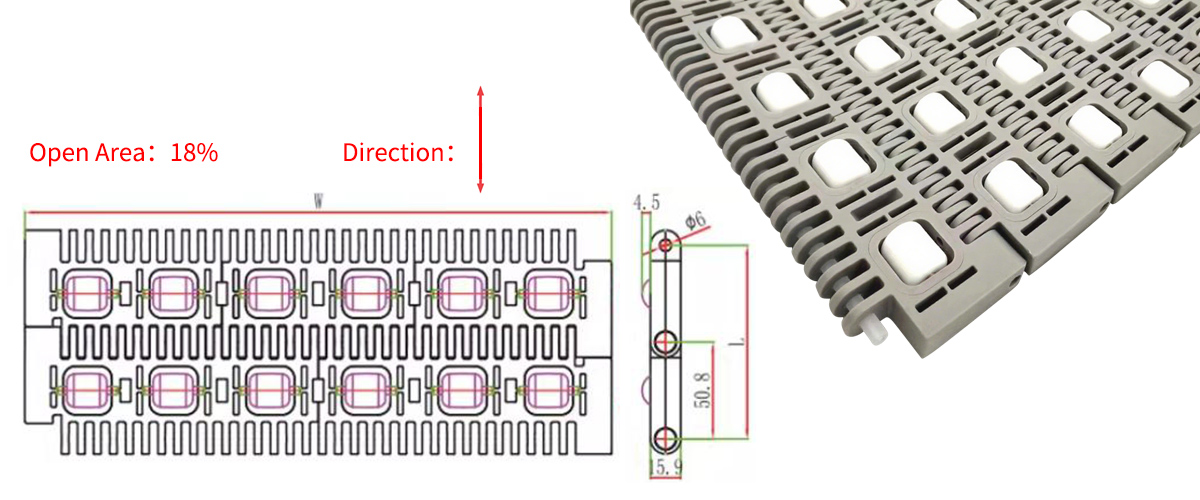

400 series Vertical ball bearing module conveyor belt Dimension drawing
| 400 series ball bearing module conveyor belt | ||||||||||
| Belt type | Pitch | Belt material | Pin Material | Pin Diameter | Working load(max) | Weight | thickness | Width | Back flex radius (min) | Width (Assembly) |
| mm | mm | N(21℃ | Kg/m2 | mm | mm | mm | mm | |||
| 400BT | 50.8 | POM | PP | 6 | 47600 | 17.9 | 16 | 152.4/101.6 | 100 | 152.4+50.8*N |
| 50.8 | PA | 6 | 48000 | 18 | 16 | 152.4/101.6 | 100 | |||
| 50.8 | PP | PP | 6 | 36000 | 12 | 16 | 152.4/101.6 | 100 | ||
| 50.8 | PE | PE | 6 | 27000 | 13 | 16 | 152.4/101.6 | 100 | ||
| Open Area：18% Width reduction：0.1%-0.3% The direction can be either horizontal or vertical. | ||||||||||
400 series universal balls module conveyor belt
| 400 series universal balls module conveyor belt | ||||||||||
| Belt type | Pitch | Belt material | Pin Material | Pin Diameter | Working load(max) | Weight | thickness | Back flex radius (min) | Width (Single piece) | Width (Assembly) |
| mm | mm | N(21℃ | Kg/m2 | mm | mm | mm | mm | |||
| 400UBT | 50.8 | POM | PP | 6 | 47600 | 23 | 16 | 100 | 152.4/101.6/150 | 254+50.8*N |
| 50.8 | PA | 6 | 48000 | 23.1 | 16 | 100 | 152.4/101.6/150 | |||
| 50.8 | PP | PP | 6 | 36000 | 16.5 | 16 | 100 | 152.4/101.6/150 | ||
| 50.8 | PE | PE | 6 | 27000 | 17.2 | 16 | 100 | 152.4/101.6/150 | ||
| Open Area：11% Width reduction：0.1%-0.3% | ||||||||||
| Sprockets | Teeth | PD | OD | Bore Size | forming way | |||
| mm | Inch | mm | Inch | Round hole | Square shape hole | |||
| 400-6T | 6 | 91.6 | 3.61 | 101.6 | 4.00 | 40 | Injection molding | |
| 400-10T | 10 | 160.4 | 6.31 | 164.4 | 6.47 | 40/60 | 30/40 | Injection molding |
| 400-12T | 12 | 193.6 | 7.62 | 196.3 | 7.73 | 40/50/60 | Injection molding | |
| 400-16T | 16 | 259 | 10.20 | 260.4 | 10.25 | 80/90 | Injection molding | |
