12A60B Sprocket Size Chart
12A60B Sprocket compared with similar products on the market, it has incomparable outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market.Yonghang summarizes the defects of past products, and continuously improves them. The specifications of 12A60B Sprocket can be customized according to your needs.
bore diameter（D）：Free hole drilling service
pitch：19.05mm
roller chain diameter：11.91mm
tooth thickness：11.9mm
chain breadth：12.7mm
AD Step diameter：customizable
| 12A60B Sprocket Size Chart | ||||||||||
| type | teeth | AD | OD (outer diameter) | Total thickness | bore diameter | top thread | weight | tooth thickness | pitch | roller chain diameter |
| mm | mm | mm | mm | kg | mm | mm | mm | |||
| 12A60B | 10 | 49 | 70 | 30 | 12 | M6/M8 | 0.435 | 11.9 | 19.05 | 11.91 |
| 12A60B | 11 | 55 | 76 | 35 | 12 | M6/M8 | 0.640 | 11.9 | 19.05 | 11.91 |
| 12A60B | 12 | 60 | 82 | 35 | 14 | M6/M8 | 0.770 | 11.9 | 19.05 | 11.91 |
| 12A60B | 13 | 58 | 88 | 35 | 14 | M6/M8 | 0.830 | 11.9 | 19.05 | 11.91 |
| 12A60B | 14 | 64 | 94 | 35 | 16 | M8/M10 | 0.995 | 11.9 | 19.05 | 11.91 |
| 12A60B | 15 | 70 | 100 | 35 | 16 | M8/M10 | 1.185 | 11.9 | 19.05 | 11.91 |

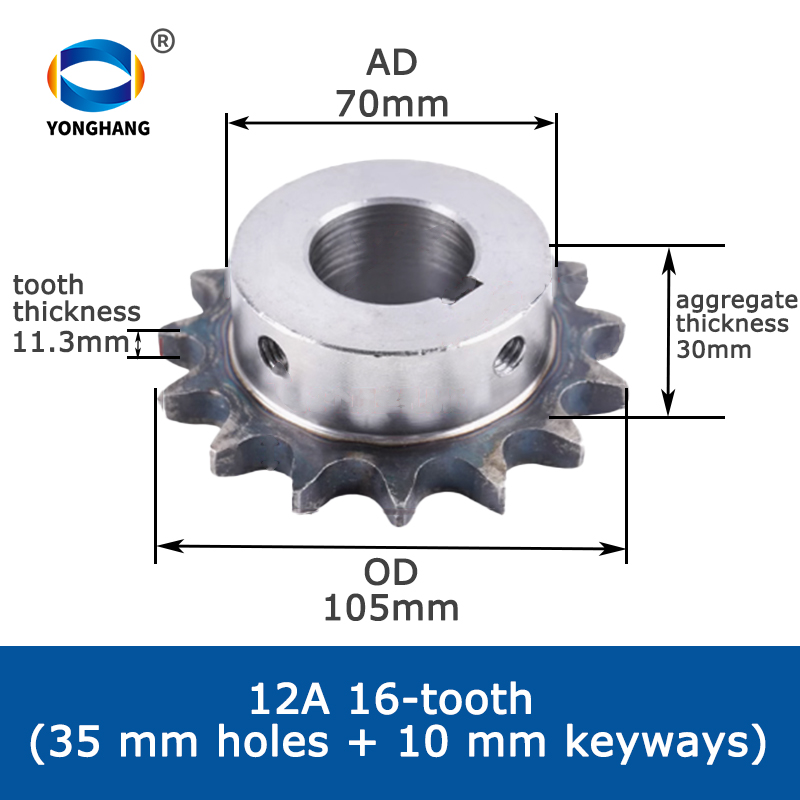

| 12A60B | 16 | 75 | 106 | 35 | 16 | M8/M10 | 1.365 | 11.9 | 19.05 | 11.91 |
| 12A60B | 17 | 75 | 112 | 35 | 16 | M8/M10 | 1.495 | 11.9 | 19.05 | 11.91 |

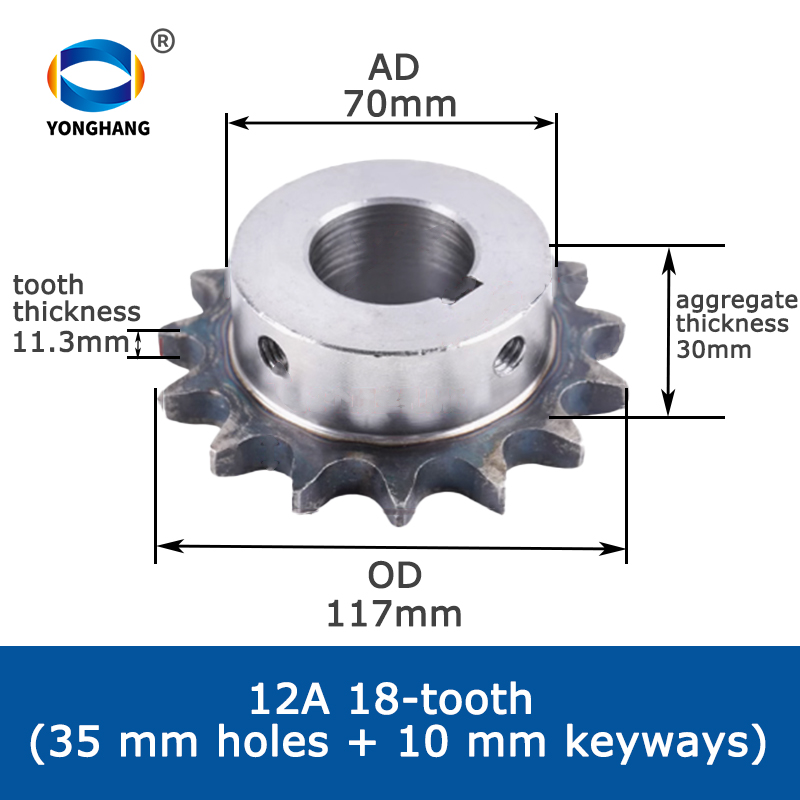

| 12A60B | 18 | 80 | 118 | 35 | 16 | M8/M10 | 1.630 | 11.9 | 19.05 | 11.91 |
| 12A60B | 19 | 80 | 124 | 35 | 16 | M8/M10 | 1.715 | 11.9 | 19.05 | 11.91 |
| 12A60B | 20 | 80 | 130 | 35 | 18 | M8/M10 | 1.800 | 11.9 | 19.05 | 11.91 |
| 12A60B | 21 | 85 | 136 | 40 | 18 | M8/M10 | 2.270 | 11.9 | 19.05 | 11.91 |
| 12A60B | 22 | 85 | 142 | 40 | 18 | M8/M10 | 2.370 | 11.9 | 19.05 | 11.91 |
| 12A60B | 23 | 85 | 148 | 40 | 18 | M8/M10 | 2.480 | 11.9 | 19.05 | 11.91 |
| 12A60B | 24 | 90 | 154 | 40 | 18 | M8/M10 | 2.750 | 11.9 | 19.05 | 11.91 |
| 12A60B | 25 | 90 | 160 | 40 | 20 | M8/M10 | 2.835 | 11.9 | 19.05 | 11.91 |
| 12A60B | 26 | 90 | 166 | 45 | 20 | M8/M10 | 3.210 | 11.9 | 19.05 | 11.91 |
| 12A60B | 27 | 90 | 172 | 45 | 20 | M8/M10 | 3.360 | 11.9 | 19.05 | 11.91 |
| 12A60B | 28 | 90 | 178 | 45 | 20 | M8/M10 | 3.470 | 11.9 | 19.05 | 11.91 |
| 12A60B | 29 | 90 | 184 | 45 | 20 | M8/M10 | 3.620 | 11.9 | 19.05 | 11.91 |
| 12A60B | 30 | 90 | 190 | 45 | 20 | M8/M10 | 3.710 | 11.9 | 19.05 | 11.91 |
| 12A60B | 31 | 90 | 196 | 45 | 20 | M8/M10 | 3.870 | 11.9 | 19.05 | 11.91 |
| 12A60B | 32 | 90 | 202 | 45 | 20 | M8/M10 | 4.020 | 11.9 | 19.05 | 11.91 |
| 12A60B | 33 | 90 | 208 | 45 | 20 | M8/M10 | 4.225 | 11.9 | 19.05 | 11.91 |
| 12A60B | 34 | 90 | 214 | 45 | 20 | M8/M10 | 4.375 | 11.9 | 19.05 | 11.91 |
| 12A60B | 35 | 90 | 220 | 45 | 20 | M8/M10 | 4.565 | 11.9 | 19.05 | 11.91 |
| 12A60B | 36 | 90 | 226 | 45 | 20 | M8/M10 | 4.905 | 11.9 | 19.05 | 11.91 |
| Free hole drilling service | ||||||||||
If you need to modify the data on this size chart, we are always happy to accommodate your request. We will provide you with the factory price and also offer the matching chain for sale.
