Product Name : 1230 Blue Color Pitch 12.7mm POM PP Plastic Turning Curved Modular belt for Washing of fruits and vegetables
Features : Durable, Stable Delivery,Smooth surface, no burr, self-lubrication, impact resistance, not easy to corrode, long service life, etc.
Application : Machinery industry, electric power industry, aviation industry, petroleum industry etc.

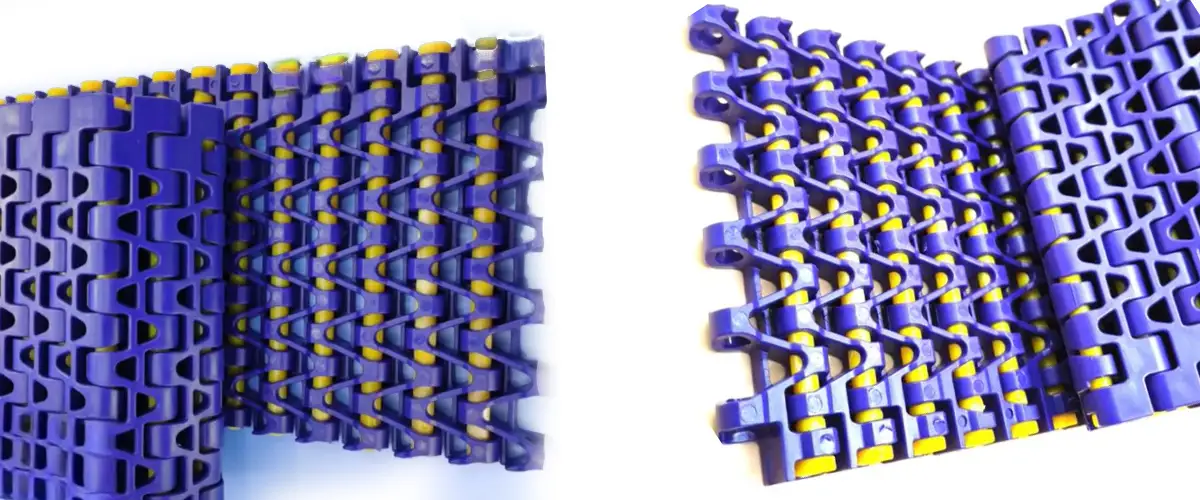

Pitch 12.7mm POM PP Plastic Turning Curved Modular belt
| Characteristics | POM | PP |
| Mechanical strength | High rigidity, high wear resistance | Medium strength, high toughness |
| Working temperature | ﹣40°-80°C(High temperature releases odors) | ﹣0℃-100℃ (brittle at low temperatures) |
| Chemical properties | Not tolerant of strong acids | Strong (acid and alkali resistant, solvent resistant) |
| Application | Heavy-duty conveying, precise transmission (automobile assembly line, logistics transportation (high wear + precision) choose POM) | Food processing, corrosive environment. For food factory baking lines (high temperature + hygiene),ChoosePP |
Product Name 1230 Blue Color Pitch 12.7mm POM PP Plastic Turning Curved Modular belt for Washing of fruits and vegetables
Features Durable, Stable Delivery,Smooth surface, no burr, self-lubrication, impact resistance, not easy to corrode, long service life, etc.
Application Machinery industry, electric power industry, aviation industry, petroleum industry etc.

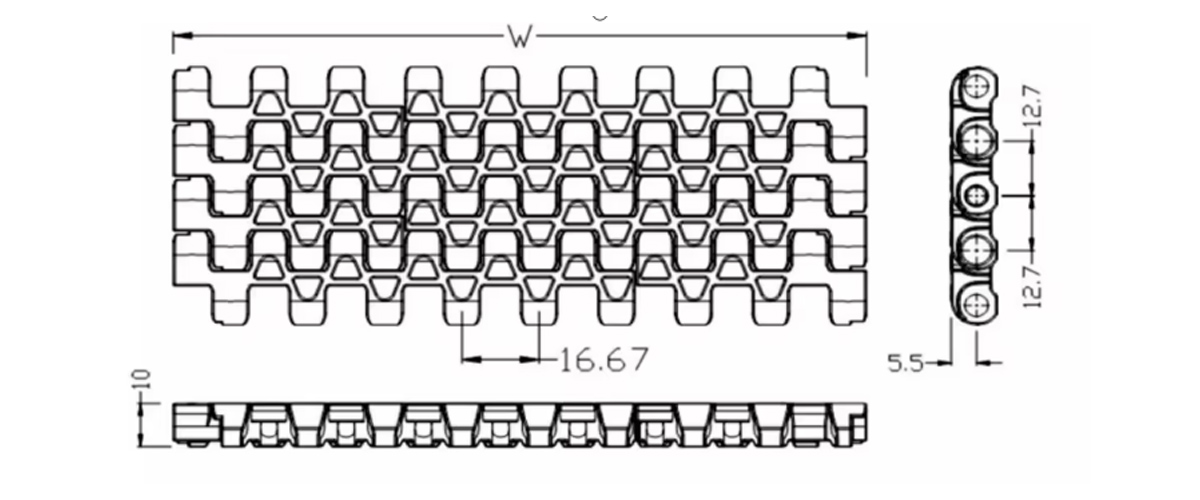

| Belt type | Pitch | Belt material | Pin Material | Pin Diameter | Working load(max) | Weight | Width(Single piece) | Width (Assembly) |
| mm | N(21℃ | Kg/m2 | ||||||
| 1230 | 12.7 | POM | PP | 5 | 16000 | 7.8 | 50/100/150 | 50*N+16.67*N |
| 12.7 | PA | 5 | 18000 | 8.1 | 50/100/150 | |||
| 12.7 | PP | PP | 5 | 11000 | 5.1 | 50/100/150 | ||
| 12.7 | PE | PE | 5 | 7000 | 5.7 | 50/100/150 |

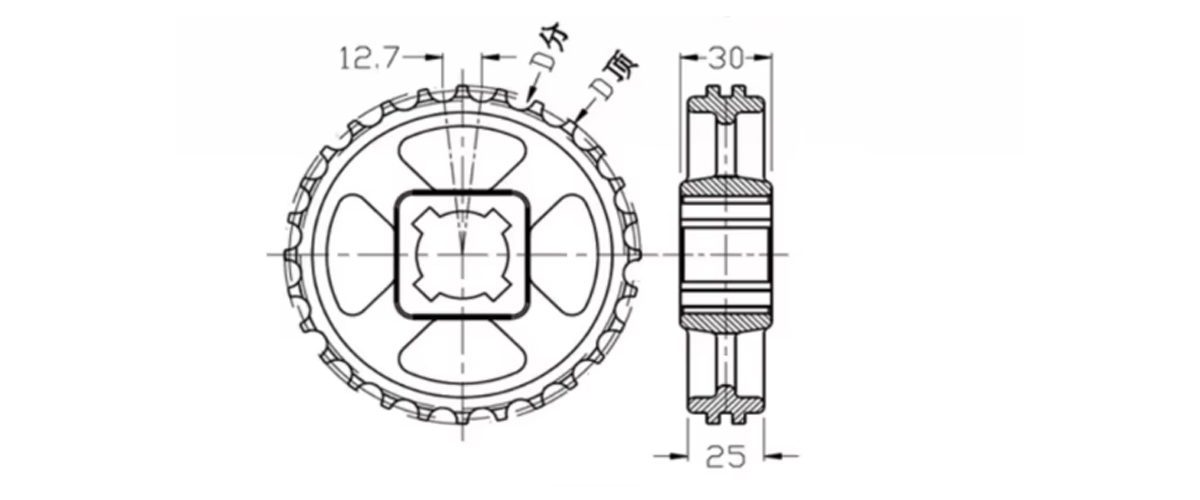

| Machined Sprockets | Teeth | Pitch Diametet(mm) D分 | Outside Diameter D顶 | Bore Size(Round hole and D hole) | Molding method | ||
| mm | Inch | mm | Inch | mm | |||
| 1230-10T | 10 | 41.1 | 1.62 | 44.3 | 1.74 | 25-40 | Machine processing |
| 1230-15T | 15 | 61.08 | 2.40 | 64.3 | 2.53 | 25-40 | Machine processing |
| 1230-24T | 24 | 97.3 | 3.83 | 100.5 | 3.96 | 25-40 | Machine processing |
| 1230-28T | 28 | 113.43 | 4.47 | 116.6 | 4.59 | 25-40 | Injection molding |
| 1230-36T | 36 | 145.72 | 5.74 | 149 | 5.87 | 25-40 | Machine processing |

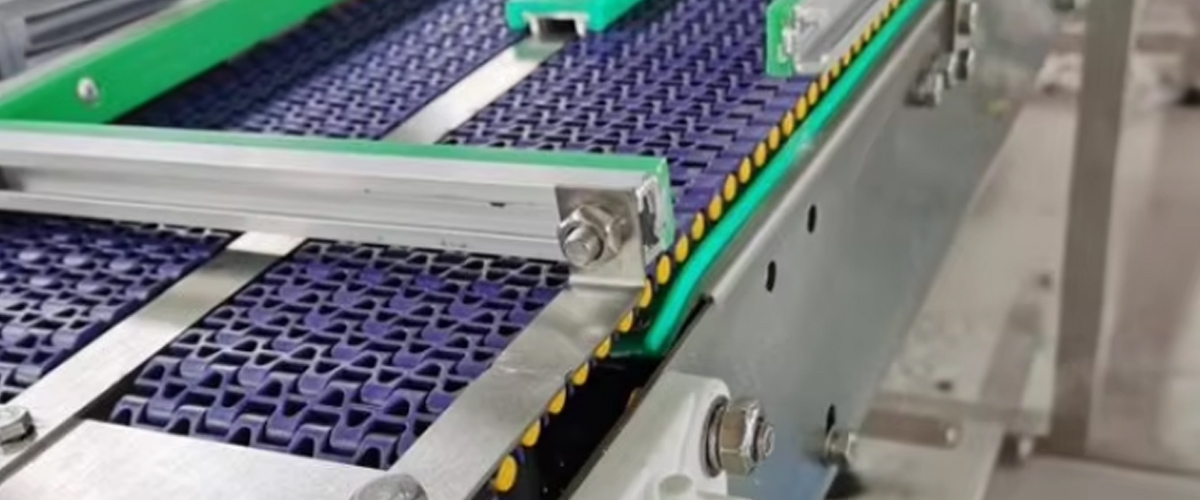

Fruit and vegetable cleaning
Food Conveyor
and Others
