1100F Pitch 15.24 Plastic chain plate modular conveyor belt
1100F Plastic chain plate modular conveyor belt
1100F Plastic chain plate modular conveyor belt，
Two belt styles to choose from: Flat Top and Flush Grid
Available in two materials:
Pitch：15.24mm，
material：POM PP PA，
color ：Blue, white
Product Introduction
| 1100F Top Flat Belt | ||||||||||
| Belt type | Pitch | Belt material | Pin Material | Pin Diameter | Working load(max) | Weight | thickness | Width（Single piece） | Back flex radius(min) | Width (Assembly) |
| mm | mm | N(21℃ | Kg/m2 | mm | mm | mm | mm | |||
| 1100F | 15.24 | POM | PP | 4.6 | 25000 | 5.75 | 8.7 | 50.8/152.4/101.6 | 25 | 152.4+25.4*N |
| 15.24 | PE | 4.6 | 22000 | 5.75 | 8.7 | 50.8/152.4/101.6 | 25 | |||
| 15.24 | PP | PP | 4.6 | 12000 | 3.98 | 8.7 | 50.8/152.4/101.6 | 25 | ||
| 15.24 | PE | PE | 4.6 | 10000 | 4.2 | 8.7 | 50.8/152.4/101.6 | 25 | ||
| Open Area：0% Width reduction：0.1%-0.3% | ||||||||||

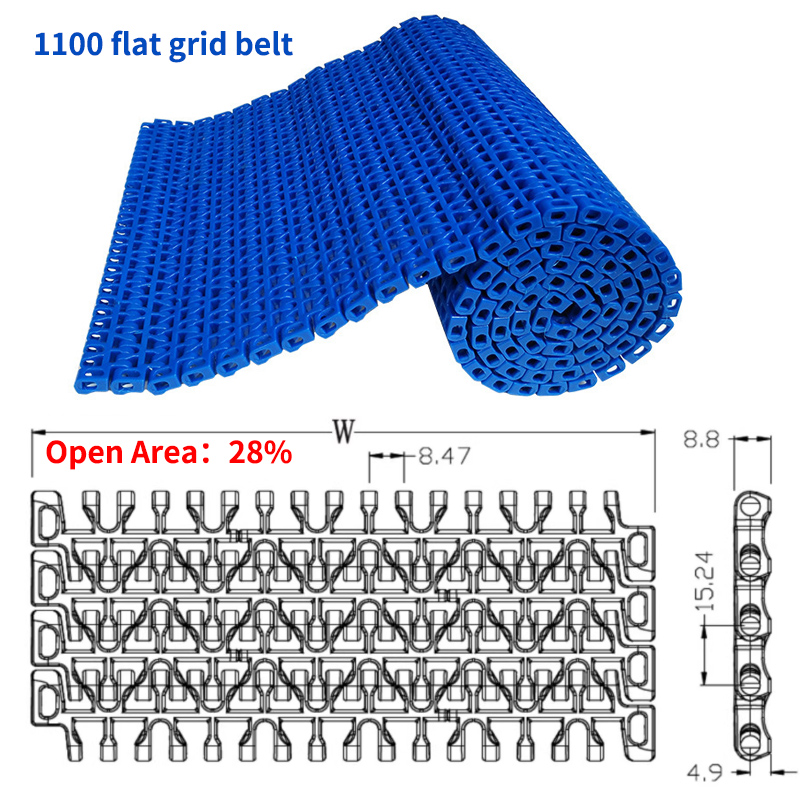

1100 flat grid belt
Belt type Pitch Belt material Pin Material Pin Diameter Working load(max) Weight thickness Width（Single piece） Back flex radius(min) Width (Assembly) mm mm N(21℃ Kg/m2 mm mm mm mm 1100F 15.24 POM PP 4.6/4.8 25000 5.75 8.8/9 50.8/152.4/101.6 25 50.8+25.4*N 15.24 PE 4.6/4.8 22000 5.75 8.8/9 50.8/152.4/101.6 25 15.24 PP PP 4.6/4.8 12000 3.98 8.8/9 50.8/152.4/101.6 25 15.24 PE PE 4.6/4.8 10000 4.2 8.8/9 50.8/152.4/101.6 25 Open Area：0% Width reduction：0.1%-0.3%
1100 flat grid belt with lead rail
1100 flat grid belt | ||||||||||
| Belt type | Pitch | Belt material | Pin Material | Pin Diameter | Working load(max) | Weight | thickness | Width（Single piece） | Back flex radius(min) | Width (Assembly) |
| mm | mm | N(21℃ | Kg/m2 | mm | mm | mm | mm | |||
| 1100F | 15.24 | POM | PP | 4.6/4.8 | 25000 | 5.75 | 8.8/9 | 50.8/152.4/101.6 | 25 | 50.8+25.4*N |
| 15.24 | PE | 4.6/4.8 | 22000 | 5.75 | 8.8/9 | 50.8/152.4/101.6 | 25 | |||
| 15.24 | PP | PP | 4.6/4.8 | 12000 | 3.98 | 8.8/9 | 50.8/152.4/101.6 | 25 | ||
| 15.24 | PE | PE | 4.6/4.8 | 10000 | 4.2 | 8.8/9 | 50.8/152.4/101.6 | 25 | ||
| Open Area：0% Width reduction：0.1%-0.3% | ||||||||||

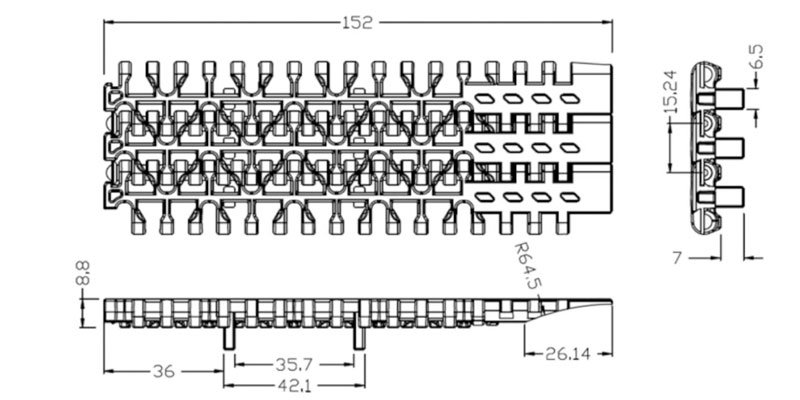

| 1100 flat grid belt with lead rail | |||||||||
| Belt type | Pitch | Belt material | Pin Material | Pin Diameter | Working load(max) | Weight | thickness | Width（Single piece） | Back flex radius(min) |
| mm | mm | N(21℃ | Kg/m | mm | mm | mm | |||
| 1100F | 15.24 | POM | PP | 4.6 | 1800 | 0.95 | 8.8 | 152 | 25 |
| 15.24 | PE | 4.6 | 1800 | 0.97 | 8.8 | 152 | 25 | ||
| 15.24 | PP | PP | 4.6 | 1100 | 0.97 | 8.8 | 152 | 25 | |
| 15.24 | PA | PA | 4.6 | 1500 | 0.82 | 8.8 | 152 | 25 | |
| Open Area：28% Width reduction：0.1%-0.3% | |||||||||

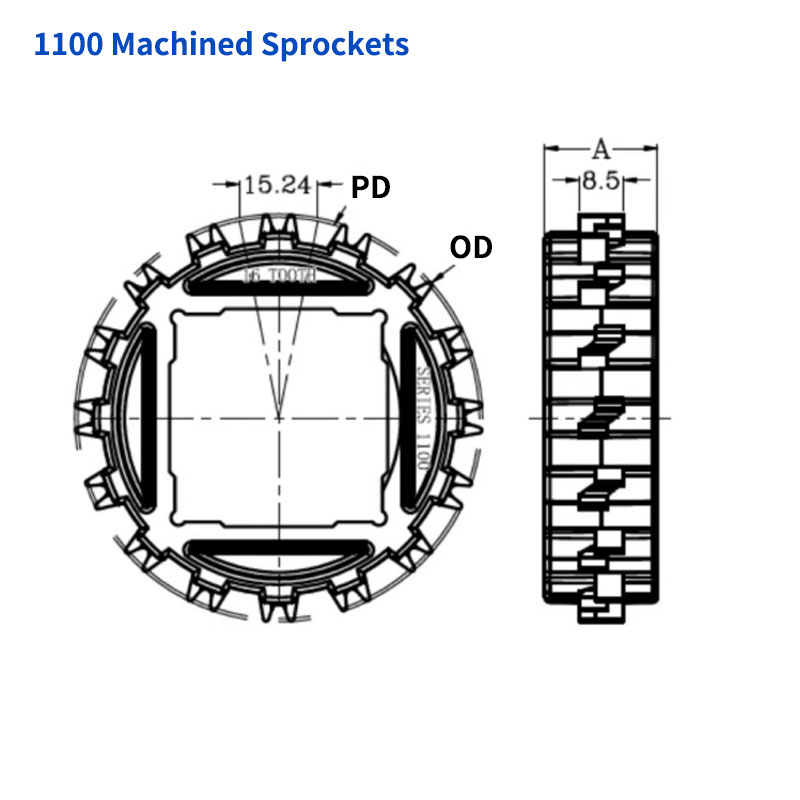

Machined Sprockets Teeth Pitch Diametet(mm)
PD Outside Diameter（OD） Bore Size（Round hole and D hole） forming way mm Inch mm Inch mm
1100-16T 16 78.12 3.08 79.4 3.13 25/30/40 By Machined 1100-24T 24 116.76 4.60 118 4.65 40 By Machined 1100-32T 32 155.48 6.12 156.5 6.16 25/30/40/60 By Machined
| Machined Sprockets | Teeth | Pitch Diametet(mm) PD | Outside Diameter（OD） | Bore Size（Round hole and D hole） | forming way | ||
| mm | Inch | mm | Inch | mm | |||
| 1100-16T | 16 | 78.12 | 3.08 | 79.4 | 3.13 | 25/30/40 | By Machined |
| 1100-24T | 24 | 116.76 | 4.60 | 118 | 4.65 | 40 | By Machined |
| 1100-32T | 32 | 155.48 | 6.12 | 156.5 | 6.16 | 25/30/40/60 | By Machined |
Product Information
Plastic chain plates are primarily made from the following materials: plastic steel ACETAL, polypropylene (PP), POM (Polyoxymethylene), polyethylene (PE), nylon (PA), and others. They are a type of conveyor belt and represent a new generation of conveyor belts, offering numerous advantages over traditional conveyor belts: high strength, resistance to acids, alkalis, and saltwater, a wide temperature range, excellent anti-adhesive properties, the ability to add side guards, a large incline angle, ease of cleaning, and simple maintenance. They can be used in various environments for conveying purposes. Examples include the pharmaceutical industry, food industry, packaging industry, daily chemical industry, automotive industry, logistics industry, entertainment facilities, transmission conveyor belts, and conveyor equipment.
Plastic Chains are a light-weight yet strong and silent alternative to Steel Chains. Plastic Chains are used in many industries; mainly in the Food and Packaging Industry for conveying of various container types.
there are many kinds of products of NEO company, which can not be shown to you one by one. If you don't have the products you want, please contact us!
If you wish to make purchases Conveyor plastic chain plate from China.call me call me！
Application
Our products use POM/PP/PE material so our products are wear resistant and resistant to heat .
They are mainly used to the following aspect:
In beverage industry palletizes, depolarizers, washers, labelers, fillers, pasteurizers, incliners, out feeds, elevators and accumulation tables are equipped with slat top chains, curves, sprockets, belts, leveling elements and many more conveyor components.
For the container manufacturing industry special products and materials are available, such as abrasion resistant polyamide for glass plants, vacuum chains for can making and gripper chains for vertical transport.
In automotive industry the products are engineered to meet the most demanding applications, such as rubber processing and tire handling.
Advantages：
1.This modular Transmission belts are convenient to assembly and maintain
2.All color could be available.
3.This modular Transmission belts can bear High mechanical strength.
4.This modular Transmission belts has Excellent product handling performance.
5.These modular Transmission belts are wear resistance and Oil Resistant.
6.We can provide good after-sale service.
7.Every product can be customized.
Cooperation Case and Our Factory!
1.We are a professional Transmission belts manufacturer, our product line contains modular belt, slat top chain, timing belts（PU and rubber),PUlleys,Conveyor belts
2.We Cooperated with DHL & Amazon to Help Them Solve Multi-scenario Application Parcel Sorting
3.In China, we help 20,000 companies solve transmission system solutions.
4.yonghangbelt not only has a complete production line to meet different application needs, but also can provide comprehensive product knowledge and experience.
5.After 20 years of innovative research and development, we can provide more than 5000 kinds of solutions to provide perfect support for you in the field of Transmission and transportation.
6.We have an experienced foreign trade team with global delivery capabilities.And we will offer you the lowest transportation cost.
7.We hope to recruit one agent in each country in Central and South Asia, the Middle East, Africa, and Russia for in-depth cooperation. We guarantee the quality of our products and the lowest prices. You are responsible for local sales, installation, and after-sales service.
8.If you are a designer, we can also make molds according to your drawings for customization.
If you are interested, please leave your email address with us. We will reply to you within 24 hours
Certifications and Patents
YONGHANG specializes in produce and custom coated transmission belts for 12 years.
