1000 Pitch 25.4 Modular Mesh Plastic Transmission belts compared with similar products on the market, it has incomparable outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market.Yonghang summarizes the defects of past products, and continuously improves them.

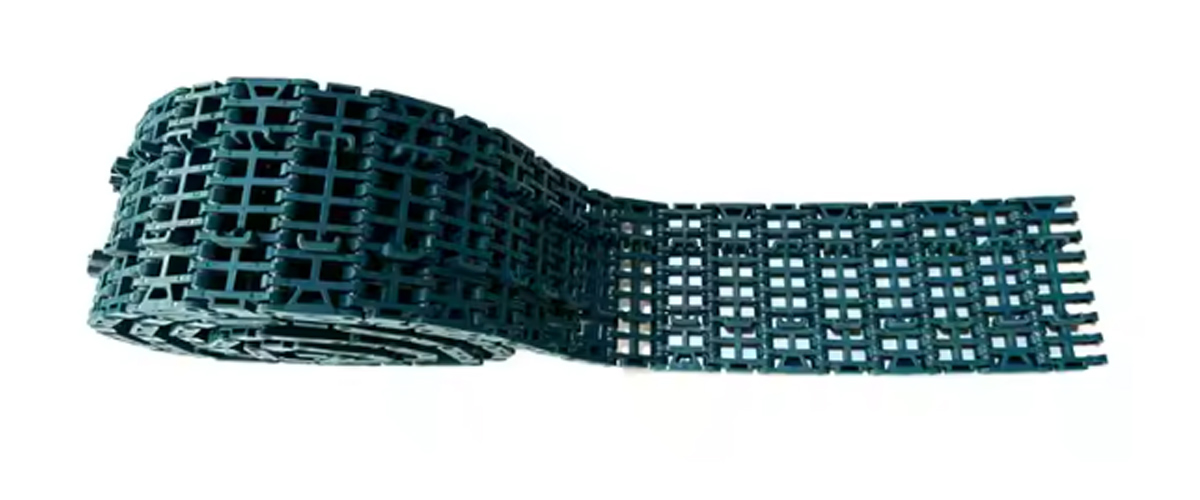

1000 Tytp Pitch 25.4 Modular Plastic Transmission belts
we have already produced the molds for are 8 in total.

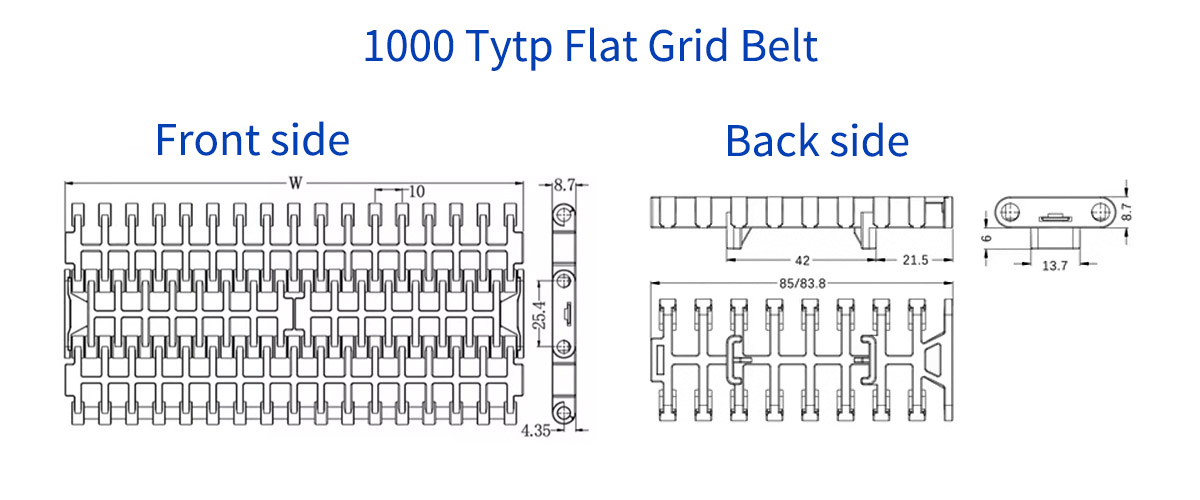

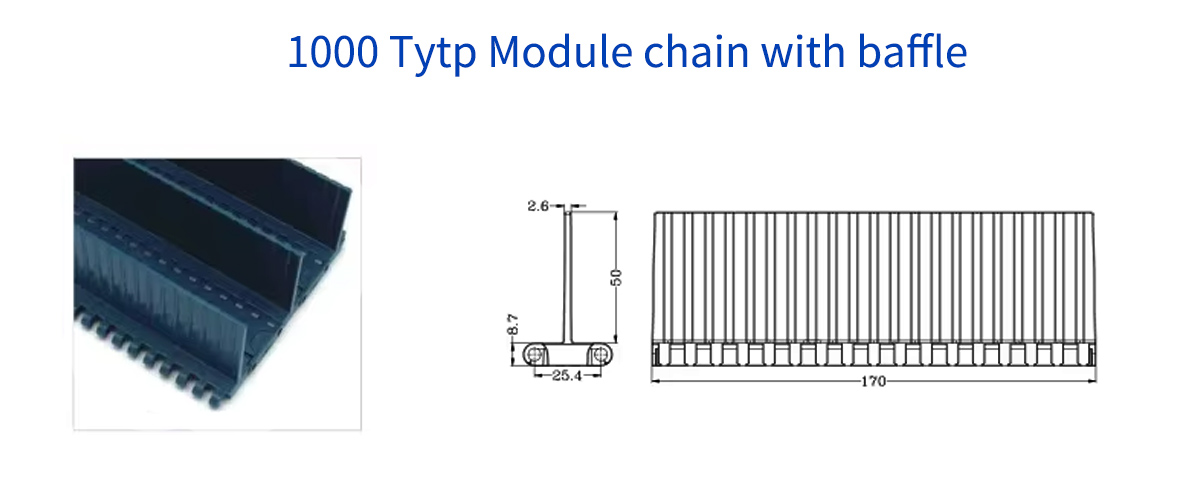

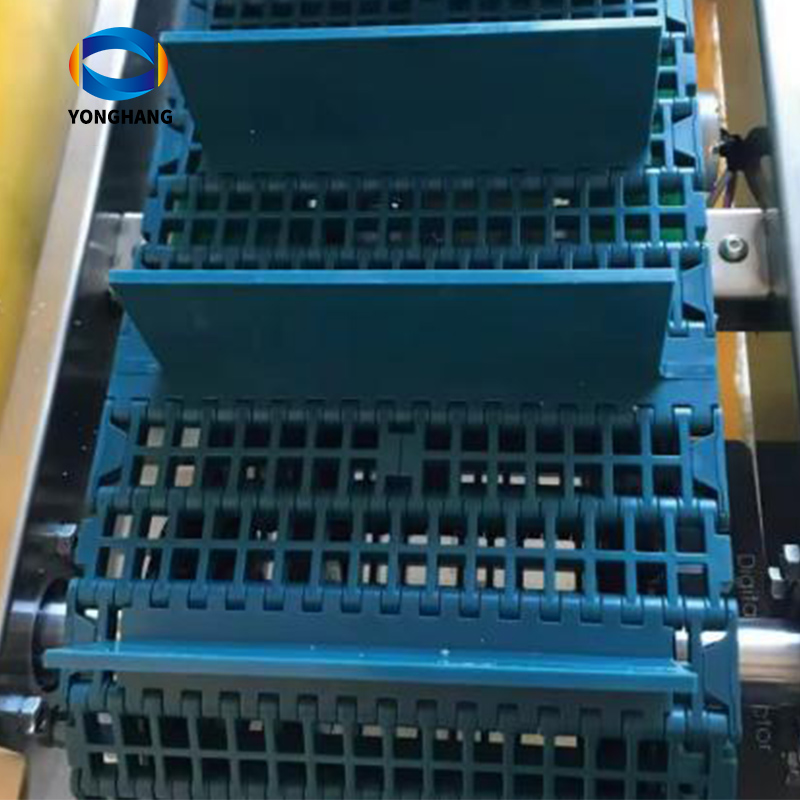

1000 Tytp Flat Top Modular Chain Plate Belt，1000 Tytp Flat Grid Belt，1000 Tytp Flat Module Chain With Hole，1000 flat grid belt with Positioning guide rail，1000 Flat Top Modular Belt，1000 Tytp Module chain with baffle
Product Introduction

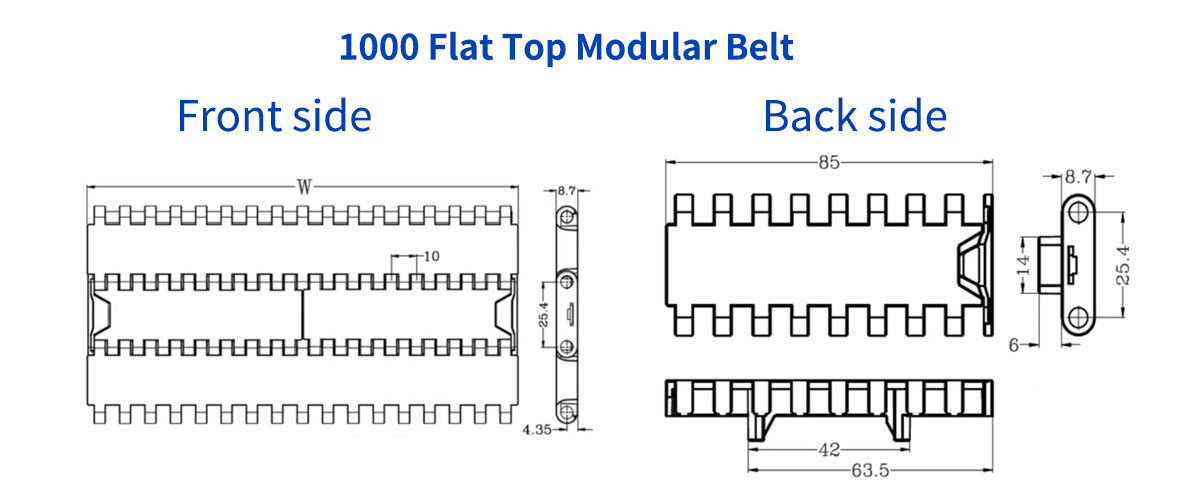

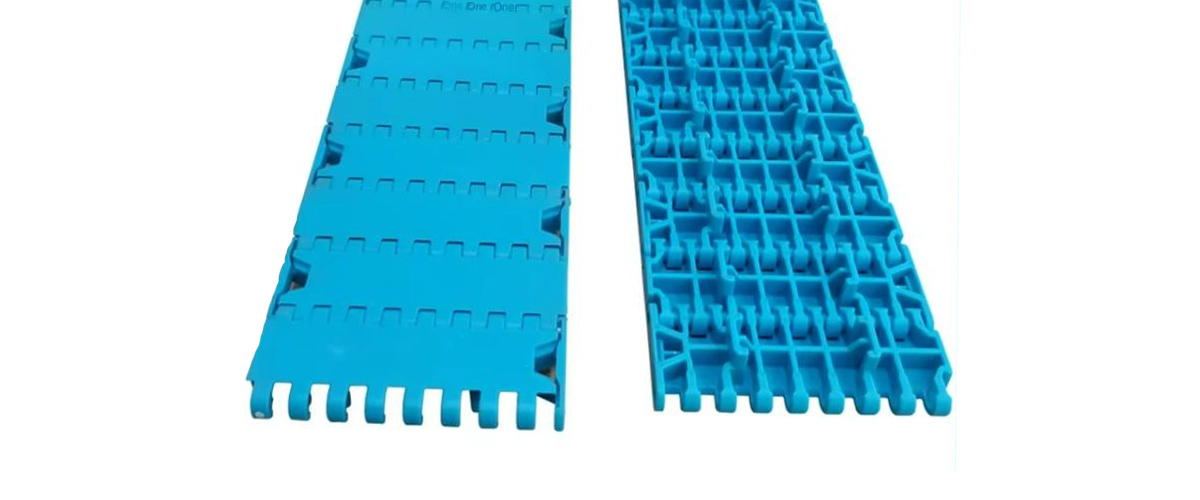

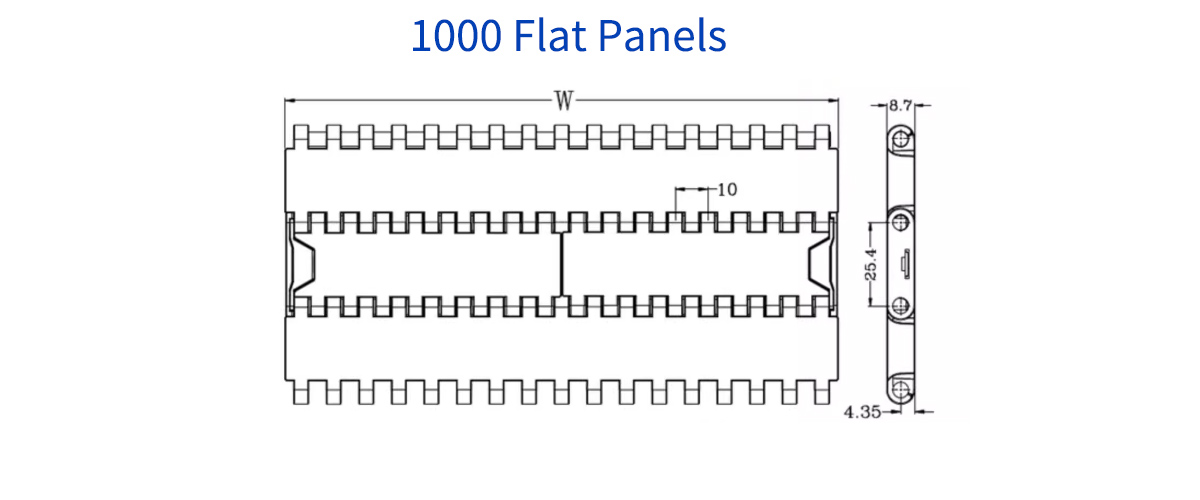

1000 Tytp Flat Top Modular Chain Plate Belt

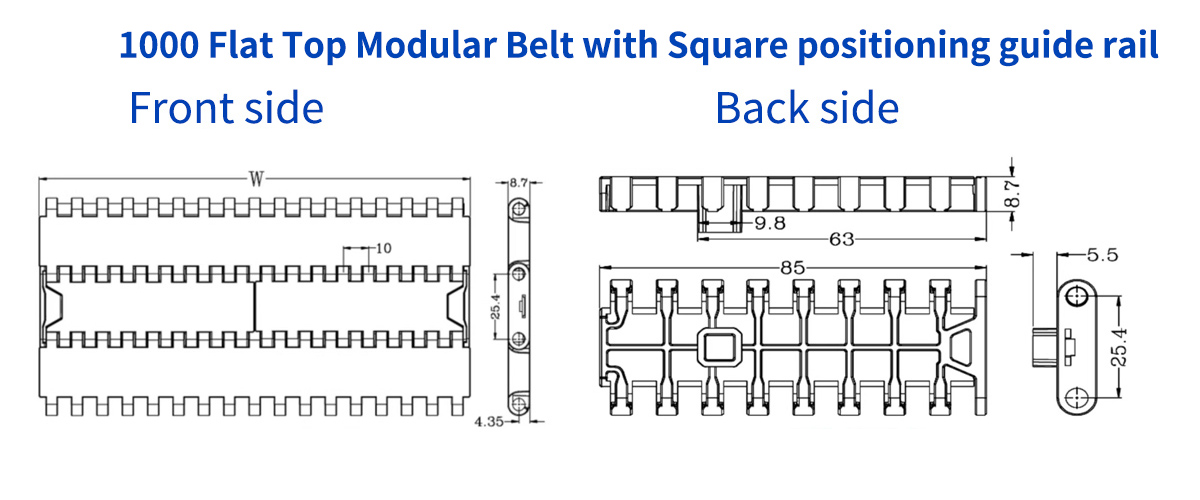

1000 Tytp Flat Top Modular Chain Plate Belt with Positioning guide rail
| Belt type | Pitch | Belt material | Pin Material | Pin Diameter | Working load(max) | Weight | Width（Single piece） | Width (Assembly) | Back flex radius(min) |
| mm | mm | N(21℃ | Kg/m2 | mm | mm | 25 | |||
| 1000F | 25.4 | POM | PP | 4.6 | 22000 | 6.5 | 85/170 | 85*N+5*N | |
| 25.4 | PBT | 4.6 | 23000 | 6.6 | 85/170 | ||||
| 25.4 | PP | PP | 4.6 | 11000 | 4.3 | 85/170 | |||
| 25.4 | PE | PE | 4.6 | 5000 | 4.6 | 85/170 | |||
| Width reduction：0.1%-0.3% | |||||||||
| Belt type | Pitch | Belt material | Pin Material | Pin Diameter | Working load(max) | Weight | Width（Single piece） | Width (Assembly) | Back flex radius(min) |
| mm | mm | N(21℃ | Kg/m2 | mm | mm | mm | |||
| 1000G | 25.4 | POM | PP | 4.6 | 22000 | 5.45 | 85/170 | 85*N+5*N | 25 |
| 25.4 | PBT | 4.6 | 23000 | 5.55 | 85/170 | ||||
| 25.4 | PP | PP | 4.6 | 11000 | 3.5 | 85/170 | |||
| 25.4 | PE | PE | 4.6 | 5000 | 3.7 | 85/170 | |||
| Open Area：40% Width reduction：0.1%-0.3% | |||||||||
| Belt type | Pitch | Belt material | Pin Material | Pin Diameter | Working load(max) | Weight | Width（Single piece） | Width (Assembly) | Back flex radius(min) |
| mm | mm | N(21℃ | Kg/m2 | mm | mm | mm | |||

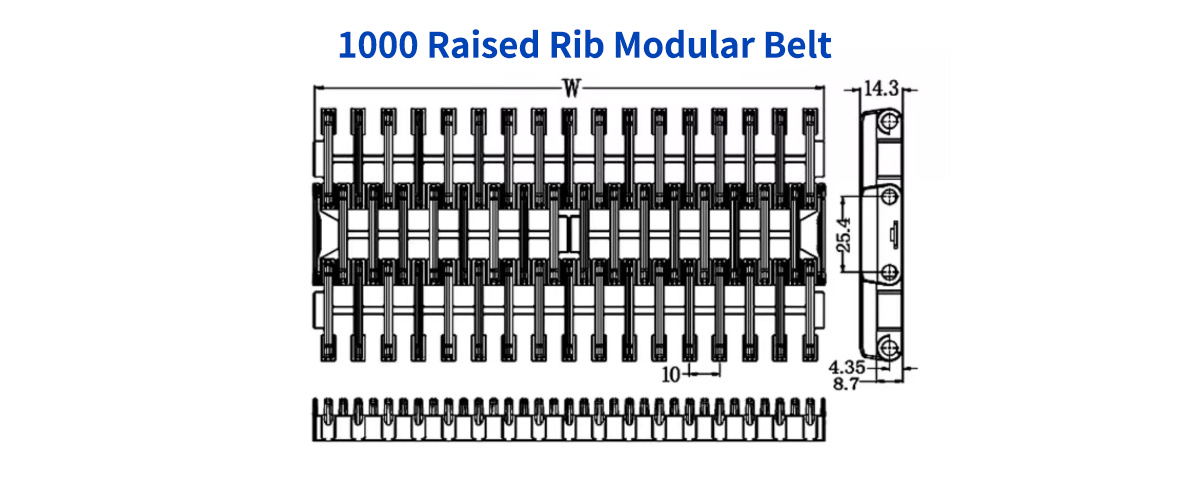

| 1000R | 25.4 | POM | PP | 4.6 | 22000 | 7.95 | 85/170 | 85*N+5*N | 50 |
| 25.4 | PBT | 4.6 | 23000 | 8.05 | 85/170 | ||||
| 25.4 | PP | PP | 4.6 | 11000 | 5.3 | 85/170 | |||
| Open Area：38% Width reduction：0.1%-0.3% Total thickness：14.3mm | |||||||||

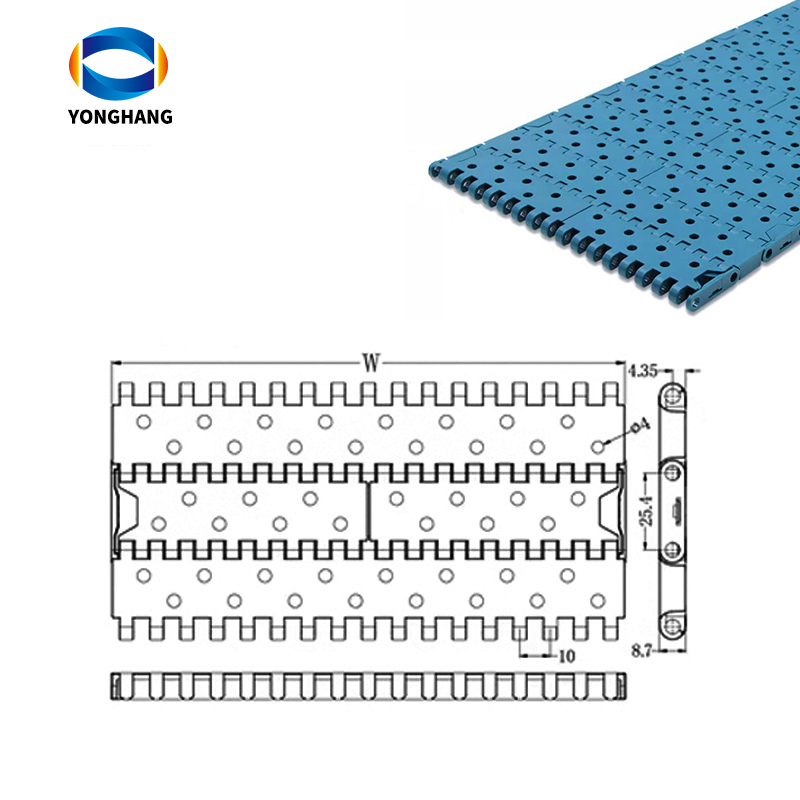

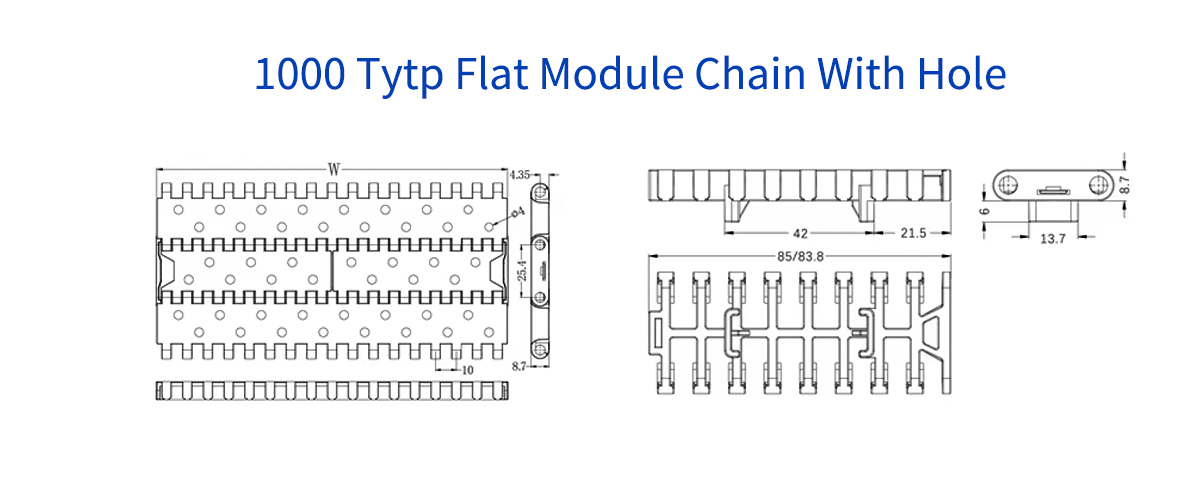

| 1000 Tytp Flat Module Chain With Hole | |||||||||
| Belt type | Pitch | Belt material | Pin Material | Pin Diameter | Working load(max) | Weight | Width（Single piece） | Width (Assembly) | Back flex radius(min) |
| mm | mm | N(21℃ | Kg/m2 | mm | mm | mm | |||
| 1000H | 25.4 | POM | PP | 4.6 | 22000 | 6.4 | 85/170 | 85*N+5*N | 25 |
| 25.4 | PBT | 4.6 | 23000 | 6.5 | 85/170 | ||||
| 25.4 | PP | PP | 4.6 | 11000 | 4.2 | 85/170 | |||
| 25.4 | PE | PE | 4.6 | 5000 | 4.5 | 85/170 | |||
| Open Area：4.6% Width reduction：0.1%-0.3% | |||||||||

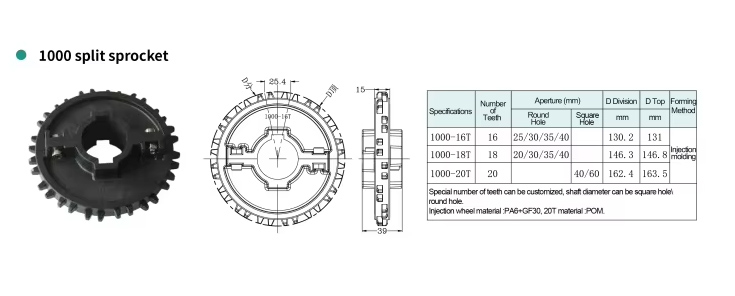

1000 Tytp Module chain Sprocket
Application
Our products use POM/PP/PE material so our products are wear resistant and resistant to heat .
They are mainly used to the following aspect:
In beverage industry palletizes, depolarizers, washers, labelers, fillers, pasteurizers, incliners, out feeds, elevators and accumulation tables are equipped with slat top chains, curves, sprockets, belts, leveling elements and many more conveyor components.
For the container manufacturing industry special products and materials are available, such as abrasion resistant polyamide for glass plants, vacuum chains for can making and gripper chains for vertical transport.
In automotive industry the products are engineered to meet the most demanding applications, such as rubber processing and tire handling.
Advantages of the yonghang modular Plastic Transmission belts
1.This modular Transmission belts are convenient to assembly and maintain
2.All color could be available.
3.This modular Transmission belts can bear High mechanical strength.
4.This modular Transmission belts has Excellent product handling performance.
5.These modular Transmission belts are wear resistance and Oil Resistant.
6.We can provide good after-sale service.
7.Every product can be customized.
Cooperation Case and Our Factory!
1.We are a professional Transmission belts manufacturer, our product line contains modular belt, slat top chain, timing belts（PU and rubber),PUlleys,Conveyor belts
2.We Cooperated with DHL & Amazon to Help Them Solve Multi-scenario Application Parcel Sorting
3.In China, we help 20,000 companies solve transmission system solutions.
4.yonghangbelt not only has a complete production line to meet different application needs, but also can provide comprehensive product knowledge and experience.
5.After 20 years of innovative research and development, we can provide more than 5000 kinds of solutions to provide perfect support for you in the field of Transmission and transportation.
6.We have an experienced foreign trade team with global delivery capabilities.And we will offer you the lowest transportation cost.
7.We hope to recruit one agent in each country in Central and South Asia, the Middle East, Africa, and Russia for in-depth cooperation. We guarantee the quality of our products and the lowest prices. You are responsible for local sales, installation, and after-sales service.
8.If you are a designer, we can also make molds according to your drawings for customization.
If you are interested, please leave your email address with us. We will reply to you within 24 hours
YONGHANG specializes in produce and custom coated transmission belts for 12 years.
