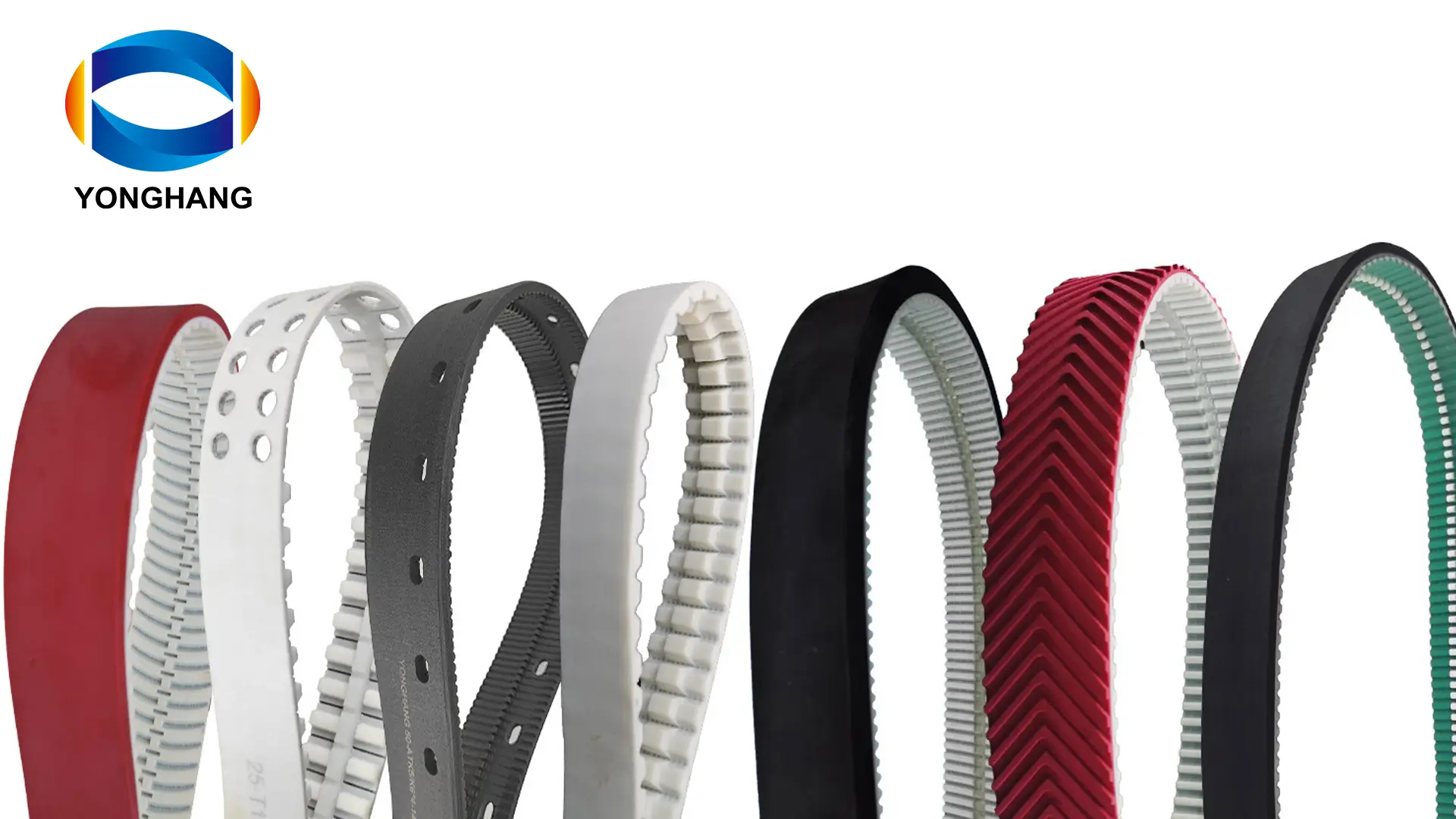

TK10 ATK10 TK20 ATK20 14MK17 Special tooth PU Timing Belt From China

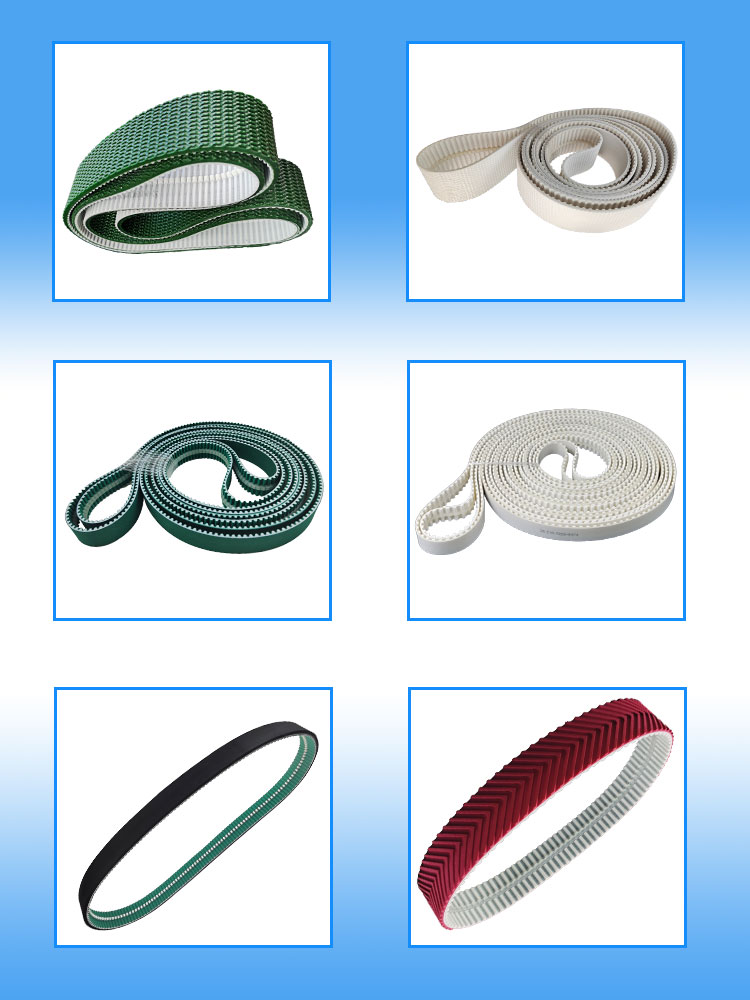

pu timing belts with isosceles trapezoid-guides in TK and ATK profiles are made of thermoplastic polyurethane, which has high dimensional stability and wear resistance, and steel tensile fiber, in special cases aramid or stainless steel（customizable）,It can be made into seamless belts with welded,open timing belts, jointed endless timing belts, seamless endless timing belts.

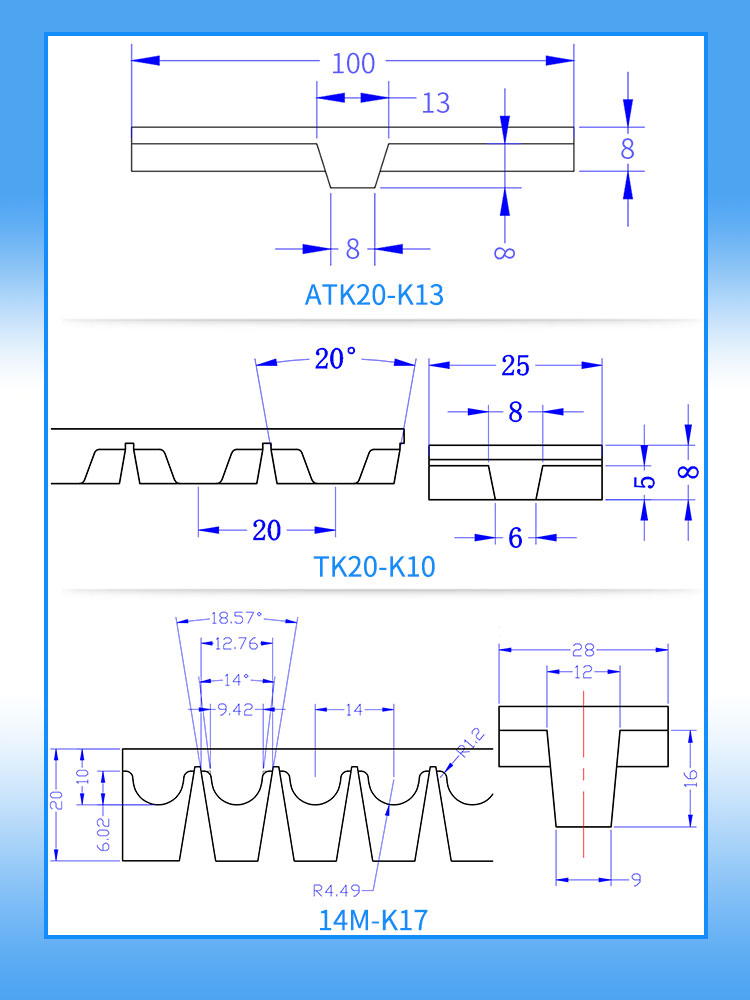

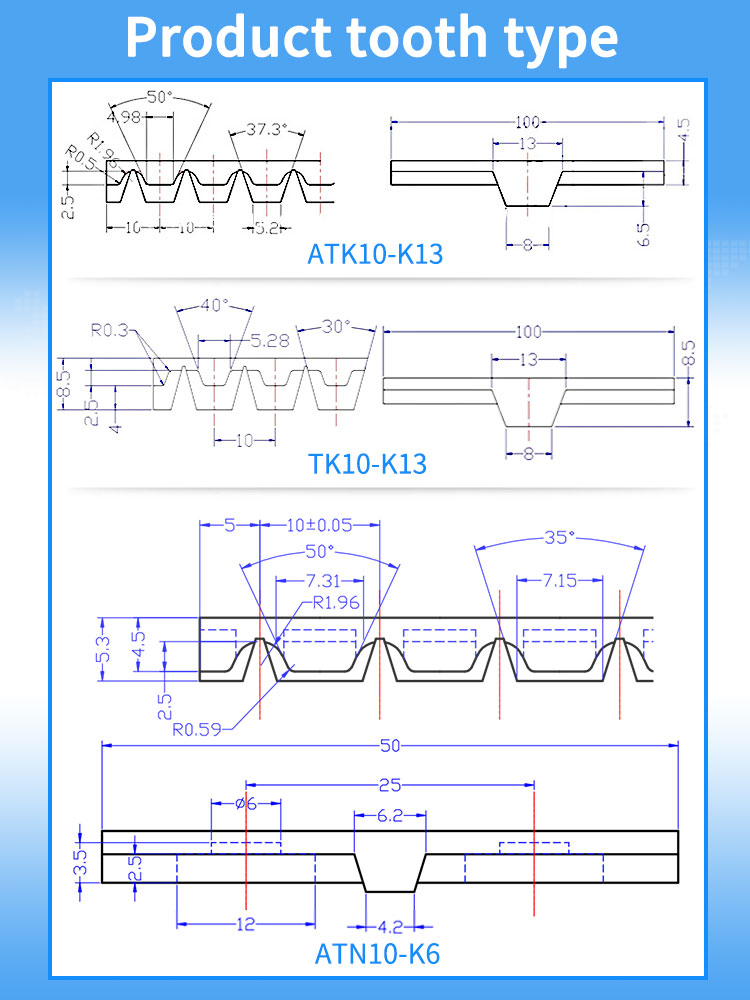

Timing belt ATK/Tk Profile
Material: Thermoplastic polyurethane (TPU)
Colour：white/black
Shore hardness (A)： 90° Shore A
Cords：steel/ kevlar
Width：5-400mm
Length： customization
Joint：Endless with joint/Open/Seamless (moulded)
Working temperature：-20ºC+80ºC
They are manufactured with the teeth and bottom from thermoplastic polyurethane with excellent wear resistance and with high tensile strength steel tension member, in special cases with kevlar or stainless steel tension member. The open-ended belts can be welded into endless belts.
Particular anti-meandering equipment for the belt
Belts made of TPU
can be welded to endless belts. When welded, the perm. tensile force is reduced to 50%.
Part No 50-ATK10K13-5000
Length [mm] 5000
Pitch [mm] 10
Width [mm] 50
Number of Teeth 500
Tracking guide rail：13*8
working Temp C -30 °C ~ +80 °C
Standard Widths [mm]:
25, 30, 50, 75, 100, 150 mm
Standard Lengths [mm]:
1000, 1100, 1200, 1260, 1500, 1600, 1700, 1760, 1800, 1900, 1960, 2000, 2120, 2240, 2360, 2500, 2660, 2800, 3000, 3160, 3360, 3560, 3760, 4000, 4260, 4500, 4760, 5000, 5300, 5600, 6000, 6300, 6700, 7100, 7500, 8000, 8500, 9000 mm
(Note: Custom widths and sizes available upon request)
Standard Tracking guide rail
4*6 5*8 6*10 8*13 11*17 5*5 10*10
Tensile Cords
Steel Cords
Reinforced Steel Cords
Stainless Steel Cords
Aramid Kevlar Cords
Reducing Sliding Resistance
Nylon Fabric on Tooth Side (PAZ / NFT)
Nylon Fabric on Back Side (PAR / NFB)
Nylon Fabric on Tooth Side & Back Side (PAZ/PAR)

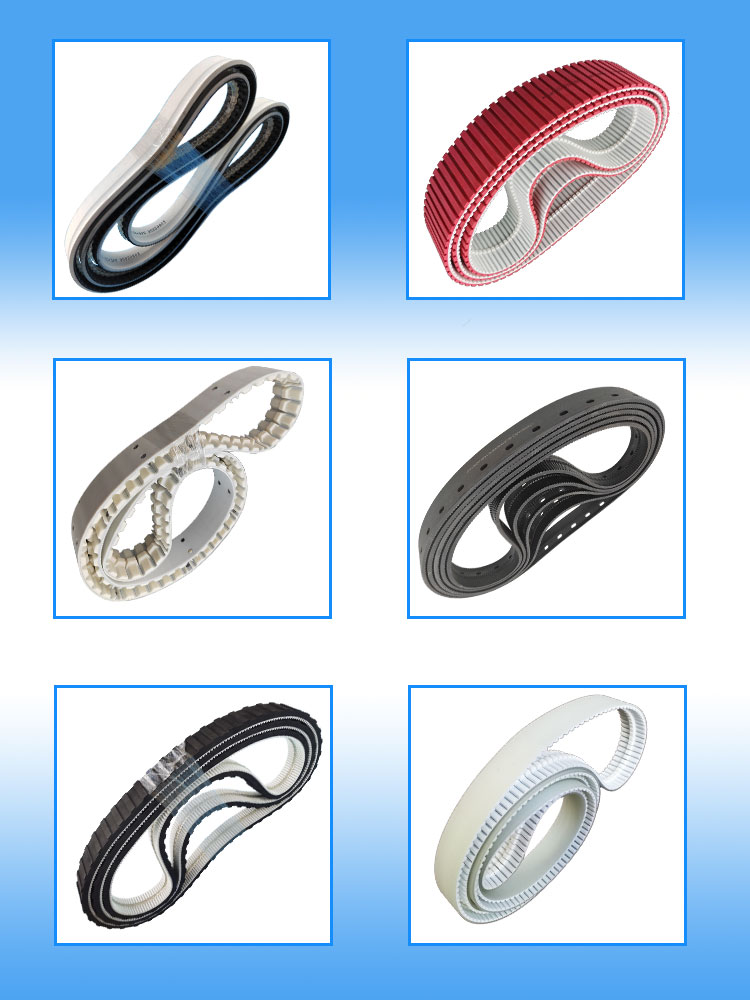

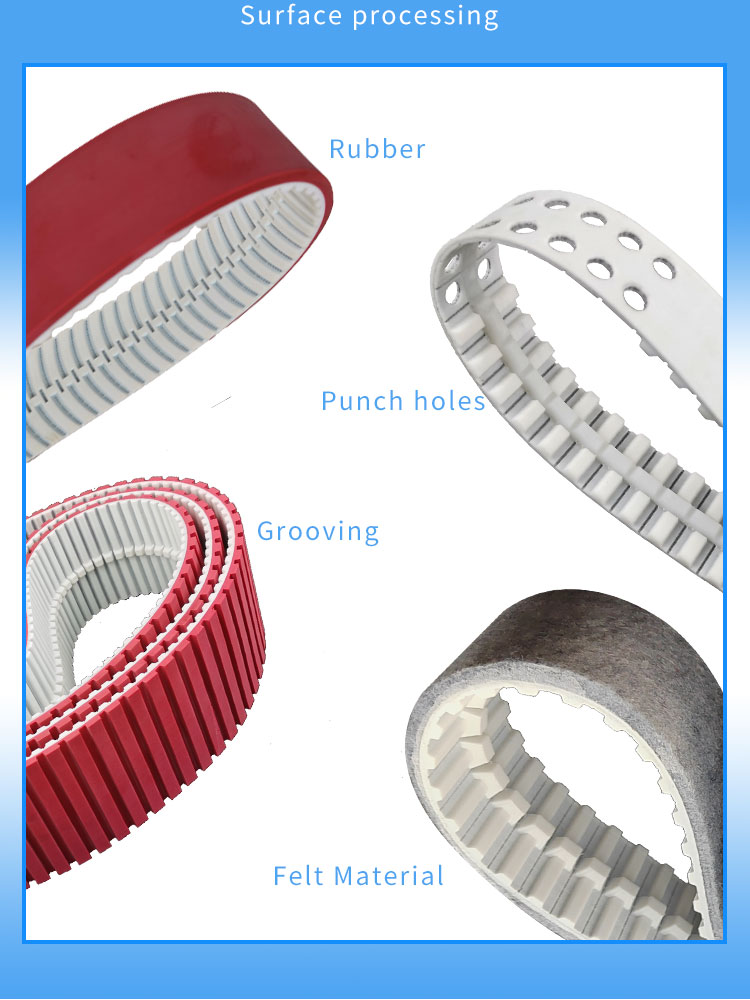

Covering
patterns, add red rubber, green rubber, black rubber, APL rubber,make slots, add baffle, drill holes,foam; sponge, add blue cloth sponge, felt,Silicone,etc.
Optional Belt Surface Covering
The choice of the surface layer depends on the type of machine, the ambient temperature, the size of the pulleys, etc. Specifying the surface layer is determined by the material and the thickness of the layer.
If you want to know more or place an order, please feel free to leave us a message or contact us via online chat.
- Year Established2014
- Business TypeFactory
- Country / RegionCHINA
- Main IndustryBearing Accessories
- Main Productshaul off belts, Pull down belts ,Rubber flat belt ,Coating timing belt,PU Timing belt ,ATM belt ,V belts,Rubber Timing belts,conveyer belts
- Enterprise Legal Personjunliang yang
- Total Employees201~1000 people
- Annual Output Value10000wUSD
- Export MarketChinese Mainland,European Union,Middle East,Eastern Europe,Latin America,Africa,Oceania,Hong Kong and Macao and Taiwan,Japan,Southeast Asia,America,Others
- Cooperated CustomersGates,Continental,Optibelt,synchroflex,nitta,bando,optibelt

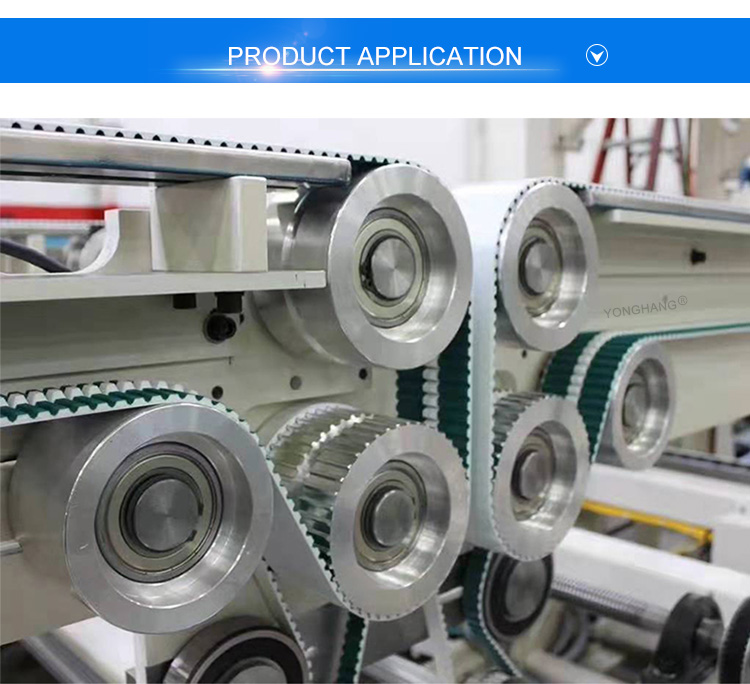

YONGHANG strictly implements ISO9001 international quality certification, from design, raw materials, to production, every detail is excellence, only for high quality! Our products are widely used in printing carton packaging industry, pipe wire and cable industry，food packaging industry, wood chopsticks carpentry industry, and so on.
YONGHANG production full range of standard and special products designed to satisfy specific customers requirements.Products sell well in China, Southeast Asia, the Middle East and actively explore the European, American and Russian markets. The company and a number of well-known enterprises to establish a good partnership.
We have professional Engineers and a skilled Quality Assurance team to make sure that we can constantly offer our customers high-quality products. Our experienced sales team will help the customers to find out whatever they are seeking and then to settle any after-sale issues.
YONGHANG specializes in produce and custom coated transmission belts for 12 years.
