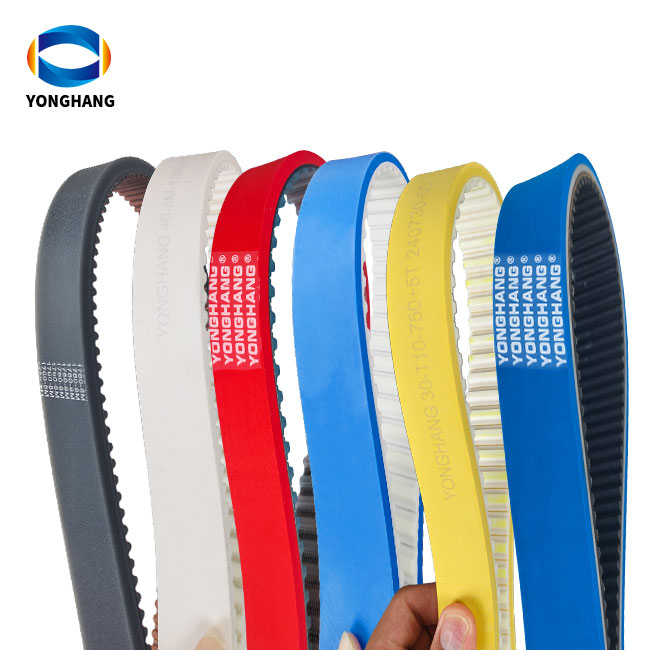

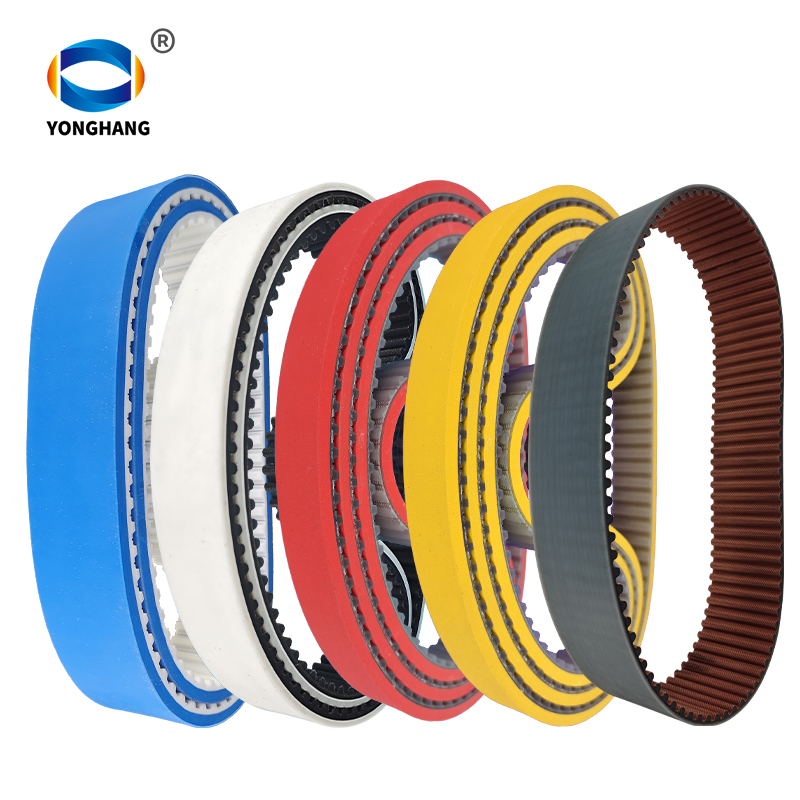

silicone coated timing belts
silicone coated timing belts have many colors and thicknesses, mainly used in the food and hygiene industries.Here are some of the cases we have handled. If you need any assistance, please contact our experienced experts.
coated Material：Silicone
type：timing belts
certificate：FDA
thickness：1-15mm
silicone coated timing belts : Engineered for Extreme Conditions
High-Temperature, Durable, and Precise Power Transmission
silicone coated timing belts are designed to deliver exceptional performance in demanding applications requiring high-temperature resistance, flexibility, and durability. These belts are crafted with a unique blend of silicone rubber and reinforced materials to ensure excellent tensile strength, resistance to wear, and precise timing capabilities. They offer superior thermal stability, making them an ideal choice for applications that involve extreme temperature ranges or exposure to harsh environmental conditions. The belts’ non-stick surface also makes them a preferred choice for industries where contamination and residue buildup are concerns.
| Brand | YONGHANG |
| Material | silicone |
| Color | blue, yellow, red, white, gray, yellow |
| Feature | High temperature resistant, anti-stick, FDA certified |
| coated Thickness | 1-15mm |
| Length range | It can be added to any timing belt or flat belt. |
| Maximum Width | 500mm |
This is one of the cases we have handled, but it is not the only one. You can consider it as some of our various forms.
These products are usually applied in the food packaging industry and the hygiene industry such as disposable diapers.
Features and Benefits
Ideal for applications that require non-stick properties.
high-Temperature Resistance
Withstand temperatures up to 450°F (232°C), suitable for extreme environments
Durability
Engineered for long-lasting performance with minimal maintenance.
Chemical Resistance
Resist degradation from exposure to oils, greases, and chemicals.
Precision
Timing Provide accurate power transmission for synchronized operations.
Molded endless, no seam or splice
Additional backings available, molded integral with the base belt
Pu or Rubber Timing belt model options:
1. Inch Pitch timing belt: MXL, XL, L, H, XH, XXH XXXH
3. HTD timing belt: 3M, 5M, 8M, 14M 20M
4. STD timing belt: S2M, S3M, S4.5, S5M, S8M, S14M S20M
5. RPP timing belt: RPP3M, RPP5M, RPP8M, RPP14M RPP20M
6.T tooth timing belt：T2.5 T5 T10 T20
7.ATN10 ATN12.7 ATN20
8.AT3 AT5 AT10 AT15 AT20
9.ATP3 ATP5 ATP10 ATP15 ATP20
10.TG10 TG20
11.ATK5 ATK10 ATK15 ATK20 TK20 14M-k17
12.GT2 GT3 GT5 GT8 GT14
13.BATK5 BATK10 BAT10 BAT15
Silicone coated synchronous belts are one of our factory's main products. We manufacture a wide range of synchronous belt models, including flat belts and silicone conveyor belts. With 20 years of production experience, our factory can meet diverse needs. If your industry requires food-grade safety, consider any silicone coated transmission belt. It is non-stick and meets FDA food-grade standards. Silicone coated synchronous belts are particularly suitable for Expansion machine, cigarette factory, food industry, adult hygiene products industry applications.
Silicone coated timing belts with holes applied to vertical form fill seal machine
Film Feeding & Positioning: Ensures accurate pulling of plastic film for pouch formation.
Synchronization with Filling Mechanism: Coordinates product filling with bag formation for high-speed operation.
Sealing & Cutting Alignment: Keeps film in perfect position for consistent heat sealing and cutting.

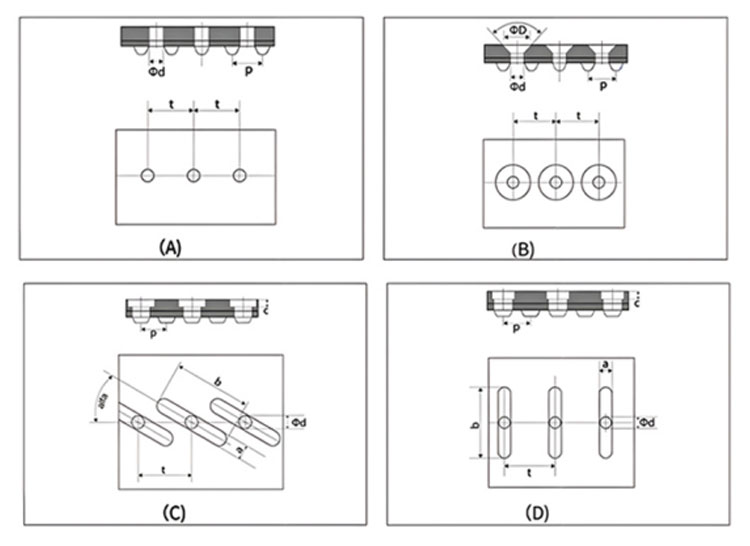

Silicone coated timing belts with holes design dimensions
We offer four types of belt punching options for the conventional vacuum film fill seal machine. These are some of the cases we have handled. Of course, we have also dealt with other types. You can contact our sales customer service team to obtain more information.
Types of holes
· Through holes: Completely penetrates the belt, mainly used for vacuum adsorption, generally circular shape holes.
· Counter bores: Only partial depth, suitable for lightweight adsorption or positioning function, the hole shape has round, square, oval, diamond and so on.
· The perforations pitch, size and positions can be customized.
FAQ
1.What is the hardness of silicone covering?
The silicone coating hardness we have 35 shore A to 60 shore A.
2.What colors of silicone covering available?
Our silicone coating color the standard is white, blue, gray and red other colors all can be customized.
3.What is the delivery time for silicone coated timing belt?
All silicone coated timing belt is customized, no stock, the generally production time is about 7-10 working days if the quantity is not very big.
4.What are the different thicknesses of the silicone covering?
The thickness of our silicone coating ranges from 1mm to 15mm.
5.How many colors does the silicone covering?
Our silicone coating comes in blue, yellow, red, white, grey and other colors. Customization is also available for other colors. Please contact our experienced experts.
6.How is the price of the silicone covering calculated?
Our silicone coating is priced based on the thickness and calculated in square units.
YONGHANG specializes in produce and custom coated transmission belts for 12 years.
