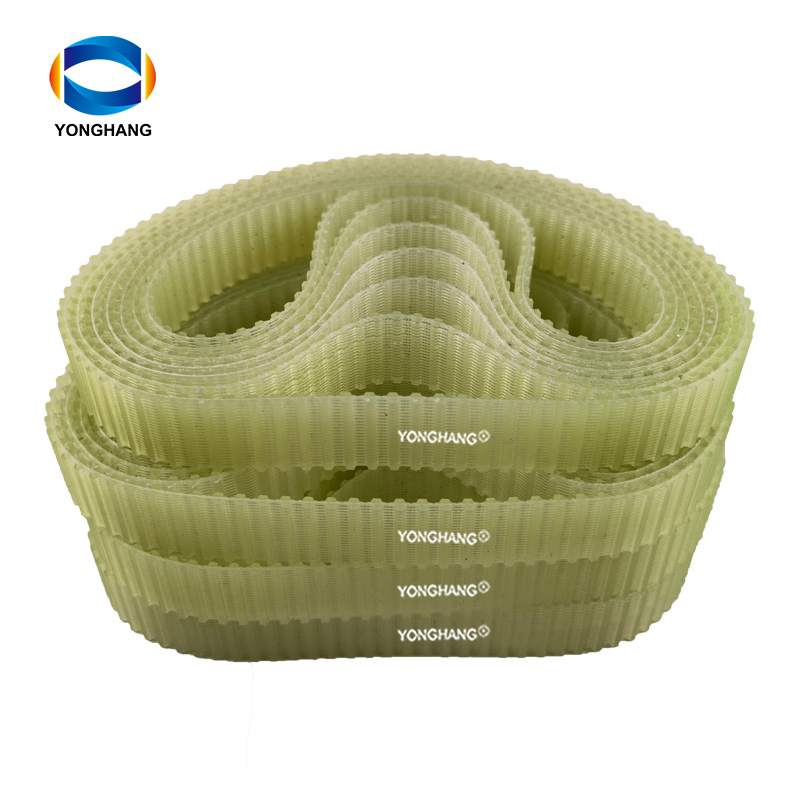

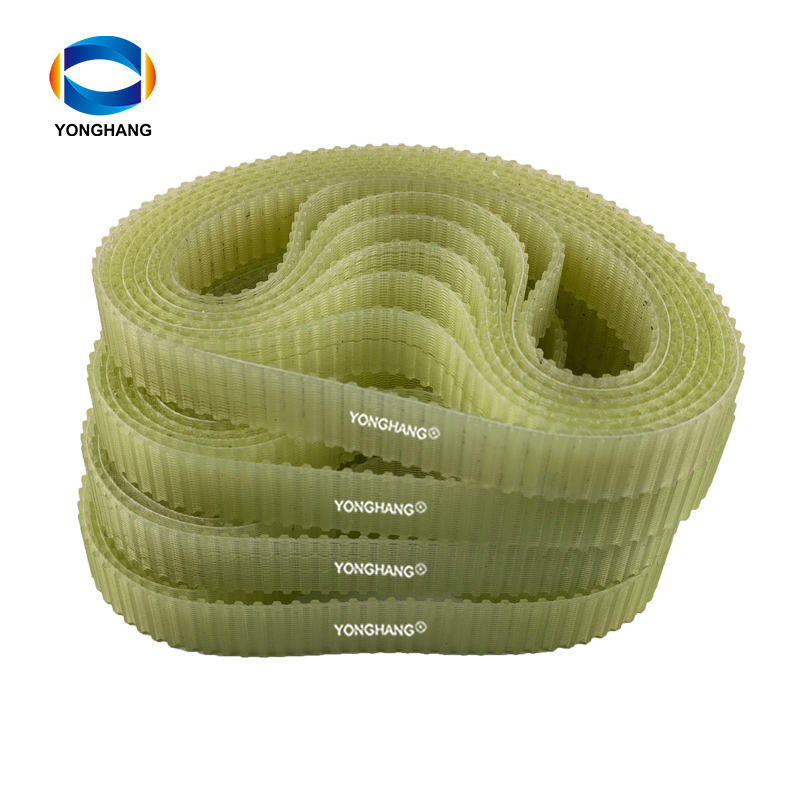

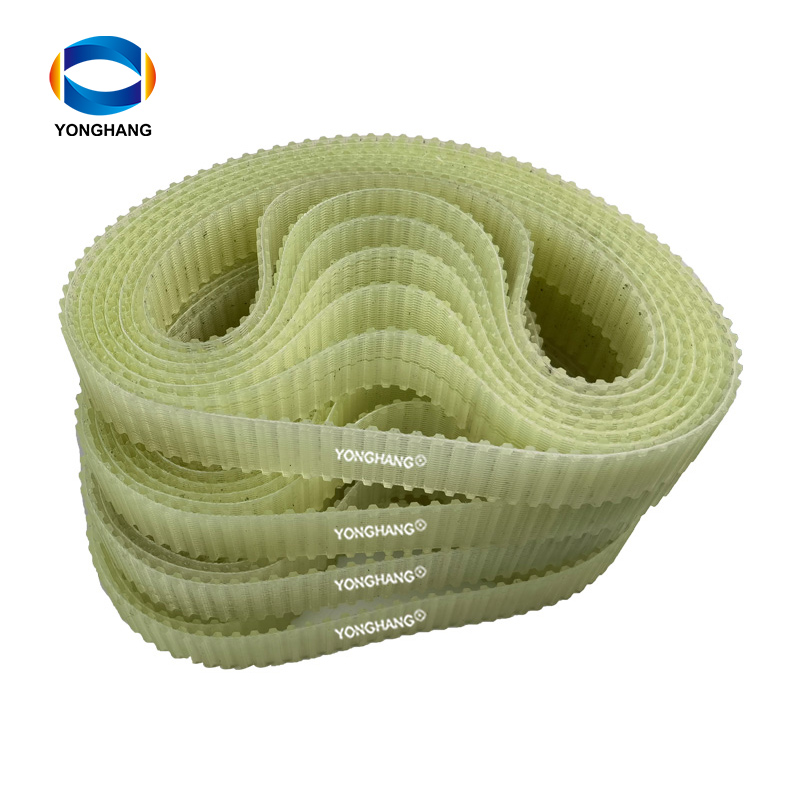

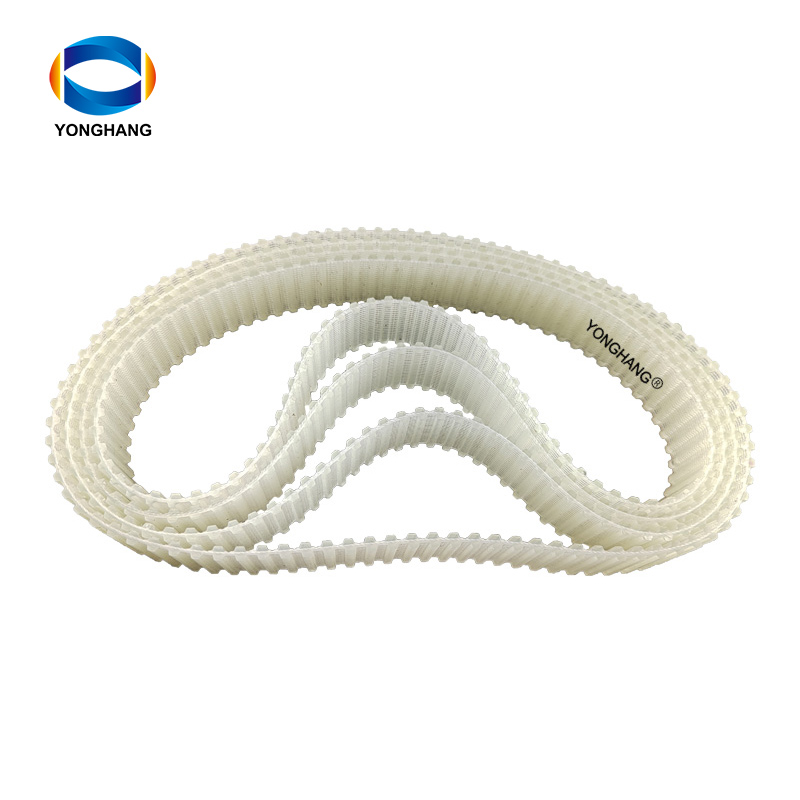

Customize various industrial polyurethane DT5 double-sided tooth transmission synchronous belts
Customize various industrial polyurethane DT5 double-sided tooth transmission synchronous belts.
The pitch and tooth shape of double-sided synchronous belt are equivalent to the tooth shape and pitch of single-sided synchronous belt.
double -sided synchronous belt can be divided into two standard types according to the non-cloth of the belt teeth.
DA type double-sided synchronous belt, the two sides of the belt teeth are symmetrically arranged
DB type double-sided synchronous belt, the two sides of the belt teeth are staggered position arrangement
Double-sided synchronous belts with symmetrical teeth (DA) and staggered teeth (DB), special specifications can be manufactured according to customer needs.
| Product informatie DT5 | |
| Shore hardness (A) | 92° Shore A |
| Tensile members | Steel/Kevlar |
| Width tolerance | +/- 0.5 mm |
| Thickness tolerance | +/- 0.3 mm |
| Length tolerance | +/- 0.8 mm/m |
| Weigth per meter | +/- 40 g/10 mm riem breedte |
| Minimum pulley diameter | 20mm |
| Minimum counter bending | 50 mm |
YONGHANG specializes in produce and custom coated transmission belts for 12 years.
