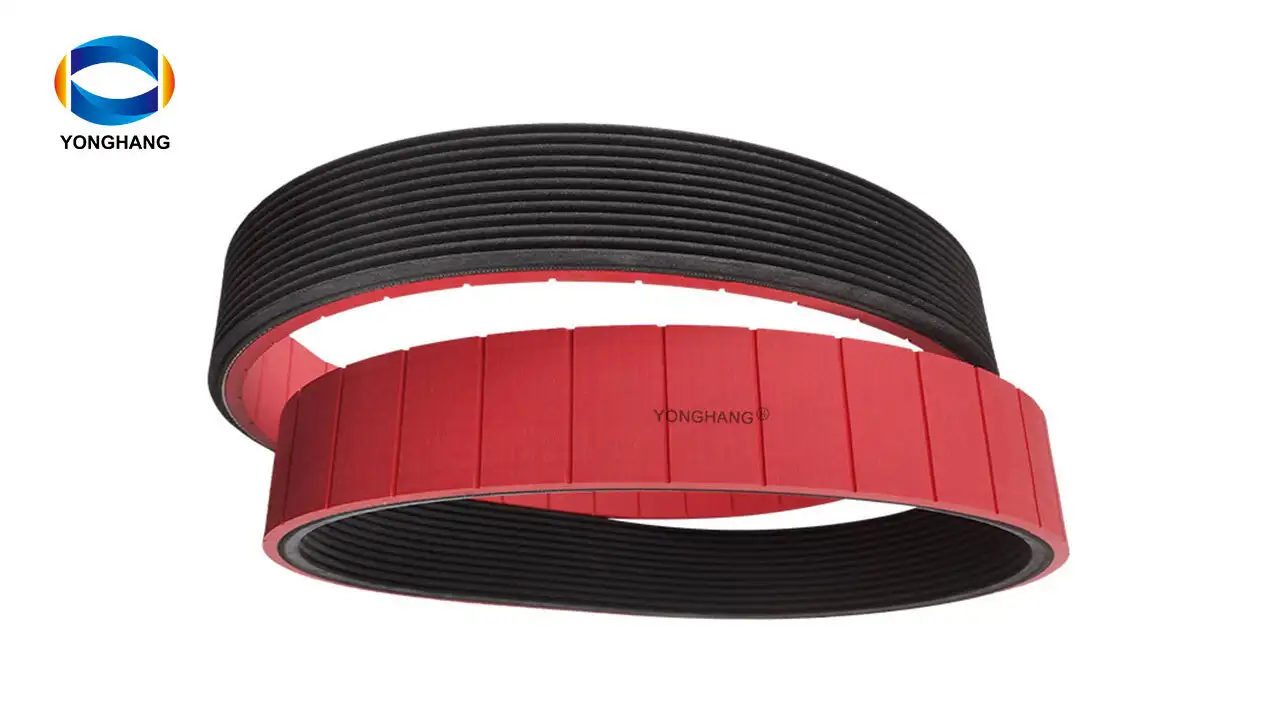

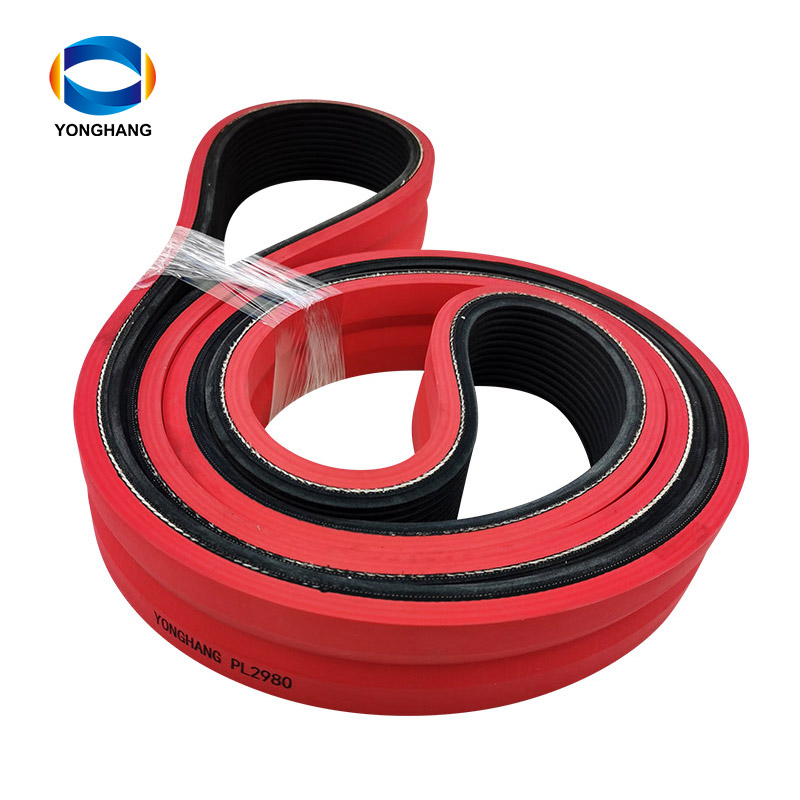

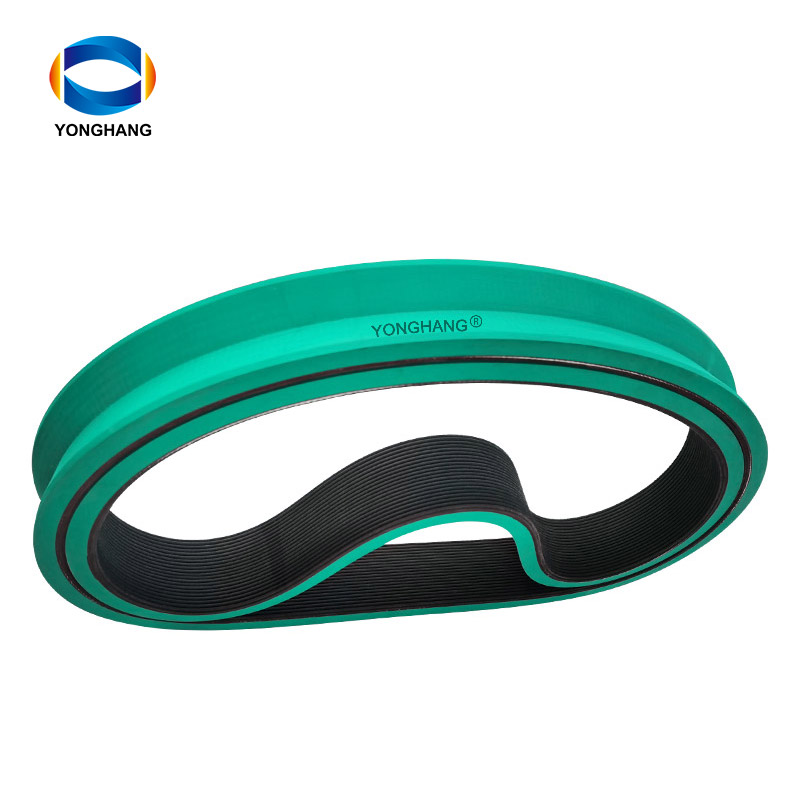

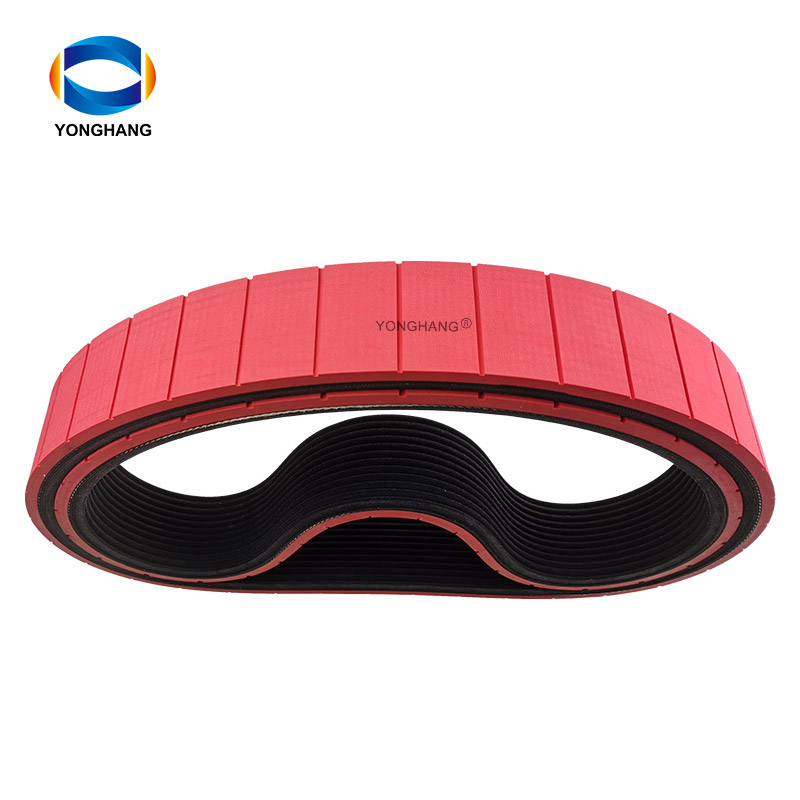

Yonghangbelt Rubber poly v belt surface coating grooving haul off belt for extruder machine
Yonghangbelt Rubber poly v belt surface grooving haul off belt for extruder machine,Haul Off Belts (caterpillar belts) guide, lay and haul cables of all types, extruded profiles, steel cords, pipes and hoses with a high degree of precision. These belts are oil & grease resistant & temperature resistant to 110°C. Haul-Off Belts are fabricated using either a Poly V (micro-vee) base belt, Flat Synthetic Rubber Belt as the base belt. A range of top cover accurate tolerance rubber coatings are then applied. The finish & hardness of the rubber cover is determined by the application. Additional services include slitting, profile grinding, perforating, slotting & tooth removal.
YONGHANG supplies Haul-off belts for all types of extruders, including caterpillar haul-off for cables, wires, pipes and profiles.
Haul-offs” are pulley-driven parallel belts that contact opposite sides of in-process products, usually by means of rollers exerting suitable pressure for the belts to grip and haul them, with the desired controlled pulling action.Yonghangbelt use endless flat belts, poly-v-belts and banded belts as a base. The top cover is made of wear resistant Thermo Plastic Rubber. including specific resistance, hardness, temperature, friction needs.
Please contact us direct for more information regarding your specific requirements.
Product information | Black rubber |
| Coating material | Rubber Imported NR |
| Colour | Red /Green/white/black/grey |
| Hardness/density | 60°± 5°(cable traction) 50°± 5°(optical cable; plastic and pipe Traction etc.) 80°± 5°（custom） |
| Max. temperature | +110℃ |
| Traction Layer | Rubber: Imported NR |
| Bottom layer | Rubber: CR ; Reinforcement: Polyester Cord + Fabric |
| Application | Cable, Optical cable, Plastic, Rubber tube, Pipe, Seal and Packaging industry etc |
YONGHANG specializes in produce and custom coated transmission belts for 12 years.
