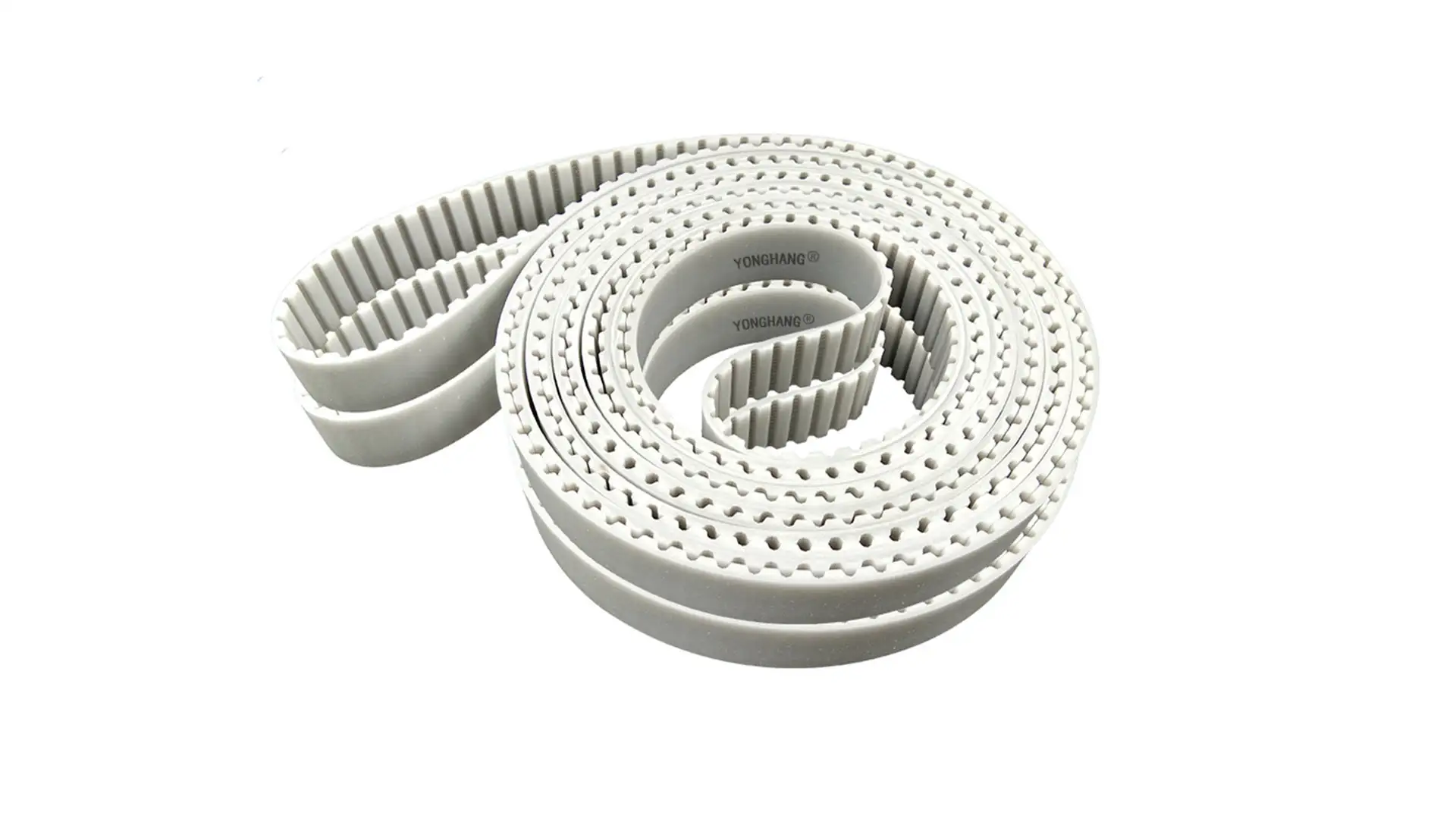

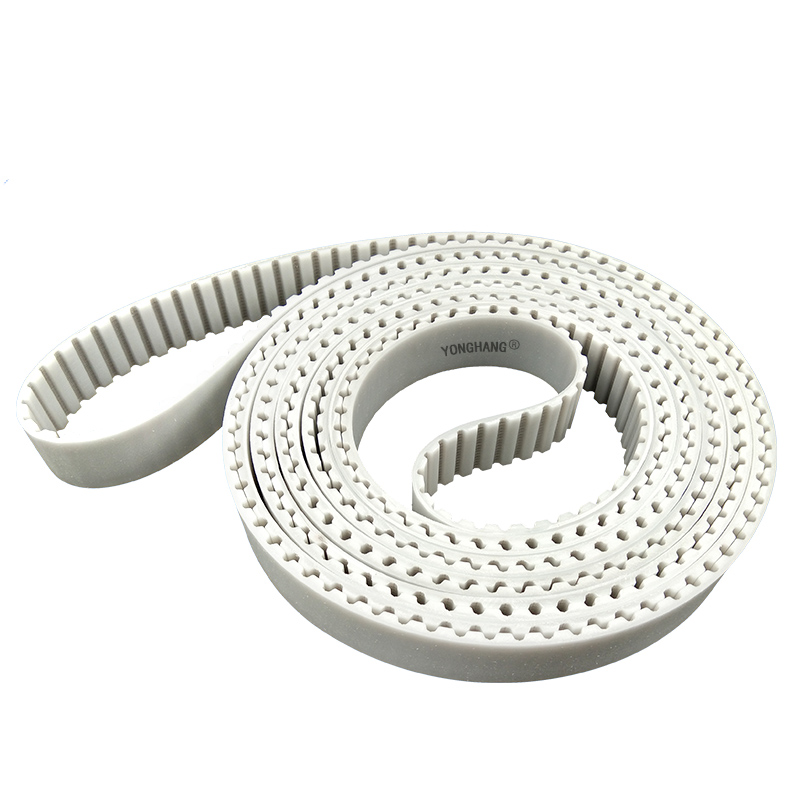

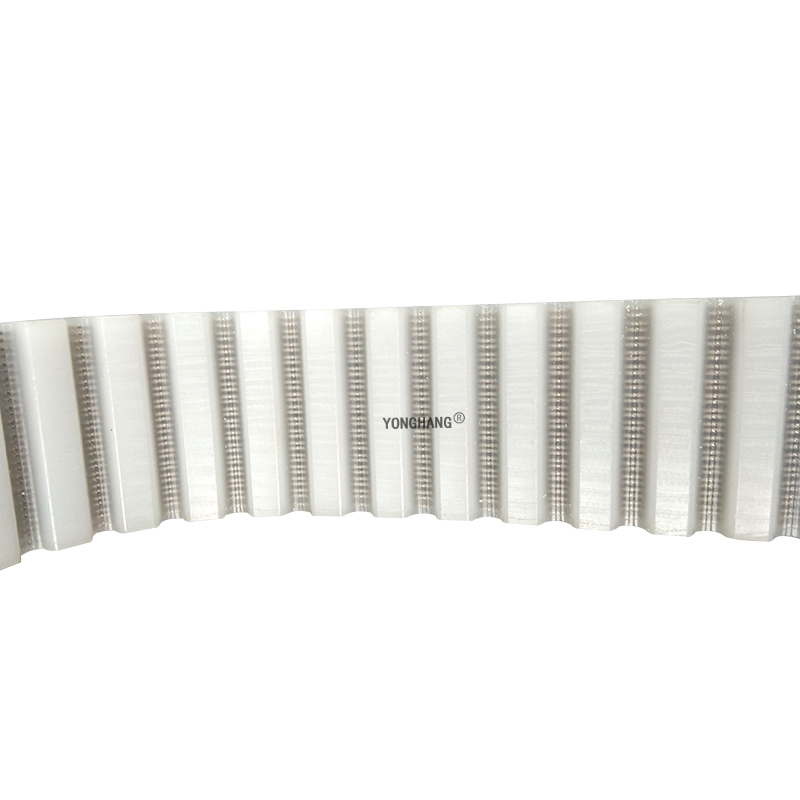

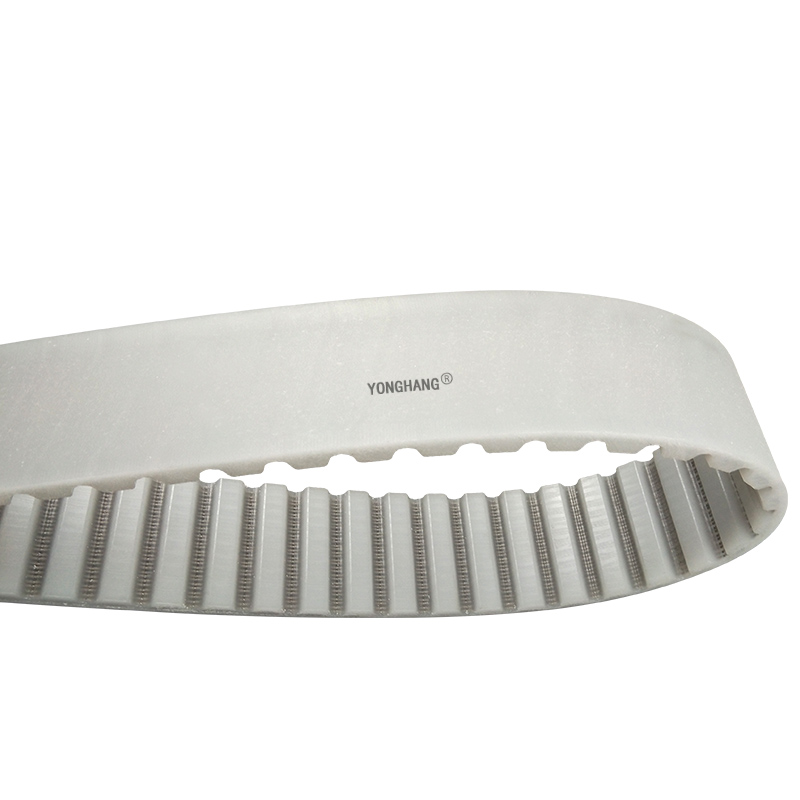

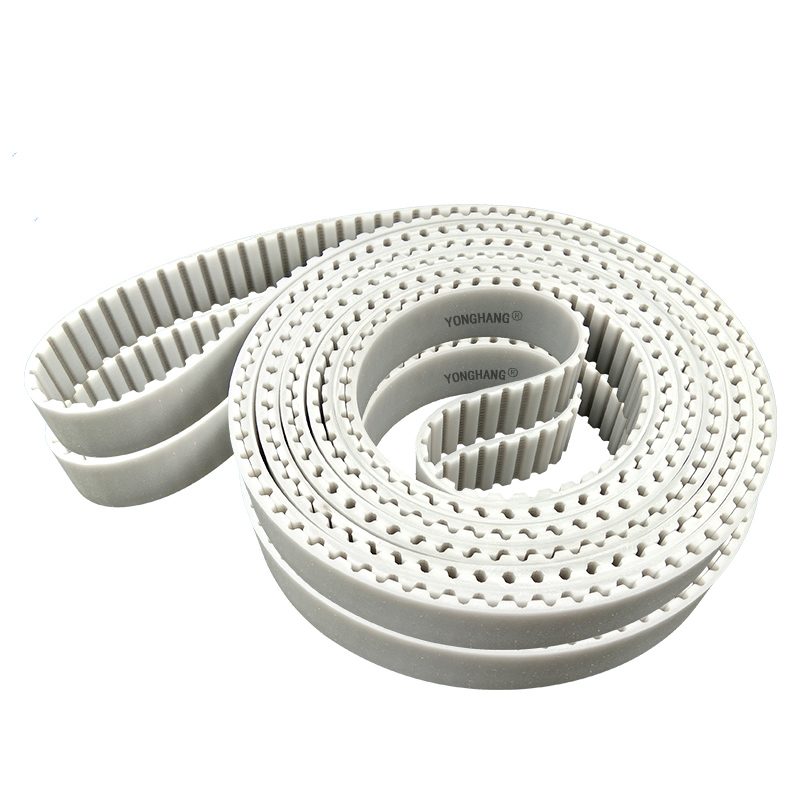

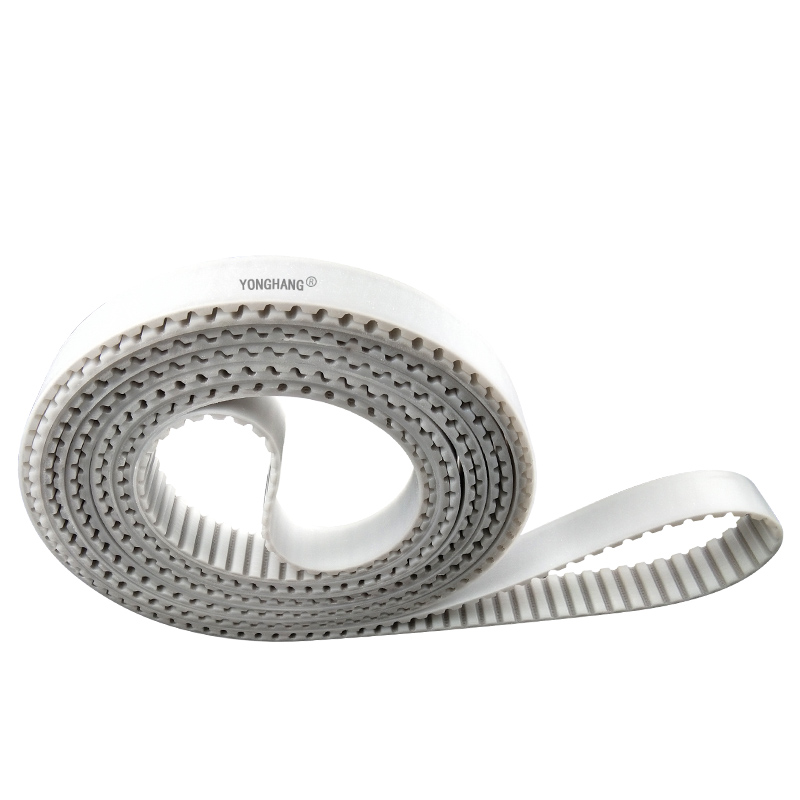

PE material timing belt
PE timing belt is named for the use of PE as the main raw material.
PE is the abbreviation of polyethylene material, is a kind of ethylene by polymerization
of a thermoplastic resin, odorless non-toxic, feel like wax, has excellent low temperature resistance
(the lowest temperature can reach -100~-70°C), good chemical stability, acid and alkali resistance,
corrosion resistance, small water absorption, excellent electrical insulation!
The skeleton material is steel wire core, with high strength, low elongation,
strong tensile resistance, stable size, can ensure that it still maintains
good movement ability in the transmission, production tolerance is small.
Color : White etc
Size ： MXL,XL,L,H,XH,XXH,T2.5,T5,T10,T20,AT5,AT10,AT20,HTD2M- 20M,STPD/STS2M-14M,RPP/HPPD2M-14M; As per the demands of customers
Material: PE/Poly Ethylen, Steel reinforced, Fabric, Kevlar cord.
Mechanical properties: Dimensional stability; Strong low; Low noise; High wear resistance; No need to maintain; High elastic
Working temperature: 30°C to +80°C, Instant high temperature: +80°C
Working Pressure: ≤32Mpa Bud -Shape Ring≤50Mpa
Performance: Aging proof, waterproof, prevent UVA, Ozone-resistant, highly resistant to oil, acid and alkali corrosion resistance
Processing: grooving /punch/ slot / pattern / block / guide bar / profile
Use (for machines): Stone, ceramic,glass,electronics,aluminum,tobacco, textile, logistics,printing,packaging,paper products processing industries etc.
YONGHANG specializes in produce and custom coated transmission belts for 12 years.
