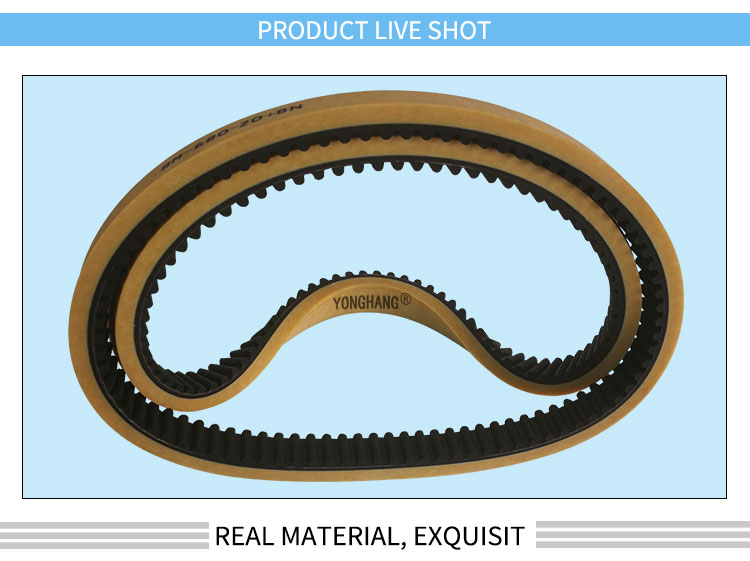

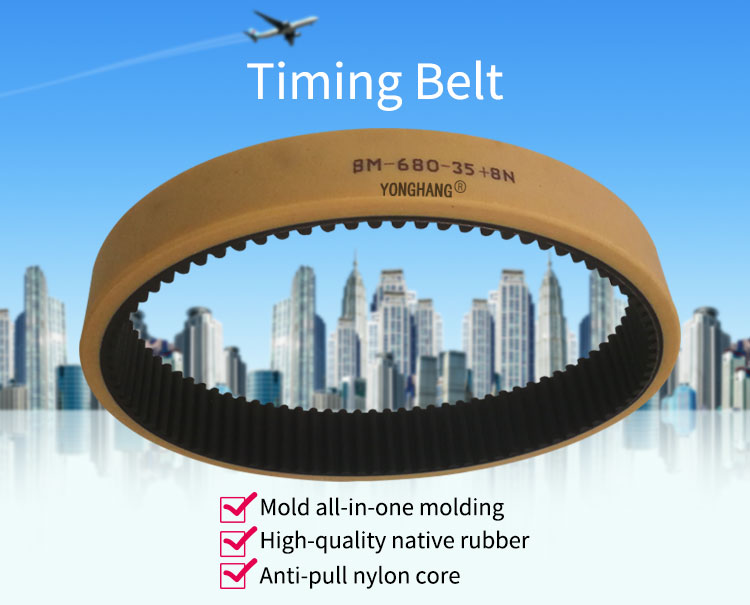

Industrial Sleeve Brown Synchronous Belt 8M-680 for Vertical Form Fill Seal Machine
Introduction:Synchronous belt are used in form fill seal machines to pull down plastic foil to form a pouch or a bag into which the product to be packed.
The packets are gripped and drawn down by two specially constructed belts, usually located vertically for easier filling control of the product.

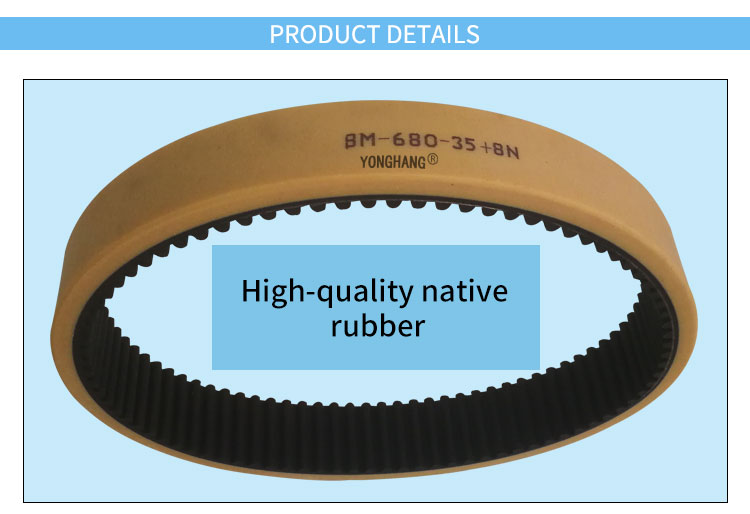

Our top Natural Rubber coated belts ensure good co-efficient of friction, designed to meet particular needs, with good release or grip qualities – depending on the requirements.

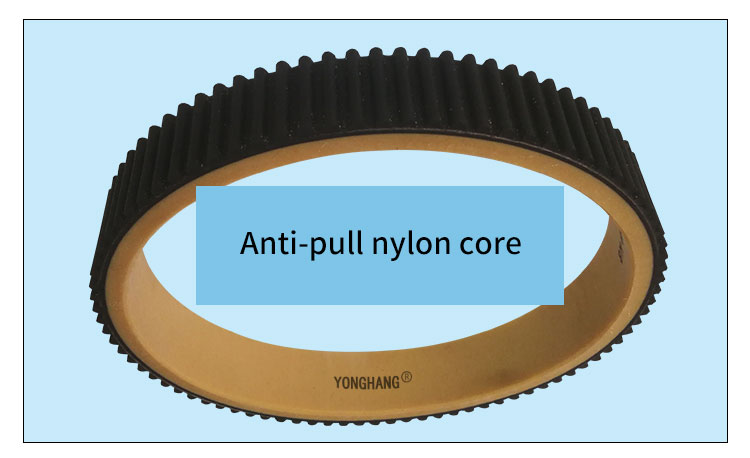

The drawn down belt consists of a basic toothed belt in PU or Rubber material and a cover on top.
The basic belt is around 90 ShA while the cover should be much softer ranging from 35-55 ShA to pull the foil or paper they draw for packaging the product into a bag.
Various sizes with different coating thickness are available ex-stock.

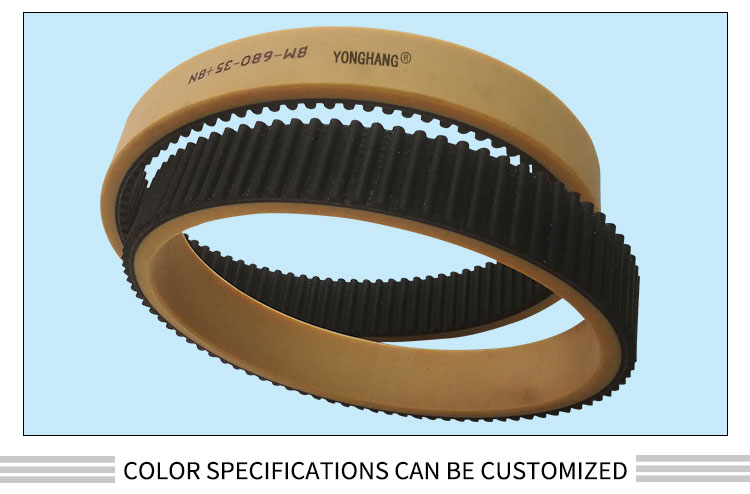

Color :White ,Red ,green,brown,grey,Blue etc

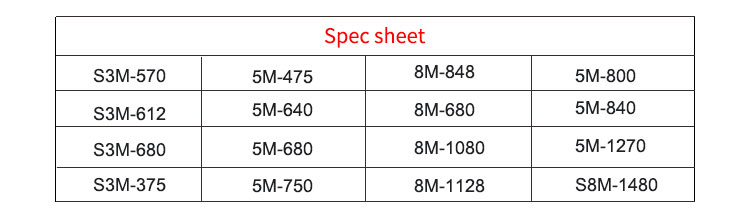

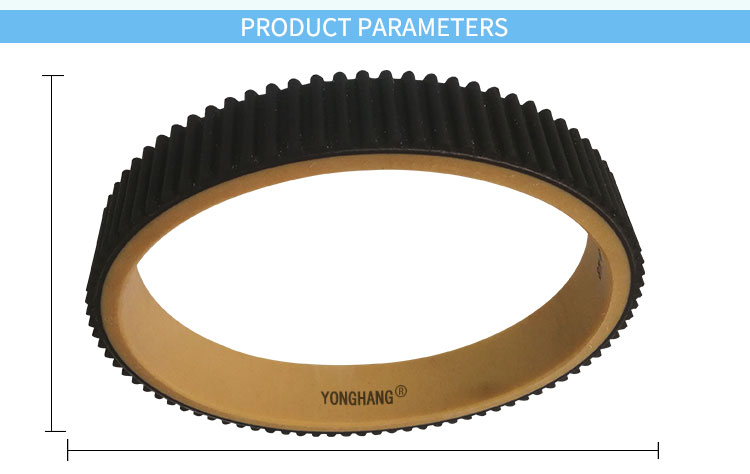

Size (length * width * height)： 400mm-1500mm*20-35mm*4-12mm(SIZE 0F SINK HOLE is Customizable)
Material:Vulcanized rubber

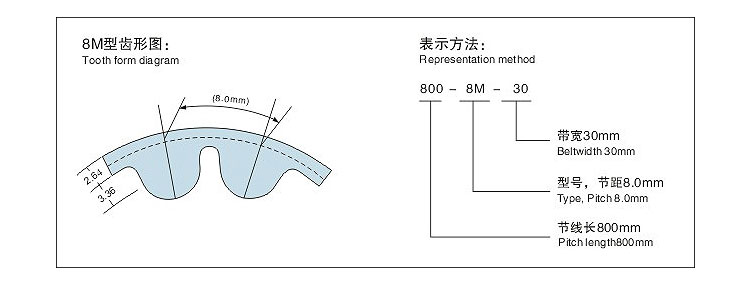

Tooth shape: Circular arc tooth,Trapezoidal tooth
Whether standard parts: Standard
Process (construction)： Vulcanized rubber belt punching ,Single row hole, multi - emptying evenly distributed
Performance: Excellent strong friction wear resistance, oil and corrosion resistance, no lamination, long service life
Processing: punch/ slot / pattern / block / guide bar / profile
Use (for machines):Used for pulling plastic film in packaging machine, Printing industry, packaging industry, paste box machine belt,
vertical packaging machine, food and medicine packaging industry
- Year Established2014
- Business TypeFactory
- Country / RegionCHINA
- Main IndustryBearing Accessories
- Main Productshaul off belts, Pull down belts ,Rubber flat belt ,Coating timing belt,PU Timing belt ,ATM belt ,V belts,Rubber Timing belts,conveyer belts
- Enterprise Legal Personjunliang yang
- Total Employees201~1000 people
- Annual Output Value10000wUSD
- Export MarketChinese Mainland,European Union,Middle East,Eastern Europe,Latin America,Africa,Oceania,Hong Kong and Macao and Taiwan,Japan,Southeast Asia,America,Others
- Cooperated CustomersGates,Continental,Optibelt,synchroflex,nitta,bando,optibelt
YONGHANG strictly implements ISO9001 international quality certification, from design, raw materials, to production, every detail is excellence, only for high quality! Our products are widely used in printing carton packaging industry, pipe wire and cable industry，food packaging industry, wood chopsticks carpentry industry, and so on.
YONGHANG production full range of standard and special products designed to satisfy specific customers requirements.Products sell well in China, Southeast Asia, the Middle East and actively explore the European, American and Russian markets. The company and a number of well-known enterprises to establish a good partnership.
We have professional Engineers and a skilled Quality Assurance team to make sure that we can constantly offer our customers high-quality products. Our experienced sales team will help the customers to find out whatever they are seeking and then to settle any after-sale issues.
YONGHANG specializes in produce and custom coated transmission belts for 12 years.
