HTD 3M 5M 8M 14M 20M Timing belt manufacturers From China | Yonghang
HTD 3M 5M 8M 14M 20M Timing belt，This section provides detailed information about all types of HTD timing belts materials, shape profiles, load capacity, working temperature, hardness, etc.
Type ：HTD3M HTD5M HTD8M HTD14M
Product Introduction
HTD stands for High Torque Drive. HTD belt is characterized by large tooth pitch, high strength, strong load capacity, suitable for high torque transmission occasions. Circle-arc tooth shape design of HTD timing belt, which helps to distribute load evenly. Puteken supplies HTD3M, HTD5M, HTD8M and HTD14M synchronous belt. They can deal with heavy load without slipping
HTD Timing Belt Data Sheet
| Model | HTD3M | HTD5M | HTD8M | HTD14M | HTD20M |
| Material | Polyurethane | Polyurethane | Polyurethane | Polyurethane | Polyurethane |

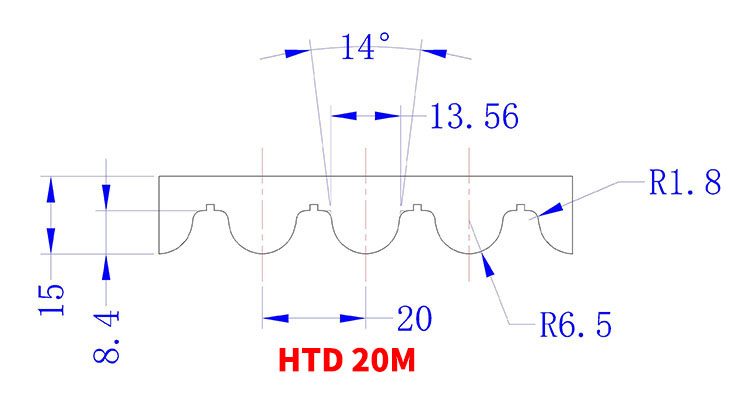

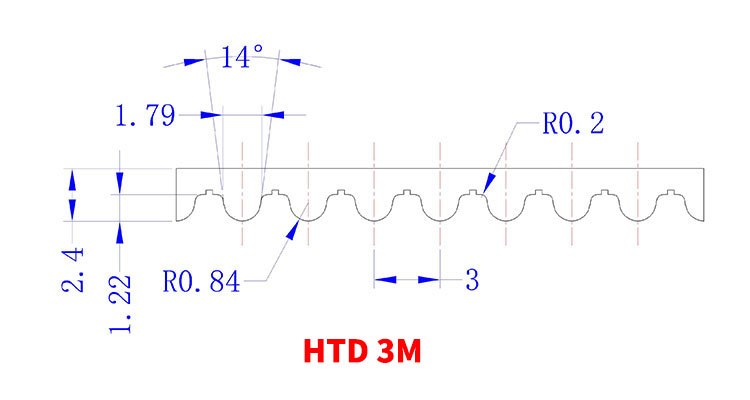

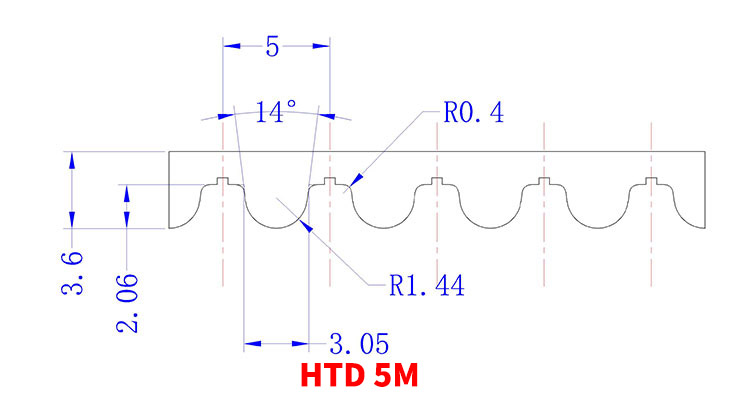

| Pitch | 3mm | 5mm | 8mm | 14mm | 20mm |
| Color | White/Black | White/Black | White/Black | White/Black | White/Black |

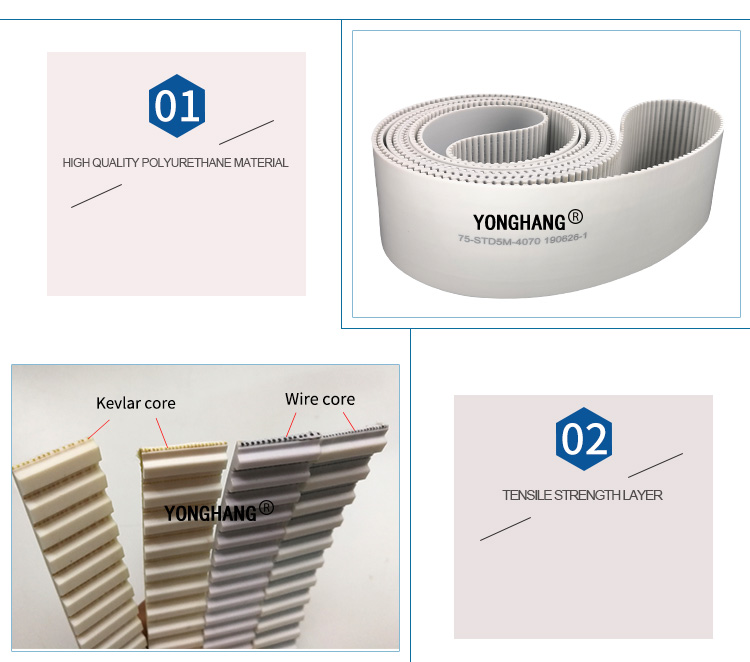

| Core | Steel/Kevlar | Steel/Kevlar | Steel/Kevlar | Steel/Kevlar | Steel/Kevlar |
| Hardness | 90-92 Shore A | 90-92 Shore A | 90-92 Shore A | 90-92 Shore A | 90-92 Shore A |
| Length/Width Tolerance | ±0.5mm | ±0.5mm | ±0.5mm | ±0.5mm | ±0.5mm |
| Thickness Tolerance | ±0.3mm | ±0.3mm | ±0.3mm | ±0.3mm | ±0.3mm |
| Minimum Pulley Diameter | 20mm | 21.14mm | 44.47mm | 108.7mm | 125mm |
Frequently Asked Questions about timing belt supplier
Q:What industry does HTD series timing belt applied?
A:Automation: Such as robots, CNC machine.
Agricultural Equipment: Like seeder, harvester etc.
Power Tools: Such as high torque power tool transmission system.
Q:How to choose suitable HTD series timing belt?
A:Load requirement: Select the appropriate pitch and belt width based on load size.
Working environment: Consider the temperature, humidity and possible pollutants of the operation environment, select the appropriate material (such as high temperature, oil resistance etc.)
Speed requirements: Choose the right toothed belt to meet the speed and torque requirements.
- Year Established2014
- Business TypeFactory
- Country / RegionCHINA
- Main IndustryBearing Accessories
- Main Productshaul off belts, Pull down belts ,Rubber flat belt ,Coating timing belt,PU Timing belt ,ATM belt ,V belts,Rubber Timing belts,conveyer belts
- Enterprise Legal Personjunliang yang
- Total Employees201~1000 people
- Annual Output Value10000wUSD
- Export MarketChinese Mainland,European Union,Middle East,Eastern Europe,Latin America,Africa,Oceania,Hong Kong and Macao and Taiwan,Japan,Southeast Asia,America,Others
- Cooperated CustomersGates,Continental,Optibelt,synchroflex,nitta,bando,optibelt
YONGHANG strictly implements ISO9001 international quality certification, from design, raw materials, to production, every detail is excellence, only for high quality! Our products are widely used in printing carton packaging industry, pipe wire and cable industry，food packaging industry, wood chopsticks carpentry industry, and so on.
YONGHANG production full range of standard and special products designed to satisfy specific customers requirements.Products sell well in China, Southeast Asia, the Middle East and actively explore the European, American and Russian markets. The company and a number of well-known enterprises to establish a good partnership.
We have professional Engineers and a skilled Quality Assurance team to make sure that we can constantly offer our customers high-quality products. Our experienced sales team will help the customers to find out whatever they are seeking and then to settle any after-sale issues.
YONGHANG specializes in produce and custom coated transmission belts for 12 years.
