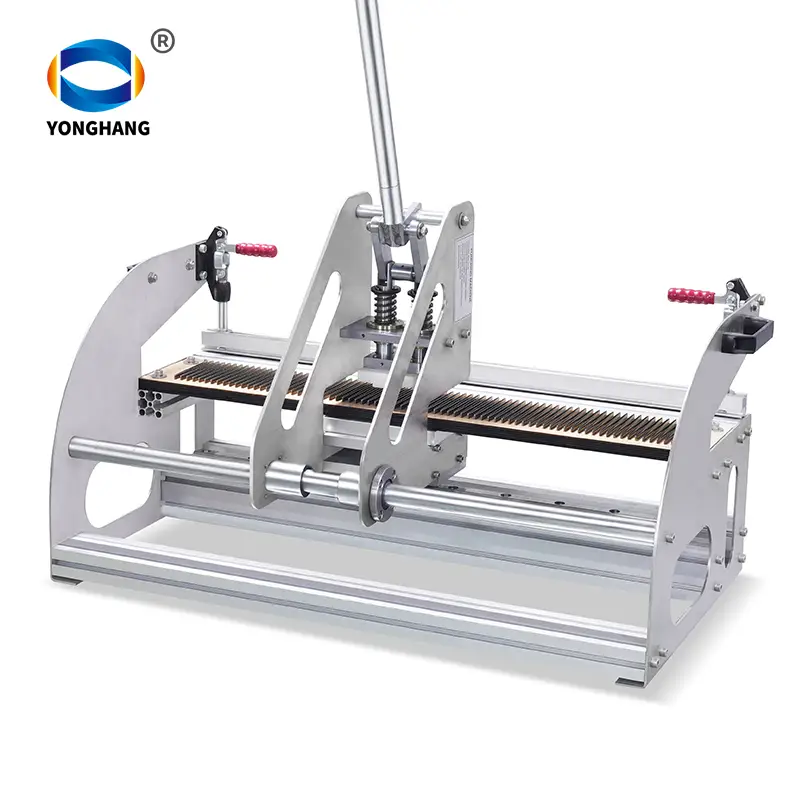

Automatic Pvc Pu Conveyor Belt Finger Cutting Machin High-accuracy Joint Teeth Punching
On the humming factory floor, this automatic PVC/PU conveyor belt finger-cutting machine slides into action, sculpting perfect interlocking teeth as if a master craftsman were at work. Its pump-driven gears and high‑accuracy punching tools operate with clockwork precision, producing flawless joints faster and more reliably than ever before. Robust, intuitive, and built for nonstop production, it turns a routine splice into a show of efficiency that raises output—and pride—across the line.
Precision Cuts, Durable Design
This automatic PVC/PU conveyor belt finger-cutting and joint-teeth punching machine provides high-accuracy cuts and consistent teeth for durable, leak-free splices that cut downtime and material waste. Its factory-grade pump-and-gear drive, precision tooling, and compact industrial-style frame ensure reliable high-throughput performance and seamless integration into production lines. Shipped in reinforced packaging and built from premium, corrosion-resistant components with responsive after-sales support, it delivers low-maintenance operation and long service life.
Automatic Precision Belt Joiner
This industrial automatic PVC/PU conveyor belt finger-cutting and joint-teeth punching machine combines a high-accuracy gear-driven pump with precision dies to deliver consistent, repeatable cuts for factory-scale production. Core attributes include automatic feed, adjustable tooth pitch and hardened steel tooling, while extended features such as modular guides, energy-efficient drive and low-maintenance design enhance uptime and adaptability. Value is realized through faster throughput, reduced material waste and labor costs, and a reinforced frame with precise adjustment mechanisms that ensure durable, long-term performance in demanding industrial environments.
Precision Finger Belt Cutter
This industrial automatic PVC/PU conveyor belt finger cutting machine combines a high-precision pump gear drive with an automated joint-teeth punching tool to produce accurate, durable finger splices. Heavy-duty construction and CNC-controlled mechanisms ensure consistent, repeatable cuts and punches for efficient factory-scale belt repair and manufacturing. User-friendly controls and adjustable settings minimize setup time and material waste while improving throughput and splice quality.
◎ product nicety 1
◎ product nicety 2
◎ product nicety 3
Precision Efficiency Durability Reliability
Crafted by an experienced factory team, this industrial automatic PVC/PU conveyor belt finger-cutting machine pairs a precision pump gear with a joint-teeth punching tool, delivering consistent, high-accuracy cuts for industrial belting applications. Designed for continuous production, it offers automated feeding, adjustable punch depth, synchronized gear drive and PLC control to form perfect finger joints quickly while reducing material waste. Key features and advantages include hardened steel dies for long life, a low‑maintenance modular design with safety interlocks and compact footprint, and measurable improvements in throughput and labor savings for demanding belt assembly lines.
Material introduction
The main frame and housing are built from heavy-duty steel with an anti-corrosion finish to provide rigidity and long service life. High-precision gears and the pump utilize hardened alloy tool steels while the joint-teeth punches are made from wear-resistant tool steel to retain sharpness when cutting PVC and PU conveyor belts. Critical components such as bearings and fasteners are stainless or high-grade alloys, and contact surfaces are treated or polished to reduce friction and contamination.
◎ Welded Alloy Steel
◎ Tungsten Carbide Blades
◎ Precision Gear Drive
FAQ
Features :
- Mechanical Finger Puncher Machine Optimised for the precise cutting of tooth profiles on industrial conveyor belts, it efficiently completes the machining of meshing tooth profiles required for belt drives.
- The Mechanical Finger Puncher Machine features a lightweight and compact design, equipped with convenient mobility components, enabling flexible relocation between different workstations in the workshop or on-site operations.
- Suitable for processing conveyor belts made from various polymer materials including PE, PVC, and PU. Adjustable parameters accommodate belts of multiple hardnesses and thicknesses.
- Features an ergonomic operating interface and mechanical structure, enabling new operators to swiftly master standard operating procedures after basic training.
- Utilises either a purely mechanical transmission structure or a mechanical-hydraulic system, delivering high operational stability and low maintenance requirements. Suitable for continuous operation across diverse industrial environments.
Product parameters:
| Model | YH-150-Z70 |
| Appearance dimensions | 1660*460*430 mm |
| Punch tooth size | 70mm*15mm |
| Travel distance | 1500mm |
| Material | Support is made of 304 white rust steel and aluminum |
| Weight | 89KG |
YONGHANG specializes in produce and custom coated transmission belts for 12 years.
