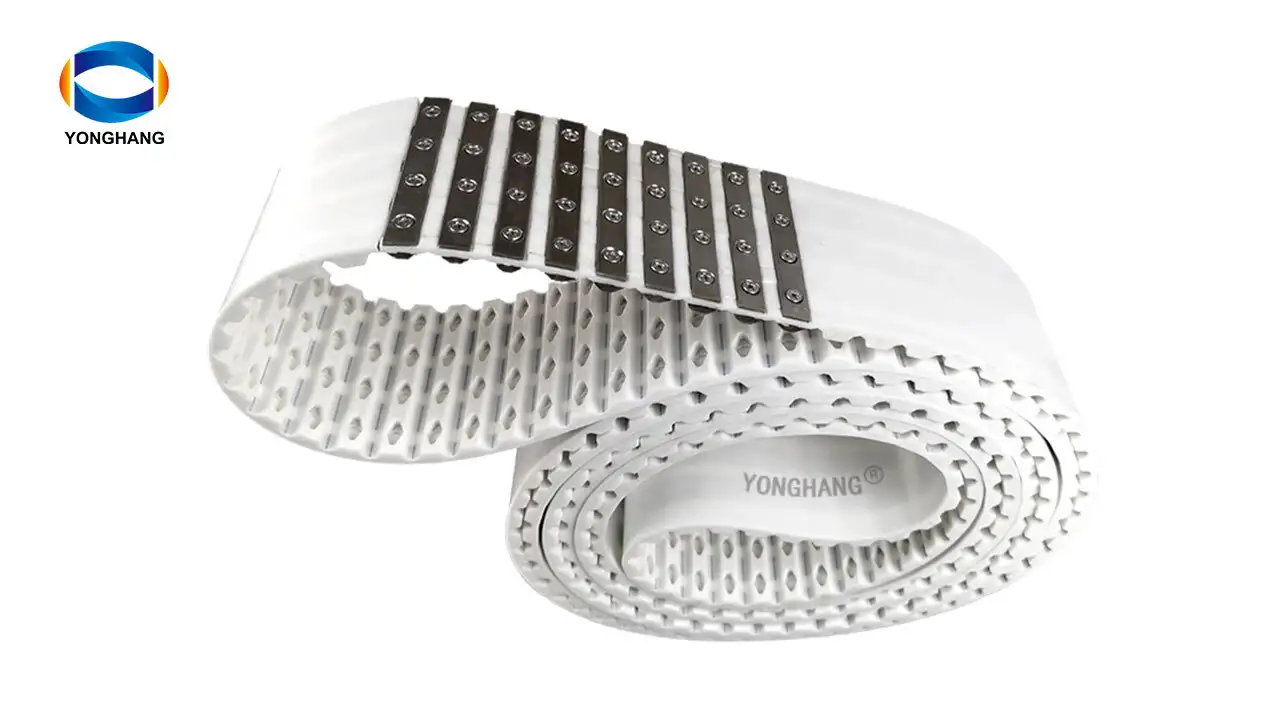

ATN20 pu timing belt with DC pro connector
ATN20 pu timing belt with DC pro connector

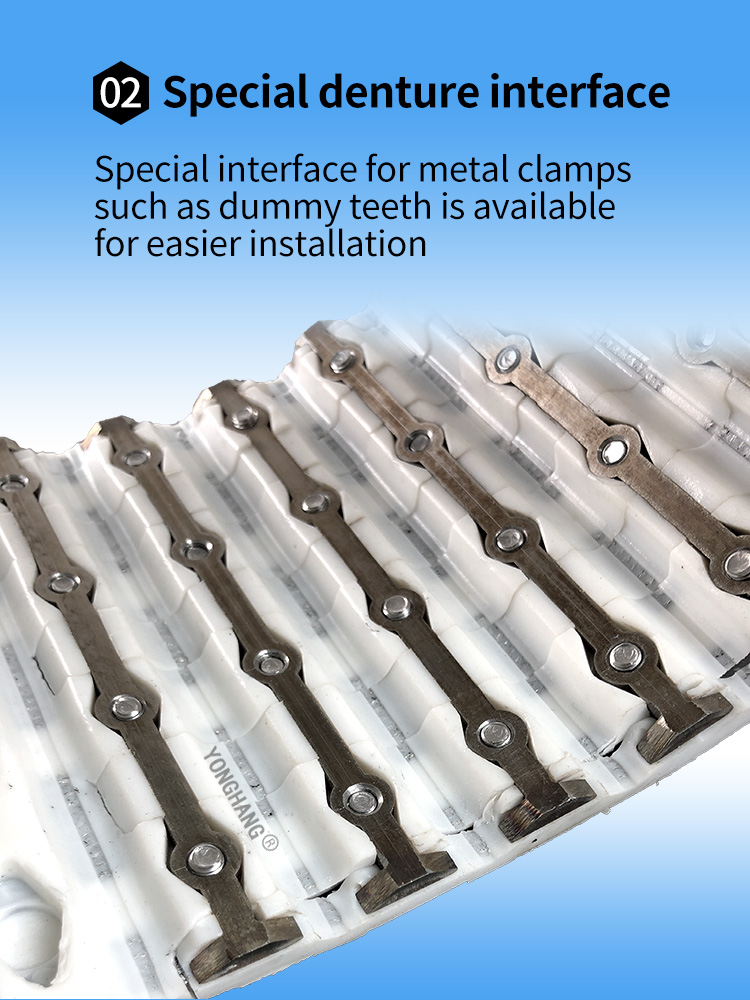

These connectors are like the Pin Join connector a mechanical connector, but only in combination with ATN timing belts.
In difference to the Pin Join connector this connector can be disassembled.
Description

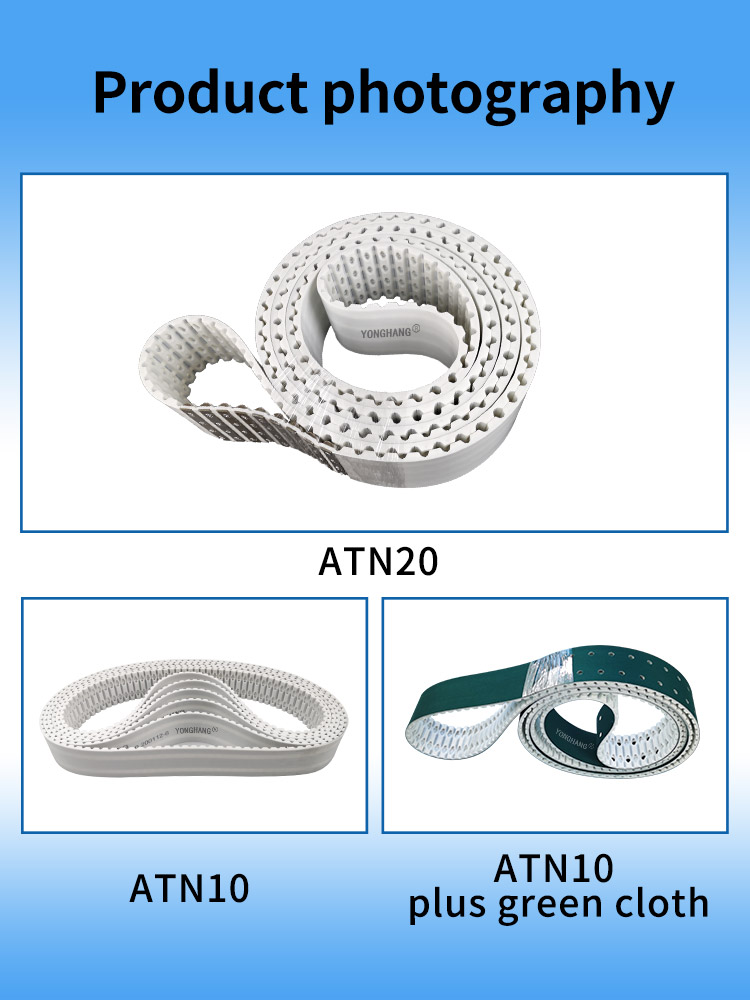

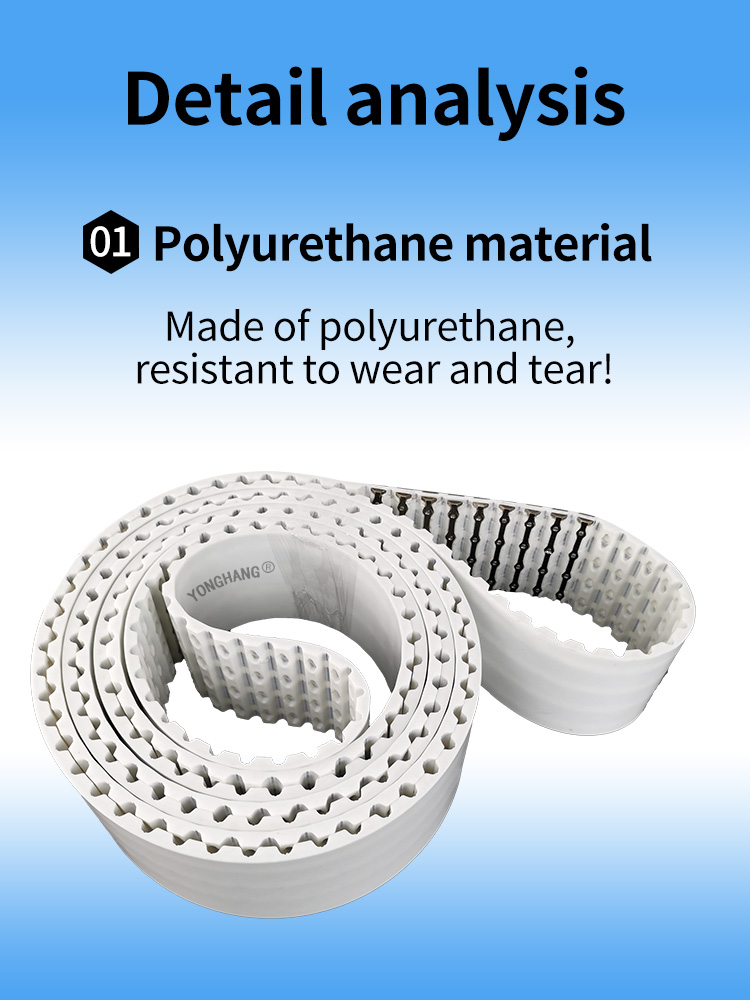

ATN polyurethane synchronous belts Truly Endless –YONGHAG usually consist of polyurethane body and steel cord, while custom materials available upon request. Special cords include aramid (kevlar), stainless steel and carbon fiber.

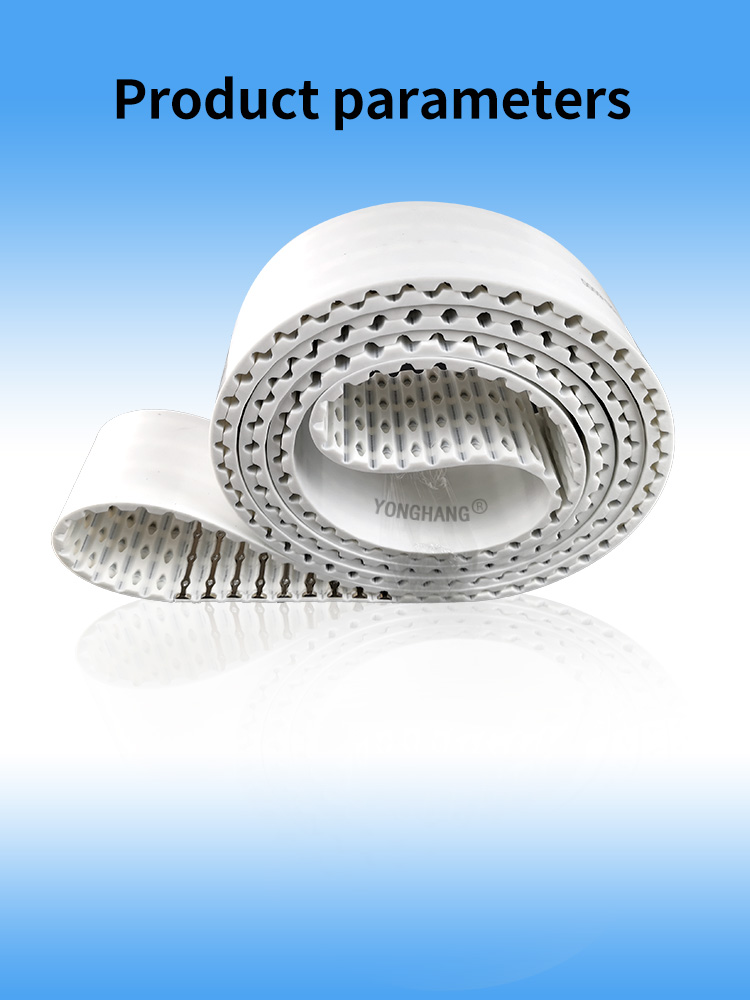

Part No.：100-ATN20-2600 Belt Type Truly Endless
Length [mm] :2600
Pitch [mm]: 20
Width [mm] :100
Number of Teeth: 130
Tooth Profile ATN Belt Type Closed Loop
Tensile Cord Steel Operating Temp C -30 Degrees ~ +90 Degrees C
Body Material PU Operating Temp F -22 Degrees ~ +194 Degrees F
Nylon Fabric PAR Cleats On Request
(Note: Custom pro connector and sizes available upon request)

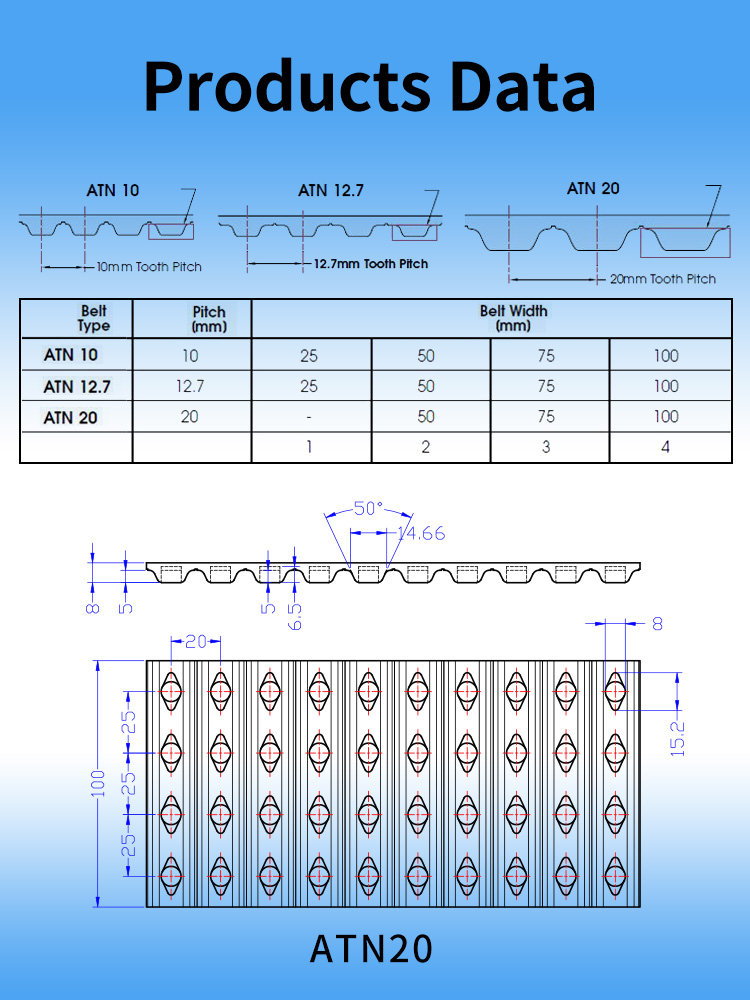

Standard Widths [mm]:
25, 50, 75, 100,125,150,200 mm
Standard Lengths [mm]:
Based on the pitch, the range is from 500mm to 18 meters.
- Year Established2014
- Business TypeFactory
- Country / RegionCHINA
- Main IndustryBearing Accessories
- Main Productshaul off belts, Pull down belts ,Rubber flat belt ,Coating timing belt,PU Timing belt ,ATM belt ,V belts,Rubber Timing belts,conveyer belts
- Enterprise Legal Personjunliang yang
- Total Employees201~1000 people
- Annual Output Value10000wUSD
- Export MarketChinese Mainland,European Union,Middle East,Eastern Europe,Latin America,Africa,Oceania,Hong Kong and Macao and Taiwan,Japan,Southeast Asia,America,Others
- Cooperated CustomersGates,Continental,Optibelt,synchroflex,nitta,bando,optibelt
YONGHANG specializes in produce and custom coated transmission belts for 12 years.
